Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

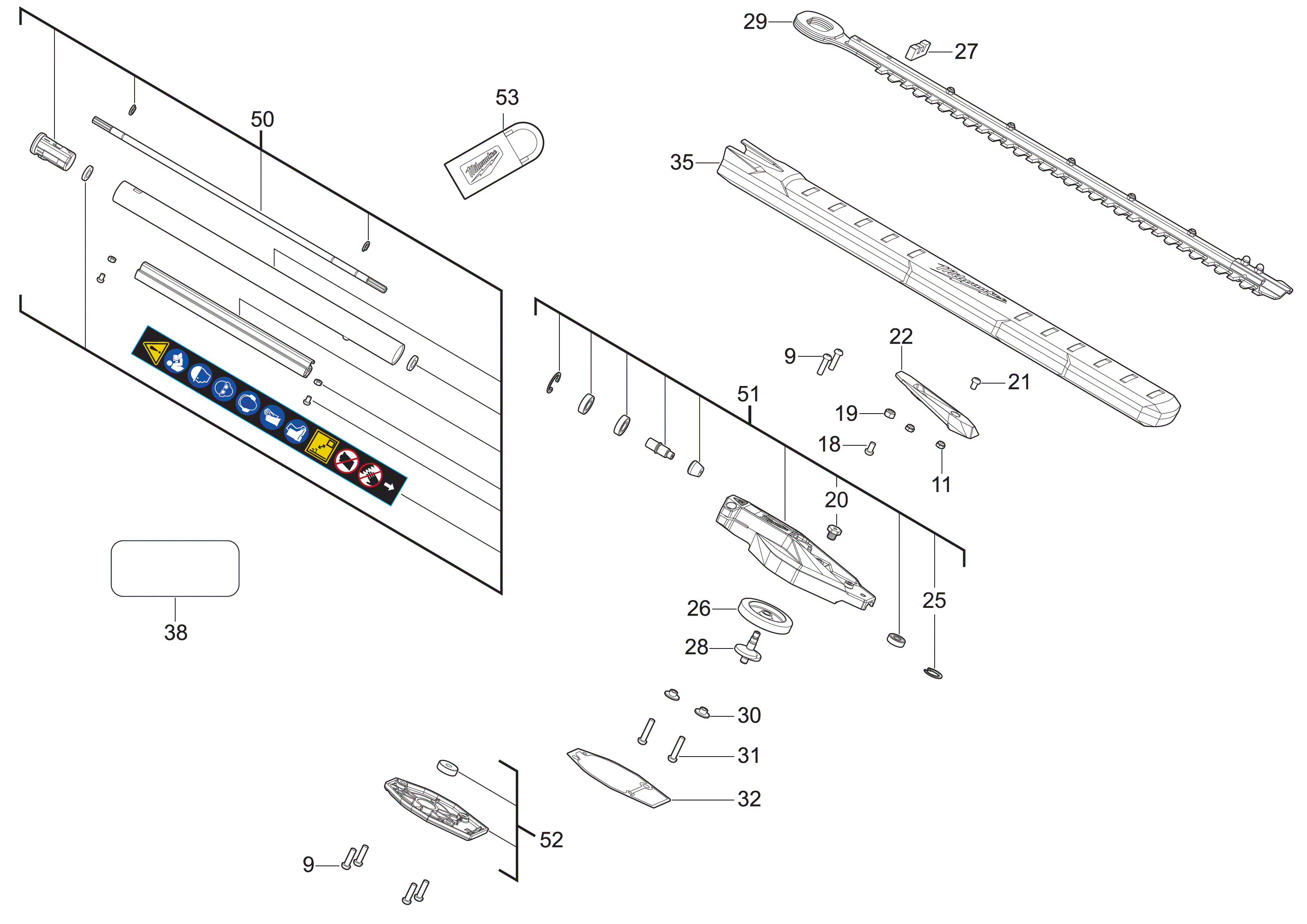

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0009 |
SCREW (6)
|
4931466683 |
1.00
|
|
|
0011 |
NUT (2)
|
4931461710 |
2.50
|
|
|
0018 |
SCREW (1)
|
4931466691 |
1.00
|
|
|
0019 |
NUT (1)
|
661348001 |
3.50
|
|
|
0020 |
SCREW (1)
|
4931494333 |
2.50
|
|
|
0021 |
SCREW (1)
|
4931466677 |
1.00
|
|
|
0022 |
COVER (1)
|
4931496122 |
3.00
|
|
|
0025 |
MOUNTING RING (1)
|
4931495412 |
1.00
|
|
|
0026 |
BEVEL GEAR (1)
|
4931496123 |
15.50
|
|
|
0027 |
SEAL (1)
|
4931496124 |
3.00
|
|
|
0028 |
CRANKSHAFT (1)
|
4931496125 |
20.50
|
|
|
0029 |
BLADE (1)
|
4931466896 |
58.00
|
|
|
0030 |
BUSHING (2)
|
4931496126 |
2.50
|
|
|
0031 |
SCREW (2)
|
4931480330 |
2.50
|
|
|
0032 |
SEAL (1)
|
4931496127 |
3.00
|
|
|
0035 |
SHAFT (1)
|
4931496128 |
15.00
|
|
|
0038 |
RATING PLATE (1)
|
4931496129 |
1.00
|
|
|
0050 |
TUBE (1)
|
4931496130 |
34.00
|
|
|
0051 |
GEAR CASE (1)
|
4931496131 |
45.00
|
|
|
0052 |
GEAR BOX COVER (1)
|
4931496132 |
27.50
|
|
|
0053 |
HOOK (1)
|
4931472309 |
4.00
|
|
