Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

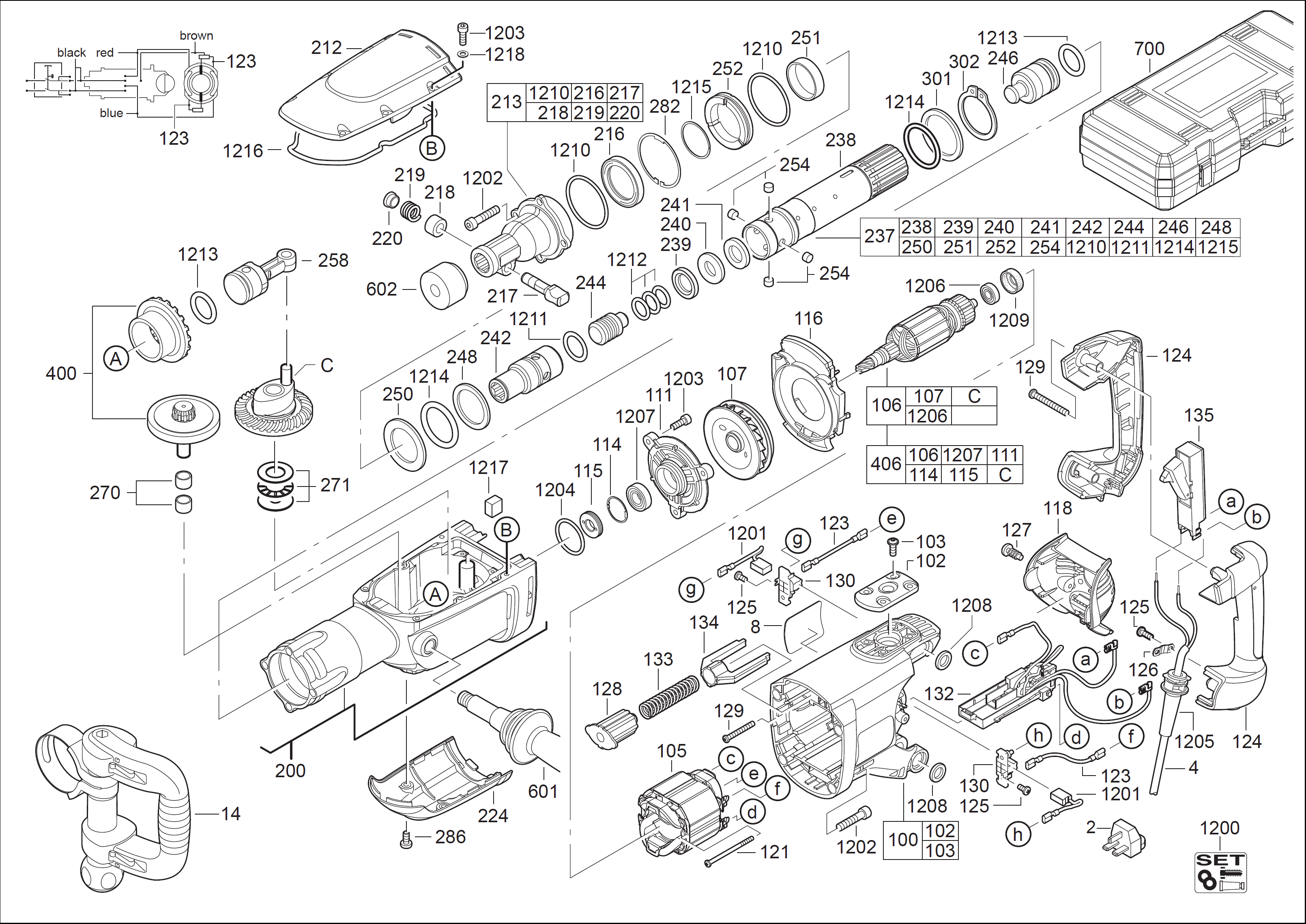

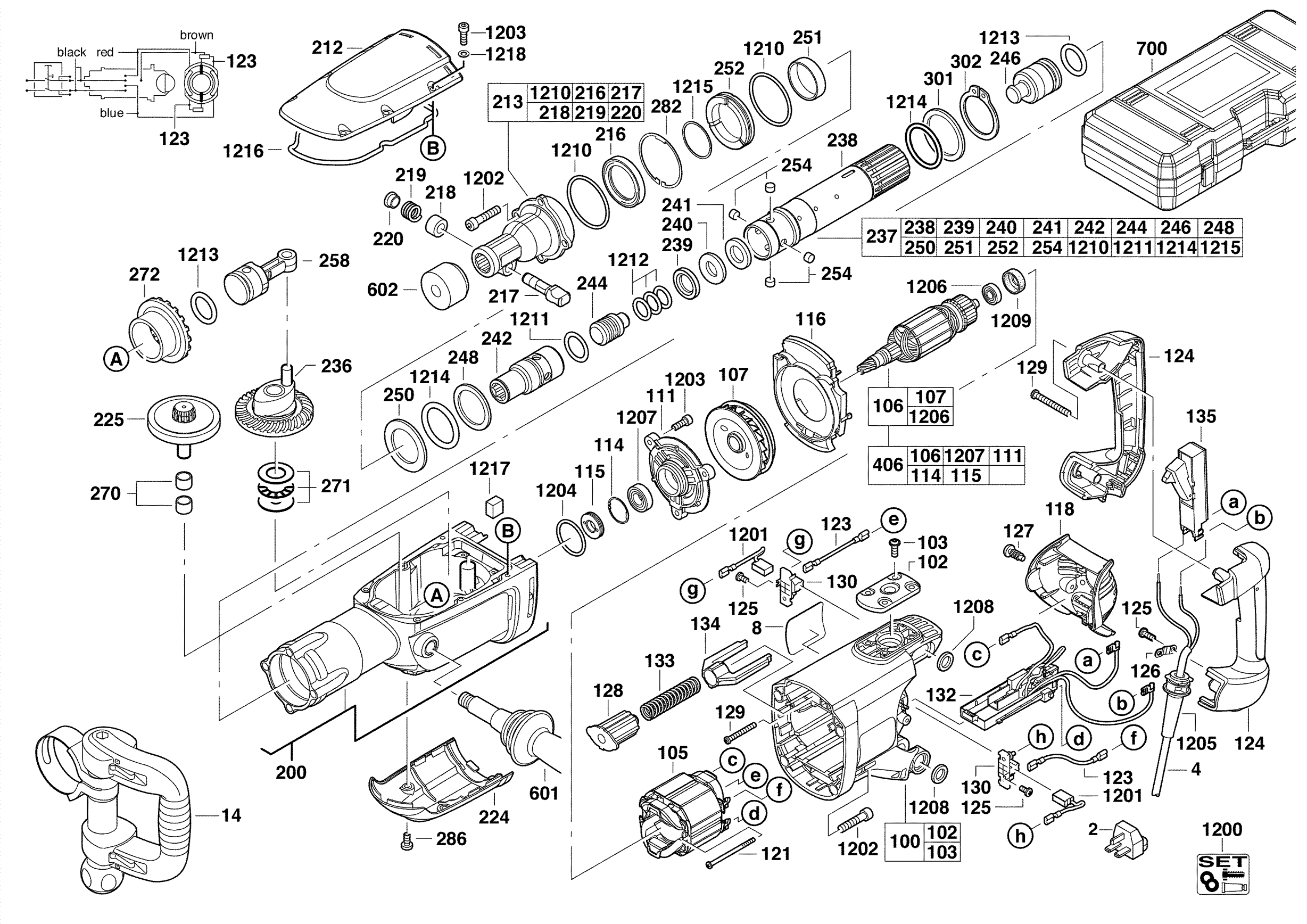

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0004 |
CONNECTION CABLE (1)
|
4931624696 |
24.00
|
|
|
0008 |
RATING PLATE (1)
|
4931417151 |
2.50
|
|
|
0014 |
HANDLE (1)
|
4931398534 |
51.00
|
|
|
0100 |
MOTOR HOUSING (1)
|
4931375740 |
52.00
|
|
|
0102 |
SECURED WASHER (1)
|
4931375531 |
18.00
|
|
|
0103 |
SCREW (4)
|
4931624213 |
2.50
|
|
|
0105 |
ELECTRIC FIELD (1)
|
4931442746 |
37.00
|
|
|
0106 |
REPAIR KIT (1)
|
4931432415 |
168.00
|
|
|
0107 |
FAN (1)
|
4931375474 |
13.00
|
|
|
0111 |
BEARING END PLATE (1)
|
4931426434 |
14.50
|
|
|
0114 |
LOCKING RING (1)
|
4931890311 |
3.50
|
|
|
0115 |
SEAL RING NUT (1)
|
4931375489 |
3.50
|
|
|
0116 |
AIR DEFLECTOR RING (1)
|
4931375515 |
5.00
|
|
|
0118 |
SERVICING LID (1)
|
4931375535 |
7.00
|
|
|
0121 |
SCREW (2)
|
4931339996 |
2.50
|
|
|
0123 |
WIRE (2)
|
4931624263 |
3.50
|
|
|
0124 |
PAIR HANDLE SHELLS (1)
|
4931375560 |
10.50
|
|
|
0125 |
SCREW (4)
|
4931624538 |
2.50
|
|
|
0126 |
CABLE COLLAR (1)
|
4931256500 |
3.50
|
|
|
0127 |
SCREW (2)
|
4931624537 |
2.50
|
|
|
0128 |
THRUST PIECE (1)
|
4931375477 |
3.00
|
|
|
0129 |
SCREW N874101-1 SHR C-K5X45/20 KOMBITORX (5)
|
4931622765 |
2.50
|
|
|
0130 |
BRUSH HOLDER (2)
|
4931381694 |
5.00
|
|
|
0132 |
ELECTRONIC (1)
|
4931409105 |
47.50
|
|
|
0133 |
PRESSURE SPRING (1)
|
4931375529 |
2.50
|
|
|
0134 |
TRANSITION PIECE (1)
|
4931375530 |
2.50
|
|
|
0135 |
SWITCH (1)
|
4931375454 |
22.00
|
|
|
0200 |
GEAR BOX (1)
|
4931412436 |
161.00
|
|
|
0212 |
GEAR BOX COVER (1)
|
4931426452 |
38.00
|
|
|
0213 |
TOOL ACCEPTANCE (1)
|
4931375510 |
119.50
|
|
|
0216 |
SEAL RING (1)
|
4931624205 |
3.50
|
|
|
0217 |
LATCH BAR (1)
|
4931384430 |
15.50
|
|
|
0218 |
SLEEVE (1)
|
4931409823 |
4.00
|
|
|
0219 |
SPRING (1)
|
9170032330 |
3.50
|
|
|
0220 |
LATCH BAR (1)
|
4931409822 |
5.50
|
|
|
0224 |
GEAR COVER (1)
|
4931375443 |
6.00
|
|
|
0236 |
CRANK WHEEL (1)
|
Item discontinued
(4931417306) |
|
|
|
0237 |
SPINDLE (1)
|
4931375802 |
193.50
|
|
|
0238 |
SPINDLE SLEEVE (1)
|
4931426172 |
73.50
|
|
|
0239 |
BACK-PRESSURE RING (1)
|
4931375411 |
6.50
|
|
|
0240 |
BACK-PRESSURE RING (1)
|
4931375412 |
3.50
|
|
|
0241 |
ATTACHMENT RING (1)
|
4931409791 |
4.00
|
|
|
0242 |
SLEEVE (1)
|
4931417723 |
36.00
|
|
|
0244 |
SNAP DIE (1)
|
4931375448 |
20.00
|
|
|
0246 |
PERCUSSION BODY (1)
|
4931455429 |
43.00
|
|
|
0248 |
ATTACHMENT RING (1)
|
4931375416 |
3.50
|
|
|
0250 |
WASHER (1)
|
4931375418 |
3.00
|
|
|
0251 |
BALL RACE (1)
|
4931375419 |
5.50
|
|
|
0252 |
THRUST COLLAR (1)
|
4931375420 |
5.50
|
|
|
0254 |
DRIVER (4)
|
4931463952 |
2.50
|
|
|
0258 |
PISTON COMPL. (1)
|
4931375380 |
9.50
|
|
|
0271 |
THRUST BEARING (1)
|
4931409549 |
7.50
|
|
|
0282 |
RETAINING RING (1)
|
4931624235 |
4.50
|
|
|
0286 |
SCREW (2)
|
4931624236 |
2.50
|
|
|
0301 |
ATTACHMENT RING (1)
|
4931375509 |
3.50
|
|
|
0302 |
RETAINING RING (1)
|
4931624203 |
3.50
|
|
|
0406 |
REPAIR KIT (1)
|
4931432416 |
171.00
|
|
|
0601 |
HANDLE (1)
|
4931375516 |
34.50
|
|
|
0602 |
DUST GUARD CAP (1)
|
9170086960 |
5.50
|
|
|
0700 |
CARRYING CASE (1)
|
Item discontinued
(4931400760) |
|
|
|
1200 |
MAINTENANCE SET (1)
|
4931375659 |
91.50
|
|
|
1201 |
CARBON BRUSH SET (1)
|
4931375556 |
12.50
|
|
|
1202 |
SCREW (8)
|
4931624234 |
2.50
|
|
|
1203 |
SCREW D 912 M5X16 8.8SSI (9)
|
4931624276 |
2.50
|
|
|
1204 |
SEAL RING (1)
|
4931624237 |
3.50
|
|
|
1205 |
PROTECTING COVER (1)
|
4931392174 |
3.50
|
|
|
1206 |
BALL BEARING (1)
|
4931341741 |
5.50
|
|
|
1207 |
GROOVED BALL BEAR. (1)
|
4931398189 |
6.00
|
|
|
1208 |
SEAL RING (4)
|
4931624170 |
3.50
|
|
|
1209 |
RUBBER SLEEVE (1)
|
4931317212 |
2.50
|
|
|
1210 |
SEAL RING N874701 28X5 (2)
|
4931624156 |
3.50
|
|
|
1211 |
SEAL RING N874701 28X5 (1)
|
4931624161 |
3.50
|
|
|
1212 |
SEAL RING N874701 28X5 (3)
|
4931624155 |
3.50
|
|
|
1213 |
SEAL RING N874701 28X5 (2)
|
4931624158 |
3.50
|
|
|
1214 |
SEAL RING N874701 28X5 (2)
|
4931624157 |
3.50
|
|
|
1215 |
SPRING RING N874268 SW 20 (1)
|
4931624153 |
3.50
|
|
|
1216 |
GASKET (1)
|
4931375506 |
3.50
|
|
|
1217 |
FELT (1)
|
4931375508 |
3.00
|
|
|
1218 |
SEALING WASHER (6)
|
4931603515 |
2.50
|
|
