Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

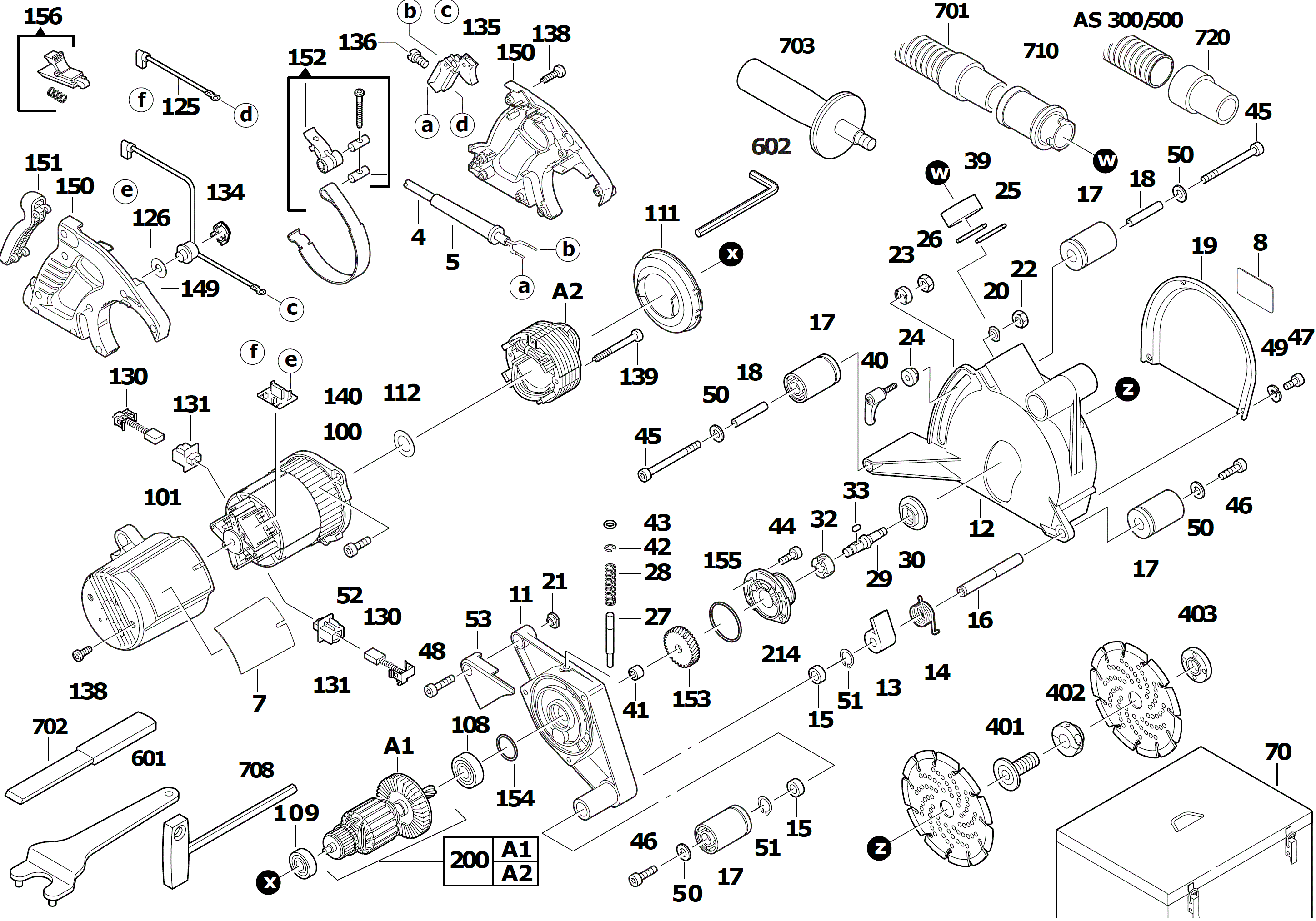

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0004 |
CONNECTION CABLE (1)
|
Item discontinued
(4931383611) |
|
|
|
0005 |
CABLE CLAMP (1)
|
Item discontinued
(44760050) |
|
|
|
0007 |
TYPE PLATE (1)
|
Item discontinued
(12990005) |
|
|
|
0008 |
TYPE PLATE (1)
|
4931378806 |
4.50
|
|
|
0011 |
DRIVING PLATE (1)
|
4931413244 |
87.00
|
|
|
0012 |
GUARD CAP (1)
|
4931413247 |
94.00
|
|
|
0013 |
COVER (1)
|
4931383375 |
4.50
|
|
|
0014 |
SPRING (1)
|
4931383376 |
6.00
|
|
|
0015 |
BUSH (2)
|
4931383377 |
3.50
|
|
|
0016 |
AXLE (1)
|
4931383378 |
12.50
|
|
|
0017 |
ROLL (4)
|
4931383379 |
4.50
|
|
|
0018 |
AXLE (2)
|
4931383384 |
3.50
|
|
|
0019 |
COVER PLATE (1)
|
4931383381 |
29.50
|
|
|
0020 |
WASHER (1)
|
4931383382 |
2.50
|
|
|
0021 |
SPACER (1)
|
4931383383 |
3.00
|
|
|
0022 |
NUT D 985 M 6 GAL (1)
|
4931616196 |
2.50
|
|
|
0023 |
WASHER (1)
|
4931383386 |
2.50
|
|
|
0024 |
BUSH (1)
|
4931383385 |
3.50
|
|
|
0025 |
RULER THRUST (1)
|
4931383387 |
4.00
|
|
|
0026 |
NUT D 934 M 6 (1)
|
4931621674 |
3.50
|
|
|
0027 |
LOCKING ROD (1)
|
4931383388 |
6.50
|
|
|
0028 |
PRESSURE SPRING (1)
|
4931383389 |
3.00
|
|
|
0029 |
DRIVING SHAFT (1)
|
4931383390 |
57.00
|
|
|
0030 |
CLAMPING FLANGE (1)
|
4931348960 |
3.50
|
|
|
0032 |
BUSH (1)
|
4931383392 |
16.50
|
|
|
0033 |
KEY (1)
|
4931383393 |
3.50
|
|
|
0039 |
SLEEVE (1)
|
4931383395 |
12.50
|
|
|
0040 |
CLAMPING LEVER (1)
|
4931383499 |
18.00
|
|
|
0041 |
NEEDLE BEARING N874989 HK 1010 (1)
|
4931943567 |
6.00
|
|
|
0042 |
SHAFT CLIP (1)
|
4931621973 |
3.50
|
|
|
0043 |
O-RING (1)
|
4931383396 |
2.50
|
|
|
0044 |
SCREW (4)
|
4931383397 |
2.50
|
|
|
0045 |
SCREW D 912 M 4X10 SSI (2)
|
4931624384 |
2.50
|
|
|
0046 |
SCREW D912 M6X12 (2)
|
4931607021 |
3.00
|
|
|
0047 |
SCREW (3)
|
Item discontinued
(4931383399) |
|
|
|
0048 |
SCREW D 912 M 4X10 SSI (1)
|
4931624382 |
2.50
|
|
|
0049 |
SPRING WASHER (3)
|
4931623799 |
2.50
|
|
|
0050 |
SEALING WASHER (4)
|
4931615511 |
2.50
|
|
|
0051 |
RING D471 12X1 (2)
|
4931605142 |
4.50
|
|
|
0052 |
SCREW (3)
|
Item discontinued
(4931383504) |
|
|
|
0053 |
COVER (1)
|
4931385349 |
3.00
|
|
|
0100 |
HOUSING (1)
|
31500050 |
46.00
|
|
|
0101 |
BONNET (1)
|
Item discontinued
(4931383613) |
|
|
|
0108 |
BALL BEARING (1)
|
4931435723 |
6.00
|
|
|
0109 |
BALL BEARING (1)
|
02040847 |
6.00
|
|
|
0111 |
AIR DEFLECTOR RING (1)
|
31050045 |
5.00
|
|
|
0112 |
WASHER (1)
|
45880577 |
2.50
|
|
|
0125 |
CABLE (1)
|
Item discontinued
(23941180) |
|
|
|
0126 |
SWITCH (1)
|
Item discontinued
(4931385373) |
|
|
|
0130 |
CARBON BRUSH (2)
|
22180085 |
5.00
|
|
|
0131 |
BRUSH HOLDER (2)
|
22220030 |
4.00
|
|
|
0134 |
SWITCH RETAINER (1)
|
4931385599 |
3.00
|
|
|
0135 |
SWITCH (1)
|
23662117 |
16.00
|
|
|
0136 |
SCREW (4)
|
Item discontinued
(05890045) |
|
|
|
0138 |
SCREW (10)
|
06827270 |
2.50
|
|
|
0139 |
PART NOT DEATAILED (1)
|
1000063920 |
|
|
|
0140 |
CAPACITOR (1)
|
14201325 |
11.00
|
|
|
0149 |
SEALING WASHER (1)
|
4931383422 |
2.50
|
|
|
0150 |
HANDLE COMPL. (1)
|
Item discontinued
(4931383614) |
|
|
|
0151 |
HANDLE (1)
|
Item discontinued
(44520682) |
|
|
|
0152 |
STRIP-BAND (1)
|
4931383615 |
16.00
|
|
|
0153 |
GEAR (1)
|
4931383616 |
29.50
|
|
|
0154 |
O-RING (1)
|
34401375 |
2.50
|
|
|
0155 |
O-RING (1)
|
34401380 |
2.50
|
|
|
0156 |
SLIDER (1)
|
4931383617 |
2.50
|
|
|
0200 |
MOTOR ASSEMBLY (1)
|
290302004 |
105.00
|
|
|
0214 |
BEARING END PLATE (1)
|
4931393224 |
8.50
|
|
|
0401 |
Location bolt (1)
|
4931383394 |
16.50
|
|
|
0402 |
CLAMPING NUT (1)
|
4931449262 |
81.50
|
|
|
0403 |
ADJUSTING LOCK (1)
|
4931449351 |
38.50
|
|
|
0602 |
SCREW DRIVER (1)
|
4931606753 |
2.50
|
|
|
0708 |
T-SPANNER (1)
|
4931362928 |
6.00
|
|
|
0720 |
NOSEPIECE (1)
|
4931419658 |
14.00
|
|
|
0070 |
CARRY.C.W.COVER BOX MET (1)
|
4931487373 |
252.00
|
|
|
0601 |
PIN SPANNER WS(A) P1 A/M (1)
|
4932371469 |
6.70
|
|
|
0701 |
TUYAU ASPIRATION 4M (1)
|
4932334704 |
|
|
|
0702 |
BREAK-OUT CHISEL DME P1 AEG (1)
|
Item discontinued
(4932371358) |
|
|
|
0703 |
HANDLE 180-230/WP/WSA P1A/M (1)
|
4931433531 |
11.00
|
|
|
0710 |
ADAPTER DME P1 AEG (1)
|
4932362778 |
27.40
|
|
