Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

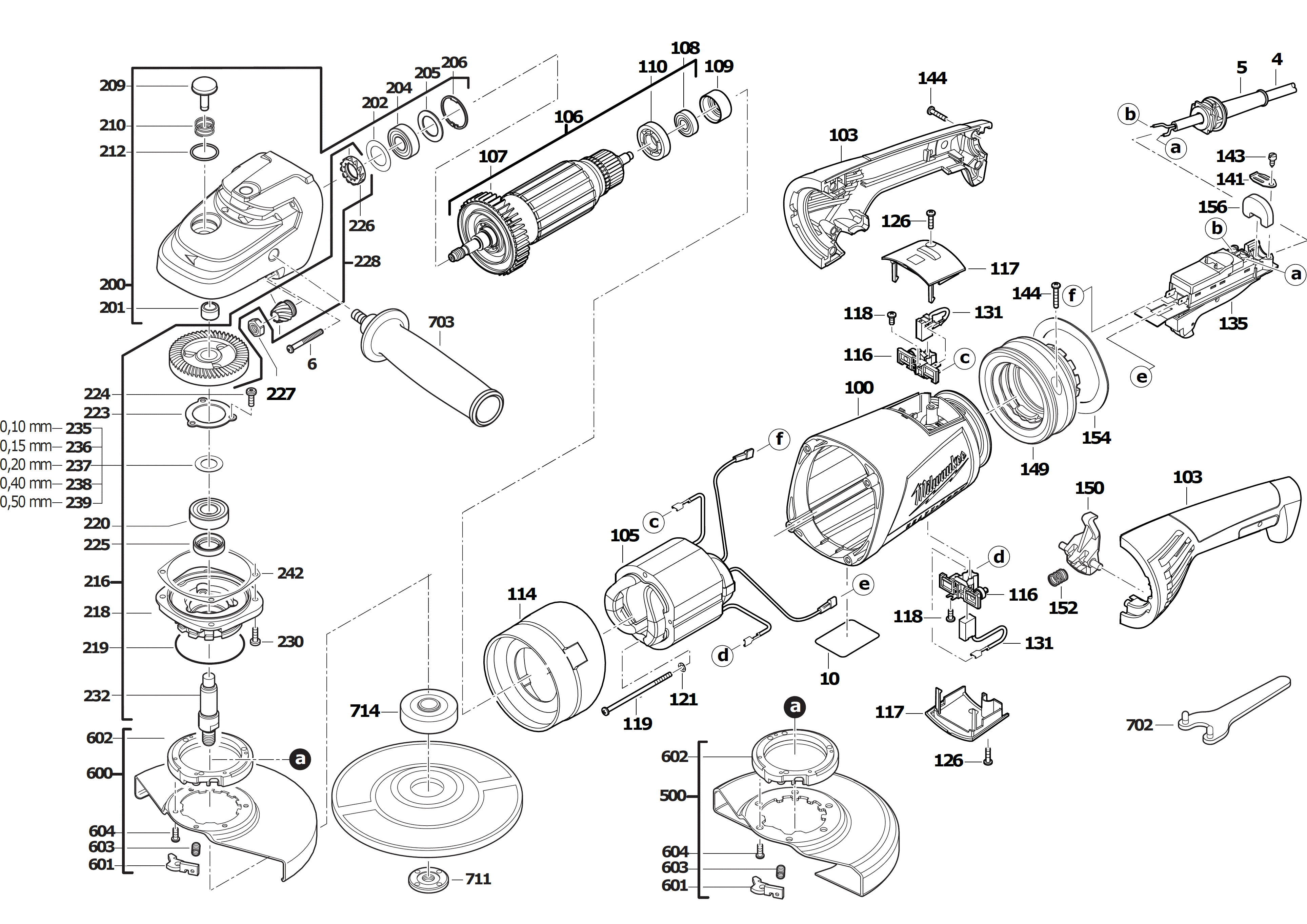

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0004 |
CONNECTION CABLE (1)
|
4931455392 |
18.00
|
|
|
0005 |
PROTECTING COVER (1)
|
4931387206 |
3.00
|
|
|
0006 |
SCREW N874101-1 SHR C-K5X45/20 KOMBITORX (4)
|
4931622765 |
2.50
|
|
|
0010 |
RATING PLATE (1)
|
4931476897 |
2.50
|
|
|
0100 |
MOTOR HOUSING (1)
|
4931402268 |
15.50
|
|
|
0103 |
SWITCH HANDLE (1)
|
4931402176 |
10.50
|
|
|
0105 |
ELECTRIC FIELD (1)
|
4931476826 |
75.00
|
|
|
0106 |
ARMATURE (1)
|
4931442695 |
85.50
|
|
|
0107 |
FAN (1)
|
4931334394 |
3.50
|
|
|
0108 |
BALL BEARING (1)
|
4931341741 |
5.50
|
|
|
0109 |
RUBBER SLEEVE (1)
|
4931329086 |
2.50
|
|
|
0110 |
SEAL RING (1)
|
4931402219 |
3.00
|
|
|
0114 |
AIR DEFLECTOR RING (1)
|
4931402269 |
3.00
|
|
|
0116 |
BRUSH HOLDER (2)
|
4931381694 |
5.00
|
|
|
0117 |
COVER (2)
|
4931402169 |
3.00
|
|
|
0118 |
SCREW (2)
|
4931624538 |
2.50
|
|
|
0119 |
SCREW (2)
|
4931331734 |
2.50
|
|
|
0121 |
SPRING WASHER D 137 B 4 (2)
|
4931619992 |
2.50
|
|
|
0126 |
SCREW (2)
|
4931624537 |
2.50
|
|
|
0131 |
CARBON BRUSH SET (1)
|
4931369479 |
12.50
|
|
|
0135 |
SWITCH (1)
|
4931476613 |
34.50
|
|
|
0141 |
CABLE COLLAR (1)
|
4931329273 |
3.00
|
|
|
0143 |
SCREW (1)
|
4931624537 |
2.50
|
|
|
0144 |
SCREW (6)
|
4931618253 |
2.50
|
|
|
0149 |
DAMPER (1)
|
4931455265 |
17.00
|
|
|
0150 |
LATCH (1)
|
4931476616 |
3.50
|
|
|
0152 |
PRESSURE SPRING (1)
|
4931402039 |
3.50
|
|
|
0154 |
SPRING WASHER (1)
|
4931402029 |
1.00
|
|
|
0156 |
DUST SEAL (1)
|
4931402286 |
3.50
|
|
|
0200 |
GEAR BOX (1)
|
4931402161 |
63.00
|
|
|
0201 |
SLEEVE (1)
|
4931621981 |
5.00
|
|
|
0202 |
DISC N874237 22,5X35X0,3 (1)
|
4931621629 |
3.00
|
|
|
0204 |
BALL BEARING (1)
|
4931624305 |
6.50
|
|
|
0205 |
DISC (1)
|
4931622897 |
3.00
|
|
|
0206 |
LOCKING RING (1)
|
4931334400 |
3.00
|
|
|
0209 |
LOCKING BOLT (1)
|
4931402166 |
3.50
|
|
|
0210 |
PRESSURE SPRING (1)
|
4931329173 |
3.00
|
|
|
0212 |
O-RING (1)
|
4931622764 |
2.50
|
|
|
0216 |
DRIVE GEAR (1)
|
4931402546 |
86.00
|
|
|
0218 |
GEAR ENDPLATE (1)
|
4931407540 |
32.00
|
|
|
0219 |
SEAL RING (1)
|
4931624672 |
3.50
|
|
|
0220 |
BEARING (1)
|
9170316990 |
5.00
|
|
|
0223 |
BEARING COVER (1)
|
4931402150 |
3.00
|
|
|
0224 |
SCREW D 7500 M 3X12 (3)
|
4931624147 |
2.50
|
|
|
0225 |
RUBBER SLEEVE (1)
|
4931279734 |
3.50
|
|
|
0226 |
GREASE RETAIN.DISC (1)
|
4931329178 |
3.00
|
|
|
0227 |
NUT (1)
|
4931329494 |
3.50
|
|
|
0228 |
BEVEL GEAR PAIR (1)
|
4931409592 |
34.50
|
|
|
0230 |
SCREW D 7500 M 3X12 (4)
|
4931624147 |
2.50
|
|
|
0232 |
SPINDLE (1)
|
4931409816 |
8.50
|
|
|
0235 |
WASHER N874237 (1)
|
4931623312 |
2.50
|
|
|
0236 |
DISC (1)
|
4931624701 |
3.00
|
|
|
0237 |
COMPENSATING WASHER (1)
|
4931622747 |
2.50
|
|
|
0238 |
WASHER (1)
|
4931624591 |
2.50
|
|
|
0239 |
DISC N874237 18X27,9X0,5 (1)
|
4931941094 |
3.00
|
|
|
0242 |
GASKET (1)
|
4931329150 |
3.50
|
|
|
0500 |
CUTTING GUARD (1)
|
4931428099 |
25.50
|
|
|
0600 |
GUARD CAP (1)
|
4931426625 |
19.00
|
|
|
0601 |
CATCH LEVER (1)
|
201256002 |
12.50
|
|
|
0602 |
FLANGE (1)
|
4931402063 |
4.00
|
|
|
0603 |
PRESSURE SPRING (1)
|
4931402089 |
3.00
|
|
|
0604 |
SCREW (5)
|
4931624491 |
2.50
|
|
|
0702 |
PIN SPANNER 115-230/WP/WSAP1 A/M (1)
|
4932367712 |
6.80
|
|
|
0703 |
HANDLE (1)
|
4931398251 |
18.50
|
|
|
0711 |
FLANGE NUT M14 3MM P1 A/M (1)
|
4932345628 |
8.20
|
|
|
0714 |
AUTOBALANCER (1)
|
4931402435 |
56.00
|
|
