Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

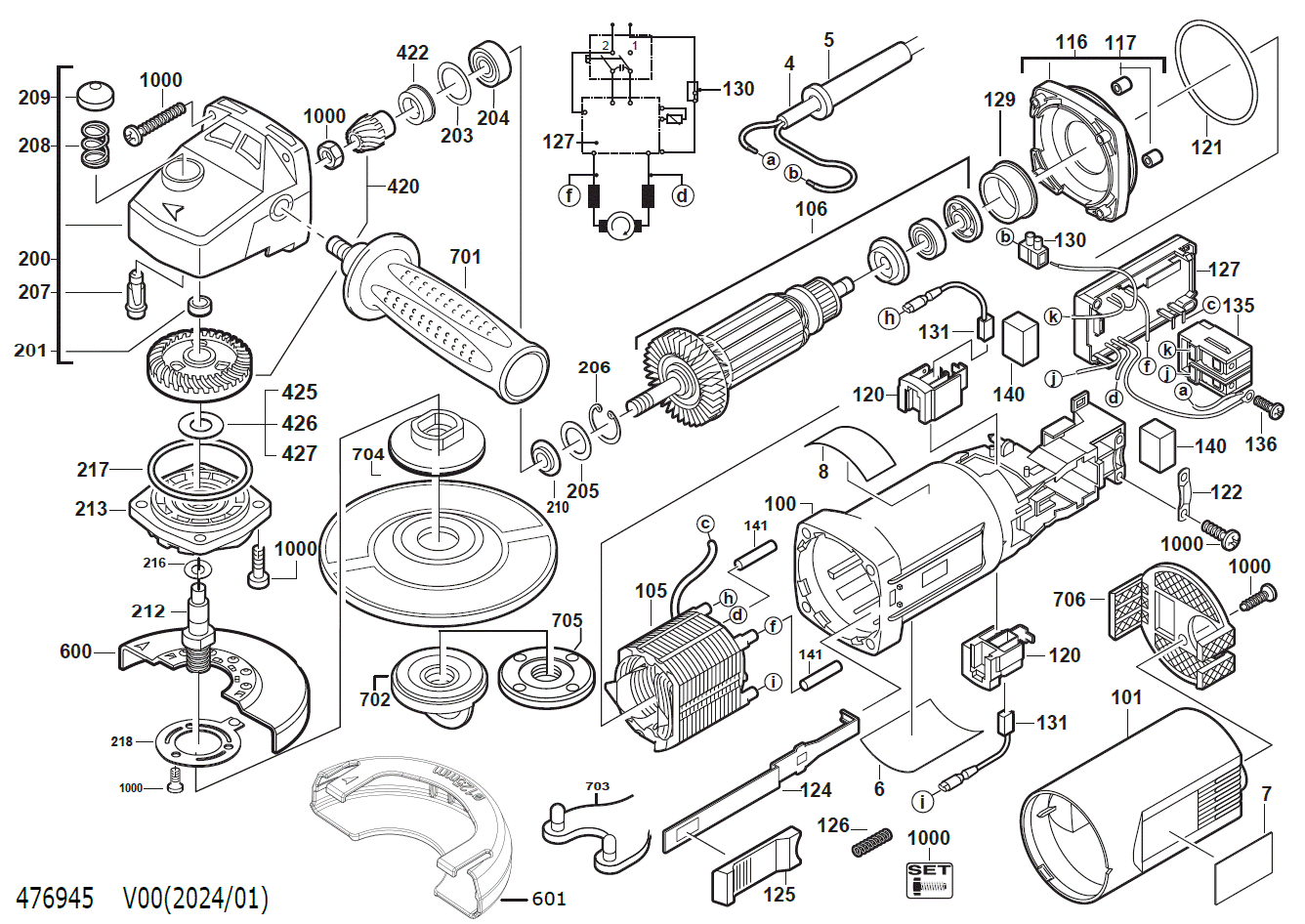

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0004 |
CONNECTION CABLE (1)
|
4931623861 |
12.00
|
|
|
0005 |
CABLE ENTRY SLEEVE (1)
|
4931218785 |
3.50
|
|
|
0006 |
RATING PLATE (1)
|
4931476947 |
1.00
|
|
|
0007 |
NAME PLATE (1)
|
4931382311 |
2.50
|
|
|
0008 |
STICKER (1)
|
4931442232 |
2.50
|
|
|
0100 |
MOTOR HOUSING (1)
|
4931442820 |
22.00
|
|
|
0101 |
HOUSING CAP (1)
|
4931407395 |
4.00
|
|
|
0105 |
ELECTRIC FIELD (1)
|
4931442729 |
29.50
|
|
|
0106 |
ARMATURE (1)
|
4931442661 |
51.50
|
|
|
0116 |
INTERMEDIATE FLANGE (1)
|
4931369787 |
3.50
|
|
|
0117 |
HOLDING-DOWN DEVICE (2)
|
4931409768 |
4.50
|
|
|
0120 |
BRUSH HOLDER (2)
|
4931407433 |
7.00
|
|
|
0121 |
SEAL RING (1)
|
4931623590 |
3.50
|
|
|
0122 |
CABLE COLLAR (1)
|
4931256500 |
3.50
|
|
|
0124 |
GUIDE PIECE (1)
|
4931326959 |
3.50
|
|
|
0125 |
SLIDER (1)
|
4931455746 |
3.00
|
|
|
0126 |
PRESSURE SPRING (1)
|
4931326981 |
3.50
|
|
|
0127 |
ELECTRONIC ELEMENT (1)
|
4931455148 |
58.50
|
|
|
0129 |
BEARING SLEEVE (1)
|
4931326953 |
4.50
|
|
|
0130 |
TERMINAL STRIP (1)
|
4931341008 |
3.50
|
|
|
0131 |
CARBON BRUSH SET (1)
|
4931381391 |
12.00
|
|
|
0135 |
SWITCH (1)
|
4931407397 |
9.00
|
|
|
0136 |
SCREW D 85 AM 3,5X5 (1)
|
4931617313 |
2.50
|
|
|
0140 |
DUST SEAL (1)
|
4931407396 |
3.00
|
|
|
0141 |
HOSE (1)
|
4931407486 |
3.00
|
|
|
0200 |
GEAR BOX (1)
|
4931412193 |
32.00
|
|
|
0201 |
SLEEVE N874989 HKO 0810 (1)
|
4931912093 |
3.50
|
|
|
0203 |
WASHER (1)
|
4931362085 |
2.50
|
|
|
0204 |
GROOVED BALL BEAR. (1)
|
4931368037 |
5.00
|
|
|
0205 |
DISC (1)
|
4931622761 |
3.50
|
|
|
0206 |
LOCKING RING (1)
|
4931616614 |
3.50
|
|
|
0207 |
LOCKING BOLT (1)
|
4931326929 |
3.50
|
|
|
0208 |
PRESSURE SPRING (1)
|
4931326942 |
3.50
|
|
|
0209 |
PUSH-BUTTON (1)
|
4931326930 |
3.50
|
|
|
0210 |
WASHER (1)
|
4931624287 |
2.50
|
|
|
0212 |
SPINDLE (1)
|
4931476243 |
5.50
|
|
|
0213 |
BEARING END PLATE (1)
|
4931378310 |
6.50
|
|
|
0216 |
DISC (1)
|
4931623480 |
3.50
|
|
|
0217 |
SEAL RING (1)
|
4931623590 |
3.50
|
|
|
0218 |
SPRING WASHER (1)
|
4931345965 |
2.50
|
|
|
0420 |
BEVEL GEAR PAIR (1)
|
4931407037 |
50.00
|
|
|
0422 |
WASHER (1)
|
4931362086 |
2.50
|
|
|
0425 |
DISC N874237 12,2X22X0,1 (1)
|
4931808473 |
3.50
|
|
|
0426 |
DISC N874237 12,2X22X0,2 (1)
|
4931925940 |
3.50
|
|
|
0427 |
DISC (1)
|
4931624256 |
3.50
|
|
|
0600 |
GUARD CAP (1)
|
4931476532 |
10.00
|
|
|
0601 |
CUTTING GUARD (1)
|
4931476533 |
53.00
|
|
|
0701 |
HANDLE (1)
|
4932409546 |
11.00
|
|
|
0702 |
FIXTEC NUT P1 (1)
|
Item discontinued
(4932352473) |
|
|
|
0703 |
PIN SPANNER 115-230/WP/WSAP1 A/M (1)
|
4932367712 |
6.80
|
|
|
0704 |
CLAMPING FLANGE WS115-230 (1)
|
4932449324 |
6.70
|
|
|
0705 |
FLANGE NUT M14 3MM P1 A/M (1)
|
4932345628 |
8.20
|
|
|
0706 |
DUST PROTEC. GRILLE WS125-150 P1 AEG (1)
|
4932329397 |
11.90
|
|
|
1000 |
CONNECTION SET (1)
|
4931407948 |
8.50
|
|
To select the correct EU-Declaration of Conformity, please check the first 8 digits on your rating plate and match them with the corresponding EU-Declaration of Conformity document that has the same numbers in its title.
