Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

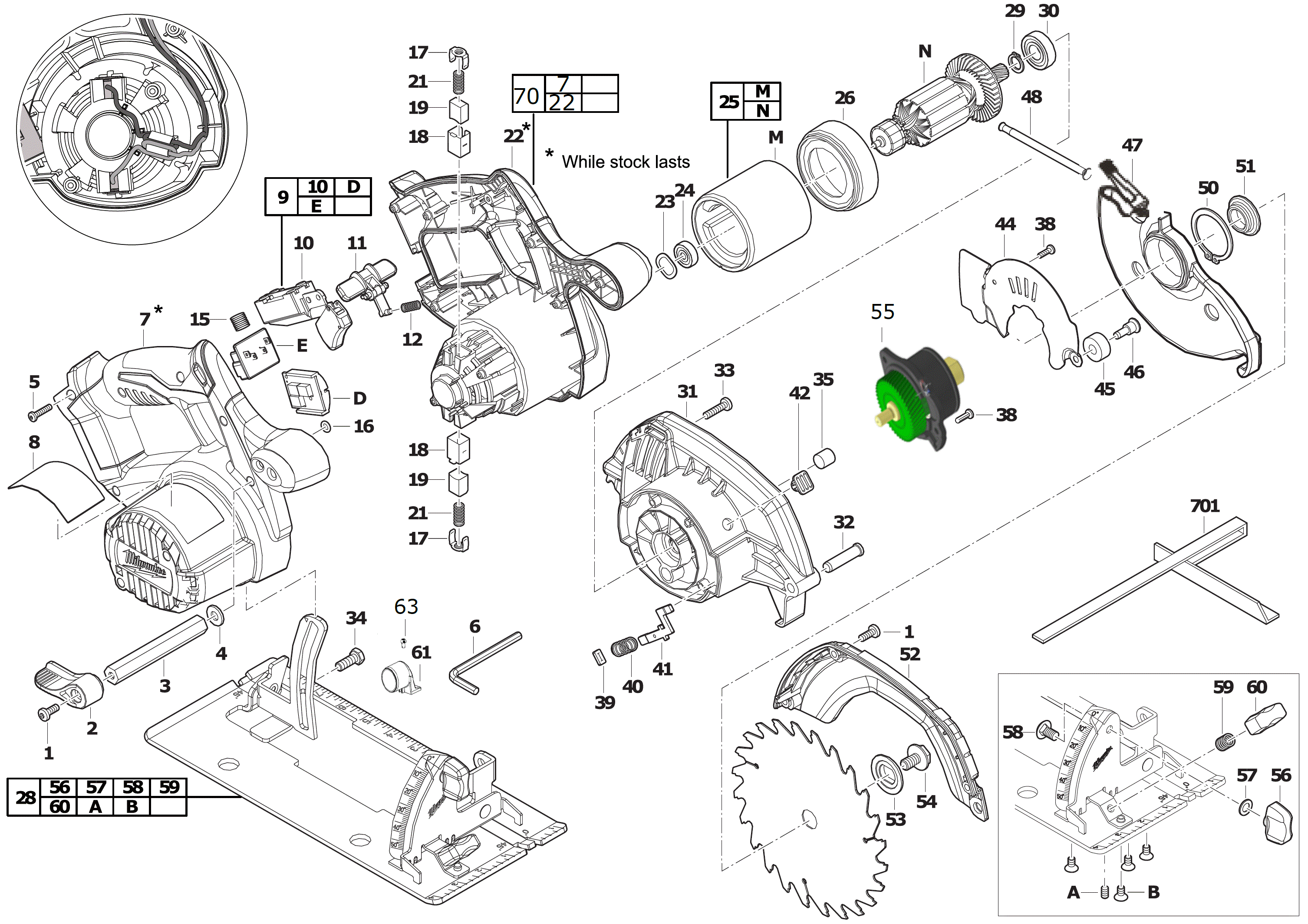

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0001 |
SCREW (4)
|
200546005 |
3,50
|
|
|
0002 |
REBATE DEPTH GAUGE (1)
|
200937003 |
2,50
|
|
|
0003 |
DEPTH GAUGE (1)
|
201172001 |
3,00
|
|
|
0004 |
WASHER (1)
|
201076002 |
3,50
|
|
|
0005 |
SCREW (1)
|
200546006 |
2,50
|
|
|
0006 |
ALLEN KEY (1)
|
201173001 |
4,00
|
|
|
0007 |
RIGHT HANDLE HALF (1)
|
4931473716 |
15,50
|
|
|
0008 |
RATING PLATE (1)
|
4931473717 |
2,50
|
|
|
0009 |
SWITCH RETAINER (1)
|
4931473718 |
55,00
|
|
|
0010 |
SWITCH (1)
|
760245005 |
12,00
|
|
|
0011 |
DRILL OFF BUTTON (1)
|
Item discontinued
(4931404989) |
|
|
|
0012 |
SPRING (1)
|
200550003 |
2,50
|
|
|
0015 |
SPRING (1)
|
200550004 |
3,50
|
|
|
0016 |
O-RING (1)
|
201255002 |
3,00
|
|
|
0017 |
SPRING 2pcs (1)
|
201245002 |
4,50
|
|
|
0018 |
CARBON HOLDER (2) (1)
|
200882003 |
5,00
|
|
|
0019 |
CARBON BRUSH SET (1)
|
4931433504 |
14,50
|
|
|
0021 |
SPRING (2) (1)
|
200550005 |
3,00
|
|
|
0022 |
LEFT HANDLE HALF (1)
|
Item discontinued
(4931473719) |
|
|
|
0023 |
WASHER (1)
|
Item discontinued
(201166001) |
|
|
|
0024 |
BALL BEARING (1)
|
200716002 |
4,00
|
|
|
0025 |
MOTOR (1)
|
290147067 |
56,50
|
|
|
0026 |
COVER (1)
|
201165001 |
3,00
|
|
|
0028 |
GROUND PLATE (1)
|
201275002 |
40,00
|
|
|
0029 |
REDUCTION ADAPTER (1)
|
201074002 |
4,00
|
|
|
0030 |
BALL BEARING (1)
|
200716003 |
4,00
|
|
|
0031 |
GEAR BOX HOUSING (1)
|
4931473720 |
37,50
|
|
|
0032 |
PIN (1)
|
Item discontinued
(201167001) |
|
|
|
0033 |
SCREW (1)
|
200546002 |
2,50
|
|
|
0034 |
SCREW (1)
|
200546003 |
2,50
|
|
|
0035 |
BUSHING (1)
|
4931473721 |
2,50
|
|
|
0038 |
SCREW (1)
|
Item discontinued
(200546004) |
|
|
|
0039 |
FELT (1)
|
201273002 |
3,00
|
|
|
0040 |
SPRING (1)
|
200550002 |
2,50
|
|
|
0041 |
SPINDLE LOCK (1)
|
200979002 |
5,00
|
|
|
0042 |
LOCKING PIECE (1)
|
200541002 |
4,00
|
|
|
0044 |
LATCH PLATE (1)
|
201271002 |
4,00
|
|
|
0045 |
STOP (1)
|
201184001 |
3,50
|
|
|
0046 |
SCREW (1)
|
Item discontinued
(200546007) |
|
|
|
0047 |
GUARD CAP (1)
|
4931473722 |
11,50
|
|
|
0048 |
SPRING (1)
|
200550006 |
4,50
|
|
|
0050 |
REDUCTION ADAPTER (1)
|
201074003 |
3,00
|
|
|
0051 |
FLANGE (1)
|
201175001 |
6,50
|
|
|
0052 |
GUARD CAP (1)
|
Item discontinued
(201176001) |
|
|
|
0053 |
FLANGE (1)
|
201181001 |
5,50
|
|
|
0054 |
SCREW (1)
|
200546008 |
5,00
|
|
|
0055 |
GEAR UNIT (1)
|
200589004 |
41,50
|
|
|
0056 |
WING NUT (1)
|
201058002 |
6,00
|
|
|
0057 |
WASHER (1)
|
Item discontinued
(201076003) |
|
|
|
0058 |
SCREW (1)
|
201182001 |
4,00
|
|
|
0059 |
SPRING (1)
|
200550007 |
2,50
|
|
|
0060 |
WING NUT (1)
|
201058003 |
2,50
|
|
|
0061 |
DUST EXTR.CONNECTOR (1)
|
4931427383 |
3,50
|
|
|
0063 |
SCREW (1)
|
4931473723 |
2,50
|
|
|
0070 |
HOUSING (1)
|
4931480722 |
32,00
|
|
|
0701 |
PARALLEL GUIDE (1)
|
43300100 |
6,00
|
|
