Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

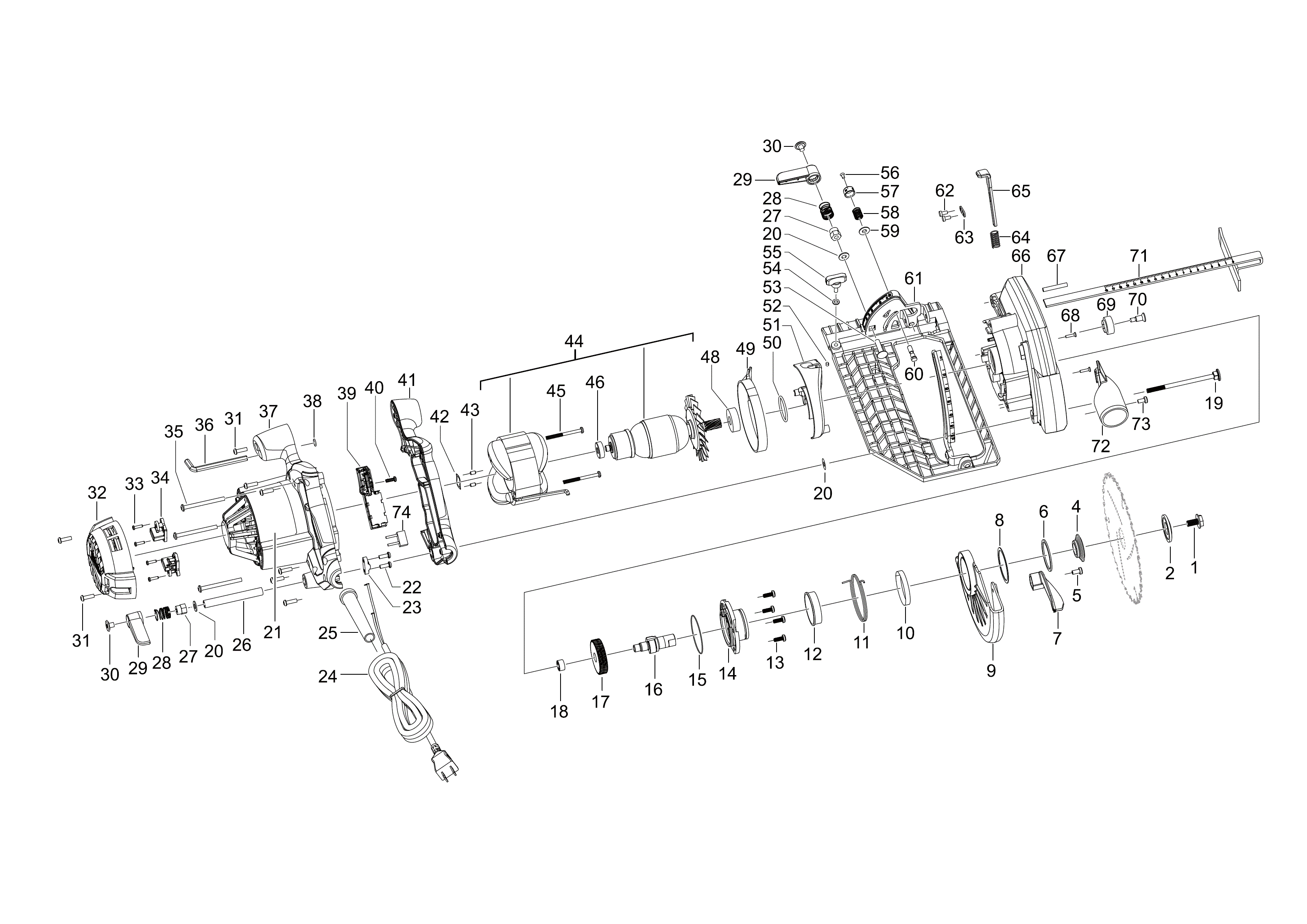

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0001 |
SCREW (1)
|
660988001 |
2.50
|
|
|
0002 |
FLANGE (1)
|
692256001 |
4.00
|
|
|
0004 |
FLANGE (1)
|
692254001 |
5.00
|
|
|
0005 |
SCREW (1)
|
Item discontinued
(660151005) |
|
|
|
0006 |
RETAINING RING (1)
|
680778003 |
4.00
|
|
|
0007 |
LEVER (1)
|
519250002 |
2.50
|
|
|
0008 |
WASHER (1)
|
631876003 |
3.50
|
|
|
0009 |
BUSH (1)
|
641519004 |
20.00
|
|
|
0010 |
BUSH (1)
|
Item discontinued
(632371003) |
|
|
|
0011 |
SPRING (1)
|
692038003 |
3.50
|
|
|
0012 |
BUSH (1)
|
514310001 |
4.00
|
|
|
0013 |
SCREW (1)
|
Item discontinued
(660997001) |
|
|
|
0014 |
GUARD (1)
|
516867002 |
9.00
|
|
|
0015 |
O-RING (1)
|
561489001 |
2.50
|
|
|
0016 |
SPINDLE (1)
|
620536001 |
12.50
|
|
|
0017 |
PINION (1)
|
610641001 |
10.00
|
|
|
0018 |
NEEDLE BEARING (1)
|
671774002 |
2.50
|
|
|
0019 |
BOLT (1)
|
660842001 |
2.50
|
|
|
0020 |
WASHER (1)
|
Item discontinued
(691142001) |
|
|
|
0021 |
RATING PLATE (1)
|
4931448483 |
3.00
|
|
|
0022 |
SCREW (1)
|
660024045 |
2.00
|
|
|
0023 |
CLAMP (1)
|
Item discontinued
(590501001) |
|
|
|
0024 |
CONNECTION CABLE (1)
|
4931436429 |
17.50
|
|
|
0025 |
CABLE ENTRY SLEEVE (1)
|
561487001 |
2.50
|
|
|
0026 |
SPINDLE (1)
|
631686001 |
4.00
|
|
|
0027 |
NUT (1)
|
660841002 |
2.50
|
|
|
0028 |
PRESSURE SPRING (1)
|
681035001 |
3.50
|
|
|
0029 |
LEVER (1)
|
513965004 |
2.50
|
|
|
0030 |
SCREW (1)
|
660993002 |
2.50
|
|
|
0031 |
SCREW (1)
|
660982001 |
2.50
|
|
|
0032 |
COVER (1)
|
351257001 |
3.50
|
|
|
0033 |
SCREW (1)
|
660203060 |
2.50
|
|
|
0034 |
CARBON BRUSH (2)
|
290365001 |
7.00
|
|
|
0035 |
SCREW (1)
|
Item discontinued
(661153002) |
|
|
|
0036 |
SPANNER (1)
|
681231001 |
3.50
|
|
|
0037 |
MOTOR HOUSING (1)
|
521255001 |
17.50
|
|
|
0038 |
O-RING (1)
|
Item discontinued
(562326001) |
|
|
|
0039 |
SWITCH (1)
|
760405005 |
12.00
|
|
|
0040 |
SCREW (1)
|
Item discontinued
(660208037) |
|
|
|
0041 |
HOUSING (1)
|
521256001 |
7.00
|
|
|
0042 |
SPRING (1)
|
Item discontinued
(681108001) |
|
|
|
0043 |
PLUG (1)
|
550339001 |
4.00
|
|
|
0044 |
MOTOR (1)
|
4931448524 |
120.50
|
|
|
0045 |
SCREW (1)
|
Item discontinued
(660986001) |
|
|
|
0046 |
BALL BEARING (1)
|
681100001 |
6.00
|
|
|
0048 |
BALL BEARING (1)
|
4931435723 |
6.00
|
|
|
0049 |
COVER (1)
|
516847002 |
3.00
|
|
|
0050 |
O-RING (1)
|
561488001 |
2.50
|
|
|
0051 |
SPRING (1)
|
516848002 |
2.00
|
|
|
0052 |
SCREW (1)
|
Item discontinued
(660066005) |
|
|
|
0053 |
BOLT (1)
|
Item discontinued
(660858003) |
|
|
|
0054 |
SPRING WASHER (1)
|
Item discontinued
(671237002) |
|
|
|
0055 |
LOCKING BOLT (1)
|
511129004 |
4.00
|
|
|
0056 |
SCREW (1)
|
661197002 |
1.58
|
|
|
0057 |
COVER (1)
|
340061002 |
3.50
|
|
|
0058 |
SPRING (1)
|
681036001 |
2.50
|
|
|
0059 |
WASHER (1)
|
513967001 |
2.50
|
|
|
0060 |
PIN (1)
|
631687001 |
3.50
|
|
|
0061 |
BASE PLATE (1)
|
302431005 |
34.50
|
|
|
0062 |
SCREW (1)
|
Item discontinued
(660208094) |
|
|
|
0063 |
CLAMP (1)
|
Item discontinued
(632425001) |
|
|
|
0064 |
SPRING (1)
|
Item discontinued
(692037001) |
|
|
|
0065 |
SPINDLE LOCK (1)
|
633375001 |
3.50
|
|
|
0066 |
GUARD CAP (1)
|
641280002 |
39.50
|
|
|
0067 |
ROLL (1)
|
Item discontinued
(680980004) |
|
|
|
0068 |
SCREW (1)
|
Item discontinued
(660204009) |
|
|
|
0069 |
RUBBER STOP (1)
|
561984001 |
1.00
|
|
|
0070 |
SCREW (1)
|
Item discontinued
(661245002) |
|
|
|
0071 |
STOP (1)
|
633402001 |
7.00
|
|
|
0072 |
ADAPTER (1)
|
519211001 |
3.50
|
|
|
0073 |
SCREW (1)
|
660165011 |
2.50
|
|
|
0074 |
CAPACITOR (1)
|
290244021 |
4.50
|
|
|
0090 |
CARBON BRUSH SET (1)
|
4931511235 |
10.00
|
|
