Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

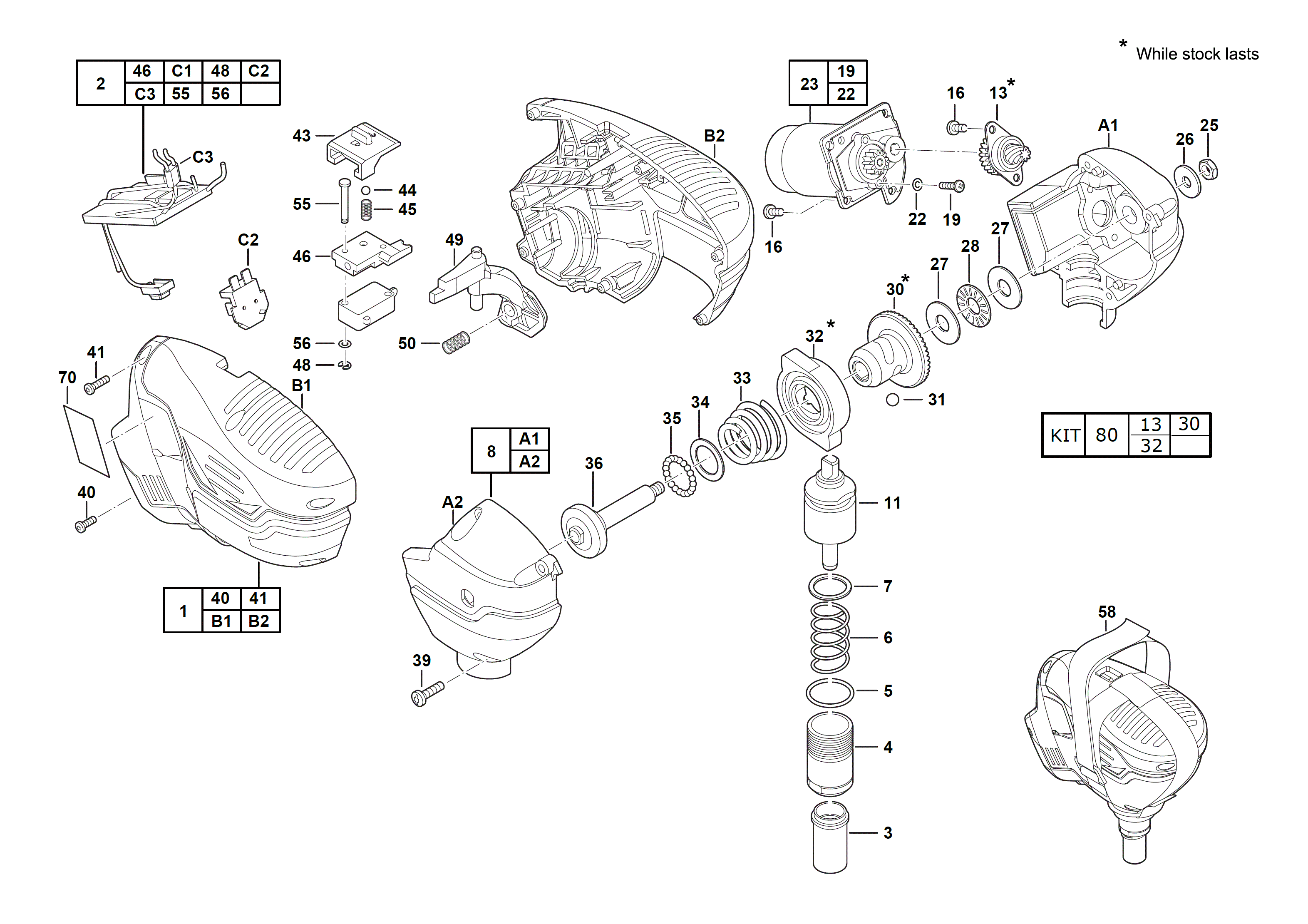

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0001 |
HOUSING (1)
|
Item discontinued
(4931431707) |
|
|
|
0002 |
SWITCH ASSEMBLY (1)
|
Item discontinued
(4931431708) |
|
|
|
0003 |
COLLET (1)
|
201643001 |
11.00
|
|
|
0004 |
THREADED SLEEVE (1)
|
Item discontinued
(692681001) |
|
|
|
0005 |
O-RING (1)
|
562589001 |
2.50
|
|
|
0006 |
PRESSURE SPRING (1)
|
692729001 |
3.50
|
|
|
0007 |
WASHER (1)
|
680335079 |
2.50
|
|
|
0008 |
GEAR BOX (1)
|
201637001 |
26.50
|
|
|
0011 |
ANVIL (1)
|
201639001 |
19.00
|
|
|
0013 |
BEVEL GEAR (1)
|
Item discontinued
(304096002) |
|
|
|
0016 |
SCREW (1)
|
660165015 |
2.50
|
|
|
0019 |
SCREW (1)
|
660211021 |
1.00
|
|
|
0022 |
SPRING WASHER (1)
|
670028003 |
1.00
|
|
|
0023 |
MOTOR ASSEMBLY (1)
|
201638001 |
21.00
|
|
|
0025 |
NUT (1)
|
Item discontinued
(661348001) |
|
|
|
0026 |
SPRING WASHER (1)
|
633510001 |
1.00
|
|
|
0027 |
AXIAL WASHER (1)
|
633575001 |
1.00
|
|
|
0028 |
NEEDLE BEARING (1)
|
681284001 |
2.00
|
|
|
0030 |
BEVEL GEAR (1)
|
201641001 |
33.00
|
|
|
0031 |
BALL (1)
|
4931453238 |
2.50
|
|
|
0032 |
EXCENTER (1)
|
Item discontinued
(621140004) |
|
|
|
0033 |
PRESSURE SPRING (1)
|
692118006 |
1.00
|
|
|
0034 |
WASHER 24x17,8x0,8 (1)
|
680335077 |
2.50
|
|
|
0035 |
BALL (1)
|
670221001 |
2.50
|
|
|
0036 |
THREADED BOLT (1)
|
621186001 |
6.00
|
|
|
0039 |
SCREW (1)
|
661061001 |
1.00
|
|
|
0040 |
SCREW (1)
|
660230016 |
3.00
|
|
|
0041 |
SCREW (1)
|
660570005 |
3.00
|
|
|
0043 |
LOCK RELEASE KIT (1)
|
522088001 |
3.50
|
|
|
0044 |
BALL (1)
|
670220001 |
2.50
|
|
|
0045 |
SPRING (1)
|
692729003 |
1.00
|
|
|
0046 |
SWITCH LEVER (1)
|
522087001 |
1.00
|
|
|
0048 |
PROTECTION WASHER (1)
|
692780001 |
1.00
|
|
|
0049 |
TRIGGER (1)
|
522086001 |
1.00
|
|
|
0050 |
PRESSURE SPRING (1)
|
692729002 |
1.00
|
|
|
0055 |
BOLT (1)
|
673011001 |
1.00
|
|
|
0056 |
WASHER (1)
|
633584001 |
1.00
|
|
|
0058 |
STRAP (1)
|
902528002 |
6.00
|
|
|
0070 |
RATING PLATE (1)
|
Item discontinued
(4931431709) |
|
|
|
0080 |
SERVICE-KIT (1)
|
4931506083 |
45.00
|
|
To select the correct EU-Declaration of Conformity, please check the first 8 digits on your rating plate and match them with the corresponding EU-Declaration of Conformity document that has the same numbers in its title.
