Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

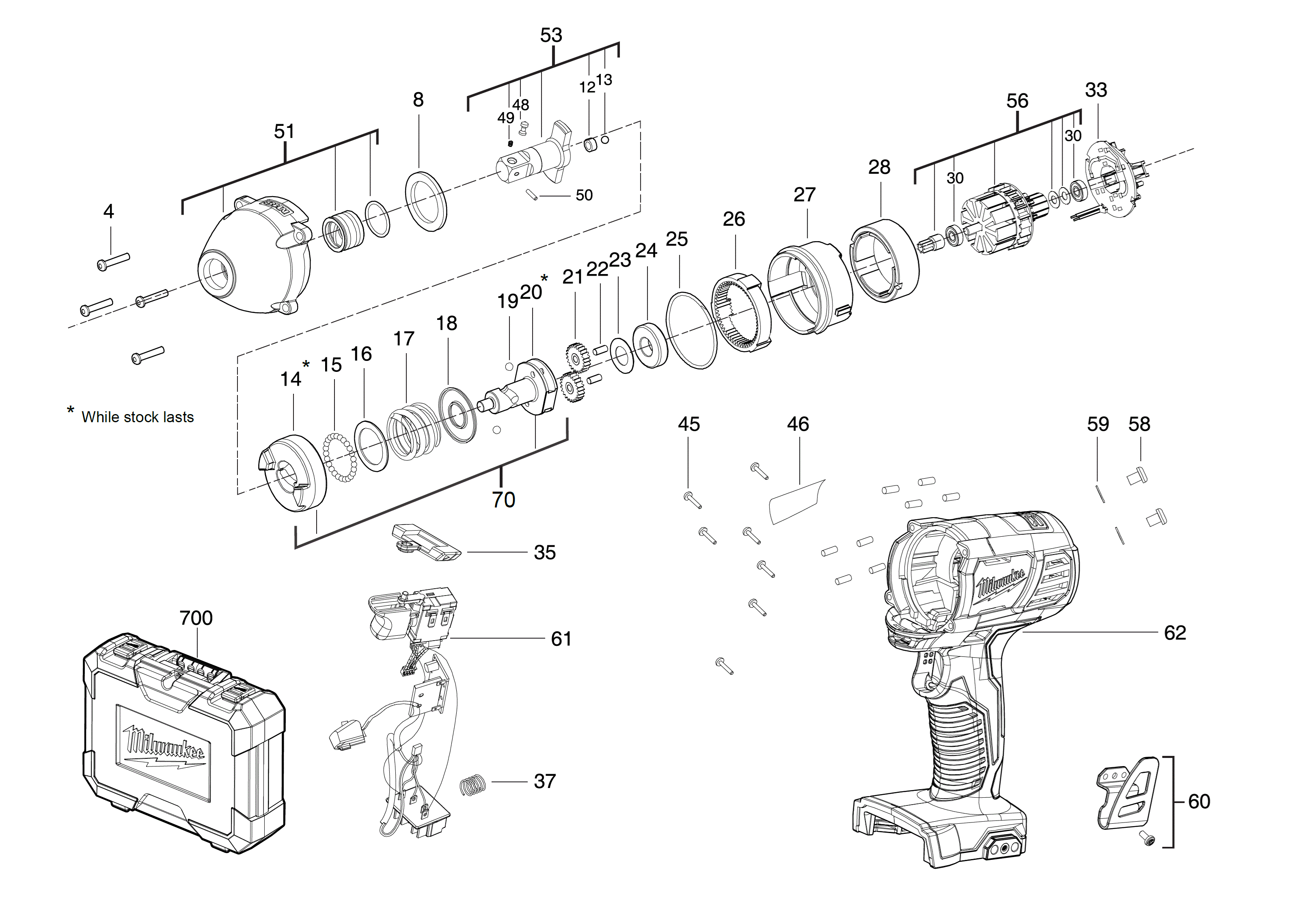

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0004 |
SCREW (4)
|
4931436054 |
3.00
|
|
|
0008 |
WASHER (1)
|
4931452798 |
3.00
|
|
|
0012 |
NEEDLE BEARING (1)
|
4931446185 |
3.50
|
|
|
0013 |
BALL (1)
|
4931453238 |
2.50
|
|
|
0014 |
PERCUSSION BODY (1)
|
4931436056 |
16.00
|
|
|
0015 |
BALL (30)
|
4931440309 |
2.50
|
|
|
0016 |
WASHER (1)
|
4931436057 |
1.00
|
|
|
0017 |
SPRING (1)
|
Item discontinued
(4931436058) |
|
|
|
0018 |
WASHER (1)
|
4931436059 |
2.50
|
|
|
0019 |
BALL (2)
|
4931440453 |
2.50
|
|
|
0020 |
RAM (1)
|
4931436060 |
17.50
|
|
|
0021 |
PLANET GEAR (2)
|
4931436061 |
5.00
|
|
|
0022 |
CYLINDER PIN (2)
|
4931435378 |
4.00
|
|
|
0023 |
WASHER (1)
|
4931435379 |
2.50
|
|
|
0024 |
BALL BEARING (1)
|
4931436062 |
6.00
|
|
|
0025 |
HOLDING RING (1)
|
Item discontinued
(4931436063) |
|
|
|
0026 |
WORM GEAR WHEEL (1)
|
Item discontinued
(4931436064) |
|
|
|
0027 |
HOUSING (1)
|
Item discontinued
(4931436065) |
|
|
|
0028 |
ELECTRIC FIELD (1)
|
4931454076 |
33.00
|
|
|
0030 |
BALL BEARING (2)
|
681262001 |
7.00
|
|
|
0033 |
CARBON BRUSH SET (1)
|
4931436067 |
15.50
|
|
|
0035 |
LEVER (1)
|
4931436068 |
2.50
|
|
|
0037 |
PRESSURE SPRING (1)
|
4931408243 |
4.00
|
|
|
0045 |
SCREW (9)
|
660851001 |
2.50
|
|
|
0046 |
RATING PLATE (1)
|
4931436069 |
3.50
|
|
|
0048 |
PIN (1)
|
4931436207 |
4.00
|
|
|
0049 |
SPRING (1)
|
4931436071 |
2.50
|
|
|
0050 |
PIN (1)
|
4931436072 |
2.50
|
|
|
0051 |
HOUSING (1)
|
4931436073 |
22.00
|
|
|
0053 |
DRIVE (1)
|
4931436074 |
21.00
|
|
|
0056 |
ARMATURE (1)
|
4931436075 |
36.00
|
|
|
0058 |
SPRING WASHER (2)
|
670028003 |
1.00
|
|
|
0059 |
SCREW (2)
|
4931435990 |
2.50
|
|
|
0060 |
HOLDER (1)
|
4931436076 |
6.50
|
|
|
0061 |
SWITCH ASSEMBLY electronic (1)
|
4931436077 |
29.50
|
|
|
0062 |
HANDLE (1)
|
4931436078 |
19.00
|
|
|
0070 |
CAM SHAFT (1)
|
4931511005 |
21.00
|
|
|
0700 |
CARRYING CASE (1)
|
Item discontinued
(4931436079) |
|
|
|
|
M12-18C CHARGER (NO SALE) IN2 (1)
|
4931433047 |
|
|
|
|
M12-18C BATTERY CHARGER IN2 (1)
|
4932352959 |
94.00
|
|
|
|
M18B4 BATTERY PACK 4.0AH (BULK)(NO SALE) (2)
|
4931440022 |
|
|
|
|
M18B4 LI-ION BATTERY PACK 4.0AH XXX (2)
|
4932430063 |
134.00
|
|
To select the correct EU-Declaration of Conformity, please check the first 8 digits on your rating plate and match them with the corresponding EU-Declaration of Conformity document that has the same numbers in its title.
