Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

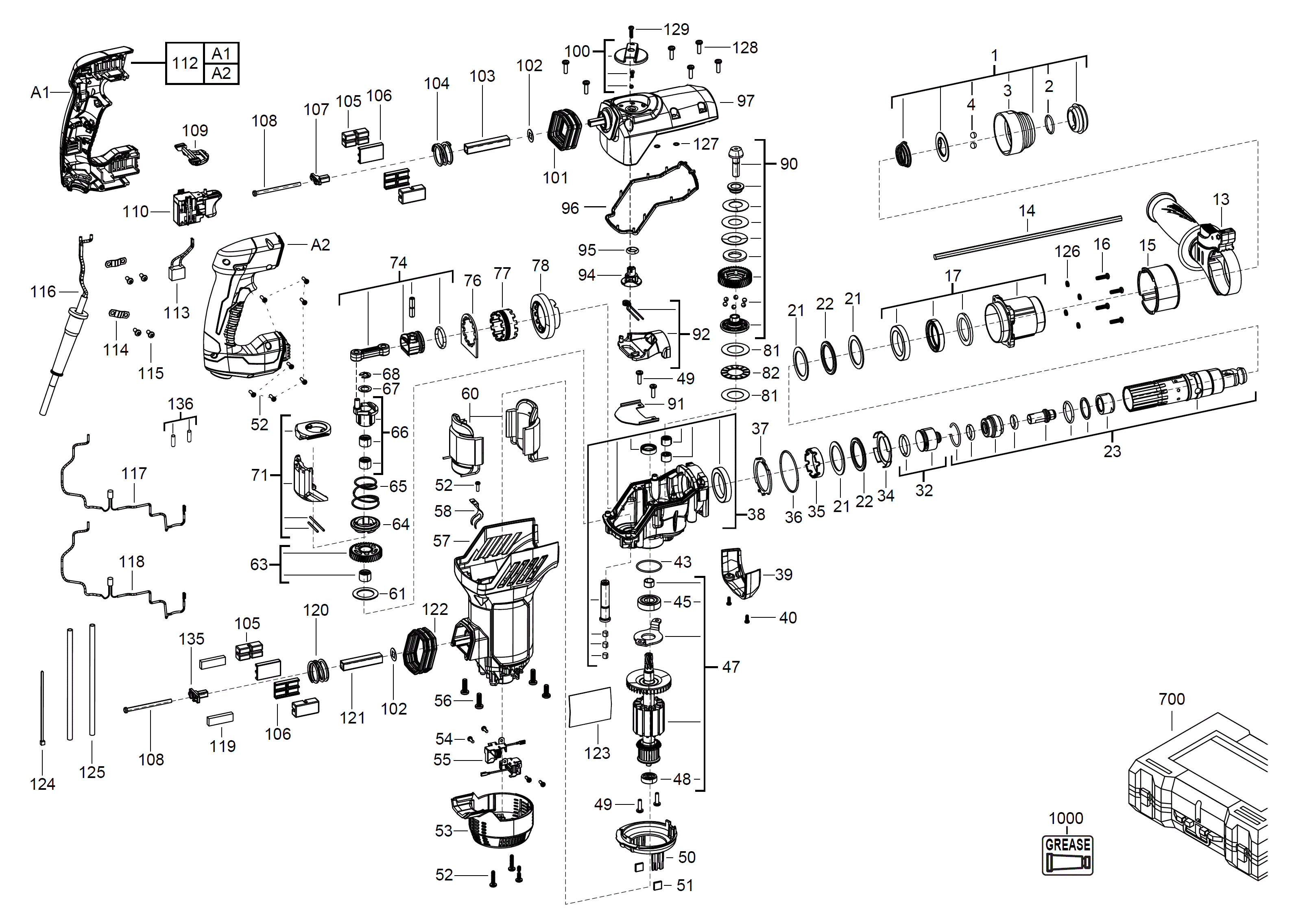

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0001 |
COVER CAP SET (1)
|
4931436446 |
19.00
|
|
|
0002 |
SPRING RING (1)
|
Item discontinued
(672631001) |
|
|
|
0003 |
COVER CAP (1)
|
4931436447 |
10.00
|
|
|
0004 |
BALL (2)
|
681154001 |
1.58
|
|
|
0013 |
AUXILIARY HANDLE (1)
|
4931436368 |
19.95
|
|
|
0014 |
DEPTH GAUGE (1)
|
4931384434 |
3.50
|
|
|
0015 |
SLEEVE (1)
|
4931436369 |
1.58
|
|
|
0016 |
SCREW (4)
|
4931435150 |
1.58
|
|
|
0017 |
SLEEVE (1)
|
4931436370 |
23.10
|
|
|
0021 |
WASHER (3)
|
4931436371 |
1.58
|
|
|
0022 |
RUBBER DISC (2)
|
4931436372 |
3.68
|
|
|
0023 |
SPINDLE KIT (1)
|
4931436448 |
118.13
|
|
|
0032 |
PERCUSSION BODY (1)
|
4931436374 |
23.10
|
|
|
0034 |
BUFFER (1)
|
4931436375 |
1.58
|
|
|
0035 |
SPINDLE SLEEVE (1)
|
4931436376 |
2.63
|
|
|
0036 |
O-RING (1)
|
4931436377 |
1.58
|
|
|
0037 |
PLATE (1)
|
4931436378 |
1.58
|
|
|
0038 |
GEAR BOX (1)
|
4931436379 |
49.88
|
|
|
0039 |
HOUSING (1)
|
4931436380 |
3.68
|
|
|
0040 |
SCREW (2)
|
4931435313 |
1.58
|
|
|
0043 |
O-RING (1)
|
4931436381 |
1.58
|
|
|
0045 |
BALL BEARING (1)
|
4931452227 |
3.68
|
|
|
0047 |
ARMATURE (1)
|
Item discontinued
(4931436449) |
|
|
|
0048 |
BALL BEARING (1)
|
4931436119 |
6.83
|
|
|
0049 |
SCREW (4)
|
660165015 |
1.58
|
|
|
0050 |
AIR DEFLECTOR RING (1)
|
4931436385 |
1.58
|
|
|
0051 |
BLOCK (2)
|
4931435034 |
3.68
|
|
|
0052 |
SCREW M3,5 Torx 10 (11)
|
660031023 |
1.58
|
|
|
0053 |
LID F.CARBON HOLDER (1)
|
Item discontinued
(4931436386) |
|
|
|
0054 |
SCREW (4)
|
Item discontinued
(4931436387) |
|
|
|
0055 |
BRUSH HOLDER with brushes (1)
|
4931436388 |
13.13
|
|
|
0056 |
SCREW (4)
|
4931436390 |
1.58
|
|
|
0057 |
MOTOR HOUSING (1)
|
4931436391 |
24.15
|
|
|
0058 |
STAMP (1)
|
4931436392 |
3.68
|
|
|
0060 |
ELECTRIC FIELD (1)
|
Item discontinued
(4931436393) |
|
|
|
0061 |
WASHER (1)
|
4931436395 |
1.58
|
|
|
0063 |
CRANK WHEEL (1)
|
4931436450 |
12.08
|
|
|
0064 |
RING (1)
|
4931436397 |
3.15
|
|
|
0065 |
SPRING (1)
|
4931436398 |
1.58
|
|
|
0066 |
CRANK WHEEL (1)
|
4931436451 |
37.28
|
|
|
0067 |
WASHER (1)
|
4931436400 |
1.58
|
|
|
0068 |
SLEEVE (1)
|
4931436401 |
1.58
|
|
|
0071 |
SWITCH (1)
|
4931436402 |
11.03
|
|
|
0074 |
PISTON (1)
|
4931436403 |
22.05
|
|
|
0076 |
HOLDING PLATE (1)
|
4931436404 |
3.68
|
|
|
0077 |
INDEXING SLEEVE (1)
|
4931436405 |
7.00
|
|
|
0078 |
BEVEL GEAR (1)
|
4931436406 |
21.00
|
|
|
0081 |
WASHER (2)
|
4931436407 |
1.58
|
|
|
0082 |
NEEDLE BEARING (1)
|
4931436408 |
3.15
|
|
|
0090 |
COUPLING (1)
|
4931436409 |
47.78
|
|
|
0091 |
STAMP (1)
|
4931436410 |
1.58
|
|
|
0092 |
FORK (1)
|
4931436411 |
4.73
|
|
|
0094 |
JOINT PIECE (1)
|
4931436412 |
1.58
|
|
|
0095 |
O-RING (1)
|
4931436413 |
1.58
|
|
|
0096 |
COVER (1)
|
4931448574 |
11.03
|
|
|
0097 |
GEAR BOX COVER (1)
|
Item discontinued
(4931452225) |
|
|
|
0100 |
KNOB (1)
|
4931436416 |
5.25
|
|
|
0101 |
RUBBER CAP (1)
|
4931436417 |
3.68
|
|
|
0102 |
WASHER (2)
|
4931436418 |
1.58
|
|
|
0103 |
GUIDE SLEEVE (1)
|
Item discontinued
(4931436419) |
|
|
|
0104 |
SPRING (1)
|
4931436420 |
3.68
|
|
|
0105 |
SHOCK ABSORBER (4)
|
4931436421 |
3.68
|
|
|
0106 |
HOLDER (4)
|
4931436422 |
3.68
|
|
|
0107 |
HOUSING (1)
|
4931436423 |
4.73
|
|
|
0108 |
SCREW (2)
|
4931436424 |
1.58
|
|
|
0109 |
PUSH-BUTTON (1)
|
4931436425 |
1.58
|
|
|
0110 |
SWITCH (1)
|
4931452226 |
35.00
|
|
|
0112 |
HANDLE COMPL. (1)
|
4931436427 |
9.98
|
|
|
0113 |
CAPACITOR (1)
|
4931436428 |
9.98
|
|
|
0114 |
PUNCH GUIDE (2)
|
632823001 |
3.15
|
|
|
0115 |
SCREW (4)
|
661189001 |
1.58
|
|
|
0116 |
CONNECTION CABLE (1)
|
4931436429 |
15.30
|
|
|
0117 |
CHOKING COIL (1)
|
4931436432 |
4.73
|
|
|
0118 |
CHOKING COIL (1)
|
4931436433 |
4.73
|
|
|
0119 |
FOAM RUBBER (2)
|
4931436434 |
3.15
|
|
|
0120 |
SPRING (1)
|
4931436435 |
1.58
|
|
|
0121 |
TUBE (1)
|
4931436436 |
3.68
|
|
|
0122 |
RUBBER BUFFER (1)
|
4931436437 |
4.73
|
|
|
0123 |
RATING PLATE (1)
|
4931452085 |
1.58
|
|
|
0124 |
CABLE (1)
|
4931436441 |
3.15
|
|
|
0125 |
SLEEVE (2)
|
4931436442 |
3.68
|
|
|
0126 |
PROTECTION WASHER (4)
|
680866003 |
1.58
|
|
|
0127 |
O-RING (2)
|
4931436443 |
1.58
|
|
|
0128 |
SCREW (6)
|
4931436444 |
1.58
|
|
|
0129 |
SCREW (1)
|
660031017 |
1.58
|
|
|
0135 |
RETAINING PLATE (1)
|
4931447719 |
3.15
|
|
|
0136 |
INSULATING HOSE (1)
|
Item discontinued
(4931448845) |
|
|
|
0700 |
CARRYING CASE (1)
|
4931436445 |
34.65
|
|
|
1000 |
GEAR GREASE (1)
|
4931443288 |
32.55
|
|
|
|
ASSEMBLY SET (1)
|
4931494888 |
434.70
|
|
|
|
CONE (1)
|
4931599147 |
248.85
|
|
|
|
SERVICE TOOL (1)
|
Item discontinued
(4931599148) |
|
|
|
|
SERVICE TOOL (1)
|
4931599149 |
102.90
|
|
|
|
SERVICE TOOL (1)
|
4931599150 |
105.00
|
|
