Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

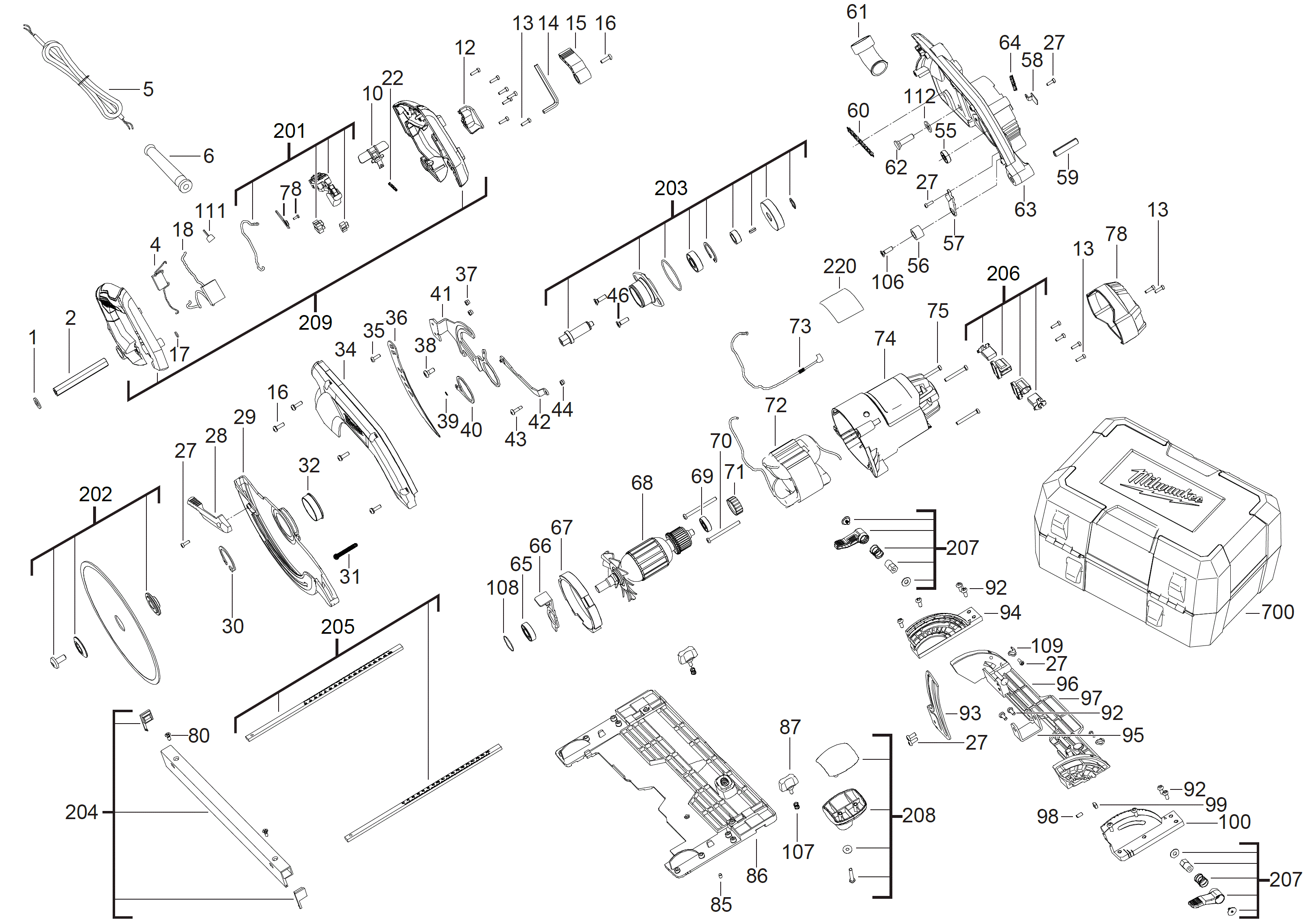

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0001 |
WASHER (1)
|
4931431103 |
2.50
|
|
|
0002 |
GUIDE BAR (1)
|
4931454194 |
5.50
|
|
|
0004 |
CAPACITOR (1)
|
4931454746 |
3.50
|
|
|
0005 |
POWER CORD (1)
|
4931454196 |
23.50
|
|
|
0006 |
CABLE ENTRY SLEEVE (1)
|
4931454747 |
4.00
|
|
|
0007 |
RETAINING PLATE (1)
|
4931454200 |
2.50
|
|
|
0008 |
SCREW (1)
|
Item discontinued
(4931454201) |
|
|
|
0010 |
TRIGGER (1)
|
Item discontinued
(4931454202) |
|
|
|
0012 |
CAP (1)
|
4931454203 |
2.50
|
|
|
0013 |
SCREW (13)
|
4931454205 |
2.50
|
|
|
0014 |
WRENCH (1)
|
4931454206 |
2.50
|
|
|
0015 |
KNOB (1)
|
4931454207 |
4.00
|
|
|
0016 |
SCREW (5)
|
4931454208 |
2.50
|
|
|
0017 |
O-RING (1)
|
4931454209 |
2.50
|
|
|
0018 |
SOFT START (1)
|
4931454210 |
19.00
|
|
|
0022 |
SPRING (1)
|
4931454212 |
2.50
|
|
|
0027 |
SCREW (7)
|
4931454213 |
2.50
|
|
|
0028 |
SWING LEVER (1)
|
4931454214 |
2.50
|
|
|
0029 |
SAFTY GUARD (1)
|
4931454215 |
34.00
|
|
|
0030 |
CIRCLIP (1)
|
4931454216 |
2.50
|
|
|
0031 |
SPRING (1)
|
4931454217 |
2.50
|
|
|
0032 |
COVER (1)
|
4931454218 |
2.50
|
|
|
0034 |
SAFTY GUARD (1)
|
4931454219 |
20.00
|
|
|
0035 |
BOLT (2)
|
Item discontinued
(4931454748) |
|
|
|
0036 |
SPLITTING WEDGE (1)
|
4931454749 |
4.00
|
|
|
0037 |
NUT (2)
|
4931454750 |
2.50
|
|
|
0038 |
SCREW (1)
|
4931454896 |
2.50
|
|
|
0039 |
WASHER (1)
|
Item discontinued
(4931454752) |
|
|
|
0040 |
COVER PLATE (1)
|
4931454753 |
2.50
|
|
|
0041 |
HOLDING DEVICE (1)
|
4931454754 |
5.00
|
|
|
0042 |
HOLDER (1)
|
4931454755 |
3.50
|
|
|
0043 |
SCREW (1)
|
4931454756 |
2.50
|
|
|
0044 |
NUT (1)
|
4931454757 |
2.50
|
|
|
0046 |
SCREW (2)
|
4931454220 |
2.50
|
|
|
0055 |
BALL BEARING (1)
|
4931454221 |
3.50
|
|
|
0056 |
RUBBER BUFFER (1)
|
Item discontinued
(4931454222) |
|
|
|
0057 |
COVER (1)
|
4931454223 |
2.50
|
|
|
0058 |
COVER PLATE (1)
|
4931454224 |
2.50
|
|
|
0059 |
HOLDING PIN (1)
|
4931454225 |
1.00
|
|
|
0060 |
SPRING (1)
|
4931454758 |
2.50
|
|
|
0061 |
DIRECT.DUST CHUTE (1)
|
4931454226 |
4.00
|
|
|
0062 |
FASTENING BOLT (1)
|
4931454227 |
2.50
|
|
|
0063 |
GEAR BOX ASSY (1)
|
4931454897 |
50.00
|
|
|
0064 |
SPRING (1)
|
4931454229 |
2.50
|
|
|
0065 |
BALL BEARING (1)
|
4931454230 |
6.00
|
|
|
0066 |
SPINDLE LOCK (1)
|
4931454231 |
4.00
|
|
|
0067 |
FAN HOUSING (1)
|
4931454232 |
4.00
|
|
|
0068 |
MOTOR ASSEMBLY (1)
|
4931454233 |
68.50
|
|
|
0069 |
BALL BEARING (1)
|
4931454235 |
7.00
|
|
|
0070 |
SCREW (2)
|
Item discontinued
(4931454236) |
|
|
|
0071 |
BEARING BUSH (1)
|
4931454237 |
2.50
|
|
|
0072 |
FIELD LEAD GROMMET (1)
|
4931454759 |
70.50
|
|
|
0073 |
CHOKING COIL (1)
|
4931454780 |
4.00
|
|
|
0074 |
HOUSING (1)
|
Item discontinued
(4931454240) |
|
|
|
0075 |
SCREW (3)
|
4931454241 |
2.50
|
|
|
0078 |
END COVER CAP (1)
|
4931454242 |
8.00
|
|
|
0080 |
SCREW (2)
|
4931454248 |
2.50
|
|
|
0085 |
SCREW (1)
|
4931454760 |
2.50
|
|
|
0086 |
GROUND PLATE (1)
|
4931454761 |
52.00
|
|
|
0087 |
LOCK BOTTON (2)
|
Item discontinued
(4931454246) |
|
|
|
0092 |
SCREW (10)
|
Item discontinued
(4931454762) |
|
|
|
0093 |
HOLDING DEVICE (1)
|
Item discontinued
(4931454763) |
|
|
|
0094 |
PARALL./ANGLE GUIDE (1)
|
4931454764 |
15.50
|
|
|
0095 |
COVER (1)
|
4931454765 |
3.50
|
|
|
0096 |
BOLT (2)
|
4931454766 |
2.50
|
|
|
0097 |
GROUND PLATE (1)
|
4931454767 |
45.00
|
|
|
0098 |
SCREW (1)
|
4931454244 |
2.50
|
|
|
0099 |
NUT (1)
|
4931454768 |
2.50
|
|
|
0100 |
PARALL./ANGLE GUIDE (1)
|
4931454769 |
9.00
|
|
|
0106 |
SCREW (1)
|
4931454250 |
3.00
|
|
|
0107 |
SPRING (2)
|
4931454251 |
2.50
|
|
|
0108 |
O-RING (1)
|
4931454770 |
2.50
|
|
|
0109 |
LATCH PLATE (2)
|
4931454771 |
2.50
|
|
|
0111 |
TERMINAL PLUG (1)
|
4931454772 |
2.50
|
|
|
0112 |
WASHER (1)
|
4931454773 |
2.50
|
|
|
0201 |
SWITCH (1)
|
4931454252 |
21.00
|
|
|
0202 |
FLANGE (1)
|
4931454253 |
10.00
|
|
|
0203 |
SPINDLE LOCK (1)
|
4931454254 |
27.50
|
|
|
0204 |
BUFFER HANDLE (1)
|
4931454774 |
14.50
|
|
|
0205 |
PARALLEL GUIDE (1)
|
Item discontinued
(4931454775) |
|
|
|
0206 |
CARBON BRUSH (1)
|
4931454255 |
24.50
|
|
|
0207 |
CLAMPING LEVER (2)
|
4931454776 |
5.00
|
|
|
0208 |
AUXILIARY HANDLE (1)
|
Item discontinued
(4931454256) |
|
|
|
0209 |
PAIR HANDLE SHELLS (1)
|
4931454257 |
9.00
|
|
|
0220 |
RATING PLATE (1)
|
4931454924 |
2.50
|
|
|
0700 |
CARRYING CASE (1)
|
4931454778 |
103.00
|
|
To select the correct EU-Declaration of Conformity, please check the first 8 digits on your rating plate and match them with the corresponding EU-Declaration of Conformity document that has the same numbers in its title.
