Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

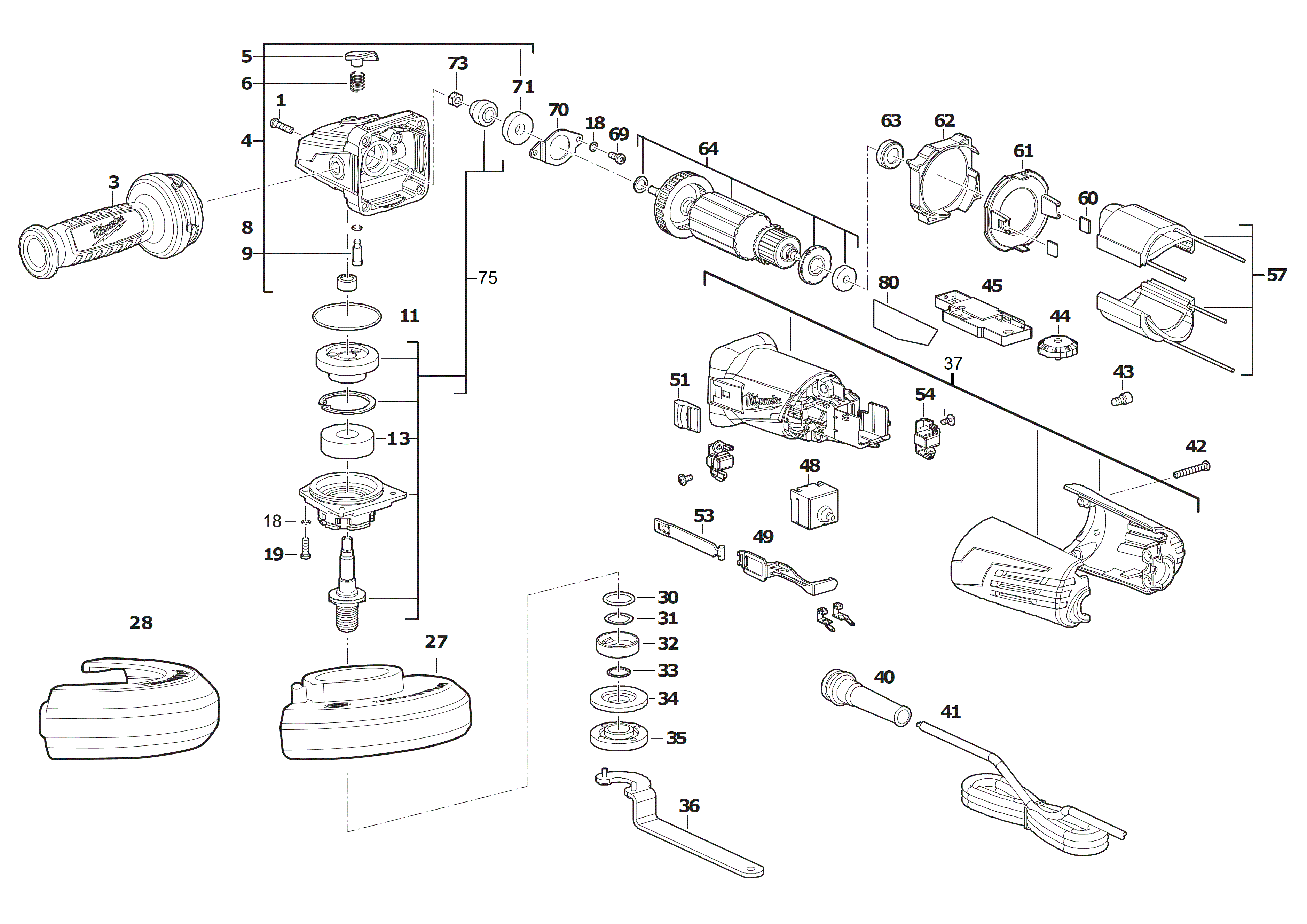

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0001 |
SCREW (4)
|
4931508054 |
2.00
|
|
|
0003 |
AUXILIARY HANDLE (1)
|
4931435002 |
15.00
|
|
|
0004 |
GEAR BOX (1)
|
4931461609 |
26.50
|
|
|
0005 |
TRIGGER (1)
|
4931435004 |
4.00
|
|
|
0006 |
SPRING (1)
|
4931435005 |
4.00
|
|
|
0008 |
O-RING (1)
|
4931435006 |
2.50
|
|
|
0009 |
LOCKING BOLT (1)
|
4931435007 |
4.00
|
|
|
0011 |
O-RING (1)
|
570699002 |
2.50
|
|
|
0013 |
BALL BEARING (1)
|
4931446467 |
4.00
|
|
|
0018 |
PROTECTION WASHER (6)
|
680866003 |
3.00
|
|
|
0019 |
SCREW (4)
|
4931435150 |
3.00
|
|
|
0027 |
GUARD (1)
|
4931508048 |
26.00
|
|
|
0028 |
CUTTING GUARD (1)
|
4931479288 |
4.50
|
|
|
0030 |
O-RING (1)
|
4931435016 |
2.50
|
|
|
0031 |
SPRING WASHER (1)
|
4931435017 |
2.50
|
|
|
0032 |
FLANGE (1)
|
4931435018 |
6.00
|
|
|
0033 |
RETAINING RING (1)
|
4931435019 |
4.00
|
|
|
0034 |
FLANGE (1)
|
4931435020 |
6.50
|
|
|
0035 |
FLANGE NUT (1)
|
4931441309 |
5.50
|
|
|
0036 |
SPANNER M14 (1)
|
632145002 |
5.00
|
|
|
0037 |
MOTOR HOUSING (1)
|
4931453472 |
16.50
|
|
|
0040 |
CABLE COLLAR (1)
|
4931435022 |
4.00
|
|
|
0041 |
CONNECTION CABLE (1)
|
730351040 |
16.50
|
|
|
0042 |
SCREW (4)
|
4931435023 |
2.50
|
|
|
0043 |
CONNECTOR (1)
|
790009001 |
3.50
|
|
|
0044 |
VARIABLE RING (1)
|
4931435110 |
5.00
|
|
|
0045 |
ELECTRONIC (1)
|
4931453473 |
51.00
|
|
|
0048 |
SWITCH (1)
|
4931441014 |
8.00
|
|
|
0049 |
GUIDE (1)
|
4931435113 |
2.50
|
|
|
0051 |
SWITCH BUTTON (1)
|
4931453474 |
3.50
|
|
|
0053 |
SLIDE (1)
|
4931435030 |
5.00
|
|
|
0054 |
CARBON BRUSH SET (1)
|
4931435031 |
7.00
|
|
|
0057 |
ELECTRIC FIELD (1)
|
4931435033 |
44.00
|
|
|
0060 |
BLOCK (2)
|
4931435034 |
4.00
|
|
|
0061 |
FOOT (1)
|
4931435035 |
1.00
|
|
|
0062 |
AIR DEFLECTOR RING (1)
|
4931453673 |
2.50
|
|
|
0063 |
RUBBER SLEEVE (1)
|
4931435037 |
2.50
|
|
|
0064 |
ARMATURE (1)
|
4931453475 |
58.00
|
|
|
0069 |
SCREW (2)
|
660165015 |
2.50
|
|
|
0070 |
RETAINER (1)
|
4931435039 |
1.58
|
|
|
0071 |
BALL BEARING (1)
|
681337001 |
6.00
|
|
|
0073 |
NUT (1)
|
671686001 |
4.00
|
|
|
0075 |
SPINDLE KIT (1)
|
4931447087 |
50.00
|
|
|
0080 |
RATING PLATE (1)
|
4931508053 |
1.00
|
|
To select the correct EU-Declaration of Conformity, please check the first 8 digits on your rating plate and match them with the corresponding EU-Declaration of Conformity document that has the same numbers in its title.
