Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

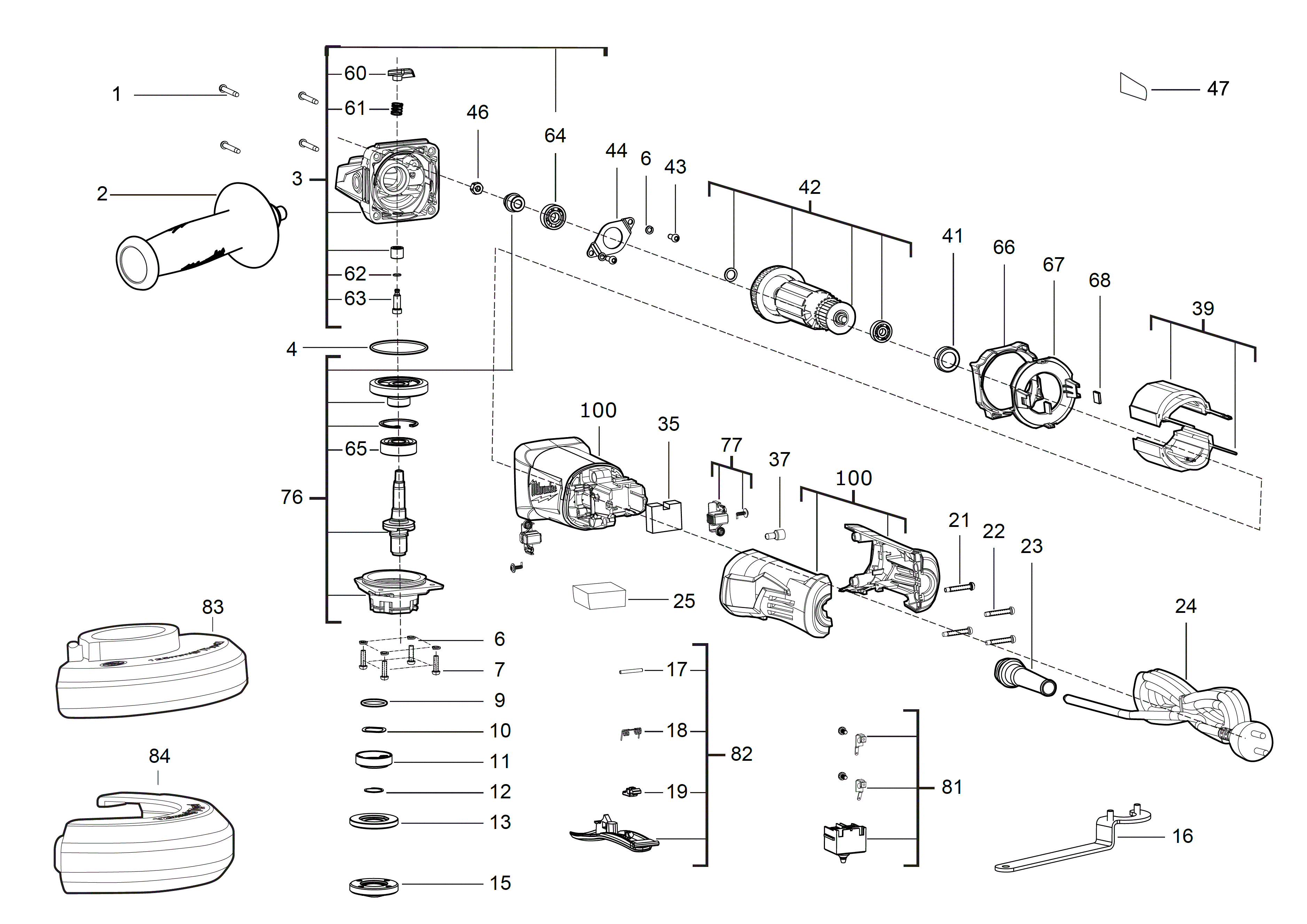

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0001 |
SCREW (4)
|
4931435000 |
2.50
|
|
|
0002 |
AUXILIARY HANDLE (1)
|
4931435001 |
7.00
|
|
|
0003 |
GEAR BOX (1)
|
4931461609 |
26.50
|
|
|
0004 |
O-RING (1)
|
570699002 |
2.50
|
|
|
0006 |
PROTECTION WASHER (6)
|
680866003 |
3.00
|
|
|
0007 |
SCREW (4)
|
4931435150 |
3.00
|
|
|
0009 |
O-RING (1)
|
4931435016 |
2.50
|
|
|
0010 |
SPRING WASHER (1)
|
4931435017 |
2.50
|
|
|
0011 |
FLANGE (1)
|
4931435018 |
6.00
|
|
|
0012 |
RETAINING RING (1)
|
4931435019 |
4.00
|
|
|
0013 |
FLANGE (1)
|
4931435020 |
6.50
|
|
|
0015 |
FLANGE NUT (1)
|
4931441309 |
5.50
|
|
|
0016 |
SPANNER M14 (1)
|
632145002 |
5.00
|
|
|
0017 |
BOLT (1)
|
4931454155 |
3.00
|
|
|
0018 |
PRESSURE SPRING (1)
|
4931454156 |
2.50
|
|
|
0019 |
LEVER (1)
|
4931454157 |
2.50
|
|
|
0021 |
SCREW (2)
|
4931435023 |
2.50
|
|
|
0022 |
SCREW (2)
|
660024030 |
2.50
|
|
|
0023 |
CABLE COLLAR (1)
|
4931435022 |
4.00
|
|
|
0024 |
CONNECTION CABLE (1)
|
730351040 |
16.50
|
|
|
0025 |
CAPACITOR (1)
|
4931454158 |
4.00
|
|
|
0035 |
SPACER (1)
|
4931435071 |
2.50
|
|
|
0037 |
CONNECTOR (1)
|
790009001 |
3.50
|
|
|
0039 |
ELECTRIC FIELD (1)
|
4931435073 |
43.58
|
|
|
0041 |
RUBBER CAP (1)
|
4931454160 |
4.00
|
|
|
0042 |
ARMATURE ASSEMBLY (1)
|
4931435038 |
36.00
|
|
|
0043 |
SCREW (2)
|
660165015 |
2.50
|
|
|
0044 |
RETAINER (1)
|
4931435039 |
1.58
|
|
|
0046 |
NUT (1)
|
671686001 |
4.00
|
|
|
0047 |
RATING PLATE (1)
|
4931508057 |
1.00
|
|
|
0060 |
TRIGGER (1)
|
4931435004 |
4.00
|
|
|
0061 |
SPRING (1)
|
4931435005 |
4.00
|
|
|
0062 |
O-RING (1)
|
4931454164 |
5.00
|
|
|
0063 |
LOCKING BOLT (1)
|
4931435007 |
4.00
|
|
|
0064 |
BALL BEARING (1)
|
681337001 |
6.00
|
|
|
0065 |
BALL BEARING (1)
|
4931446467 |
4.00
|
|
|
0066 |
AIR DEFLECTOR RING (1)
|
4931454165 |
5.00
|
|
|
0067 |
AIR DEFLECTOR RING (1)
|
4931454166 |
2.50
|
|
|
0068 |
BLOCK (2)
|
4931435034 |
4.00
|
|
|
0076 |
SPINDLE (1)
|
4931454171 |
51.00
|
|
|
0077 |
CARBON BRUSH SET (2)
|
4931435031 |
7.00
|
|
|
0081 |
SWITCH (1)
|
4931454173 |
11.50
|
|
|
0082 |
TRIGGER (1)
|
4931454174 |
6.00
|
|
|
0083 |
GUARD (1)
|
4931508048 |
26.00
|
|
|
0084 |
CUTTING GUARD (1)
|
4931479288 |
4.50
|
|
|
0100 |
HOUSING (1)
|
4931495436 |
16.00
|
|
