Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

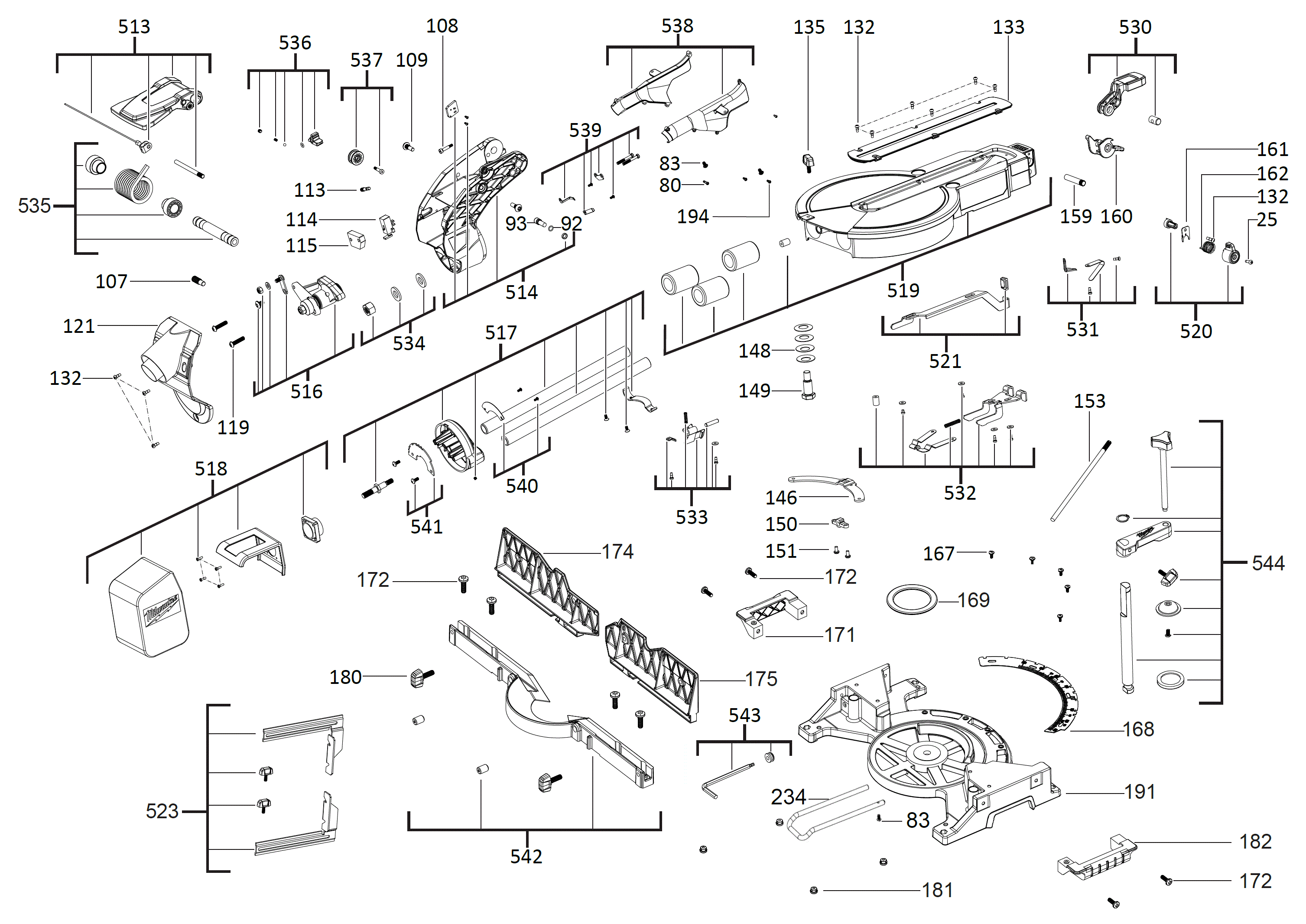

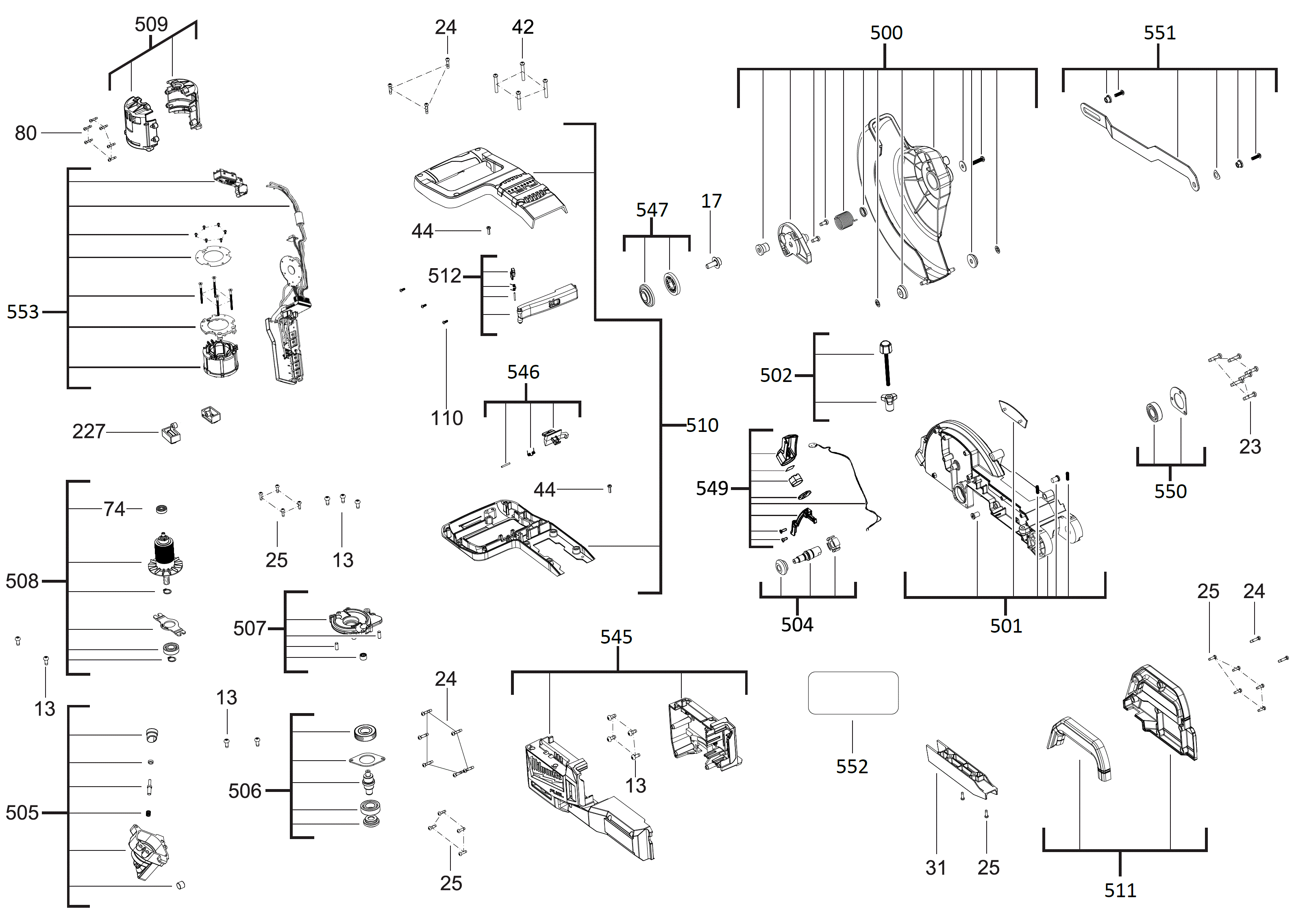

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0013 |
SCREW (17)
|
4931454625 |
2.50
|
|
|
0017 |
SET SCREW (1)
|
4931454626 |
2.50
|
|
|
0023 |
SCREW (6)
|
4931454627 |
2.50
|
|
|
0024 |
SCREW (11)
|
4931454628 |
2.50
|
|
|
0025 |
SCREW (16)
|
4931454629 |
2.50
|
|
|
0031 |
CHIP GUIDE (1)
|
4931454630 |
5.00
|
|
|
0042 |
SCREW (4)
|
4931454631 |
2.50
|
|
|
0044 |
SCREW (6)
|
4931454632 |
2.50
|
|
|
0074 |
BALL BEARING (1)
|
4931454633 |
4.00
|
|
|
0080 |
SCREW (6)
|
4931454634 |
2.50
|
|
|
0083 |
SCREW (4)
|
4931454635 |
2.50
|
|
|
0092 |
O-RING (1)
|
4931454636 |
2.50
|
|
|
0093 |
SPINDLE LOCK (1)
|
4931454637 |
4.00
|
|
|
0107 |
STOP (1)
|
4931454638 |
3.50
|
|
|
0108 |
SCREW (1)
|
4931454639 |
4.00
|
|
|
0109 |
BOLT (2)
|
4931454640 |
3.50
|
|
|
0110 |
SCREW (5)
|
4931454641 |
2.50
|
|
|
0113 |
LOCK COMPLETE (1)
|
4931454642 |
3.50
|
|
|
0114 |
LOCKING PIECE (1)
|
4931454643 |
29.50
|
|
|
0115 |
LOCK COMPLETE (1)
|
4931454644 |
6.00
|
|
|
0119 |
SCREW (2)
|
4931454645 |
2.50
|
|
|
0121 |
COVER (1)
|
4931454646 |
10.00
|
|
|
0132 |
SCREW (16)
|
4931454647 |
2.50
|
|
|
0133 |
TABLE INSERT (2)
|
4931454648 |
6.00
|
|
|
0135 |
KNOB (1)
|
4931454649 |
5.50
|
|
|
0146 |
LOCKING LEVER (1)
|
4931454650 |
8.00
|
|
|
0148 |
SPRING (8)
|
4931454651 |
3.50
|
|
|
0149 |
RETAINING BOLT (2)
|
4931454652 |
8.00
|
|
|
0150 |
INTERLOCK SLEAVE (1)
|
4931454653 |
1.00
|
|
|
0151 |
SCREW (2)
|
4931454654 |
2.50
|
|
|
0153 |
INTERLOCK ELEMENT (1)
|
4931454655 |
8.00
|
|
|
0159 |
BOLT (2)
|
4931454656 |
4.00
|
|
|
0160 |
TRIGGER (1)
|
4931454657 |
4.00
|
|
|
0161 |
LOCKING PART (1)
|
4931454658 |
2.50
|
|
|
0162 |
SPRING (1)
|
4931454659 |
2.50
|
|
|
0167 |
SCREW (5)
|
4931454660 |
2.50
|
|
|
0168 |
LOCKING PART (1)
|
4931454661 |
51.00
|
|
|
0169 |
BEARING COVER (1)
|
4931454662 |
54.50
|
|
|
0171 |
RIGHT HANDLE HALF (1)
|
4931454663 |
17.50
|
|
|
0172 |
SCREW (8)
|
4931454664 |
2.50
|
|
|
0174 |
COVER FRAME (1)
|
4931454665 |
27.50
|
|
|
0175 |
COVER FRAME (1)
|
4931454666 |
28.00
|
|
|
0180 |
COVER (2)
|
4931454667 |
4.00
|
|
|
0181 |
FOOT (4)
|
4931454668 |
2.50
|
|
|
0182 |
LEFT HANDLE HALF (1)
|
4931454669 |
19.00
|
|
|
0191 |
ABSOLUTE UNIT (1)
|
4931454670 |
100.00
|
|
|
0194 |
SCREW (3)
|
4931454671 |
2.50
|
|
|
0227 |
COVER (2)
|
4931507954 |
1.00
|
|
|
0234 |
YOKE (1)
|
4931472866 |
16.50
|
|
|
0500 |
GUARD CAP (1)
|
4931454674 |
38.00
|
|
|
0501 |
MOTOR SUPPORT (1)
|
4931454675 |
114.00
|
|
|
0502 |
BOLT SET (1)
|
4931454676 |
5.50
|
|
|
0504 |
SPINDLE KIT (1)
|
4931454677 |
38.50
|
|
|
0505 |
GEAR BOX (1)
|
4931454678 |
38.50
|
|
|
0506 |
GEAR BOX KIT (1)
|
4931454679 |
56.00
|
|
|
0507 |
BEARING END PLATE (1)
|
4931454680 |
25.50
|
|
|
0508 |
ARMATURE ASSEMBLY (1)
|
4931454681 |
106.50
|
|
|
0509 |
HOUSING SET ASSY (1)
|
4931454682 |
8.00
|
|
|
0510 |
HANDLE SET (1)
|
4931454683 |
31.00
|
|
|
0511 |
HANDLE SET (1)
|
4931454684 |
23.00
|
|
|
0512 |
SWITCH BUTTON (1)
|
4931454685 |
6.00
|
|
|
0513 |
PROTECTIVE CAP (1)
|
4931454686 |
13.50
|
|
|
0514 |
COVER (1)
|
4931454687 |
131.50
|
|
|
0516 |
BEVEL GEAR (1)
|
4931454688 |
114.50
|
|
|
0517 |
GUIDE BAR (1)
|
4931454689 |
118.50
|
|
|
0518 |
DUST BAG (1)
|
4931454690 |
20.50
|
|
|
0519 |
TABLE (1)
|
4931454691 |
189.00
|
|
|
0520 |
LOCK COMPLETE (1)
|
4931454692 |
5.00
|
|
|
0521 |
EXT. W. STOP GAUGE (1)
|
4931454693 |
9.50
|
|
|
0523 |
STOP (1)
|
4931454694 |
24.50
|
|
|
0530 |
LOCK COMPLETE (1)
|
4931454696 |
6.50
|
|
|
0531 |
LOCK COMPLETE (1)
|
4931454697 |
6.00
|
|
|
0532 |
ROTARY SLIDER (1)
|
4931454698 |
28.00
|
|
|
0533 |
LATCH PLATE (1)
|
4931454699 |
6.00
|
|
|
0534 |
NUT (1)
|
4931454700 |
4.00
|
|
|
0535 |
SPRING (1)
|
4931454701 |
34.00
|
|
|
0536 |
STOP (1)
|
4931454702 |
7.00
|
|
|
0537 |
CABLE ENTRY SLEEVE (1)
|
4931454703 |
6.00
|
|
|
0538 |
DUST GUARD (1)
|
4931454704 |
8.50
|
|
|
0539 |
LOCK COMPLETE (1)
|
4931454705 |
51.50
|
|
|
0540 |
DISPLAYER RING (1)
|
4931454706 |
8.00
|
|
|
0541 |
DISC (1)
|
4931454707 |
14.50
|
|
|
0542 |
GUIDE KIT (1)
|
4931454708 |
86.50
|
|
|
0543 |
WRENCH (1)
|
4931454709 |
5.00
|
|
|
0544 |
KNOB (1)
|
4931454710 |
38.00
|
|
|
0545 |
BODY (1)
|
4931454711 |
28.00
|
|
|
0546 |
SPRING (1)
|
4931454712 |
4.00
|
|
|
0547 |
CLAMPING FLANGE (1)
|
4931454713 |
20.50
|
|
|
0549 |
LAMP (1)
|
4931507955 |
34.00
|
|
|
0550 |
RETAINING PLATE (1)
|
4931454715 |
15.50
|
|
|
0551 |
GUIDE BAR (1)
|
4931454716 |
15.00
|
|
|
0552 |
RATING PLATE (1)
|
4931507956 |
5.00
|
|
|
0553 |
ELECTRIC FIELD (1)
|
4931507957 |
285.00
|
|
