Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

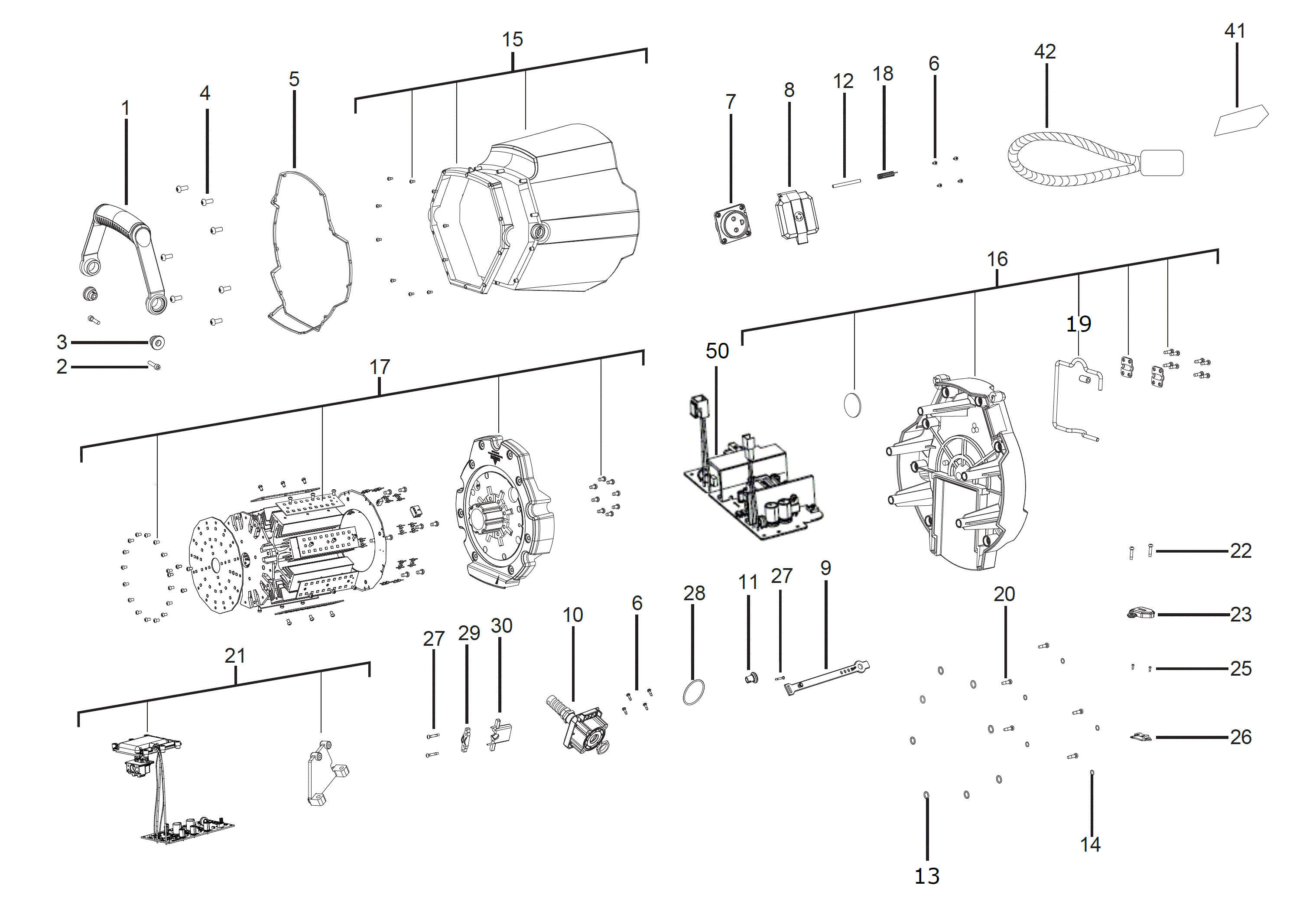

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0001 |
HANDLE (1)
|
4931454899 |
7.50
|
|
|
0002 |
SCREW (2)
|
4931454900 |
1.00
|
|
|
0003 |
BUSH (2)
|
4931454901 |
2.50
|
|
|
0004 |
SCREW (6)
|
660024045 |
2.00
|
|
|
0005 |
SEAL RING (1)
|
4931454902 |
10.50
|
|
|
0006 |
SCREW (8)
|
4931461472 |
2.50
|
|
|
0007 |
WALL SOCKET (1)
|
4931461497 |
51.00
|
|
|
0008 |
COVER (1)
|
4931461474 |
6.00
|
|
|
0009 |
STRAP (1)
|
4931461475 |
5.00
|
|
|
0010 |
POWER CORD (1)
|
4931461492 |
54.50
|
|
|
0011 |
STOPPER (1)
|
4931461477 |
2.50
|
|
|
0012 |
PIN (1)
|
4931461478 |
2.50
|
|
|
0013 |
O-RING (8)
|
Item discontinued
(4931454909) |
|
|
|
0014 |
O-RING (5)
|
4931454910 |
1.58
|
|
|
0015 |
LAMP HOUSING (1)
|
Item discontinued
(4931454911) |
|
|
|
0016 |
COVER (1)
|
4931461479 |
70.50
|
|
|
0017 |
ILLUMINANT (1)
|
4931461480 |
205.00
|
|
|
0018 |
SPRING (1)
|
4931461481 |
2.50
|
|
|
0019 |
HOOK (1)
|
4931461482 |
14.50
|
|
|
0020 |
SCREW (5)
|
Item discontinued
(4931454916) |
|
|
|
0021 |
ELECTRONIC (1)
|
4931507971 |
97.00
|
|
|
0022 |
SCREW (2)
|
4931461357 |
2.50
|
|
|
0023 |
COVER (1)
|
4931461484 |
2.50
|
|
|
0025 |
SCREW (2)
|
4931461485 |
2.50
|
|
|
0026 |
ELECT.CIRCUIT BOARD (1)
|
4931461486 |
6.50
|
|
|
0027 |
SCREW (3)
|
4931453227 |
3.00
|
|
|
0028 |
O-RING (1)
|
4931461487 |
2.50
|
|
|
0029 |
RETAINING PLATE (1)
|
4931461488 |
2.50
|
|
|
0030 |
HOLDING BRACKET (1)
|
4931461489 |
3.00
|
|
|
0041 |
RATING PLATE (1)
|
4931507973 |
1.00
|
|
|
0042 |
WIRE STRAP (1)
|
Item discontinued
(4931454920) |
|
|
|
0050 |
ELECTRONIC (1)
|
4931479002 |
89.00
|
|
To select the correct EU-Declaration of Conformity, please check the first 8 digits on your rating plate and match them with the corresponding EU-Declaration of Conformity document that has the same numbers in its title.
