Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

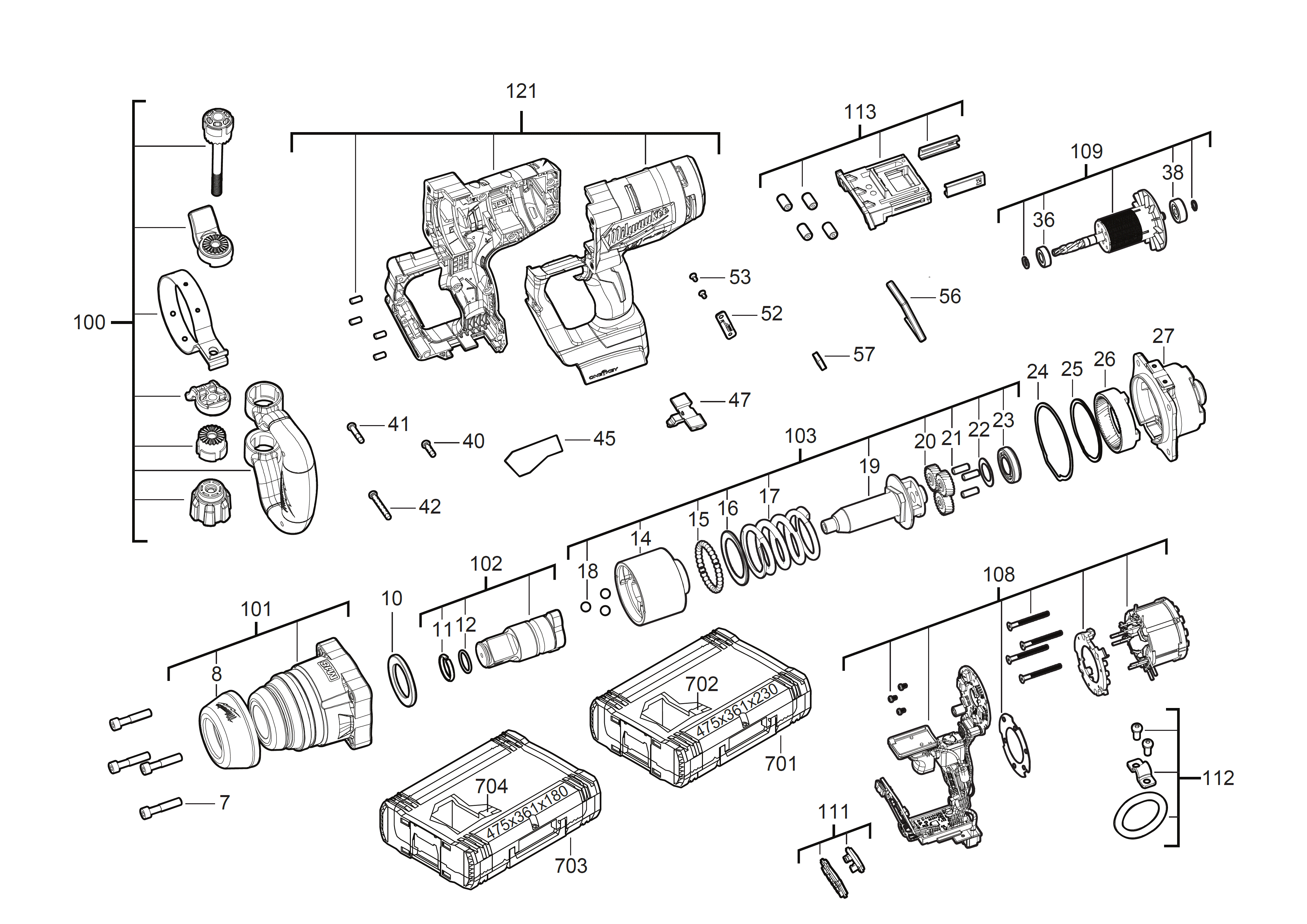

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0007 |
SCREW (4)
|
4931480449 |
2.50
|
|
|
0008 |
RUBBER SLEEVE (1)
|
4931472108 |
9.50
|
|
|
0010 |
RUBBER DISC (1)
|
4931472109 |
2.50
|
|
|
0011 |
PROTECTION WASHER (1)
|
4931472110 |
5.00
|
|
|
0012 |
O-RING (1)
|
4931472111 |
2.50
|
|
|
0014 |
HAMMER (1)
|
4931472112 |
84.00
|
|
|
0015 |
BALL (31)
|
4931440453 |
2.50
|
|
|
0016 |
WASHER (1)
|
4931472113 |
3.00
|
|
|
0017 |
SPRING (1)
|
4931472114 |
8.50
|
|
|
0018 |
BALL (3)
|
4931472115 |
1.00
|
|
|
0019 |
CAM SHAFT (1)
|
4931472116 |
69.50
|
|
|
0020 |
PLANETARY DRIVE (3)
|
4931465316 |
4.00
|
|
|
0021 |
PIN (3)
|
671565004 |
3.50
|
|
|
0022 |
BEARING WASHER (1)
|
4931465317 |
2.50
|
|
|
0023 |
BALL BEARING (1)
|
4931472117 |
3.50
|
|
|
0024 |
GASKET (1)
|
4931472118 |
3.50
|
|
|
0025 |
HOLDING RING (1)
|
4931465319 |
2.50
|
|
|
0026 |
WORM GEAR WHEEL (1)
|
4931465320 |
9.00
|
|
|
0027 |
GEAR COVER (1)
|
4931480450 |
22.00
|
|
|
0036 |
BALL BEARING (1)
|
4931472120 |
4.00
|
|
|
0038 |
BALL BEARING (1)
|
Item discontinued
(681258001) |
|
|
|
0040 |
SCREW (9)
|
4931465326 |
2.50
|
|
|
0041 |
SCREW (1)
|
4931465324 |
2.50
|
|
|
0042 |
SCREW (2)
|
4931465325 |
2.50
|
|
|
0045 |
RATING PLATE (1)
|
4931496561 |
1.00
|
|
|
0047 |
SLIDER (1)
|
4931480452 |
2.50
|
|
|
0052 |
COVER (1)
|
4931480453 |
2.50
|
|
|
0053 |
SCREW (2)
|
4931465385 |
2.50
|
|
|
0056 |
FOAM RUBBER (1)
|
4931480454 |
2.50
|
|
|
0057 |
FOAM RUBBER (1)
|
4931480455 |
2.50
|
|
|
0100 |
AUXILIARY HANDLE (1)
|
4931472123 |
30.50
|
|
|
0101 |
GEAR BOX HOUSING (1)
|
4931480456 |
47.50
|
|
|
0102 |
ANVIL (1)
|
4931472125 |
87.50
|
|
|
0103 |
HAMMER (1)
|
4931472126 |
119.00
|
|
|
0108 |
ELECTRONIC (1)
|
4931496562 |
224.00
|
|
|
0109 |
ROTOR (1)
|
4931472128 |
77.00
|
|
|
0111 |
SLIDER (1)
|
4931473383 |
14.50
|
|
|
0112 |
HOLDER (1)
|
4931472130 |
12.00
|
|
|
0113 |
ISOLATION (1)
|
4931480458 |
15.00
|
|
|
0121 |
HOUSING (1)
|
4931480459 |
40.50
|
|
|
0701 |
HD Box 3 - 1pc (1)
|
4932453386 |
55.20
|
|
|
0702 |
INSERT (1)
|
4931480460 |
20.00
|
|
|
0703 |
HDBOX2FUEL HD BOX 2 FUEL XXX (1)
|
4932498753 |
49.90
|
|
|
0704 |
INSERT (1)
|
4931507269 |
25.00
|
|
