Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

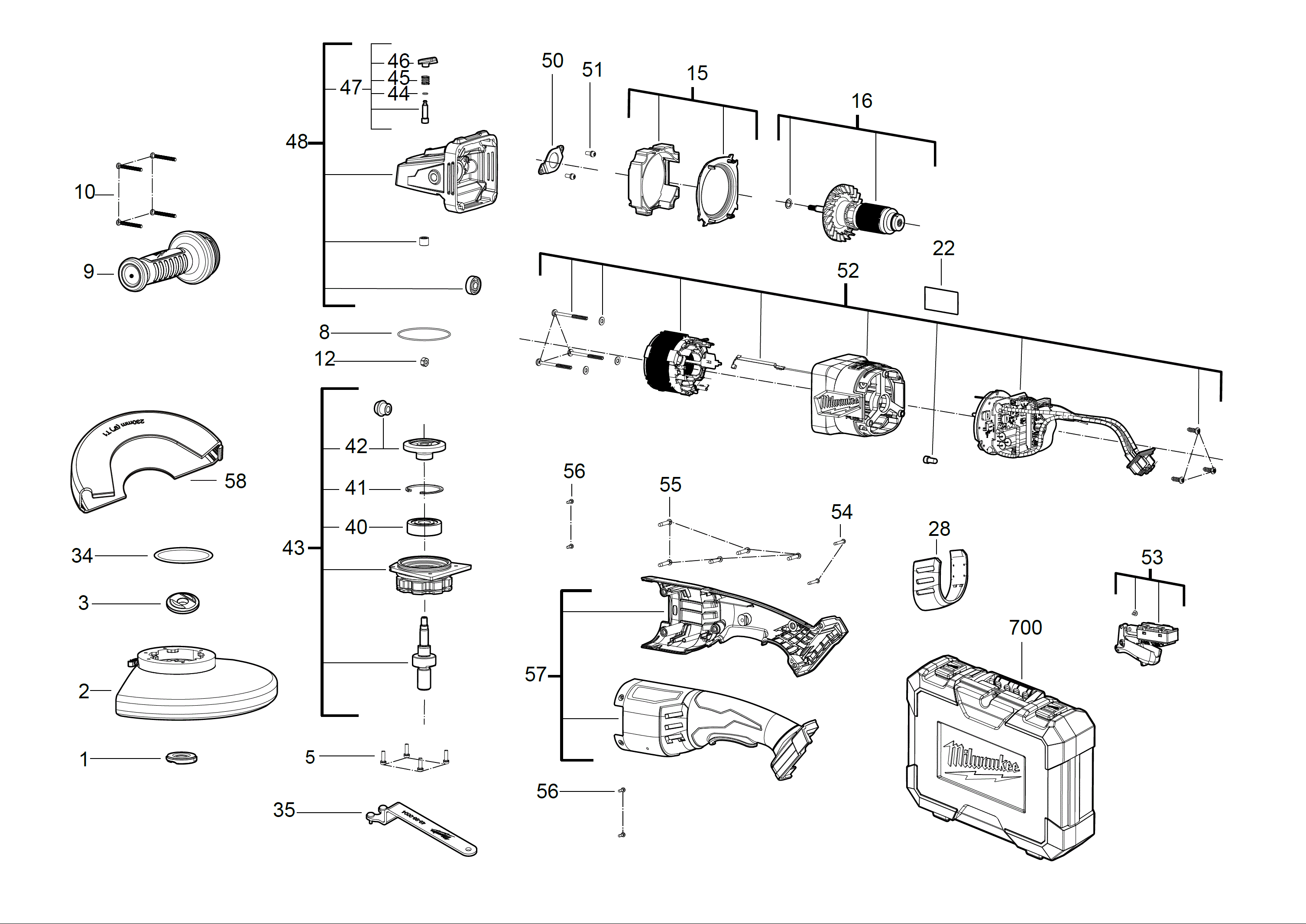

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0001 |
FIXTEC NUT (1)
|
4931466273 |
16.28
|
|
|
0002 |
GUARD (1)
|
4931465862 |
29.40
|
|
|
0003 |
FLANGE (1)
|
4931465842 |
11.55
|
|
|
0005 |
SCREW (4)
|
4931465843 |
1.58
|
|
|
0008 |
O-RING (1)
|
4931465844 |
1.58
|
|
|
0009 |
AUXILIARY HANDLE (1)
|
4931435002 |
12.08
|
|
|
0010 |
SCREW (4)
|
4931461254 |
1.58
|
|
|
0012 |
NUT (1)
|
671686001 |
3.15
|
|
|
0015 |
FRAME (1)
|
4931465845 |
8.40
|
|
|
0016 |
ARMATURE ASSEMBLY (1)
|
4931465846 |
81.90
|
|
|
0022 |
RATING PLATE (1)
|
4931465863 |
1.58
|
|
|
0028 |
DUST FILTER (1)
|
4931465848 |
4.73
|
|
|
0034 |
O-RING (1)
|
4931465849 |
1.58
|
|
|
0035 |
WRENCH (1)
|
4931466274 |
6.30
|
|
|
0040 |
BALL BEARING (1)
|
4931465850 |
7.88
|
|
|
0041 |
CLAMPING RING (1)
|
4931465851 |
3.68
|
|
|
0042 |
BEVEL GEAR PAIR (1)
|
4931465852 |
24.15
|
|
|
0043 |
DRIVE (1)
|
4931465853 |
52.50
|
|
|
0044 |
O-RING (1)
|
4931435006 |
1.58
|
|
|
0045 |
SPRING (1)
|
4931435005 |
3.68
|
|
|
0046 |
TRIGGER (1)
|
4931435004 |
3.68
|
|
|
0047 |
SPINDLE LOCK (1)
|
4931465854 |
6.83
|
|
|
0048 |
GEAR BOX ASSY (1)
|
4931465855 |
47.25
|
|
|
0050 |
RETAINER (1)
|
4931435039 |
1.58
|
|
|
0051 |
SCREW (2)
|
4931465856 |
1.58
|
|
|
0052 |
ELECTRONIC (1)
|
4931465857 |
248.85
|
|
|
0053 |
SWITCH (1)
|
4931465858 |
30.45
|
|
|
0054 |
SCREW (2)
|
660230017 |
1.58
|
|
|
0055 |
SCREW (5)
|
4931453124 |
1.58
|
|
|
0056 |
SCREW (4)
|
4931431788 |
1.58
|
|
|
0057 |
HOUSING (1)
|
4931465859 |
26.25
|
|
|
0058 |
CUTTING GUARD (1)
|
4931428099 |
25.20
|
|
|
0700 |
CARRYING CASE (1)
|
4931465861 |
85.05
|
|
