Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

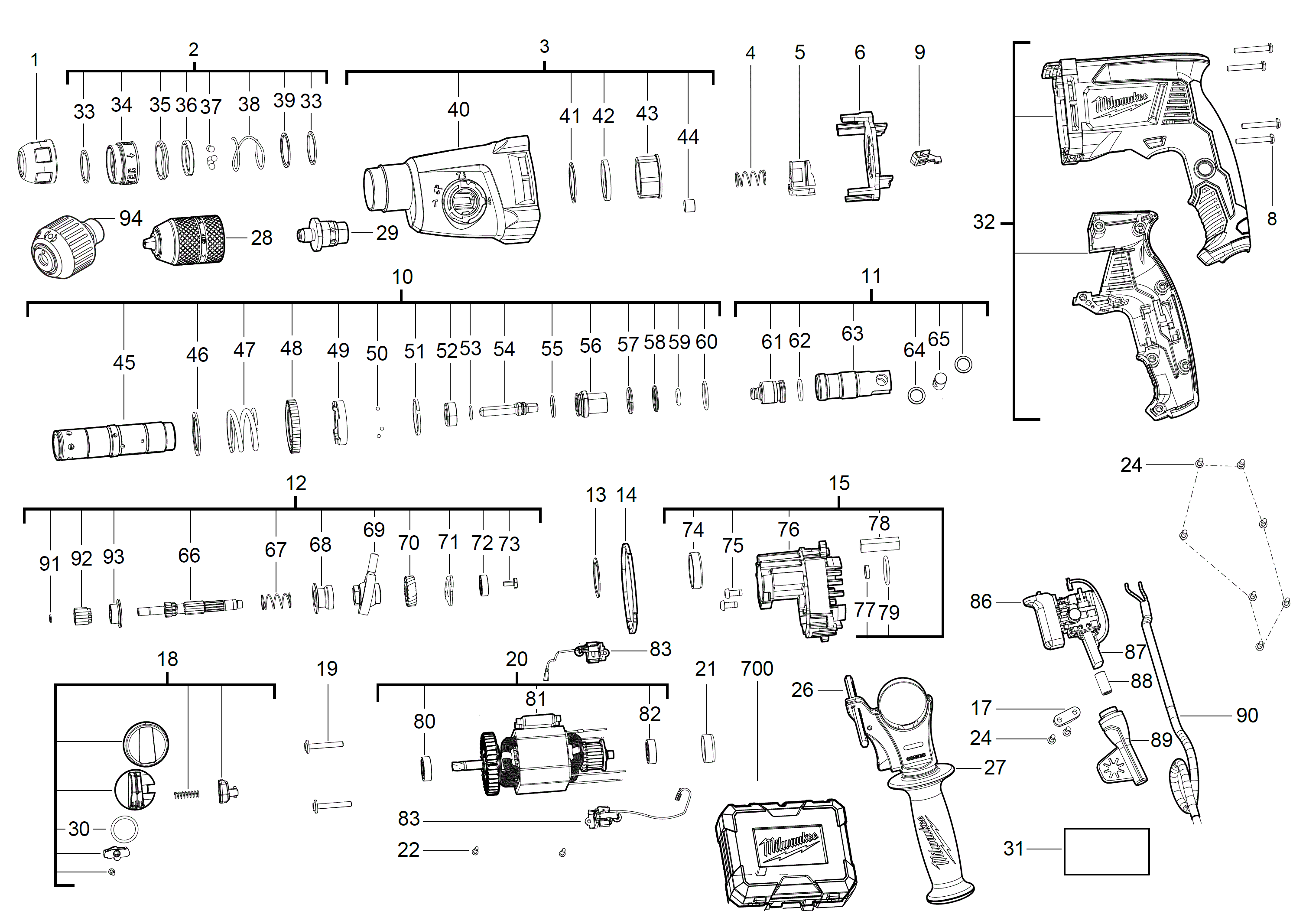

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0001 |
Sleeve (1)
|
4931466390 |
2.50
|
|
|
0002 |
CHUCK (1)
|
4931466389 |
10.00
|
|
|
0003 |
GEAR BOX KIT (1)
|
4931466355 |
27.50
|
|
|
0004 |
SPRING PLATE (1)
|
4931454502 |
1.00
|
|
|
0005 |
LOCKING PART (1)
|
4931466356 |
4.00
|
|
|
0006 |
COVER (1)
|
4931454439 |
1.00
|
|
|
0008 |
SCREW (4)
|
661288001 |
2.50
|
|
|
0009 |
SLIDE (1)
|
4931466357 |
1.00
|
|
|
0010 |
SPINDLE KIT (1)
|
4931466388 |
76.00
|
|
|
0011 |
CYLINDER (1)
|
4931466359 |
29.50
|
|
|
0012 |
WOBBLE DRIVE (1)
|
4931466360 |
41.00
|
|
|
0013 |
WASHER (1)
|
633516001 |
2.50
|
|
|
0014 |
SEAL (1)
|
4931454444 |
4.00
|
|
|
0015 |
GEAR BOX (1)
|
4931466361 |
33.00
|
|
|
0017 |
CLAMP (1)
|
Item discontinued
(590501001) |
|
|
|
0018 |
TURNING KNOB (1)
|
4931466362 |
12.00
|
|
|
0019 |
SCREW (2)
|
4931454468 |
2.50
|
|
|
0020 |
MOTOR (1)
|
4931466363 |
73.50
|
|
|
0021 |
HOLDER (1)
|
4931466364 |
1.00
|
|
|
0022 |
SCREW (2)
|
660570005 |
2.50
|
|
|
0024 |
SCREW (9)
|
4931454800 |
2.50
|
|
|
0026 |
DEPTH GAUGE (1)
|
4931384434 |
3.50
|
|
|
0027 |
AUXILIARY HANDLE (1)
|
4931466365 |
13.00
|
|
|
0028 |
CHUCK (1)
|
4931466387 |
21.00
|
|
|
0029 |
CHUCK ADAPTER (1)
|
621194001 |
19.00
|
|
|
0030 |
O-RING (1)
|
4931466366 |
2.50
|
|
|
0031 |
RATING PLATE (1)
|
4931466386 |
1.00
|
|
|
0032 |
HOUSING (1)
|
4931466368 |
23.50
|
|
|
0033 |
RETAINING RING (2)
|
672634004 |
3.50
|
|
|
0034 |
SLEEVE (1)
|
522186001 |
2.50
|
|
|
0035 |
STOP WASHER (1)
|
692726001 |
4.00
|
|
|
0036 |
RING (1)
|
522187001 |
4.00
|
|
|
0037 |
BALL (6)
|
681486001 |
2.50
|
|
|
0038 |
SPRING (1)
|
4931454779 |
2.50
|
|
|
0039 |
WASHER (1)
|
632420001 |
2.50
|
|
|
0040 |
GEAR BOX HOUSING (1)
|
4931466369 |
14.00
|
|
|
0041 |
COMPENSATING WASHER (1)
|
633514001 |
2.50
|
|
|
0042 |
NEEDLE BEARING (1)
|
4931454446 |
4.73
|
|
|
0043 |
BUSH (1)
|
4931454445 |
5.00
|
|
|
0044 |
NEEDLE BEARING (1)
|
4931454447 |
7.00
|
|
|
0045 |
SPINDLE SLEEVE (1)
|
4931454510 |
37.50
|
|
|
0046 |
WASHER (1)
|
633517001 |
2.50
|
|
|
0047 |
COUPLING RING (1)
|
4931454460 |
3.50
|
|
|
0048 |
GEARWHEEL SET (1)
|
4931454459 |
5.00
|
|
|
0049 |
CLUTCH (1)
|
4931454458 |
4.00
|
|
|
0050 |
BALL (3)
|
611405001 |
2.50
|
|
|
0051 |
HOLDING RING (1)
|
4931436804 |
2.50
|
|
|
0052 |
STOP WASHER (1)
|
692724001 |
6.00
|
|
|
0053 |
O-RING (1)
|
4931454454 |
2.50
|
|
|
0054 |
SNAP DIE (1)
|
4931454509 |
13.00
|
|
|
0055 |
O-RING (1)
|
4931436819 |
2.50
|
|
|
0056 |
SLEEVE (1)
|
4931472261 |
9.00
|
|
|
0057 |
O-RING (1)
|
562595001 |
2.50
|
|
|
0058 |
WASHER (1)
|
633518001 |
2.50
|
|
|
0059 |
O-RING (1)
|
4931454456 |
2.50
|
|
|
0060 |
CIRCLIP (1)
|
672632001 |
3.50
|
|
|
0061 |
PERCUSSION BODY (1)
|
4931454453 |
7.35
|
|
|
0062 |
O-RING (1)
|
561994001 |
2.50
|
|
|
0063 |
CYLINDER (1)
|
4931454452 |
15.50
|
|
|
0064 |
WASHER (2)
|
4931454451 |
2.50
|
|
|
0065 |
BOLT (1)
|
4931454450 |
4.00
|
|
|
0066 |
REDUCT. GEAR SHAFT (1)
|
4931454472 |
14.00
|
|
|
0067 |
SPRING (1)
|
4931454475 |
2.50
|
|
|
0068 |
COUPLING SLEEVE (1)
|
4931454474 |
4.00
|
|
|
0069 |
WOBBLE PLATE (1)
|
4931466370 |
20.00
|
|
|
0070 |
WORM GEAR WHEEL (1)
|
4931454471 |
9.00
|
|
|
0071 |
WASHER (1)
|
4931454470 |
2.50
|
|
|
0072 |
BALL BEARING (1)
|
Item discontinued
(4931454469) |
|
|
|
0073 |
SCREW (1)
|
4931436821 |
1.00
|
|
|
0074 |
BUSH (1)
|
4931454443 |
3.50
|
|
|
0075 |
LOCKING SCREW (2)
|
4931465672 |
2.50
|
|
|
0076 |
GEAR BOX (1)
|
4931466371 |
22.50
|
|
|
0077 |
DATA PLATE (1)
|
4931454440 |
3.00
|
|
|
0078 |
FELT (1)
|
4931454441 |
2.50
|
|
|
0079 |
O-RING (1)
|
4931454442 |
2.50
|
|
|
0080 |
BALL BEARING (1)
|
4931466372 |
4.50
|
|
|
0081 |
MOTOR (1)
|
4931454466 |
64.00
|
|
|
0082 |
BALL BEARING (1)
|
4931466373 |
4.50
|
|
|
0083 |
CARBON BRUSH (1)
|
4931466721 |
20.00
|
|
|
0086 |
SWITCH (1)
|
4931454463 |
16.00
|
|
|
0087 |
CAPACITOR (1)
|
4931454462 |
10.00
|
|
|
0088 |
MAGNET (1)
|
4931466377 |
1.00
|
|
|
0089 |
RETAINER (1)
|
Item discontinued
(4931454476) |
|
|
|
0090 |
POWER CORD (1)
|
4931466378 |
24.50
|
|
|
0091 |
WASHER (1)
|
633525001 |
2.50
|
|
|
0092 |
PINION (1)
|
4931454500 |
2.50
|
|
|
0093 |
COUPLING SLEEVE (1)
|
4931454499 |
2.50
|
|
|
0700 |
CARRYING CASE (1)
|
4931466379 |
42.00
|
|
|
0094 |
Adapter SDS+ Fixtec-1pc (1)
|
4932352299 |
35.40
|
|
