Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

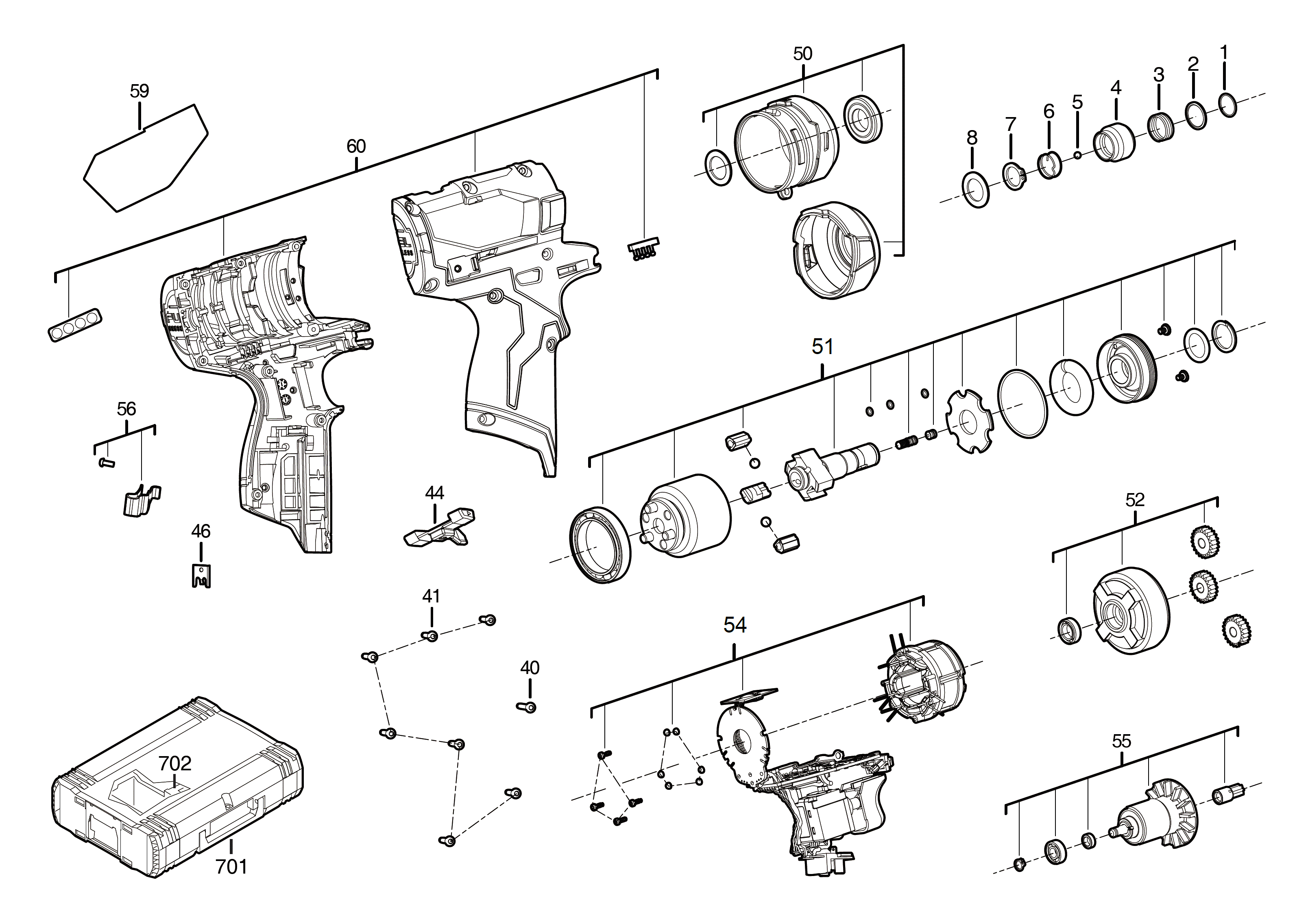

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0001 |
HOLDING RING (1)
|
4931440469 |
4.00
|
|
|
0002 |
WASHER (1)
|
4931466862 |
3.00
|
|
|
0003 |
SPRING (1)
|
4931440467 |
3.00
|
|
|
0004 |
SLEEVE (1)
|
4931454722 |
5.50
|
|
|
0005 |
BALL (1)
|
4931440304 |
3.00
|
|
|
0006 |
SPRING (1)
|
4931466863 |
1.50
|
|
|
0007 |
HOLDING RING (1)
|
4931454723 |
3.00
|
|
|
0008 |
WASHER (1)
|
4931466864 |
1.00
|
|
|
0040 |
SCREW (1)
|
4931466865 |
1.00
|
|
|
0041 |
SCREW (7)
|
4931465499 |
3.00
|
|
|
0044 |
LEVER (1)
|
4931465198 |
3.00
|
|
|
0046 |
CONNECTOR (1)
|
4931436292 |
3.00
|
|
|
0050 |
GEAR BOX HOUSING (1)
|
4931466866 |
26.50
|
|
|
0051 |
GEAR KIT (1)
|
4931511282 |
96.00
|
|
|
0052 |
GEAR BOX ASSY (1)
|
4931466867 |
23.50
|
|
|
0054 |
ELECTRONIC (1)
|
4931511283 |
75.00
|
|
|
0055 |
ROTOR (1)
|
4931466868 |
27.50
|
|
|
0056 |
BELT CLIP (1)
|
4931466869 |
5.50
|
|
|
0059 |
RATING PLATE (1)
|
4931466870 |
1.00
|
|
|
0060 |
HOUSING (1)
|
4931466871 |
17.00
|
|
|
0702 |
INSERT (1)
|
4931465207 |
10.00
|
|
|
0701 |
HD Box 1 - 1pc (1)
|
4932453385 |
47.30
|
|
