Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

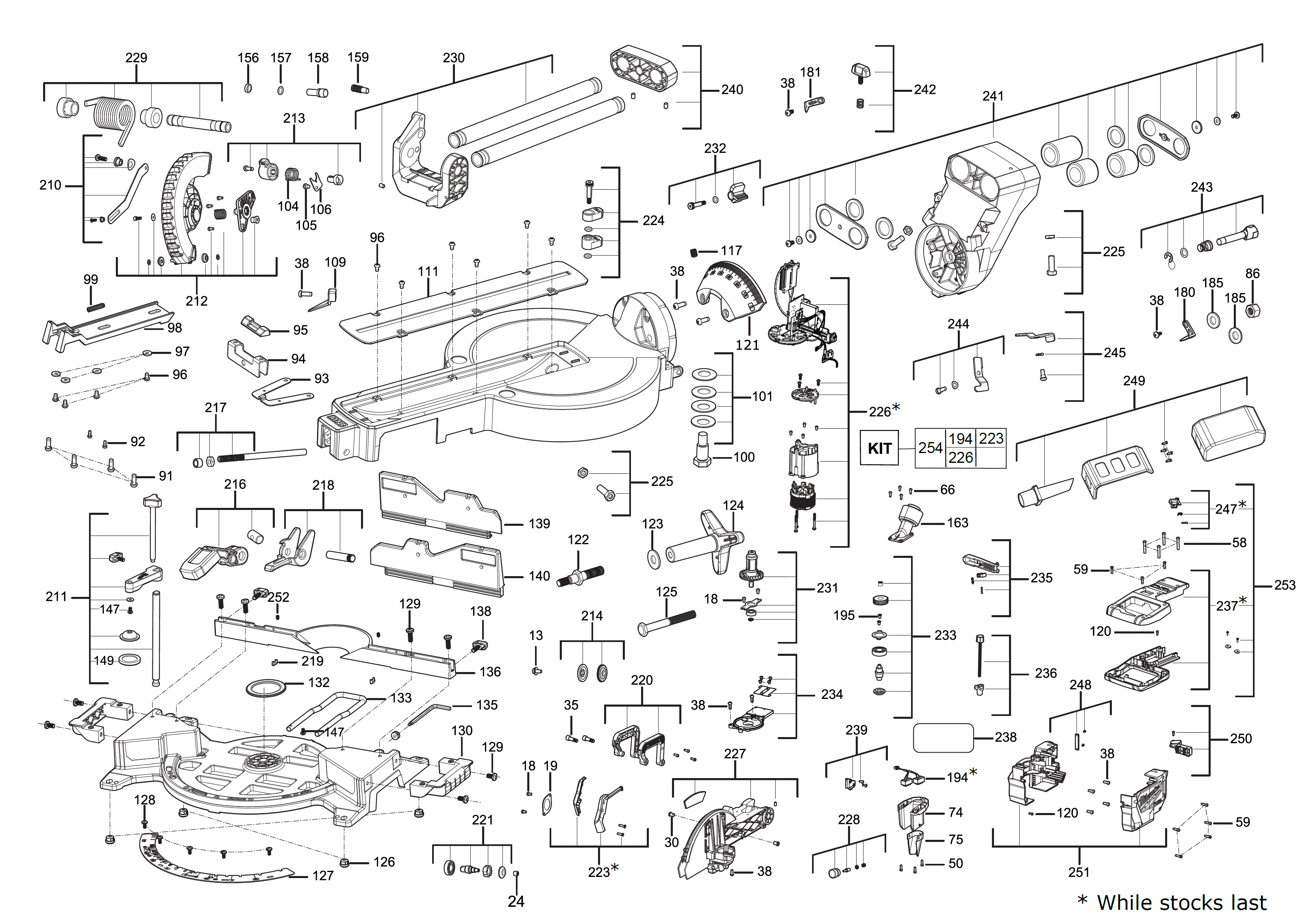

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0013 |
SET SCREW (1)
|
4931454626 |
2.50
|
|
|
0018 |
SCREW (4)
|
4931472434 |
1.00
|
|
|
0019 |
PLATE (1)
|
4931472435 |
3.50
|
|
|
0024 |
BEARING (2)
|
4931472436 |
6.00
|
|
|
0030 |
PIN (2)
|
4931472437 |
1.00
|
|
|
0035 |
SCREW (2)
|
4931472438 |
3.50
|
|
|
0038 |
SCREW (10)
|
4931465028 |
2.50
|
|
|
0050 |
SCREW (3)
|
4931472439 |
1.00
|
|
|
0058 |
SCREW (4)
|
4931454631 |
2.50
|
|
|
0059 |
SCREW (8)
|
4931454628 |
2.50
|
|
|
0066 |
SCREW (4)
|
4931461999 |
2.50
|
|
|
0074 |
DIRECT.DUST CHUTE (1)
|
4931472440 |
9.00
|
|
|
0075 |
DUST EXTRACTION (1)
|
4931465022 |
4.00
|
|
|
0086 |
BOLT (1)
|
4931454656 |
4.00
|
|
|
0091 |
SCREW (4)
|
4931472441 |
1.00
|
|
|
0092 |
SCREW (2)
|
4931472442 |
1.00
|
|
|
0093 |
SPRING (1)
|
4931472443 |
6.00
|
|
|
0094 |
LOCKING BOLT (1)
|
4931472444 |
6.50
|
|
|
0095 |
LOCKING PIECE (1)
|
4931472445 |
3.50
|
|
|
0096 |
SCREW (11)
|
4931472446 |
1.00
|
|
|
0097 |
WASHER (4)
|
4931472447 |
1.00
|
|
|
0098 |
SLIDER (1)
|
4931472448 |
5.50
|
|
|
0099 |
SPRING (1)
|
4931472449 |
1.00
|
|
|
0100 |
BEARING BOLT (1)
|
4931461974 |
12.50
|
|
|
0101 |
SPRING (1)
|
4931454651 |
3.50
|
|
|
0104 |
SPRING (1)
|
4931454659 |
2.50
|
|
|
0105 |
SCREW (1)
|
4931465017 |
2.50
|
|
|
0106 |
LOCK COMPLETE (1)
|
4931465015 |
3.50
|
|
|
0109 |
POINTER (1)
|
4931472450 |
3.50
|
|
|
0111 |
PLATE (1)
|
4931472451 |
8.00
|
|
|
0117 |
SCREW (1)
|
4931472452 |
1.00
|
|
|
0120 |
SCREW (2)
|
4931472453 |
1.00
|
|
|
0121 |
SCALE (1)
|
4931480424 |
5.50
|
|
|
0122 |
THREADED BOLT (1)
|
4931461997 |
5.50
|
|
|
0123 |
WASHER (1)
|
4931465009 |
1.00
|
|
|
0124 |
KNOB HANDLE (1)
|
4931472454 |
18.00
|
|
|
0125 |
CLAMPING SCREW (1)
|
4931461984 |
4.00
|
|
|
0126 |
RUBBER FOOT (1)
|
4931454668 |
2.50
|
|
|
0127 |
SCALE (1)
|
4931472455 |
55.00
|
|
|
0128 |
SCREW (5)
|
4931461980 |
4.00
|
|
|
0129 |
SCREW (8)
|
4931461982 |
4.00
|
|
|
0130 |
GRIP (2)
|
4931472456 |
28.50
|
|
|
0132 |
BEARING COVER (1)
|
4931454662 |
54.50
|
|
|
0133 |
YOKE (1)
|
4931472457 |
12.00
|
|
|
0135 |
ALLEN KEY (1)
|
4931461976 |
4.00
|
|
|
0136 |
STOP (1)
|
4931472458 |
93.50
|
|
|
0138 |
COVER (2)
|
4931454667 |
4.00
|
|
|
0139 |
STOP (1)
|
4931472459 |
64.50
|
|
|
0140 |
STOP (1)
|
4931472460 |
64.50
|
|
|
0147 |
SCREW (2)
|
4931454635 |
2.50
|
|
|
0149 |
RUBBER BUFFER (1)
|
4931472461 |
1.00
|
|
|
0156 |
PIN (1)
|
4931472462 |
3.50
|
|
|
0157 |
O-RING (1)
|
4931454636 |
2.50
|
|
|
0158 |
SPINDLE LOCK (1)
|
4931454637 |
4.00
|
|
|
0159 |
STOP (1)
|
4931454638 |
3.50
|
|
|
0163 |
SUCTION SLEEVE (1)
|
4931465000 |
6.00
|
|
|
0180 |
POINTER (1)
|
4931472463 |
3.50
|
|
|
0181 |
POINTER (1)
|
4931472464 |
3.50
|
|
|
0185 |
WASHER (2)
|
4931465012 |
1.00
|
|
|
0194 |
WORK LAMP (1)
|
4931472465 |
34.00
|
|
|
0195 |
SCREW (2)
|
4931472466 |
1.00
|
|
|
0210 |
HOLDING BRACKET (1)
|
4931472467 |
12.50
|
|
|
0211 |
HOLDING-DOWN DEVICE (1)
|
4931472468 |
83.00
|
|
|
0212 |
GUARD (1)
|
4931472469 |
75.00
|
|
|
0213 |
TURNING KNOB (1)
|
4931472470 |
9.00
|
|
|
0214 |
FLANGE (1)
|
4931472471 |
29.50
|
|
|
0216 |
CATCH LEVER (1)
|
4931472472 |
12.00
|
|
|
0217 |
LOCKING BOLT (1)
|
4931472473 |
12.50
|
|
|
0218 |
BRACKET (1)
|
4931472474 |
12.00
|
|
|
0219 |
PIN (2)
|
4931472475 |
3.00
|
|
|
0220 |
HANDLE (1)
|
4931472476 |
14.50
|
|
|
0221 |
SPINDLE (1)
|
4931472477 |
46.50
|
|
|
0223 |
COVER (1)
|
4931472478 |
30.50
|
|
|
0224 |
STOP (2)
|
4931472479 |
37.00
|
|
|
0225 |
SCREW (4)
|
4931472480 |
6.50
|
|
|
0226 |
ELECTRONIC (1)
|
4931507961 |
276.00
|
|
|
0227 |
GEAR BOX (1)
|
4931472482 |
135.50
|
|
|
0228 |
SPINDLE LOCK (1)
|
4931472483 |
7.50
|
|
|
0229 |
SCREW (1)
|
4931472484 |
91.50
|
|
|
0230 |
HINGE PIECE (1)
|
4931472485 |
177.50
|
|
|
0231 |
ROTOR (1)
|
4931472486 |
190.50
|
|
|
0232 |
DEPTH GAUGE (1)
|
4931472487 |
10.50
|
|
|
0233 |
SHAFT (1)
|
4931472488 |
58.00
|
|
|
0234 |
DIAPHRAGM (1)
|
4931472489 |
47.50
|
|
|
0235 |
TRIGGER (1)
|
4931472490 |
8.00
|
|
|
0236 |
SCREW (1)
|
4931472491 |
12.00
|
|
|
0237 |
HANDLE (1)
|
4931472492 |
38.00
|
|
|
0238 |
RATING PLATE (1)
|
4931472493 |
3.00
|
|
|
0239 |
COVER (1)
|
4931472494 |
7.50
|
|
|
0240 |
CAP (1)
|
4931472495 |
38.00
|
|
|
0241 |
BRACKET (1)
|
4931472496 |
190.50
|
|
|
0242 |
LOCKING PIECE (1)
|
4931472497 |
8.50
|
|
|
0243 |
PIN (1)
|
4931472498 |
7.50
|
|
|
0244 |
CATCH LEVER (1)
|
4931472499 |
10.50
|
|
|
0245 |
CATCH LEVER (1)
|
4931472500 |
10.50
|
|
|
0247 |
SWITCH (1)
|
4931472501 |
6.00
|
|
|
0248 |
DOOR (1)
|
4931472502 |
5.00
|
|
|
0249 |
DUST BOX ASSY (1)
|
4931472503 |
34.00
|
|
|
0250 |
SWITCH (1)
|
4931472504 |
51.50
|
|
|
0251 |
COVER (1)
|
4931472505 |
38.00
|
|
|
0252 |
SCREW (2)
|
4931472506 |
2.50
|
|
|
0253 |
HANDLE SET (1)
|
4931506259 |
42.00
|
|
|
0254 |
ELECTRONIC (1)
|
4931511008 |
|
|
