Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|
Position |
Description (Qty) |
Part number |
Price (€) |
|
|

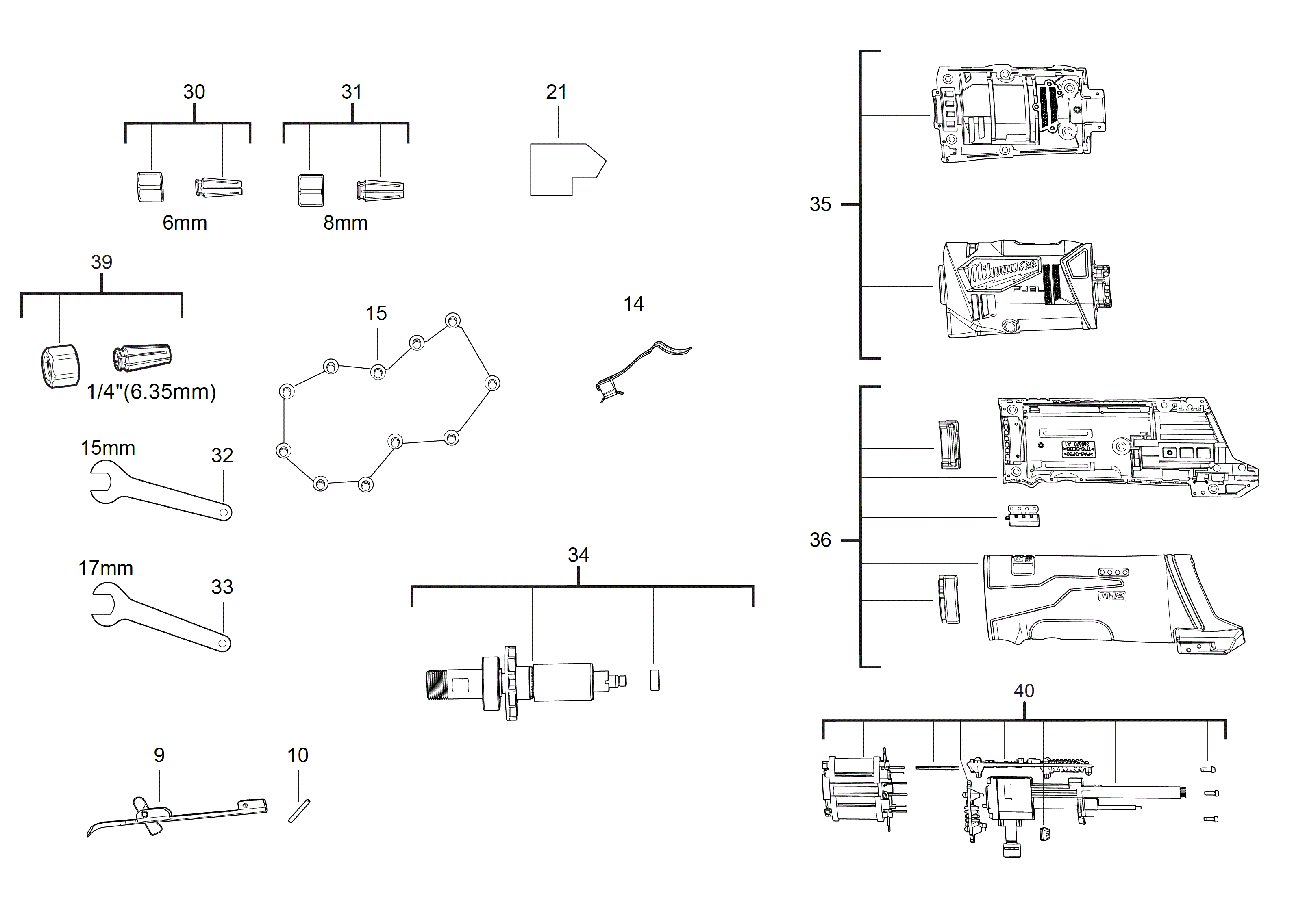

0009 |
LEVER (1)
|
4931472886 |
7.00
|
|
|
0010 |
PIN (1)
|
4931435254 |
4.00
|
|
|
0014 |
SPRING ELEMENT (1)
|
4931506540 |
3.00
|
|
|
0015 |
SCREW (11)
|
660230016 |
3.00
|
|
|
0021 |
RATING PLATE (1)
|
4931472887 |
1.00
|
|
|
0030 |
COLLET (1)
|
4931472587 |
48.50
|
|
|
0031 |
COLLET (1)
|
4931472588 |
48.50
|
|
|
0032 |
WRENCH (1)
|
4931461257 |
5.00
|
|
|
0033 |
WRENCH (1)
|
4931461258 |
5.00
|
|
|
0034 |
ROTOR (1)
|
4931472590 |
83.00
|
|
|
0035 |
HOUSING MOTOR SIDE (1)
|
4931472888 |
26.50
|
|
|
0036 |
HOUSING (1)
|
4931472889 |
27.50
|
|
|
0039 |
COLLET (1)
|
4931473915 |
46.00
|
|
|
0040 |
ELECTRONIC (1)
|
4931511367 |
78.00
|
|
To select the correct EU-Declaration of Conformity, please check the first 8 digits on your rating plate and match them with the corresponding EU-Declaration of Conformity document that has the same numbers in its title.
