Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|
Position |
Description (Qty) |
Part number |
Price (€) |
|
|

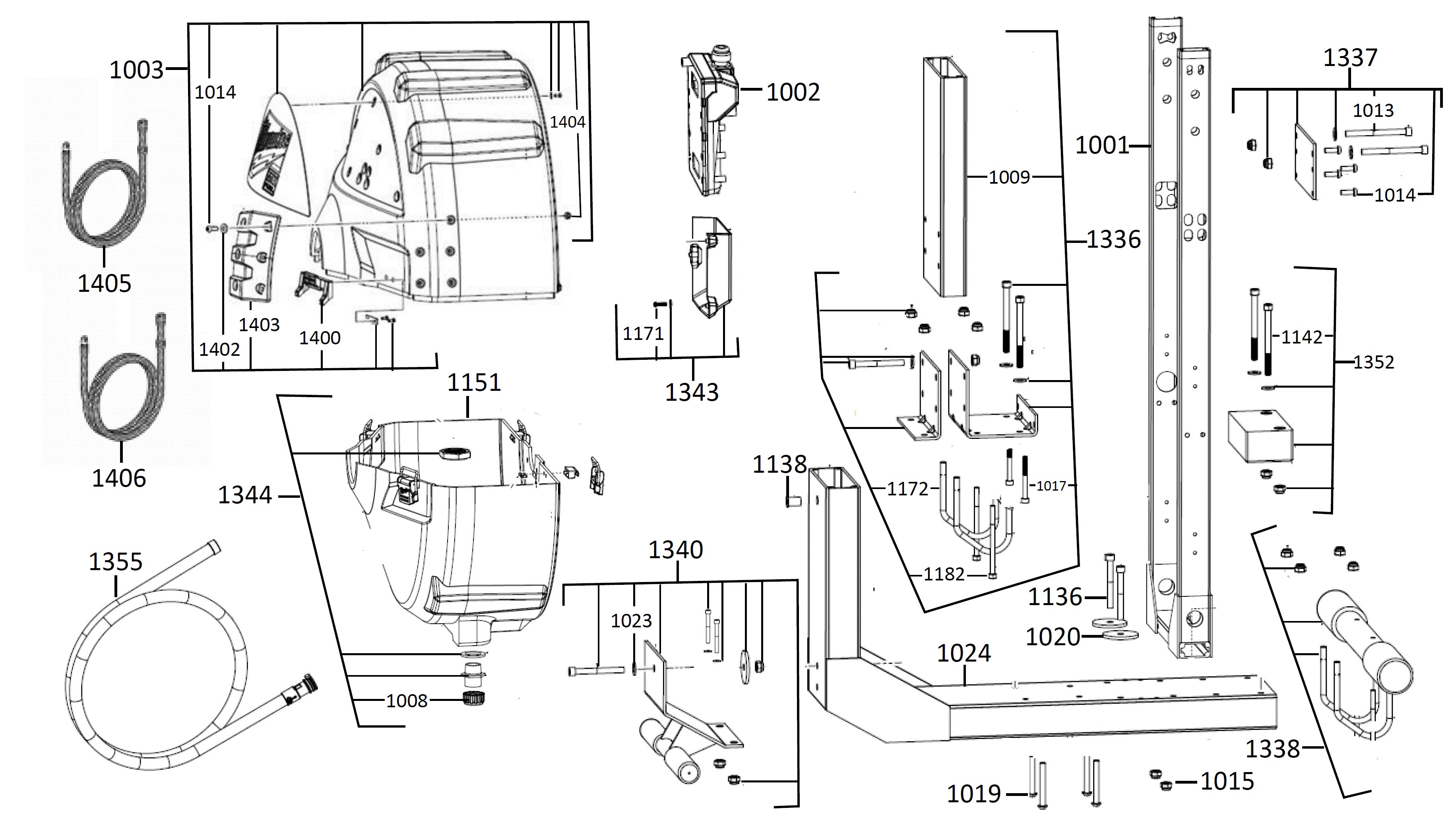

1001 |
FRAME (1)
|
4931479976 |
262.50
|
|
|
1002 |
CONTROL DEVICE (1)
|
4931479977 |
83.00
|
|
|
1003 |
COVER (1)
|
4931479978 |
466.00
|
|
|
1008 |
CAP (1)
|
4931479979 |
6.50
|
|
|
1009 |
FRAME (1)
|
4931479980 |
113.50
|
|
|
1013 |
SCREW (2)
|
4931479981 |
2.50
|
|
|
1014 |
SCREW (26)
|
4931479982 |
2.50
|
|
|
1015 |
NUT (18)
|
4931479983 |
3.00
|
|
|
1017 |
SCREW (6)
|
4931479984 |
3.00
|
|
|
1019 |
SCREW (4)
|
4931479985 |
3.00
|
|
|
1020 |
WASHER (3)
|
4931479986 |
3.50
|
|
|
1023 |
WASHER (11)
|
4931479987 |
2.50
|
|
|
1024 |
FRAME (1)
|
4931479988 |
210.00
|
|
|
1136 |
SCREW (5)
|
4931479989 |
2.50
|
|
|
1138 |
NUT (1)
|
4931479990 |
3.00
|
|
|
1142 |
SCREW (2)
|
4931479991 |
2.50
|
|
|
1151 |
HOUSING BOTTOM (1)
|
4931479992 |
613.00
|
|
|
1171 |
SCREW (3)
|
4931479993 |
2.50
|
|
|
1172 |
SCREW (2)
|
4931479994 |
24.50
|
|
|
1182 |
SCREW (2)
|
4931479995 |
2.50
|
|
|
1336 |
FRAME (1)
|
4931479996 |
422.00
|
|
|
1337 |
BRACKET (1)
|
4931479997 |
105.00
|
|
|
1338 |
FOOT (1)
|
4931479998 |
155.50
|
|
|
1340 |
HANDLE (1)
|
4931479999 |
50.50
|
|
|
1343 |
HOLDER (1)
|
4931480000 |
108.00
|
|
|
1344 |
DRAIN COCK (1)
|
4931480001 |
125.00
|
|
|
1352 |
BLOCK (1)
|
4931480002 |
119.00
|
|
|
1400 |
HOOK (4)
|
4931480003 |
18.00
|
|
|
1402 |
WASHER (16)
|
4931480004 |
2.50
|
|
|
1403 |
STOP (2)
|
4931480005 |
10.50
|
|
|
1404 |
NUT (32)
|
4931480006 |
3.00
|
|
|

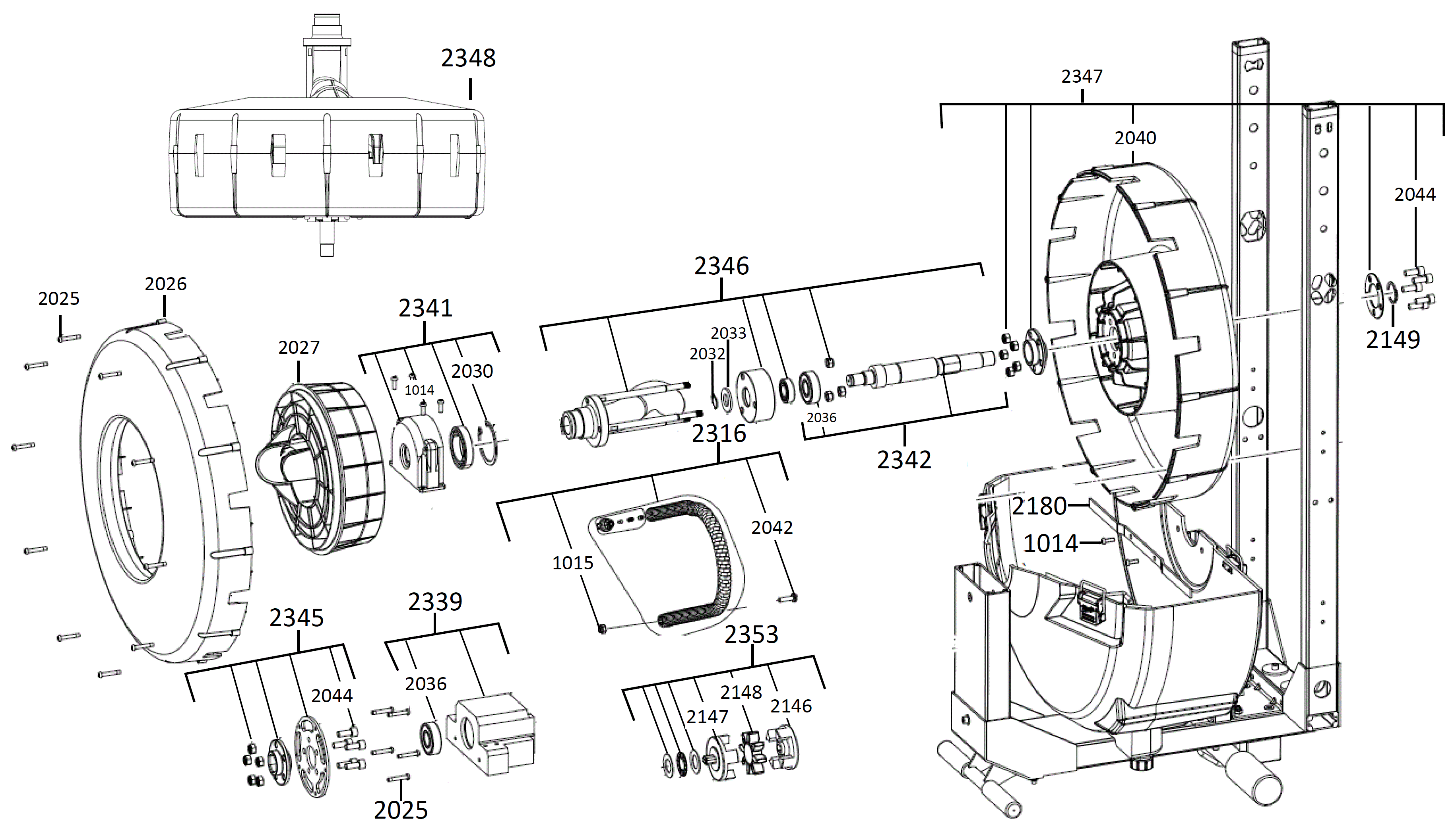

2025 |
SCREW (15)
|
4931480007 |
2.50
|
|
|
2026 |
COVER (1)
|
4931480008 |
107.00
|
|
|
2027 |
MOULDED PART (1)
|
4931480009 |
27.50
|
|
|
2030 |
RETAINING RING (1)
|
4931480010 |
7.50
|
|
|
2032 |
RETAINING RING (1)
|
4931480011 |
2.50
|
|
|
2033 |
WASHER (1)
|
4931480012 |
2.50
|
|
|
2036 |
BALL BEARING (2)
|
4931480013 |
8.50
|
|
|
2040 |
COVER (1)
|
4931480014 |
163.00
|
|
|
2042 |
SCREW (1)
|
4931480015 |
2.50
|
|
|
2044 |
SCREW (10)
|
4931480016 |
2.50
|
|
|
2146 |
COUPLING (1)
|
4931480017 |
66.50
|
|
|
2147 |
COUPLING (1)
|
4931480018 |
72.50
|
|
|
2148 |
RUBBER BUFFER (1)
|
4931480019 |
66.00
|
|
|
2149 |
RETAINING RING (1)
|
4931480020 |
2.50
|
|
|
2180 |
LATCH BAR (1)
|
4931480021 |
8.50
|
|
|
2316 |
CONNECTION (1)
|
4931480022 |
615.00
|
|
|
2339 |
LINK BLOCK (1)
|
4931480023 |
238.00
|
|
|
2341 |
LINK BLOCK (1)
|
4931480024 |
143.00
|
|
|
2342 |
SHAFT (1)
|
4931480025 |
249.00
|
|
|
2345 |
BRACKET (1)
|
4931480026 |
316.00
|
|
|
2346 |
FEED SPINDLE (1)
|
4931480027 |
440.00
|
|
|
2347 |
COVER-KIT (1)
|
4931480028 |
744.00
|
|
|
2348 |
ASSEMBLY KIT (1)
|
4931480029 |
840.00
|
|
|
2353 |
COUPLING SET (1)
|
4931480030 |
335.00
|
|
|
3047 |
SCREW (17)
|
4931480031 |
2.50
|
|
|

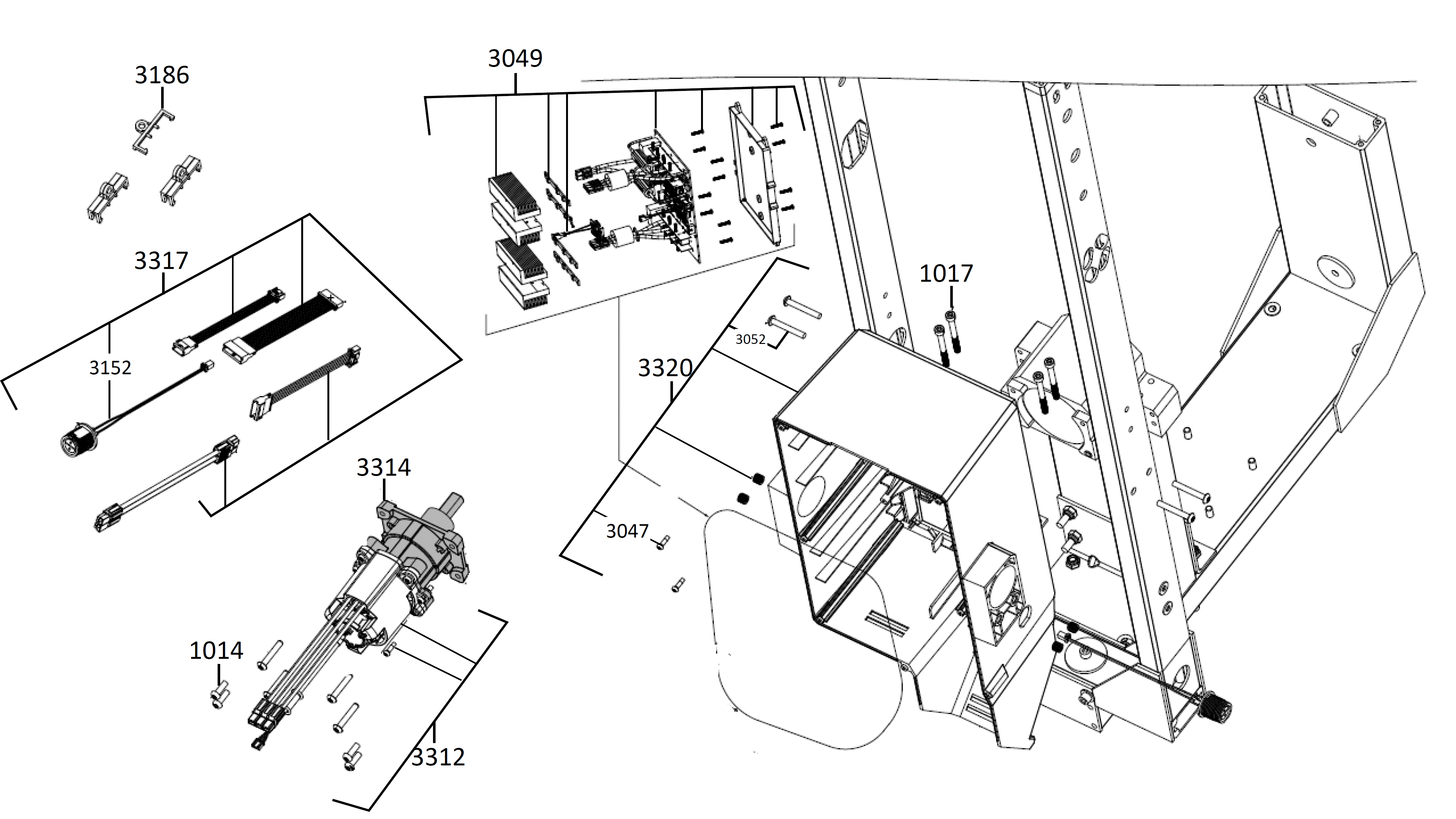

3049 |
ELECTRONIC (1)
|
4931480032 |
779.50
|
|
|
3052 |
SCREW (4)
|
4931480033 |
2.50
|
|
|
3152 |
CABLE (1)
|
4931480034 |
19.00
|
|
|
3186 |
CLAMP CLIP (6)
|
4931480035 |
3.00
|
|
|
3312 |
MOTOR ASSEMBLY (1)
|
4931480036 |
173.50
|
|
|
3314 |
GEAR BOX ASSY (1)
|
4931480037 |
145.00
|
|
|
3317 |
CABLE SET (1)
|
4931480038 |
196.50
|
|
|
3320 |
HOUSING SET ASSY (1)
|
4931480039 |
487.00
|
|
|

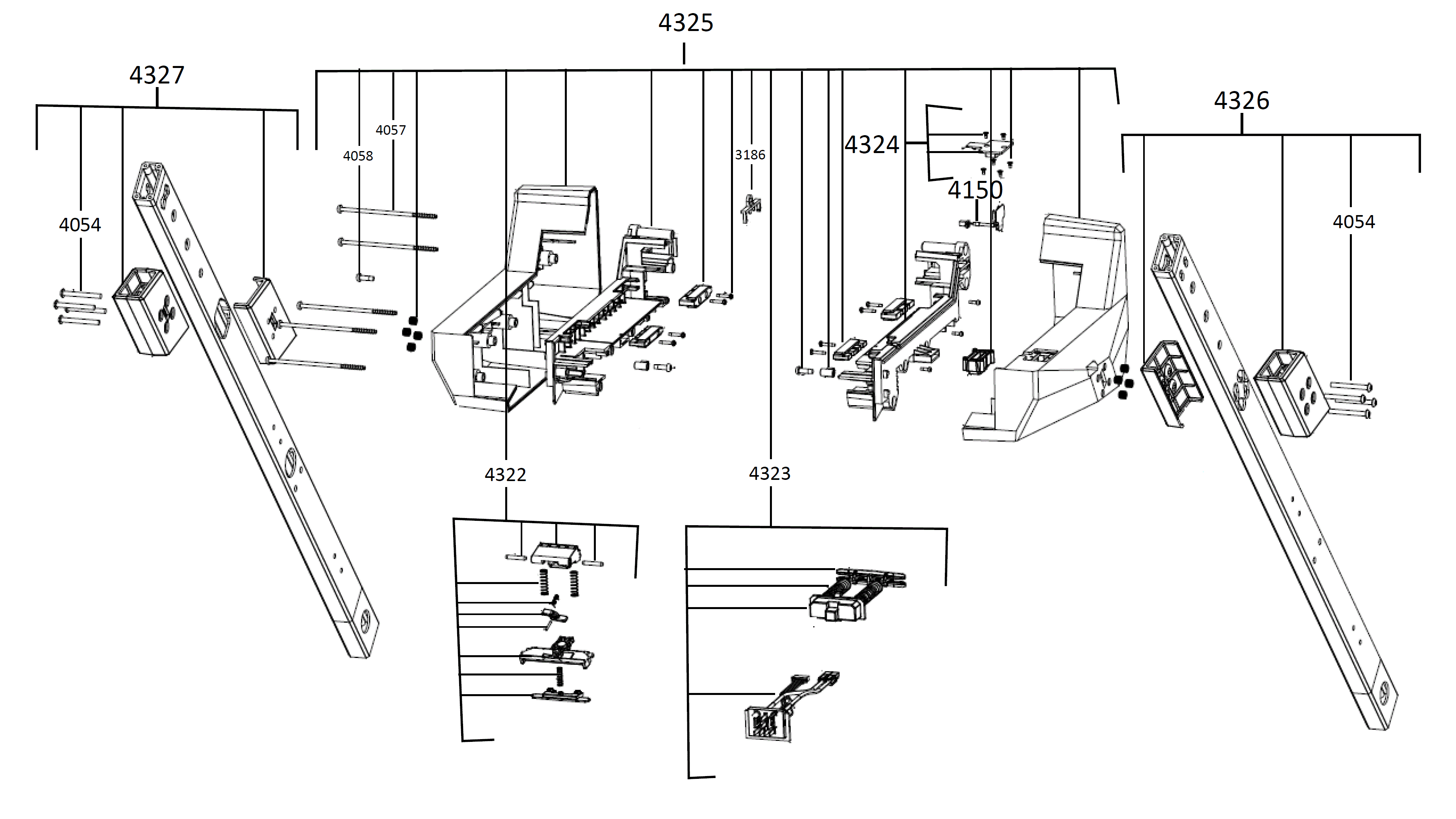

4054 |
SCREW (12)
|
4931480040 |
2.50
|
|
|
4057 |
SCREW (5)
|
4931480041 |
2.50
|
|
|
4058 |
SCREW (3)
|
4931480042 |
2.50
|
|
|
4150 |
ELECTRONIC ELEMENT (1)
|
4931480043 |
12.00
|
|
|
4322 |
LATCH (1)
|
4931480044 |
424.00
|
|
|
4323 |
EJECTOR (1)
|
4931480045 |
144.00
|
|
|
4324 |
CAP (1)
|
4931480046 |
54.00
|
|
|
4325 |
BATTERY BOX (1)
|
4931480047 |
810.00
|
|
|
4326 |
FRAME (1)
|
4931480048 |
122.00
|
|
|
4327 |
FRAME (1)
|
4931480049 |
598.00
|
|
|
5086 |
HOOK (1)
|
4931480050 |
15.00
|
|
|

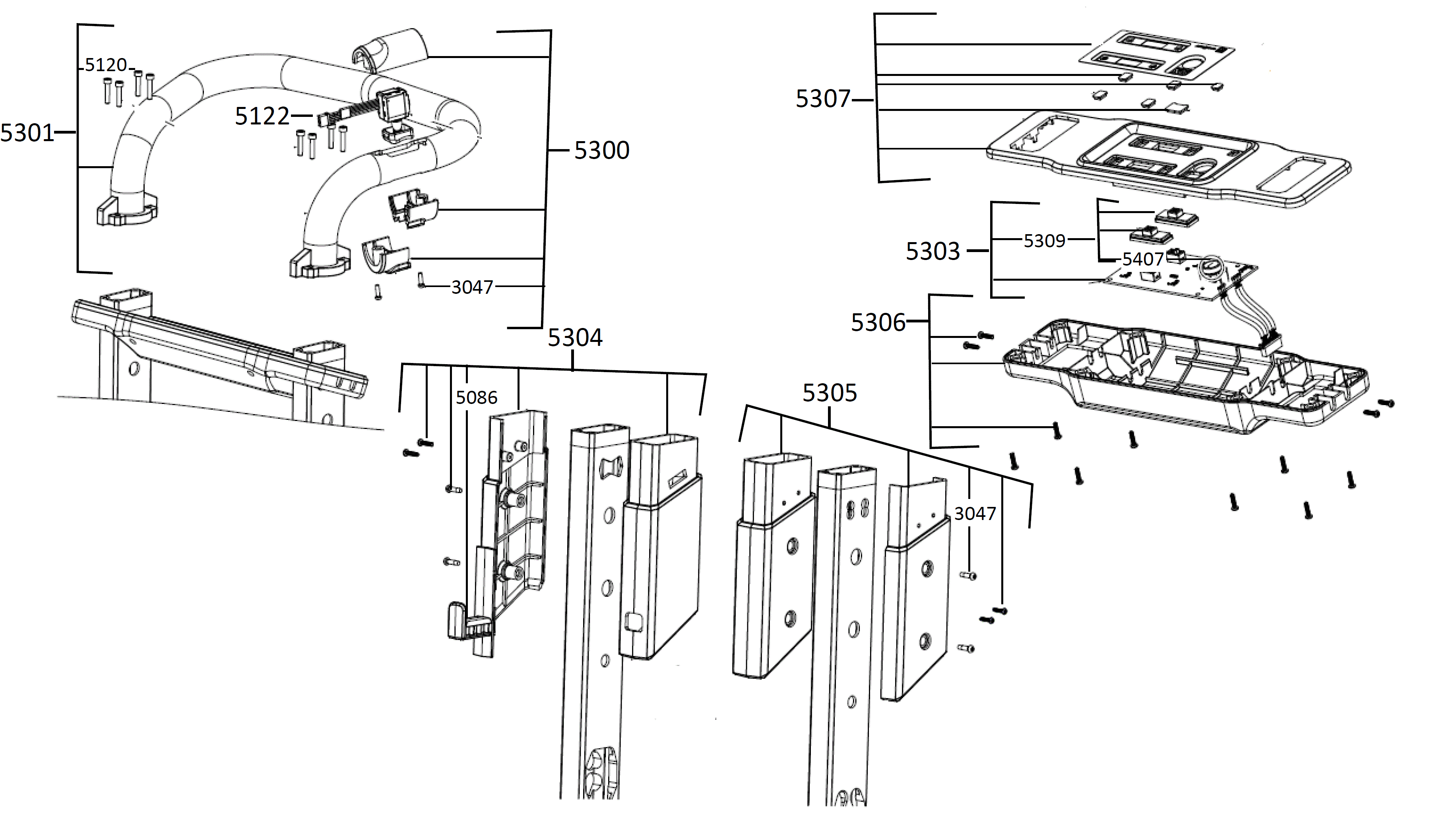

5120 |
SCREW (8)
|
4931480051 |
2.50
|
|
|
5122 |
TRIGGER (1)
|
4931480052 |
40.00
|
|
|
5300 |
COVER (1)
|
4931480053 |
96.00
|
|
|
5301 |
HANDLE COMPL. (1)
|
4931480054 |
95.00
|
|
|
5303 |
ELECTRONIC (1)
|
4931480055 |
192.00
|
|
|
5304 |
COVER FRAME (1)
|
4931480056 |
116.00
|
|
|
5305 |
COVER FRAME (1)
|
4931480057 |
107.00
|
|
|
5306 |
HOUSING BOTTOM (1)
|
4931480058 |
112.00
|
|
|
5307 |
COVER ASSY (1)
|
4931480059 |
154.00
|
|
|
5309 |
SWITCH ASSEMBLY (1)
|
4931480060 |
70.00
|
|
|
5407 |
BUTTON (1)
|
4931480061 |
5.50
|
|
|
6053 |
SCREW (4)
|
4931480062 |
7.50
|
|
|
6098 |
SCREW (8)
|
4931480063 |
2.50
|
|
|

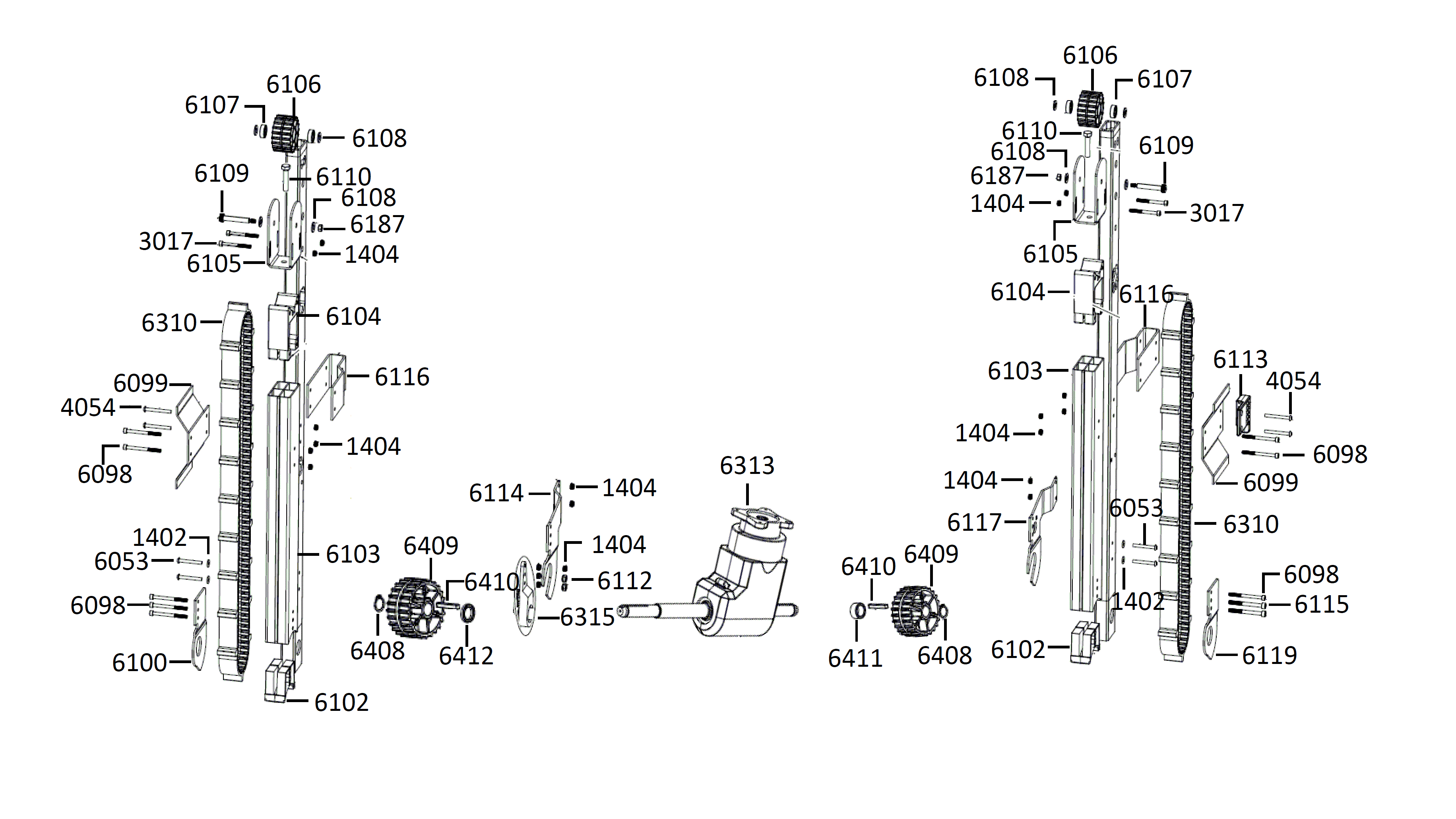

6099 |
GUARD (2)
|
4931480064 |
15.00
|
|
|
6100 |
COVER (1)
|
4931480065 |
26.00
|
|
|
6102 |
SUPPORT BRACKET (2)
|
4931480066 |
12.50
|
|
|
6103 |
SUPPORT (2)
|
4931480067 |
96.00
|
|
|
6104 |
BRACKET (2)
|
4931480068 |
58.50
|
|
|
6105 |
HOLDING BRACKET (2)
|
4931480069 |
37.00
|
|
|
6106 |
PULLEY (2)
|
4931480070 |
7.50
|
|
|
6107 |
BALL BEARING (4)
|
4931480071 |
3.50
|
|
|
6108 |
WASHER (8)
|
4931480072 |
2.50
|
|
|
6109 |
SCREW (2)
|
4931480073 |
5.50
|
|
|
6110 |
SCREW (2)
|
4931480074 |
2.50
|
|
|
6112 |
NUT (2)
|
4931480075 |
3.00
|
|
|
6113 |
HOOK (1)
|
4931480076 |
17.00
|
|
|
6114 |
FLANGE (1)
|
4931480077 |
17.00
|
|
|
6115 |
SCREW (2)
|
4931480078 |
2.50
|
|
|
6116 |
HOLDING BRACKET (2)
|
4931480079 |
27.50
|
|
|
6117 |
CHAIN CLAMP BODY (1)
|
4931480080 |
17.00
|
|
|
6119 |
COVER (1)
|
4931480081 |
26.00
|
|
|
6187 |
NUT (2)
|
4931480082 |
3.00
|
|
|
6310 |
TOOTHED BELT (1)
|
4931480083 |
446.50
|
|
|
6313 |
GEAR BOX ASSY (1)
|
4931480084 |
462.00
|
|
|
6315 |
FLANGE (1)
|
4931480085 |
68.50
|
|
|
6408 |
RETAINING RING (2)
|
4931480086 |
2.50
|
|
|
6409 |
SPROCKET (2)
|
4931480087 |
29.00
|
|
|
6410 |
KEY (2)
|
4931480088 |
3.50
|
|
|
6411 |
BUSHING (1)
|
4931480089 |
3.00
|
|
|
6412 |
BUSHING (1)
|
4931480090 |
3.00
|
|
|
7126 |
SPACER (1)
|
4931480091 |
47.50
|
|
|
7130 |
HOUSING COVER (1)
|
4931480092 |
54.50
|
|
|
7184 |
RATING PLATE (1)
|
4931480093 |
27.50
|
|
|
7318 |
REPAIR KIT (1)
|
4931480094 |
120.00
|
|
|
7319 |
SWITCH ASSEMBLY (1)
|
4931480095 |
103.00
|
|
|
7328 |
BUSHING (1)
|
4931480096 |
72.00
|
|
|

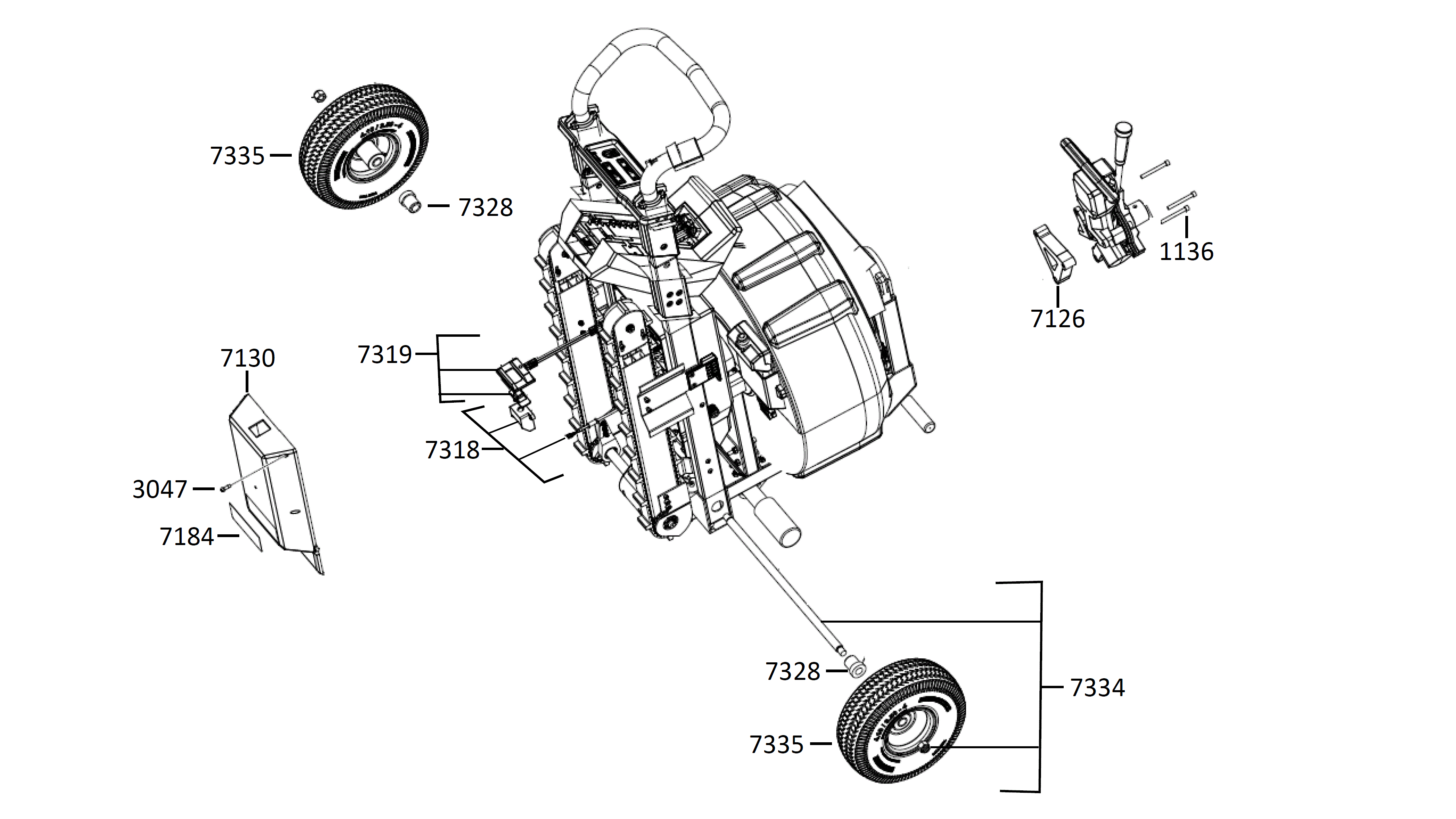

7334 |
WHEEL SET (1)
|
4931480097 |
129.00
|
|
|
7335 |
WHEEL PAIR (1)
|
4931480098 |
170.00
|
|
|

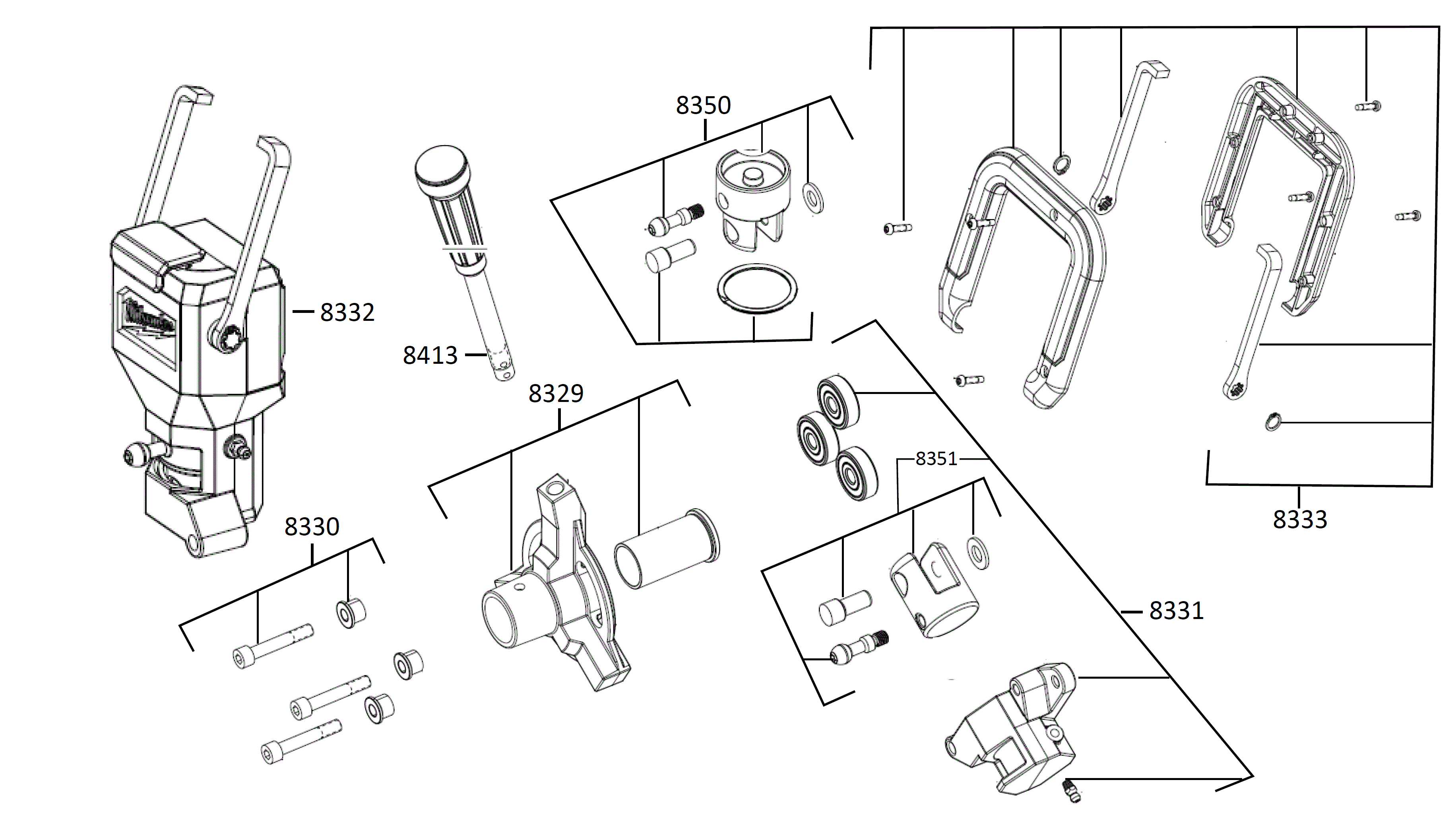

8329 |
GUIDE SLEEVE (1)
|
4931480099 |
91.50
|
|
|
8330 |
FASTENING PARTS (1)
|
4931480100 |
19.00
|
|
|
8331 |
ASSEMBLY SET (1)
|
4931480101 |
109.50
|
|
|
8332 |
SERVICE SET (1)
|
4931480102 |
262.50
|
|
|
8333 |
HANDLE SET (1)
|
4931480103 |
43.50
|
|
|
8350 |
SERVICE KIT (1)
|
4931480104 |
67.50
|
|
|
8351 |
SERVICE KIT (1)
|
4931480105 |
69.50
|
|
|
8413 |
KNOB HANDLE (1)
|
4931480106 |
27.50
|
|
|
1001 |
CONNECTOR (1)
|
4931599230 |
1363.50
|
|
|
1355 |
Guide Hose for MXFLSDP (1)
|
4932478110 |
235.90
|
|
|
1405 |
20mm x 7.6m Inner Core Coupling End (1)
|
4932471703 |
283.30
|
|
|
1406 |
20mm x 15.2m Inner Core Coupling End (1)
|
4932471704 |
425.40
|
|
