Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

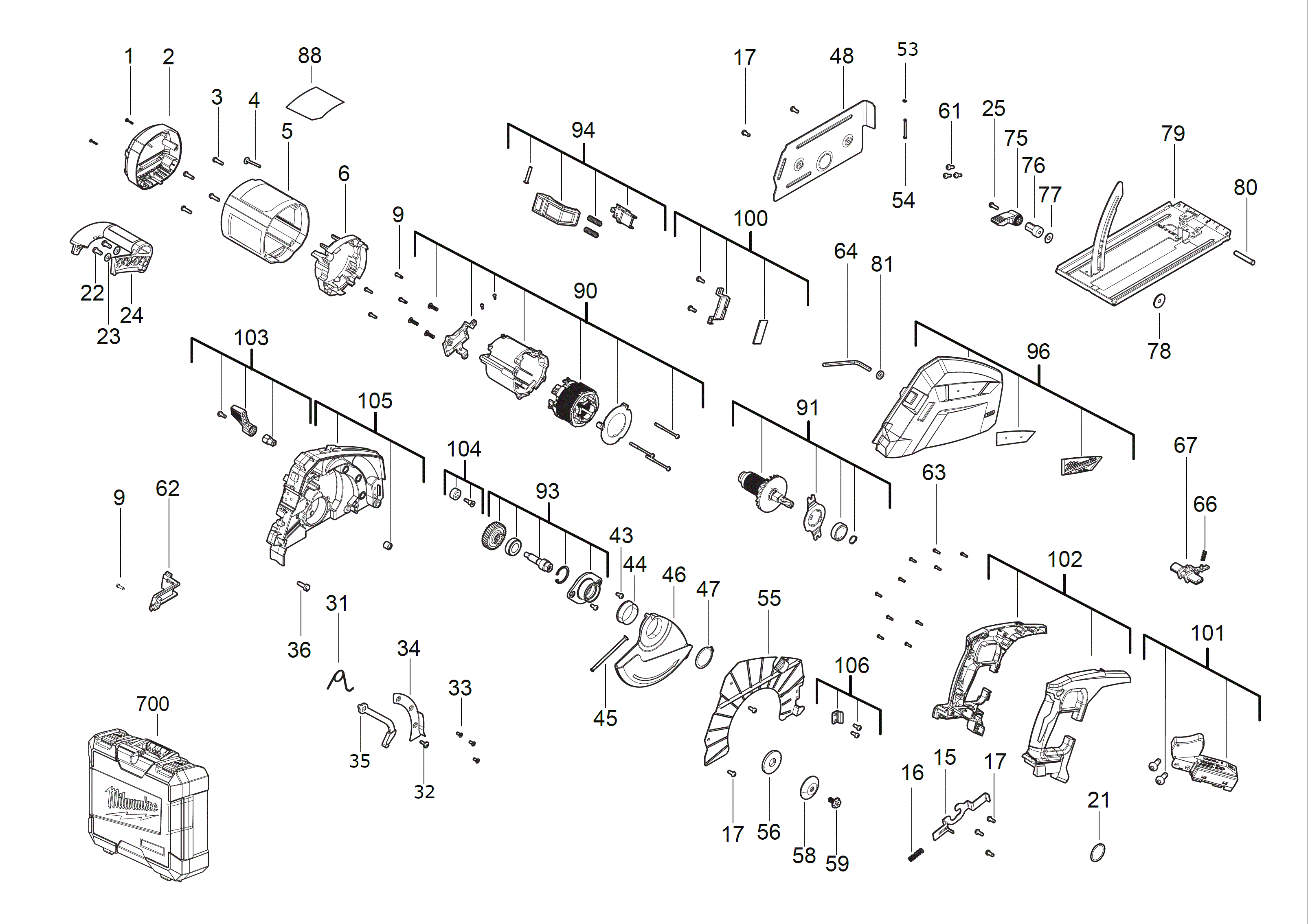

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0001 |
SCREW (2)
|
4931436757 |
2.50
|
|
|
0002 |
COVER (1)
|
4931473870 |
5.50
|
|
|
0003 |
SCREW (4)
|
4931473871 |
2.50
|
|
|
0004 |
SCREW (1)
|
4931454468 |
2.50
|
|
|
0005 |
MOTOR HOUSING (1)
|
4931473872 |
9.50
|
|
|
0006 |
AIR GUIDE (1)
|
4931473873 |
3.00
|
|
|
0009 |
SCREW (5)
|
4931435150 |
2.50
|
|
|
0015 |
SPINDLE LOCK (1)
|
4931473874 |
3.50
|
|
|
0016 |
SPRING (1)
|
4931473875 |
2.50
|
|
|
0017 |
LOCKING SCREW (10)
|
4931465672 |
2.50
|
|
|
0021 |
O-RING (1)
|
34401375 |
2.50
|
|
|
0022 |
SCREW (2)
|
4931472943 |
1.00
|
|
|
0023 |
WASHER (2)
|
691142001 |
2.50
|
|
|
0024 |
HANDLE (1)
|
4931473876 |
12.00
|
|
|
0025 |
SCREW (1)
|
4931473877 |
2.50
|
|
|
0031 |
SPRING (1)
|
Item discontinued
(4931435698) |
|
|
|
0032 |
SCREW (1)
|
4931435699 |
1.00
|
|
|
0033 |
SCREW (3)
|
4931473878 |
2.50
|
|
|
0034 |
DEFLECTOR (1)
|
4931473879 |
3.00
|
|
|
0035 |
GUARD (1)
|
4931435700 |
3.00
|
|
|
0036 |
SCREW (1)
|
06755860 |
2.50
|
|
|
0043 |
SCREW (2)
|
4931473880 |
2.50
|
|
|
0044 |
PROTECTIVE SLEEVE (1)
|
4931435707 |
4.00
|
|
|
0045 |
SPRING (1)
|
40500045 |
2.50
|
|
|
0046 |
GUARD (1)
|
4931473881 |
21.00
|
|
|
0047 |
THRUST COLLAR (1)
|
34600860 |
2.50
|
|
|
0048 |
COVER (1)
|
4931473882 |
9.00
|
|
|
0053 |
SPRING (1)
|
4931435714 |
1.00
|
|
|
0054 |
CLAMPING BOLT (1)
|
4931435715 |
4.00
|
|
|
0055 |
GUARD (1)
|
4931473883 |
15.00
|
|
|
0056 |
FLANGE (1)
|
4931435710 |
5.00
|
|
|
0058 |
FLANGE (1)
|
4931435711 |
4.50
|
|
|
0059 |
SCREW (1)
|
660988001 |
2.50
|
|
|
0061 |
SCREW TORX SCREW (4)
|
06825314 |
2.50
|
|
|
0062 |
COVER (1)
|
4931473884 |
2.50
|
|
|
0063 |
SCREW (10)
|
4931465471 |
2.50
|
|
|
0064 |
ALLEN KEY (1)
|
4931473885 |
2.50
|
|
|
0066 |
SPRING WASHER (1)
|
672029001 |
2.50
|
|
|
0067 |
TRIGGER (1)
|
4931461128 |
2.50
|
|
|
0075 |
TENSION LEVER (1)
|
4931461131 |
3.50
|
|
|
0076 |
BOLT (1)
|
4931473886 |
7.00
|
|
|
0077 |
WASHER (1)
|
4931506000 |
1.00
|
|
|
0078 |
WASHER (1)
|
Item discontinued
(633266001) |
|
|
|
0079 |
GUIDE SHOE (1)
|
4931473887 |
62.00
|
|
|
0080 |
PIN (1)
|
44601180 |
4.00
|
|
|
0081 |
O-RING (1)
|
4931473888 |
2.50
|
|
|
0088 |
RATING PLATE (1)
|
4931473889 |
2.50
|
|
|
0090 |
ELECTRONIC (1)
|
4931473890 |
277.50
|
|
|
0091 |
ROTOR (1)
|
4931473891 |
100.00
|
|
|
0093 |
SPINDLE (1)
|
4931473892 |
64.50
|
|
|
0094 |
LATCH (1)
|
4931473893 |
16.00
|
|
|
0096 |
GUARD COVER (1)
|
4931473894 |
76.00
|
|
|
0100 |
COVER (1)
|
4931473895 |
6.00
|
|
|
0101 |
SWITCH (1)
|
4931465965 |
20.00
|
|
|
0102 |
HANDLE SET (1)
|
4931473896 |
19.00
|
|
|
0103 |
LOCK COMPLETE (1)
|
4931473897 |
7.50
|
|
|
0104 |
RUBBER BUMPER (1)
|
4931473898 |
4.50
|
|
|
0105 |
GEAR CASE (1)
|
4931473899 |
93.50
|
|
|
0106 |
COVER PLATE (1)
|
4931473900 |
4.50
|
|
|
0700 |
CARRYING CASE (1)
|
4931473901 |
81.50
|
|
