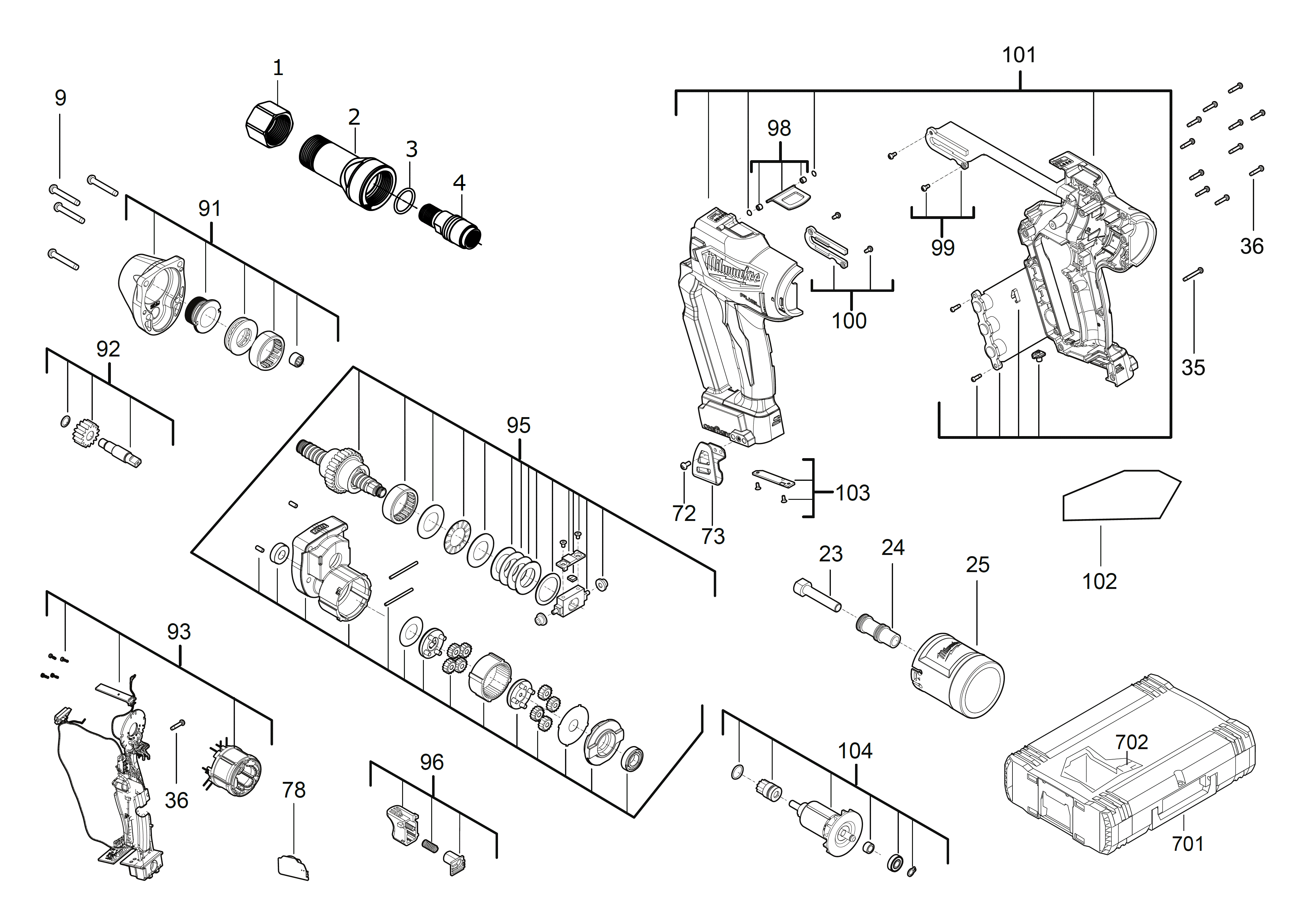

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0001 |
NUT (1)
|
4931480239 |
10.50
|
|
|
0002 |
GUIDE SLEEVE (1)
|
4931480240 |
37.00
|
|
|
0003 |
O-RING (1)
|
4931480241 |
2.50
|
|
|
0004 |
SLEEVE (1)
|
4931480242 |
16.00
|
|
|
0009 |
SCREW (4)
|
4931435158 |
2.50
|
|
|
0023 |
GUIDE (1)
|
4931479224 |
7.00
|
|
|
0024 |
GUIDE SLEEVE (1)
|
4931479225 |
2.50
|
|
|
0025 |
CUP (1)
|
4931494030 |
7.50
|
|
|
0035 |
SCREW (1)
|
4931466865 |
1.00
|
|
|
0036 |
SCREW (12)
|
660570005 |
2.50
|
|
|
0072 |
SCREW (1)
|
4931465986 |
1.00
|
|
|
0073 |
HOOK (1)
|
4931436134 |
4.00
|
|
|
0078 |
ELECTRONIC (1)
|
4931466275 |
12.50
|
|
|
0091 |
GEAR CASE (1)
|
4931479229 |
43.50
|
|
|
0092 |
OUTPUT SHAFT KIT (1)
|
4931479230 |
16.00
|
|
|
0093 |
ELECTRONIC (1)
|
4931479231 |
152.00
|
|
|
0095 |
GEAR BOX ASSY (1)
|
4931479233 |
259.00
|
|
|
0096 |
SWITCH (1)
|
4931479234 |
5.50
|
|
|
0098 |
SUSPENSION BOW (1)
|
4931479235 |
5.50
|
|
|
0099 |
LOCKING PIECE (1)
|
4931479236 |
10.50
|
|
|
0100 |
LOCKING PIECE (1)
|
4931479237 |
10.50
|
|
|
0101 |
HOUSING (1)
|
4931479238 |
57.00
|
|
|
0102 |
RATING PLATE (1)
|
4931480243 |
2.50
|
|
|
0103 |
COVER (1)
|
4931479240 |
4.50
|
|
|
0104 |
ROTOR (1)
|
4931479241 |
38.00
|
|
|
0702 |
INSERT (1)
|
4931479242 |
10.00
|
|
|
0701 |
HD Box 1 - 1pc (1)
|
4932453385 |
47.30
|
|
