Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

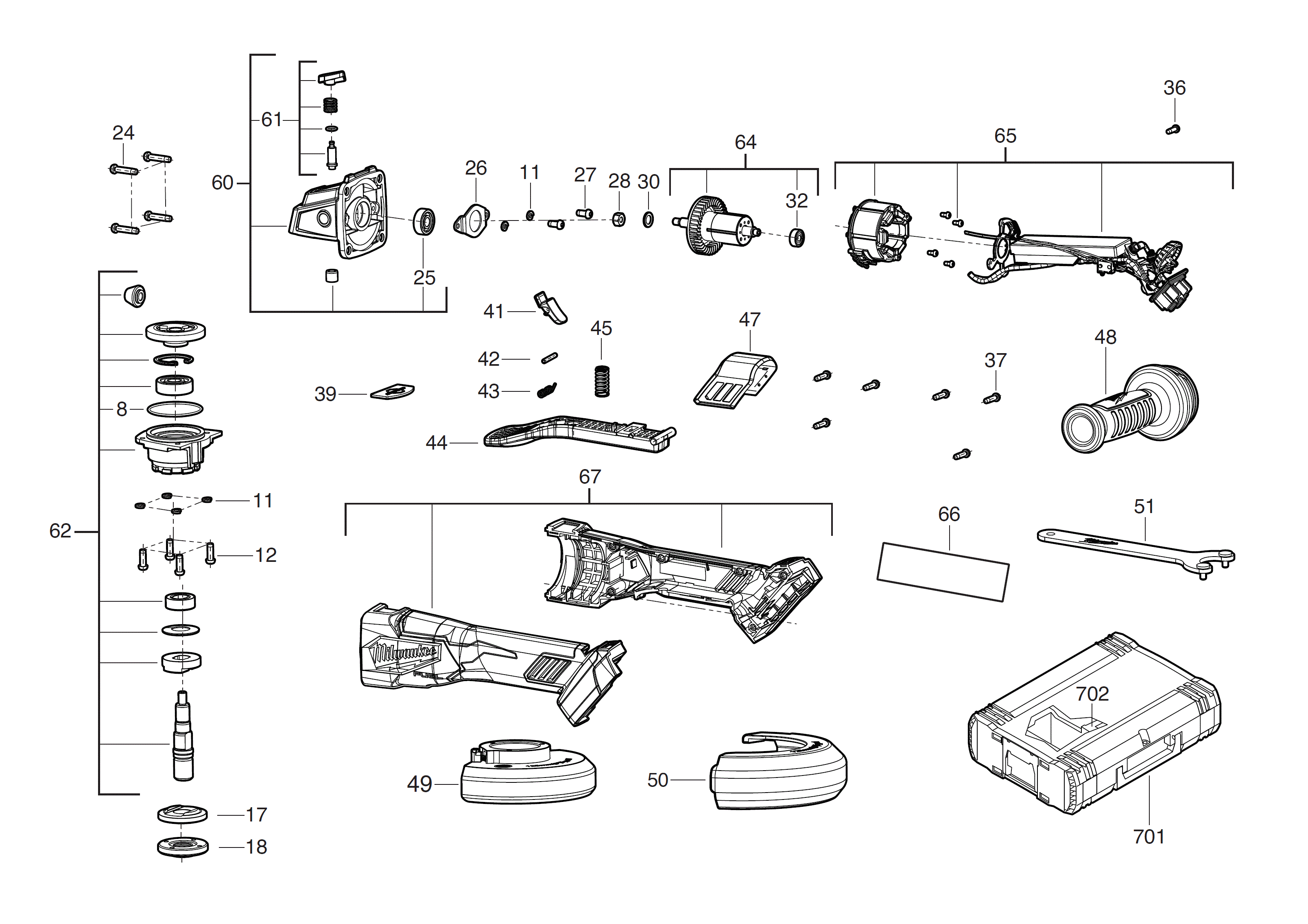

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0008 |
O-RING (1)
|
4931479267 |
2.50
|
|
|
0011 |
PROTECTION WASHER (6)
|
680866003 |
2.50
|
|
|
0012 |
SCREW (4)
|
4931435150 |
2.50
|
|
|
0017 |
FLANGE (1)
|
4931479268 |
5.00
|
|
|
0018 |
FLANGE NUT (1)
|
4931441309 |
5.00
|
|
|
0024 |
SCREW (4)
|
660024030 |
2.50
|
|
|
0025 |
BALL BEARING (1)
|
4931448373 |
2.50
|
|
|
0026 |
RETAINER (1)
|
4931479269 |
2.50
|
|
|
0027 |
SCREW (2)
|
660165015 |
2.50
|
|
|
0028 |
NUT (1)
|
671686001 |
3.50
|
|
|
0030 |
WASHER (1)
|
4931479270 |
2.50
|
|
|
0032 |
BALL BEARING (1)
|
4931479271 |
3.50
|
|
|
0036 |
SCREW (1)
|
4931436686 |
2.50
|
|
|
0037 |
SCREW (6)
|
660031017 |
2.50
|
|
|
0039 |
COVER (1)
|
4931479398 |
3.50
|
|
|
0041 |
TRIGGER (1)
|
4931479404 |
2.50
|
|
|
0042 |
BOLT (1)
|
4931454155 |
2.50
|
|
|
0043 |
SPRING (1)
|
4931496284 |
1.00
|
|
|
0044 |
TRIGGER (1)
|
4931479406 |
3.50
|
|
|
0045 |
SPRING (1)
|
4931479407 |
2.50
|
|
|
0047 |
DUST CAP (1)
|
4931479275 |
3.50
|
|
|
0048 |
AUXILIARY HANDLE (1)
|
4931435002 |
15.00
|
|
|
0049 |
GUARD (1)
|
4931479276 |
13.50
|
|
|
0050 |
CUTTING GUARD (1)
|
4931479277 |
4.00
|
|
|
0051 |
WRENCH (1)
|
4931479278 |
4.00
|
|
|
0060 |
GEAR BOX (1)
|
4931479402 |
29.50
|
|
|
0061 |
SPINDLE LOCK (1)
|
4931479280 |
6.00
|
|
|
0062 |
SPINDLE KIT (1)
|
4931479281 |
45.00
|
|
|
0064 |
ROTOR (1)
|
4931479282 |
30.50
|
|
|
0065 |
ELECTRIC FIELD (1)
|
4931479408 |
149.00
|
|
|
0066 |
RATING PLATE (1)
|
4931479409 |
2.50
|
|
|
0067 |
HOUSING (1)
|
4931479410 |
23.00
|
|
|
0702 |
INSERT (1)
|
4931479286 |
10.00
|
|
|
0701 |
HD Box 1 - 1pc (1)
|
4932453385 |
47.30
|
|
