Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

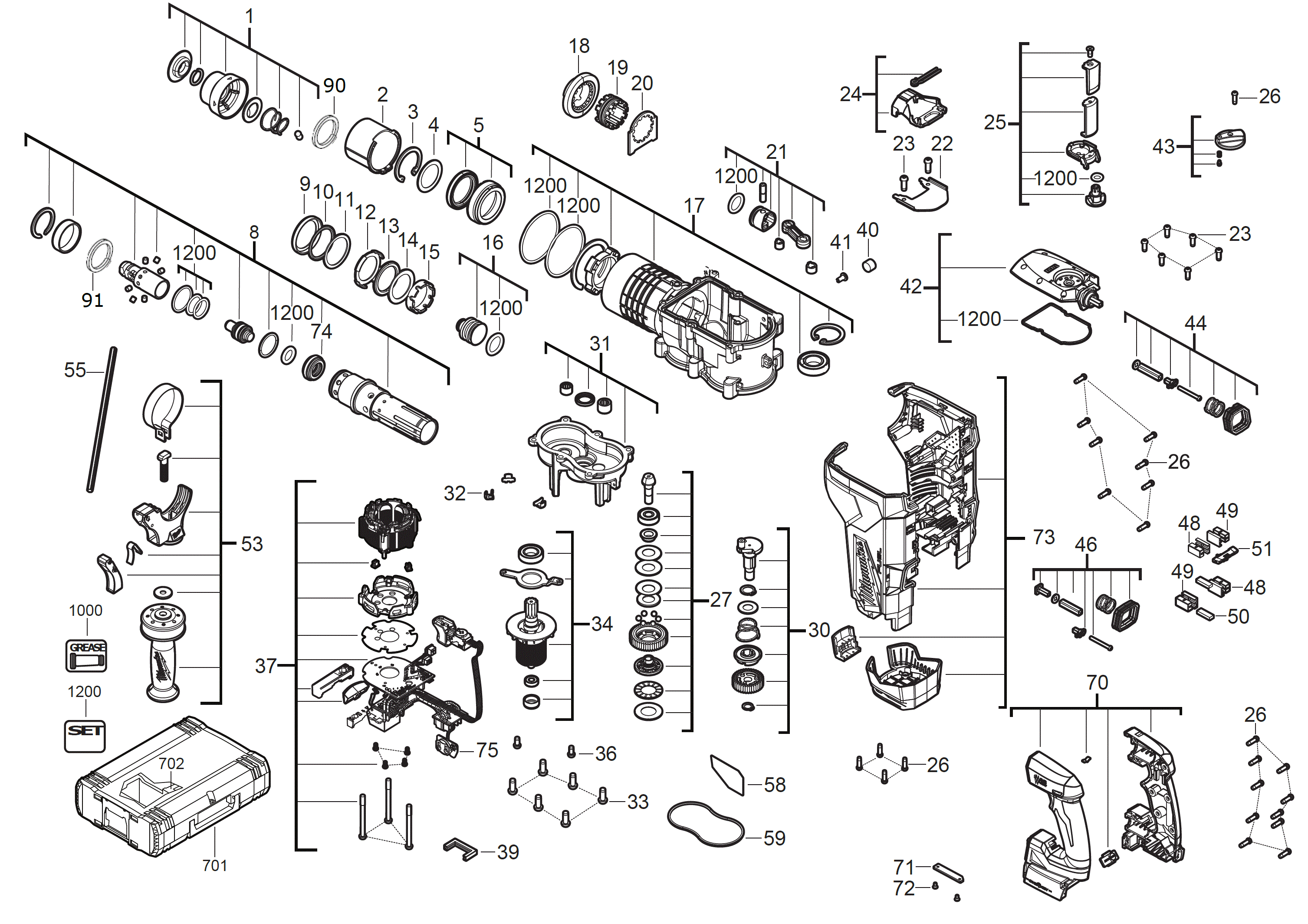

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0001 |
SET COLLAR (1)
|
4931479799 |
13.00
|
|
|
0002 |
SLEEVE (1)
|
4931479800 |
3.00
|
|
|
0003 |
SNAP RING (1)
|
4931479801 |
3.00
|
|
|
0004 |
WASHER (1)
|
4931479802 |
2.50
|
|
|
0005 |
BUSHING (1)
|
4931479803 |
15.00
|
|
|
0008 |
SPINDLE (1)
|
4931479804 |
141.00
|
|
|
0009 |
WASHER (1)
|
4931479805 |
2.50
|
|
|
0010 |
RING (1)
|
4931479806 |
3.50
|
|
|
0011 |
WASHER (1)
|
4931479807 |
2.50
|
|
|
0012 |
BUFFER (1)
|
4931436375 |
2.50
|
|
|
0013 |
RING (1)
|
4931479808 |
3.00
|
|
|
0014 |
WASHER (1)
|
4931436371 |
2.50
|
|
|
0015 |
SPINDLE (1)
|
4931479809 |
3.00
|
|
|
0016 |
STRIKER (1)
|
4931479810 |
23.50
|
|
|
0017 |
GEAR BOX COVER (1)
|
4931479811 |
69.50
|
|
|
0018 |
BEVEL GEAR (1)
|
4931479812 |
8.50
|
|
|
0019 |
SLEEVE (1)
|
4931479813 |
6.50
|
|
|
0020 |
LOCKING PLATE (1)
|
4931479814 |
3.00
|
|
|
0021 |
PISTON (1)
|
4931479815 |
25.50
|
|
|
0022 |
CLAMPING PIECE (1)
|
4931479816 |
2.50
|
|
|
0023 |
SCREW (8)
|
4931435150 |
2.50
|
|
|
0024 |
COVER (1)
|
4931479817 |
9.50
|
|
|
0025 |
BRACKET (1)
|
4931479818 |
12.00
|
|
|
0026 |
SCREW (23)
|
660031017 |
2.50
|
|
|
0027 |
CLUTCH (1)
|
4931479819 |
68.00
|
|
|
0030 |
CRANK ASSEMBLY (1)
|
4931479820 |
44.50
|
|
|
0031 |
GEAR BOX ASSY (1)
|
4931479821 |
42.00
|
|
|
0032 |
WASHER (3)
|
4931479822 |
2.50
|
|
|
0033 |
SCREW (6)
|
4931436390 |
1.00
|
|
|
0034 |
ARMATURE (1)
|
4931479823 |
72.50
|
|
|
0036 |
SCREW (2)
|
660165015 |
2.50
|
|
|
0037 |
MOTOR ASSEMBLY (1)
|
4931479824 |
243.00
|
|
|
0039 |
ELECTRONIC (1)
|
4931479825 |
2.50
|
|
|
0040 |
PLUG (1)
|
4931479826 |
2.50
|
|
|
0041 |
PIN (1)
|
4931479827 |
1.00
|
|
|
0042 |
GEAR BOX COVER (1)
|
4931479828 |
29.50
|
|
|
0043 |
PUSH BUTTON (1)
|
4931507835 |
9.00
|
|
|
0044 |
GEAR SLEEVE (1)
|
4931479830 |
12.00
|
|
|
0046 |
GEAR SLEEVE (1)
|
4931479831 |
20.00
|
|
|
0048 |
RUBBER BUMPER (4)
|
4931479832 |
2.50
|
|
|
0049 |
HOLDER (4)
|
4931436422 |
4.00
|
|
|
0050 |
FOAM RUBBER (2)
|
4931436434 |
3.50
|
|
|
0051 |
SWITCH LEVER (1)
|
4931479833 |
2.50
|
|
|
0053 |
SWITCH HANDLE (1)
|
4931479834 |
26.00
|
|
|
0055 |
DEPTH GAUGE (1)
|
4931479598 |
4.00
|
|
|
0058 |
RATING PLATE (1)
|
4931479835 |
2.50
|
|
|
0059 |
SEAL (1)
|
4931479836 |
5.50
|
|
|
0070 |
HANDLE SET (1)
|
4931479837 |
26.50
|
|
|
0071 |
COVER (1)
|
4931479660 |
2.50
|
|
|
0072 |
SCREW (2)
|
4931465385 |
2.50
|
|
|
0073 |
HOUSING (1)
|
4931479838 |
31.50
|
|
|
0074 |
ANVIL (1)
|
4931479839 |
13.00
|
|
|
0075 |
ELECTRONIC (1)
|
4931473905 |
4.50
|
|
|
0090 |
SEALING FELT (1)
|
4931495544 |
3.00
|
|
|
0091 |
SEALING FELT (1)
|
4931495545 |
2.50
|
|
|
0701 |
HD Box 3 - 1pc (1)
|
4932453386 |
55.20
|
|
|
0702 |
INSERT (1)
|
4931479840 |
23.50
|
|
|
1000 |
GEAR GREASE (1)
|
4931443288 |
33.00
|
|
|
1200 |
O-RING (1)
|
4931479841 |
18.00
|
|
