Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

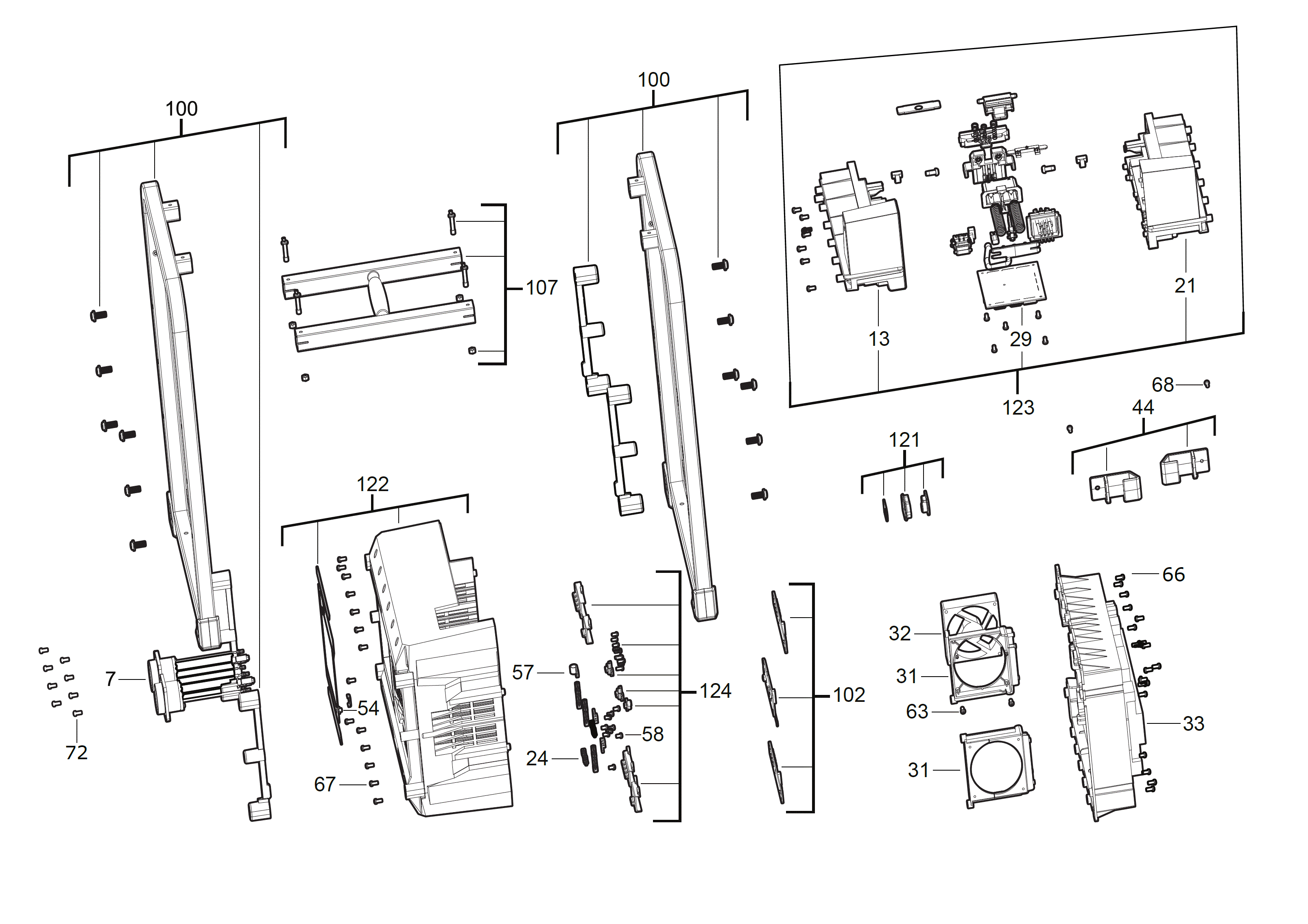

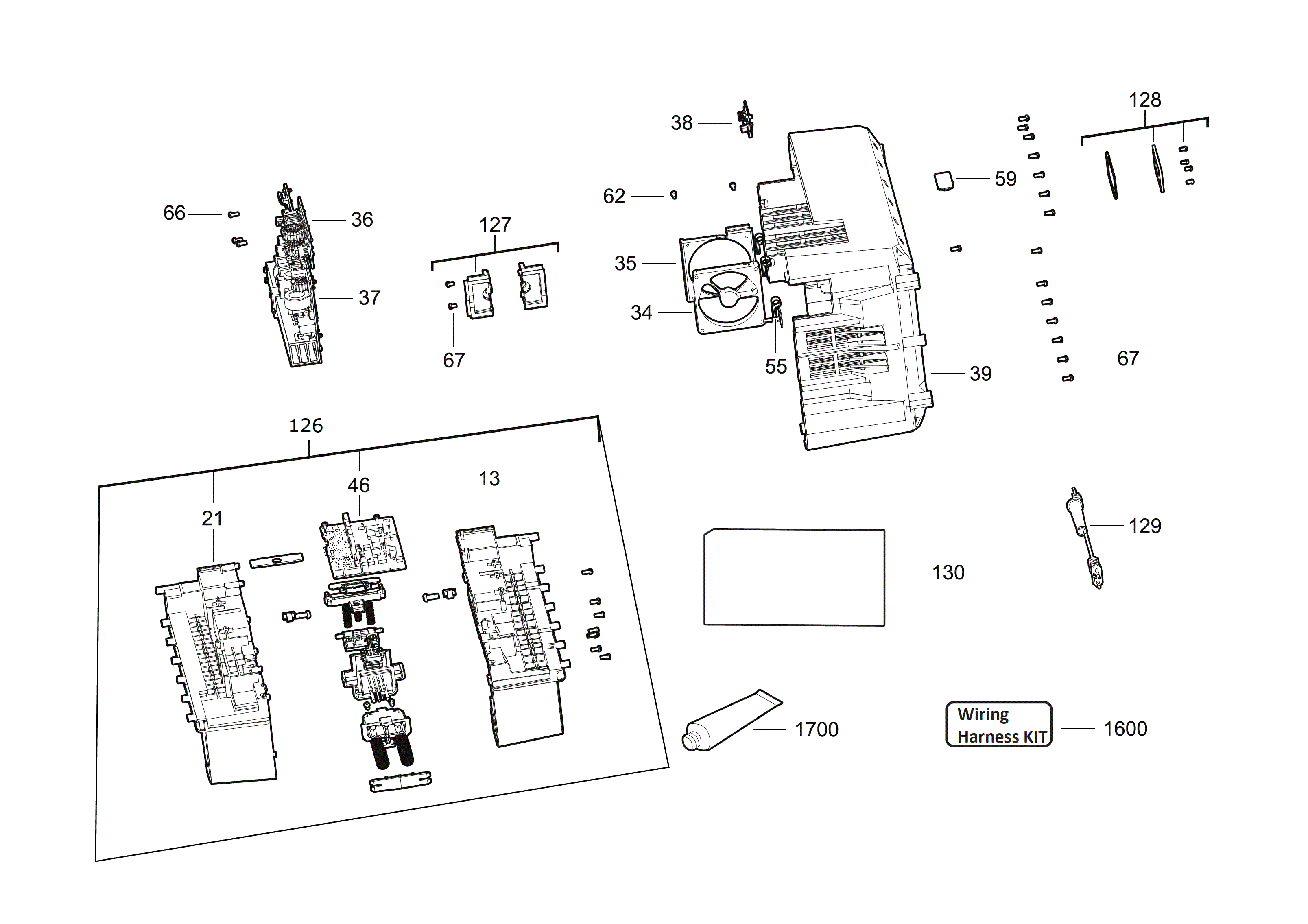

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0007 |
WALL SOCKET (2)
|
4931494366 |
195.50
|
|
|
0013 |
BATTERY BOX (2)
|
4931494367 |
99.00
|
|
|
0021 |
BATTERY BOX (2)
|
4931494368 |
99.00
|
|
|
0024 |
BRACKET (1)
|
4931494369 |
8.50
|
|
|
0029 |
STRATOR PCBA (1)
|
4931494370 |
208.50
|
|
|
0031 |
FAN HOUSING (2)
|
4931494371 |
16.00
|
|
|
0032 |
FAN (1)
|
4931494372 |
62.00
|
|
|
0033 |
PCBA INVERTER (1)
|
4931494373 |
991.50
|
|
|
0034 |
FAN (1)
|
4931494374 |
69.00
|
|
|
0035 |
FAN HOUSING (1)
|
4931494375 |
8.50
|
|
|
0036 |
CHARGE PCBA (1)
|
4931494376 |
435.00
|
|
|
0037 |
AC INLET PCBA (1)
|
4931494377 |
80.00
|
|
|
0038 |
BL PCBA (1)
|
4931494378 |
127.50
|
|
|
0039 |
HOUSING (1)
|
4931494379 |
228.50
|
|
|
0044 |
CLAMP (1)
|
4931494380 |
8.50
|
|
|
0046 |
POWER MUX PCBA (1)
|
4931494381 |
520.00
|
|
|
0054 |
SCREW (1)
|
4931494382 |
8.50
|
|
|
0055 |
WIRE LOCK (1)
|
4931494383 |
8.50
|
|
|
0057 |
WIRE LOCK (1)
|
4931494384 |
8.50
|
|
|
0058 |
SCREW (20)
|
4931494385 |
8.50
|
|
|
0059 |
COIN CELL PCBA (1)
|
4931494386 |
48.50
|
|
|
0062 |
SCREW (8)
|
4931494387 |
8.50
|
|
|
0063 |
SCREW (4)
|
4931494388 |
8.50
|
|
|
0066 |
SCREW (31)
|
4931494389 |
8.50
|
|
|
0067 |
SCREW (32)
|
4931494390 |
8.50
|
|
|
0068 |
SCREW (2)
|
4931494391 |
8.50
|
|
|
0072 |
SCREW (8)
|
4931494392 |
8.50
|
|
|
0100 |
ROLL CAGE ASSY (2)
|
4931494393 |
265.00
|
|
|
0102 |
HMI PCBA ASSY (1)
|
4931494394 |
128.50
|
|
|
0107 |
ROLL CAGE ASSY (1)
|
4931494395 |
74.00
|
|
|
0121 |
POWER BUTTON ASSY (1)
|
4931494396 |
185.00
|
|
|
0122 |
HOUSING (1)
|
4931494397 |
237.00
|
|
|
0123 |
STRATOR PCBA ASSY (1)
|
4931494398 |
354.00
|
|
|
0124 |
LENS/GAUGE/SCREW ASSY (1)
|
4931494399 |
8.50
|
|
|
0126 |
MUX PCBA ASSY (1)
|
4931494400 |
928.50
|
|
|
0127 |
CHARGE HOUSING ASSY (1)
|
4931494401 |
84.00
|
|
|
0128 |
BATTERY DOOR BLUETOOTH ASSY (1)
|
4931494402 |
8.50
|
|
|
0129 |
POWER CORD (1)
|
4931494403 |
90.50
|
|
|
0130 |
RATING PLATE (1)
|
4931494404 |
8.50
|
|
|
1600 |
WIRE (1)
|
4931494405 |
547.50
|
|
|
1001 |
CONNECTOR (1)
|
4931599230 |
1363.50
|
|
