Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

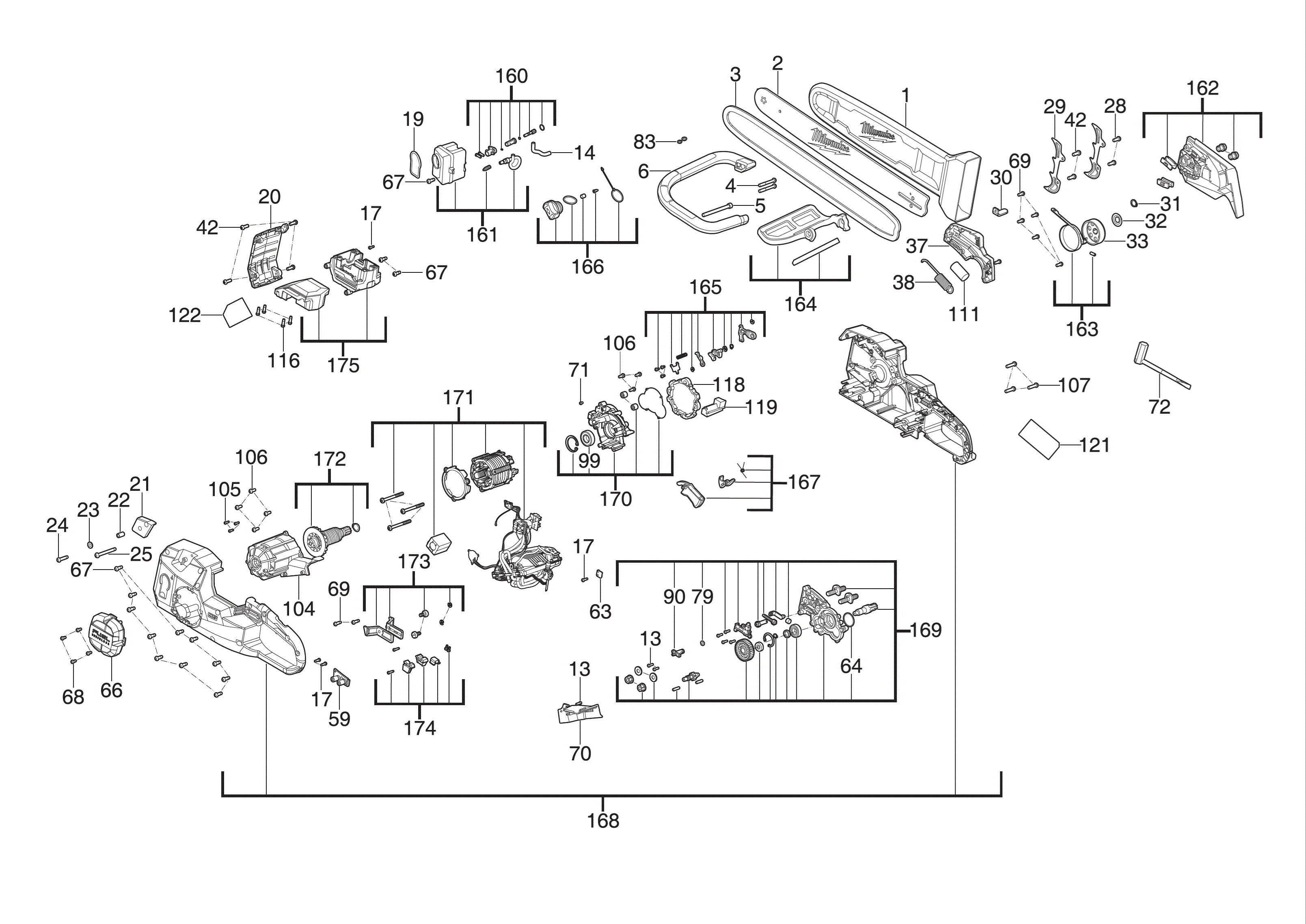

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0001 |
SCABBARDS (1)
|
4931506477 |
10.00
|
|
|
0002 |

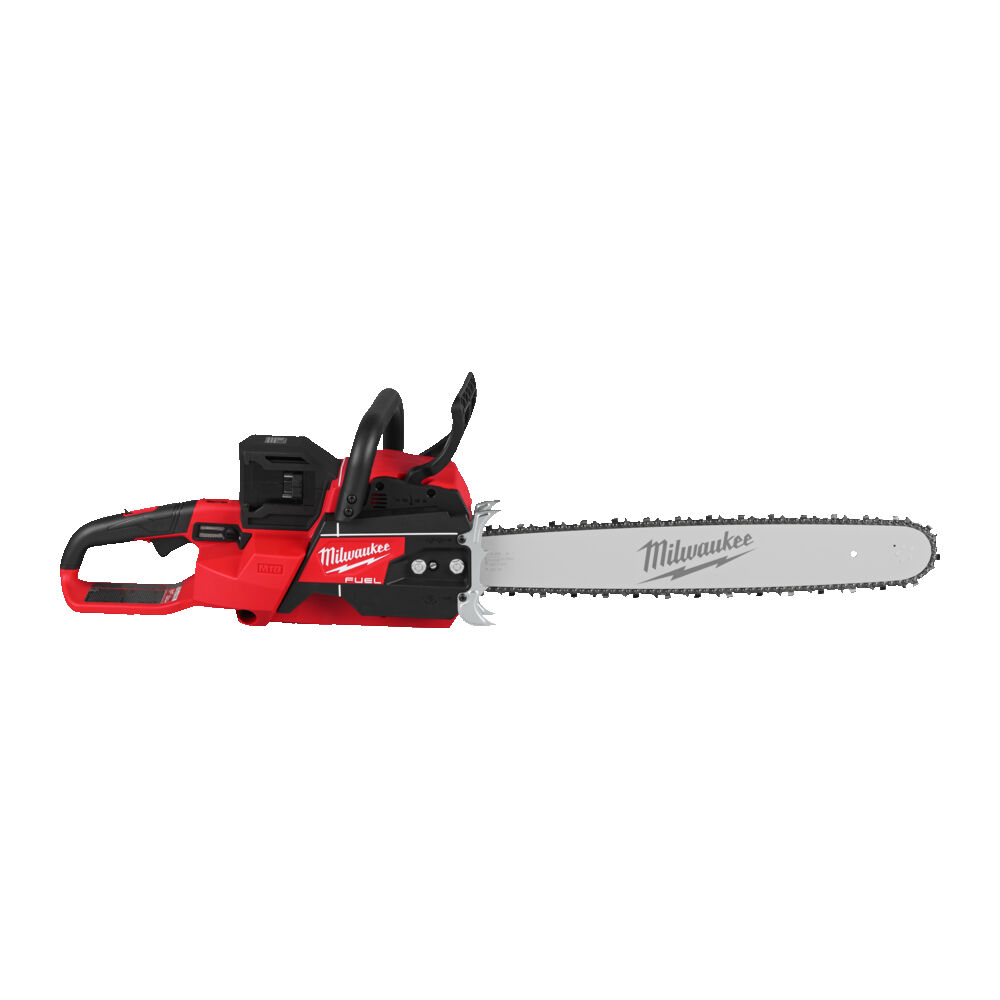

GUIDE BAR 20IN/50CM FOR M18F2CHS50 (1)
|
4932498790 |
55.00
|
|
|
0003 |
SAW CHAIN .325 X 508 X 1.3 - 1PC (1)
|
4932498791 |
39.00
|
|
|
0004 |
SCREW (2)
|
4931506478 |
1.00
|
|
|
0005 |
SCREW (1)
|
4931472538 |
3.50
|
|
|
0006 |
HANDLE (1)
|
4931506479 |
28.00
|
|
|
0013 |
SCREW (3)
|
4931495588 |
1.50
|
|
|
0014 |
HOSE (1)
|
4931506480 |
2.50
|
|
|
0017 |
SCREW (4)
|
4931436686 |
3.00
|
|
|
0019 |
SEAL (1)
|
4931506481 |
2.50
|
|
|
0020 |
PLATE (1)
|
4931506482 |
20.00
|
|
|
0021 |
COVER (1)
|
4931506483 |
2.50
|
|
|
0022 |
SPACER (1)
|
4931506484 |
2.50
|
|
|
0023 |
WASHER (1)
|
4931506485 |
1.00
|
|
|
0024 |
SCREW (1)
|
4931454838 |
1.58
|
|
|
0025 |
SCREW (1)
|
4931506486 |
1.00
|
|
|
0028 |
SCREW (2)
|
4931453992 |
2.50
|
|
|
0029 |
SPIKE (2)
|
4931506487 |
3.50
|
|
|
0030 |
BRACKET (1)
|
4931506488 |
3.00
|
|
|
0031 |
SNAP RING (1)
|
4931472833 |
1.00
|
|
|
0032 |
SPRING (1)
|
4931506489 |
2.50
|
|
|
0033 |
SPROCKET (1)
|
4931506490 |
20.50
|
|
|
0037 |
COVER (1)
|
4931506491 |
3.50
|
|
|
0038 |
SPRING (1)
|
4931506492 |
3.50
|
|
|
0042 |
SCREW (6)
|
4931496229 |
1.00
|
|
|
0059 |
PLATE (1)
|
4931506493 |
2.50
|
|
|
0063 |
SEAL (1)
|
4931506494 |
2.50
|
|
|
0064 |
O-RING (1)
|
4931506495 |
2.50
|
|
|
0066 |
CAP (1)
|
4931506496 |
8.00
|
|
|
0067 |
SCREW (14)
|
4931472832 |
1.00
|
|
|
0068 |
SCREW (4)
|
4931435015 |
3.00
|
|
|
0069 |
SCREW (8)
|
4931472688 |
1.00
|
|
|
0070 |
BRACKET (1)
|
4931506497 |
2.50
|
|
|
0071 |
SCREW (1)
|
4931506498 |
1.00
|
|
|
0072 |
T-HANDLE-KEY (1)
|
4931506499 |
8.00
|
|
|
0079 |
O-RING (1)
|
4931506500 |
1.00
|
|
|
0083 |
WASHER (2)
|
4931479644 |
2.50
|
|
|
0090 |
CONNECTOR (1)
|
4931465915 |
3.50
|
|
|
0099 |
BALL BEARING (1)
|
4931506501 |
5.00
|
|
|
0104 |
MOTOR HOUSING (1)
|
4931506502 |
11.50
|
|
|
0105 |
SCREW (3)
|
4931496098 |
1.00
|
|
|
0106 |
SCREW (7)
|
4931454301 |
2.50
|
|
|
0107 |
SCREW (3)
|
4931465929 |
2.50
|
|
|
0111 |
SLEEVE (1)
|
4931506503 |
4.00
|
|
|
0116 |
SCREW (4)
|
4931506504 |
1.00
|
|
|
0118 |
FOAM (1)
|
4931506505 |
2.50
|
|
|
0119 |
FOAM (1)
|
4931506506 |
6.50
|
|
|
0121 |
RATING PLATE (1)
|
4931506507 |
1.00
|
|
|
0122 |
LABEL (1)
|
4931506508 |
1.00
|
|
|
0160 |
GEAR BOX KIT (1)
|
4931506509 |
24.50
|
|
|
0161 |
TANK (1)
|
4931506510 |
19.00
|
|
|
0162 |
COVER (1)
|
4931506511 |
30.00
|
|
|
0163 |
GEAR KIT (1)
|
4931506512 |
18.50
|
|
|
0164 |
HANDLE (1)
|
4931506513 |
19.00
|
|
|
0165 |
GUIDE KIT (1)
|
4931506514 |
18.00
|
|
|
0166 |
CAP (1)
|
4931506515 |
15.00
|
|
|
0167 |
CAP (1)
|
4931506516 |
13.00
|
|
|
0168 |
HOUSING (1)
|
4931506517 |
52.00
|
|
|
0169 |
COVER (1)
|
4931506518 |
95.00
|
|
|
0170 |
GEAR CASE (1)
|
4931506519 |
60.00
|
|
|
0171 |
ELECTRONIC (1)
|
4931506520 |
379.00
|
|
|
0172 |
ARMATURE (1)
|
4931506521 |
78.00
|
|
|
0173 |
ASSEMBLY KIT (1)
|
4931506522 |
17.00
|
|
|
0174 |
CLIP (1)
|
4931506523 |
13.00
|
|
|
0175 |
HOUSING (1)
|
4931506524 |
22.00
|
|
