Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

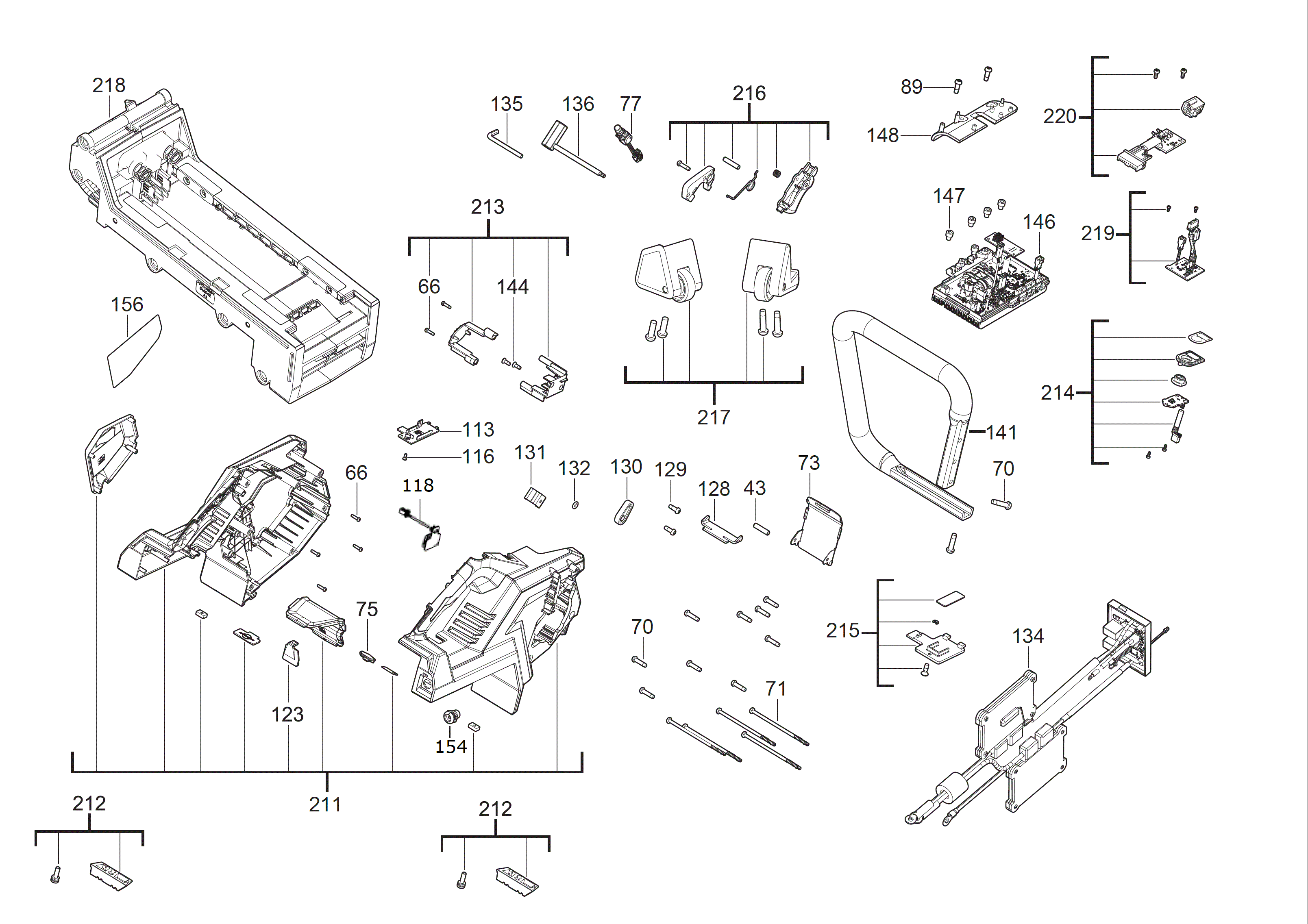

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0001 |
SCREW (1)
|
4931472902 |
4.00
|
|
|
0007 |
SHIM (2)
|
4931472908 |
1.00
|
|
|
0008 |
GASKET (1)
|
4931472910 |
4.00
|
|
|
0009 |
SCREW (2)
|
4931465097 |
2.50
|
|
|
0011 |
SAFTY GUARD (1)
|
4931496173 |
116.00
|
|
|
0014 |
SCREW (2)
|
4931465285 |
2.50
|
|
|
0016 |
GASKET (1)
|
4931472915 |
4.00
|
|
|
0020 |
SEAL (1)
|
4931496174 |
3.00
|
|
|
0021 |
BALL BEARING (1)
|
4931496175 |
4.00
|
|
|
0022 |
BEARING (1)
|
4931496176 |
18.00
|
|
|
0023 |
RETAINING RING (1)
|
4931496177 |
18.00
|
|
|
0031 |
BELT (1)
|
4931496178 |
25.00
|
|
|
0033 |
NUT (2)
|
4931472600 |
1.00
|
|
|
0037 |
SCREW (4)
|
4931496179 |
1.00
|
|
|
0038 |
NUT (1)
|
4931453988 |
2.50
|
|
|
0043 |
PIN (2)
|
4931496180 |
2.50
|
|
|
0051 |
GUIDE WASHER (1)
|
4931472947 |
1.00
|
|
|
0052 |
PULLEY (1)
|
4931496181 |
9.50
|
|
|
0054 |
BALL BEARING (1)
|
4931496182 |
5.50
|
|
|
0055 |
RETAINING RING (1)
|
4931496183 |
2.50
|
|
|
0056 |
SCREW (4)
|
4931494114 |
1.00
|
|
|
0057 |
ARMATURE (1)
|
4931496184 |
90.00
|
|
|
0058 |
SCREW (3)
|
4931472944 |
1.00
|
|
|
0065 |
HOUSING (1)
|
4931496185 |
3.00
|
|
|
0066 |
SCREW (9)
|
660570005 |
2.50
|
|
|
0067 |
SAFTY GUARD (1)
|
4931496187 |
2.50
|
|
|
0069 |
BOLT (1)
|
4931496188 |
2.50
|
|
|
0070 |
SCREW (12)
|
4931465543 |
2.50
|
|
|
0071 |
SCREW (5)
|
4931472941 |
1.00
|
|
|
0073 |
GUARD (1)
|
4931496189 |
4.00
|
|
|
0075 |
LED LIGHT (1)
|
4931496190 |
7.50
|
|
|
0077 |
SWITCH (1)
|
4931496191 |
40.00
|
|
|
0089 |
SCREW (2)
|
4931465326 |
2.50
|
|
|
0113 |
COVER (1)
|
4931496192 |
2.50
|
|
|
0116 |
SCREW (1)
|
4931496193 |
2.50
|
|
|
0118 |
SWITCH BOARD (1)
|
4931496194 |
10.00
|
|
|
0123 |
COVER (1)
|
4931496195 |
2.50
|
|
|
0128 |
INSERT (1)
|
4931496196 |
3.50
|
|
|
0129 |
SCREW (2)
|
4931447515 |
1.00
|
|
|
0130 |
ALLEN KEY (1)
|
4931496197 |
1.00
|
|
|
0131 |
RETAINER (1)
|
4931496198 |
2.50
|
|
|
0132 |
O-RING (1)
|
34404480 |
2.50
|
|
|
0134 |
ELECTRONIC (1)
|
4931496199 |
182.00
|
|
|
0135 |
KEY (1)
|
4931472611 |
1.00
|
|
|
0136 |
KEY (1)
|
4931472612 |
5.00
|
|
|
0141 |
HANDLE (1)
|
4931507578 |
|
|
|
0144 |
SCREW (2)
|
4931465063 |
2.50
|
|
|
0146 |
ELECTRONIC (1)
|
4931496200 |
410.00
|
|
|
0147 |
SCREW (5)
|
4931496201 |
1.00
|
|
|
0148 |
COVER (1)
|
4931496202 |
2.50
|
|
|
0151 |
FLANGE (2)
|
4931496203 |
27.00
|
|
|
0153 |
FLANGE (2)
|
4931496204 |
17.00
|
|
|
0154 |
CONNECTOR (1)
|
4931496205 |
75.50
|
|
|
0156 |
RATING PLATE (1)
|
4931496206 |
1.00
|
|
|
0200 |
ADAPTOR (1)
|
4931496207 |
8.00
|
|
|
0201 |
GEAR BOX HOUSING (1)
|
4931496208 |
128.00
|
|
|
0202 |
SAFTY GUARD (1)
|
4931496209 |
12.00
|
|
|
0203 |
SAFTY GUARD (1)
|
4931496210 |
7.00
|
|
|
0204 |
COVER (1)
|
4931496211 |
6.00
|
|
|
0205 |
KIT (1)
|
4931496212 |
100.00
|
|
|
0206 |
HOLDER (1)
|
4931496213 |
7.00
|
|
|
0207 |
CLAMPING SET (1)
|
4931496214 |
40.00
|
|
|
0208 |
PULLEY (1)
|
4931496215 |
119.00
|
|
|
0209 |
COVER (1)
|
4931496216 |
42.00
|
|
|
0210 |
STATOR (1)
|
4931496217 |
135.00
|
|
|
0211 |
HOUSING (1)
|
4931496218 |
180.00
|
|
|
0212 |
FOOT (1)
|
4931496219 |
7.00
|
|
|
0213 |
CROSS BRACKET (1)
|
4931496220 |
7.00
|
|
|
0214 |
ELECTRONIC (1)
|
4931496221 |
23.50
|
|
|
0215 |
COVER (1)
|
4931496222 |
9.00
|
|
|
0216 |
TRIGGER (1)
|
4931496223 |
12.00
|
|
|
0217 |
WHEEL PAIR (1)
|
4931496224 |
17.00
|
|
|
0218 |
GUIDE RAIL (1)
|
4931496225 |
138.50
|
|
|
0219 |
ELECTRONIC (1)
|
4931496226 |
82.00
|
|
|
0220 |
ELECTRONIC ELEMENT (1)
|
4931496227 |
52.00
|
|
