M12360IC32-0C INSPECTION CAMER 3M XXX

4000500404 M12360IC32-0C 4933480741

Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR

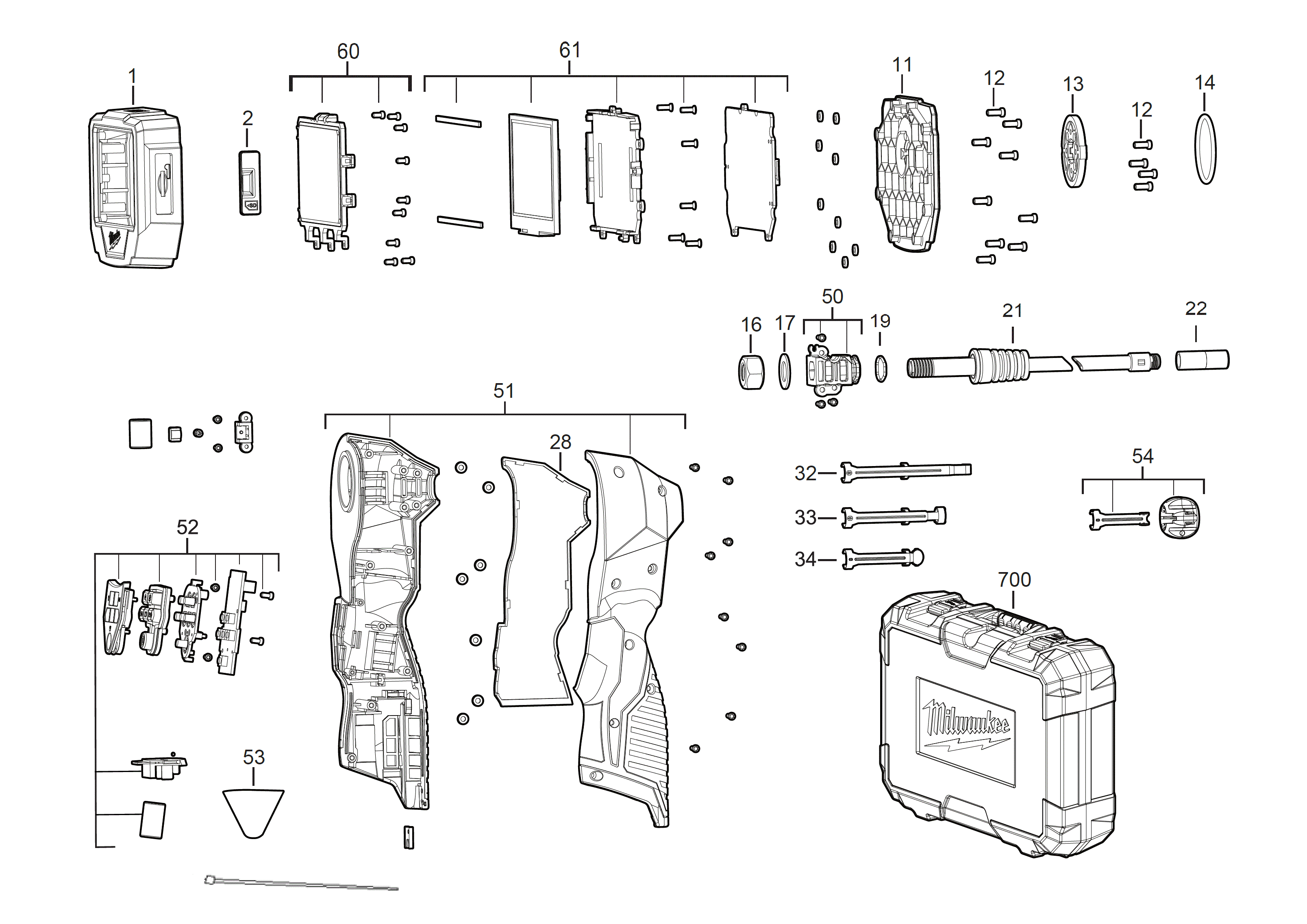

Position Description (Qty) Part number
0001

HOUSING (1)

4931495165 17.00
0002

PAD (1)

4931495166 7.00
0011

HOUSING (1)

4931495167 10.00
0012

SCREW (1)

4931495168 7.00
0013

STOPPER (1)

4931495169 7.00
0014

O-RING (1)

4931507748 7.00
0016

NUT (1)

4931495171 7.00
0017

WASHER (1)

4931495172 6.00
0019

O-RING (1)

4931511275 5.00
0021

CABLE SET (1)

4931511280 88.00
0022

CAMERA (1)

4931511277 75.00
0028

HOUSING (1)

4931507749 10.00
0032

CLIP (1)

4931507745 8.00
0033

CLIP (1)

4931507746 15.00
0034

CLIP (1)

4931507744 25.00
0050

HOLDER (1)

4931507750 9.00
0051

HOUSING (1)

4931507751 30.00
0052

PUSH BUTTON (1)

4931495176 56.00
0053

RATING PLATE (1)

4931507756 6.00
0054

CLIP (1)

4931507747 12.00
0060

DISPLAY (1)

4931511278 33.00
0061

ELECTRONIC (1)

4931511279 123.00
0700

CARRYING CASE (1)

4931495178 116.00
