Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

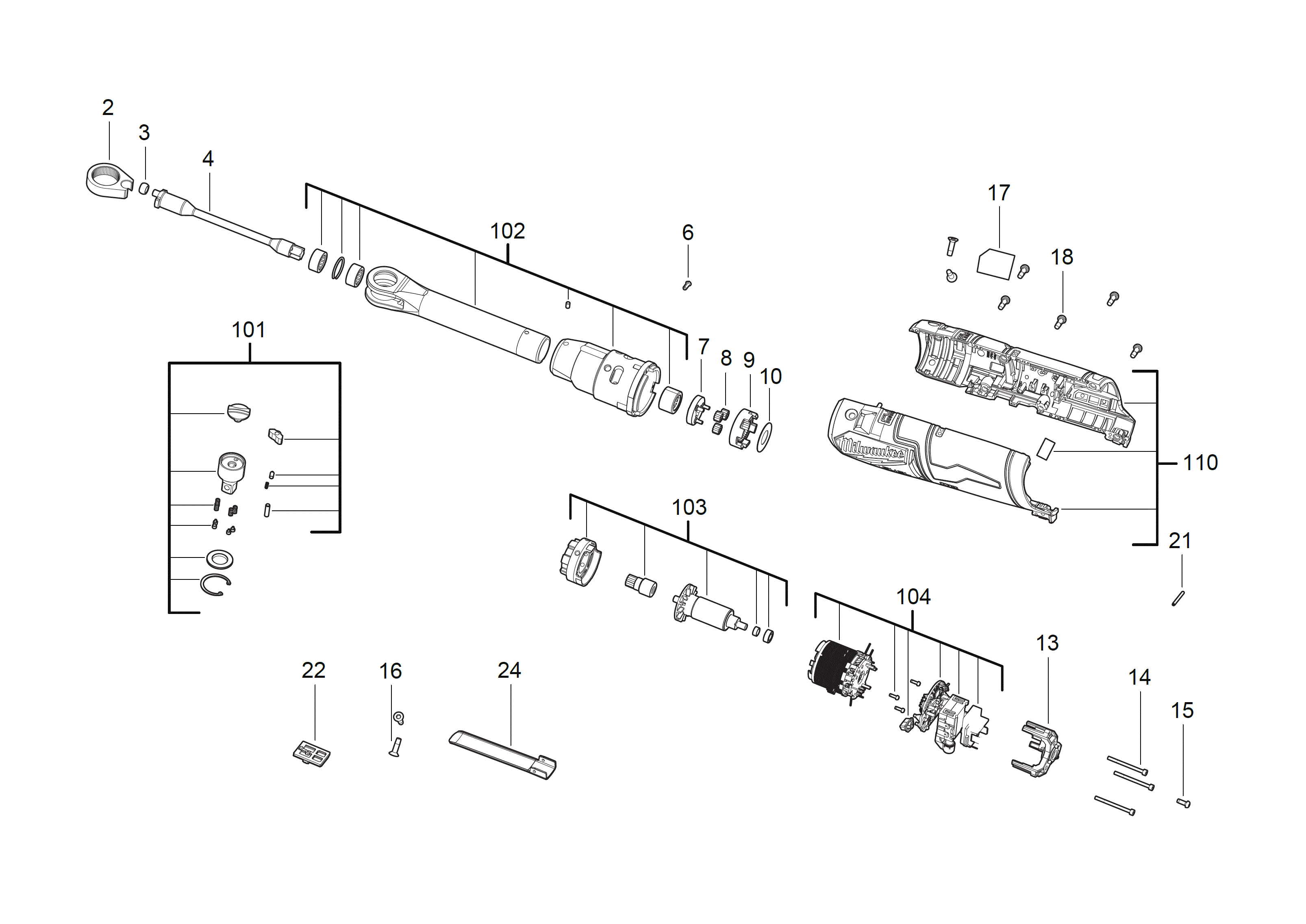

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0002 |
YOKE (1)
|
4931496336 |
15.00
|
|
|
0003 |
BUSHING (1)
|
4931479205 |
4.50
|
|
|
0004 |
CRANKSHAFT (1)
|
4931494690 |
43.50
|
|
|
0006 |
PIN (1)
|
4931435265 |
2.50
|
|
|
0007 |
GEAR CARRIER (1)
|
4931494682 |
3.00
|
|
|
0008 |
PLANET GEAR (3)
|
4931494683 |
2.50
|
|
|
0009 |
GEAR COVER (1)
|
4931494684 |
3.00
|
|
|
0010 |
WASHER (1)
|
4931494685 |
1.00
|
|
|
0013 |
MOTOR PLATE (1)
|
4931479207 |
5.50
|
|
|
0014 |
SCREW (3)
|
4931465283 |
1.50
|
|
|
0015 |
SCREW (1)
|
4931465279 |
2.50
|
|
|
0016 |
SCREW (4)
|
4931479208 |
2.50
|
|
|
0017 |
RATING PLATE (1)
|
4931494691 |
2.50
|
|
|
0018 |
SCREW (5)
|
4931435015 |
3.00
|
|
|
0021 |
PIN (1)
|
4931435254 |
4.00
|
|
|
0022 |
LOCK BOTTON (1)
|
4931479210 |
2.50
|
|
|
0024 |
TRIGGER (1)
|
4931435253 |
4.00
|
|
|
0101 |
ANVIL (1)
|
4931511134 |
31.00
|
|
|
0102 |
HOUSING SET ASSY (1)
|
4931494692 |
111.50
|
|
|
0103 |
ROTOR (1)
|
4931479213 |
41.00
|
|
|
0104 |
STATOR (1)
|
4931494688 |
119.00
|
|
|
0110 |
HOUSING SET ASSY (1)
|
4931494689 |
18.00
|
|
To select the correct EU-Declaration of Conformity, please check the first 8 digits on your rating plate and match them with the corresponding EU-Declaration of Conformity document that has the same numbers in its title.
