Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

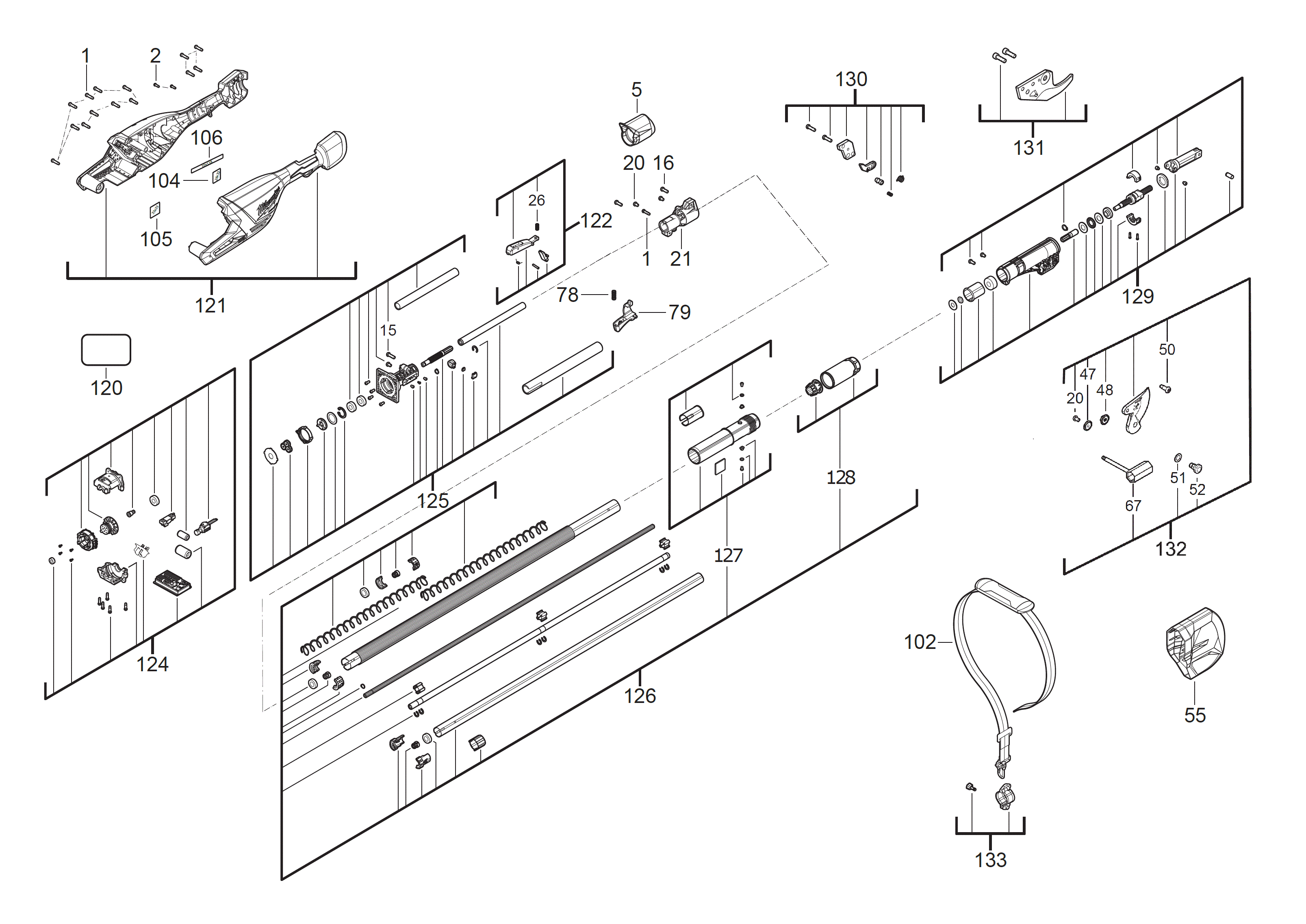

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0001 |
SCREW (15)
|
4931453124 |
2.50
|
|
|
0002 |
SCREW (2)
|
4931436686 |
2.50
|
|
|
0005 |
RUBBER RING (1)
|
4931496738 |
7.00
|
|
|
0015 |
SCREW (1)
|
4931466683 |
1.00
|
|
|
0016 |
SCREW (2)
|
4931466797 |
1.00
|
|
|
0020 |
SCREW (5)
|
4931466677 |
1.00
|
|
|
0021 |
PIPE CLAMP (1)
|
4931496739 |
21.50
|
|
|
0026 |
SPRING (1)
|
4931454803 |
2.50
|
|
|
0055 |
COVER (1)
|
4931496740 |
2.50
|
|
|
0078 |
SPRING (1)
|
4931454808 |
2.50
|
|
|
0079 |
TRIGGER (1)
|
4931496741 |
3.00
|
|
|
0102 |
STRAP (1)
|
4931496742 |
21.00
|
|
|
0104 |
RUBBER BUFFER (1)
|
4931496743 |
1.00
|
|
|
0105 |
RUBBER BUFFER (1)
|
4931496744 |
1.00
|
|
|
0106 |
RUBBER BUFFER (1)
|
4931496745 |
1.00
|
|
|
0120 |
RATING PLATE (1)
|
4931496746 |
1.00
|
|
|
0121 |
HOUSING (1)
|
4931496747 |
72.00
|
|
|
0122 |
TRIGGER (1)
|
4931496240 |
15.50
|
|
|
0124 |
MOTOR ASSEMBLY (1)
|
4931496748 |
156.00
|
|
|
0125 |
GEAR BOX (1)
|
4931496749 |
75.00
|
|
|
0126 |
DRIVING SHAFT (1)
|
4931496750 |
168.00
|
|
|
0127 |
COLLAR (1)
|
4931496751 |
39.00
|
|
|
0128 |
CONNECTOR (1)
|
4931496752 |
20.00
|
|
|
0129 |
CUTTING HEAD (1)
|
4931496753 |
300.00
|
|
|
0130 |
HOOK (1)
|
4931496754 |
24.00
|
|
|
0131 |
SHEAR BLADE (1)
|
4931496755 |
45.00
|
|
|
0132 |
Repl. Blade for M18 BL Telescopic Shear (1)
|
4932493557 |
54.00
|
|
|
0133 |
HOLDING BRACKET (1)
|
4931496246 |
22.00
|
|
