Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|
Position |
Description (Qty) |
Part number |
Price (€) |
|
|

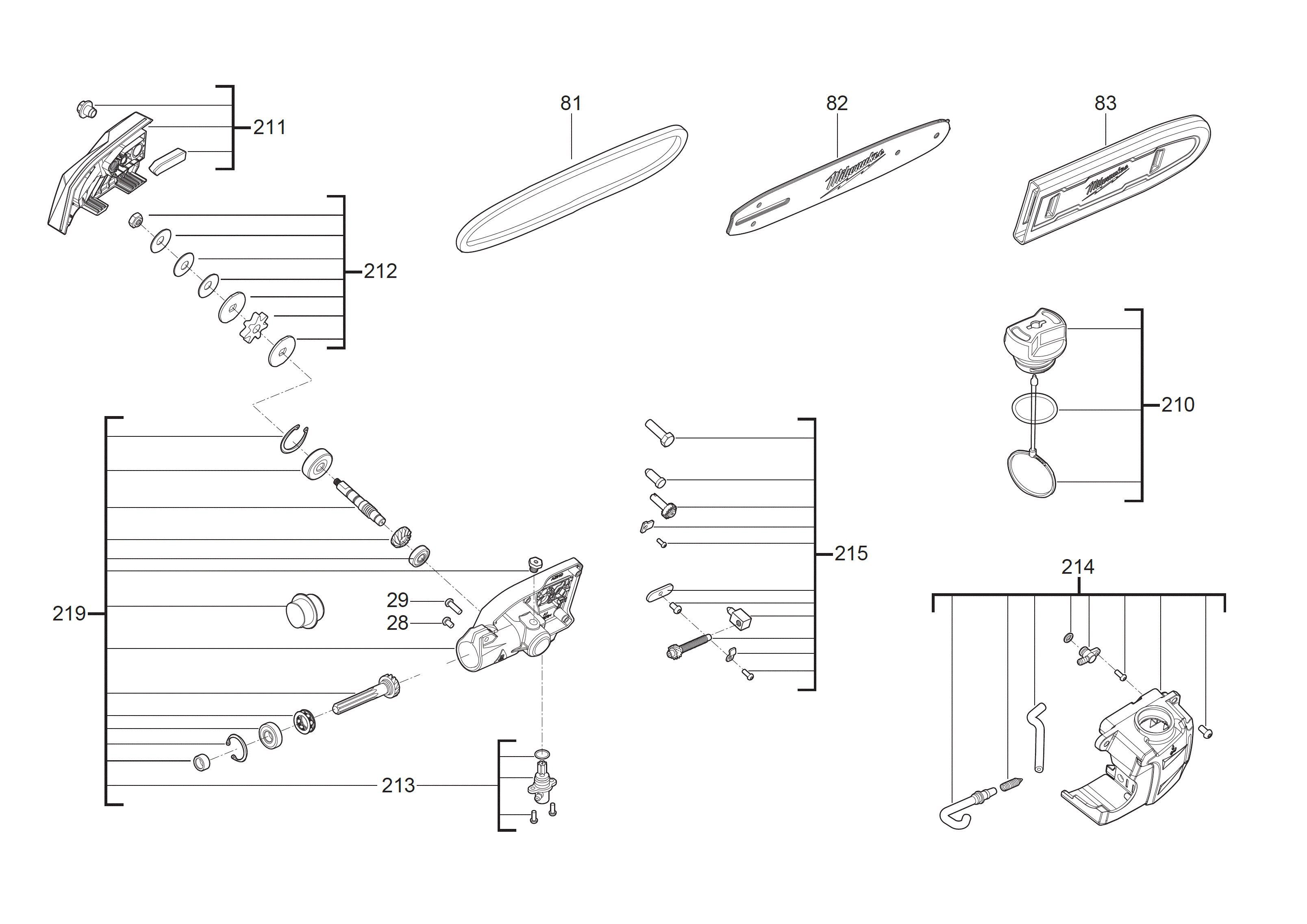

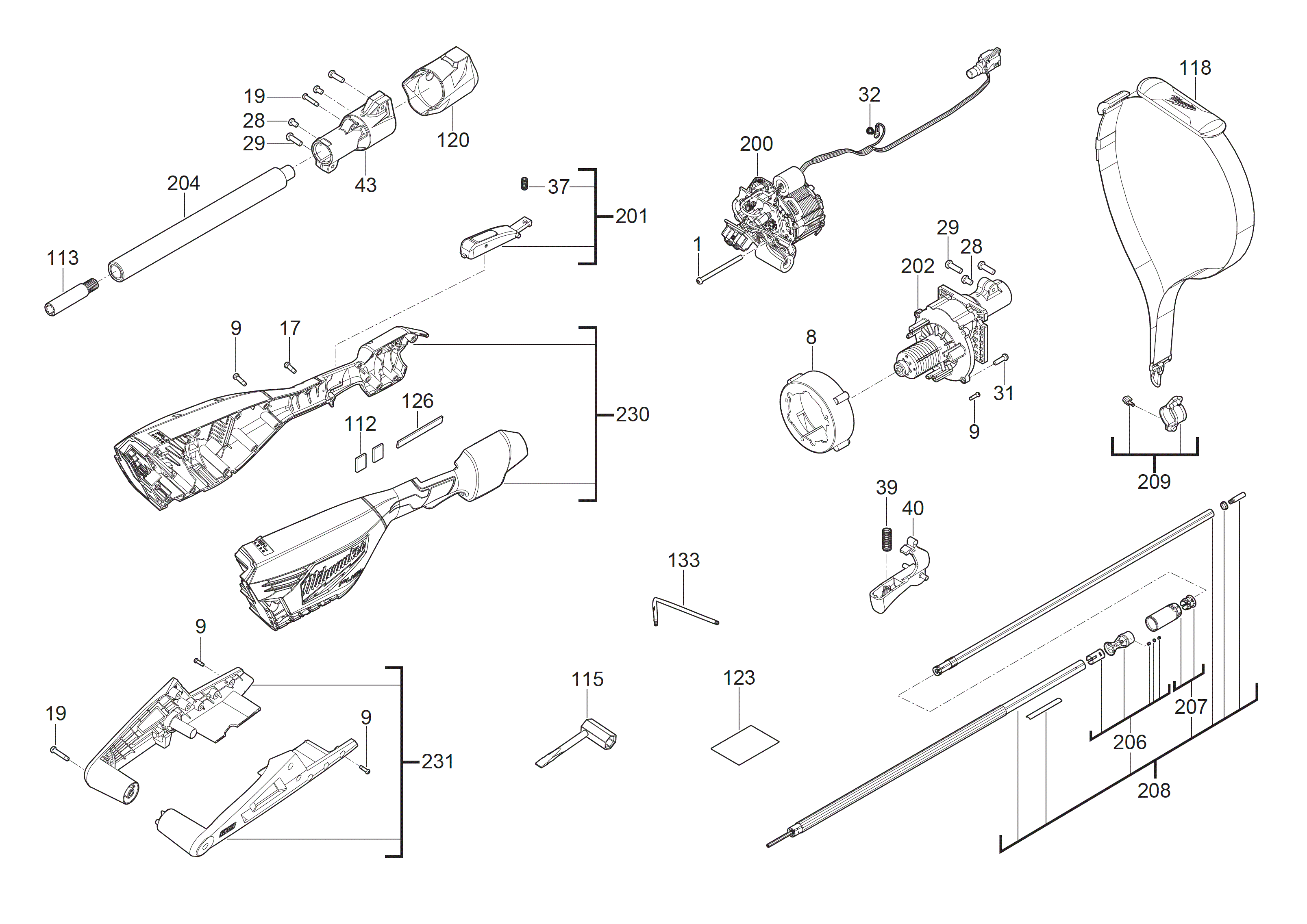

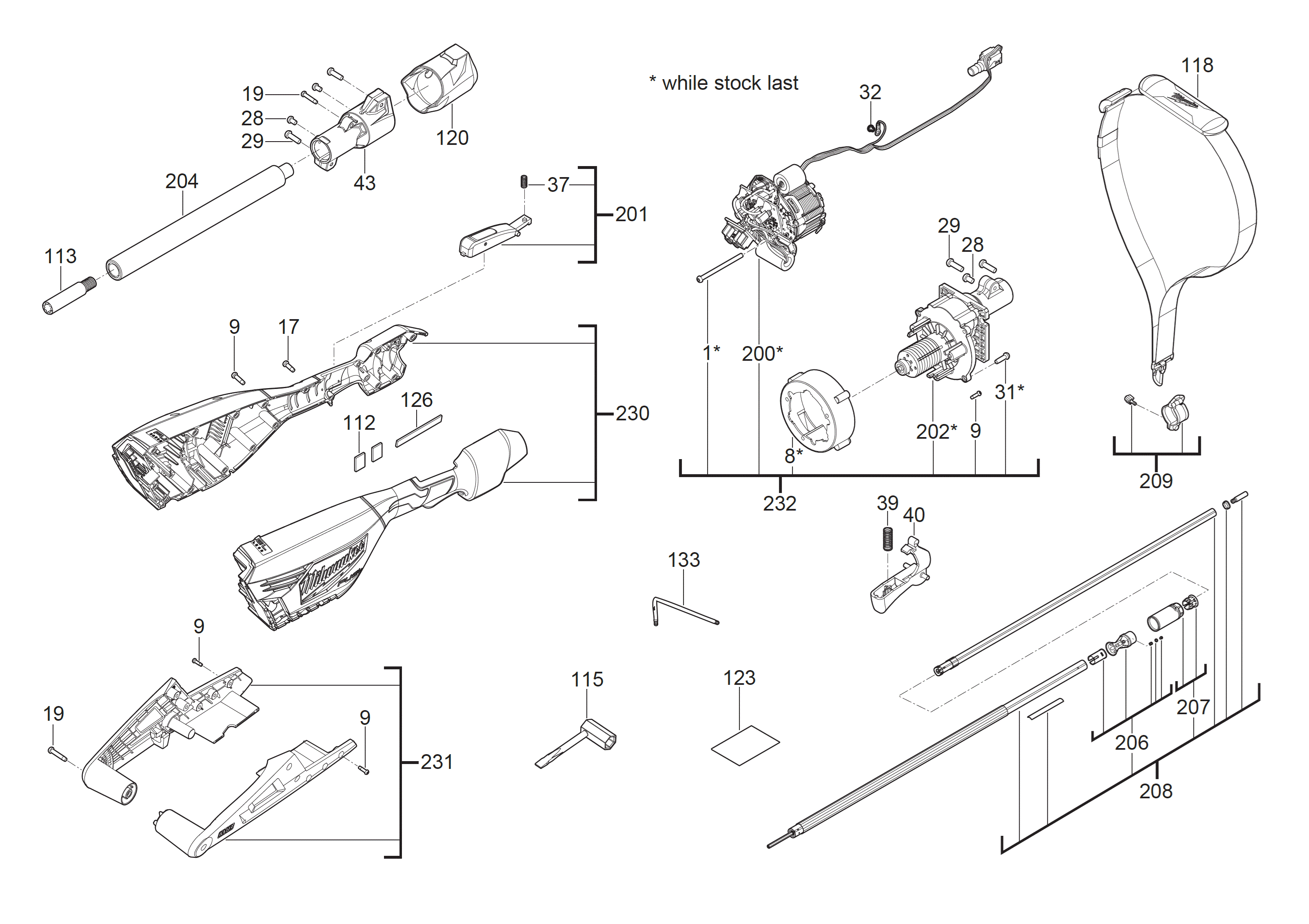

0001 |
SCREW (3)
|
4931494451 |
2.50
|
|
|
0008 |
MOTOR COVER (1)
|
4931496228 |
3.00
|
|
|
0009 |
SCREW (28)
|
4931465326 |
3.00
|
|
|
0017 |
SCREW (1)
|
4931454800 |
3.00
|
|
|
0019 |
SCREW (2)
|
4931473725 |
2.50
|
|
|
0028 |
SCREW (4)
|
4931466677 |
1.50
|
|
|
0029 |
SCREW (4)
|
4931496229 |
1.00
|
|
|
0031 |
SCREW (4)
|
4931480770 |
2.50
|
|
|
0032 |
SCREW (1)
|
4931453068 |
2.50
|
|
|
0037 |
SPRING (1)
|
4931454803 |
2.50
|
|
|
0039 |
SPRING (1)
|
4931454808 |
2.50
|
|
|
0040 |
TRIGGER (1)
|
4931454801 |
4.00
|
|
|
0043 |
CONNECTION SET (1)
|
4931496230 |
27.00
|
|
|
0081 |
Saw Chain Top Handle 325LP X 305 X 1.1 (1)
|
4932480177 |
31.30
|
|
|
0082 |
GUIDE BAR 12IN/30CM M18 FTHCHS30 (1)
|
4932480171 |
52.90
|
|
|
0083 |
SCABBARDS (1)
|
4931496231 |
6.00
|
|
|
0112 |
FOAM RUBBER (2)
|
4931496232 |
1.00
|
|
|
0113 |
ADAPTER (1)
|
4931496233 |
12.50
|
|
|
0115 |
WRENCH (1)
|
4931465931 |
6.50
|
|
|
0118 |
STRAP (1)
|
4931496234 |
20.50
|
|
|
0120 |
COVER (1)
|
4931496235 |
5.50
|
|
|
0123 |
RATING PLATE (1)
|
4931496236 |
1.00
|
|
|
0126 |
FOAM (1)
|
4931496237 |
1.00
|
|
|
0133 |
ALLEN KEY (1)
|
4931496238 |
3.50
|
|
|
0200 |
ELECTRONIC (1)
|
4931496239 |
295.00
|
|
|
0201 |
TRIGGER (1)
|
4931496240 |
15.50
|
|
|
0202 |
GEAR CASE (1)
|
4931496241 |
140.00
|
|
|
0204 |
CONNECTING SHAFT (1)
|
4931496242 |
62.50
|
|
|
0206 |
BUSHING (1)
|
4931496243 |
18.50
|
|
|
0207 |
COLLAR (1)
|
4931496244 |
20.00
|
|
|
0208 |
TUBE (1)
|
4931496245 |
298.00
|
|
|
0209 |
HOLDING BRACKET (1)
|
4931496246 |
22.00
|
|
|
0210 |
CAP (1)
|
4931496247 |
17.50
|
|
|
0211 |
COVER (1)
|
4931496248 |
23.00
|
|
|
0212 |
SPRING (1)
|
4931496249 |
13.00
|
|
|
0213 |
PUMP (1)
|
4931496250 |
17.00
|
|
|
0214 |
TANK (1)
|
4931496251 |
29.00
|
|
|
0215 |
TENSIONING DEVICE (1)
|
4931496252 |
33.00
|
|
|
0219 |
GEAR CASE (1)
|
4931496253 |
132.00
|
|
|
0230 |
HOUSING (1)
|
4931496254 |
26.50
|
|
|
0231 |
GUARD (1)
|
4931496255 |
46.50
|
|
To select the correct EU-Declaration of Conformity, please check the first 8 digits on your rating plate and match them with the corresponding EU-Declaration of Conformity document that has the same numbers in its title.
