Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

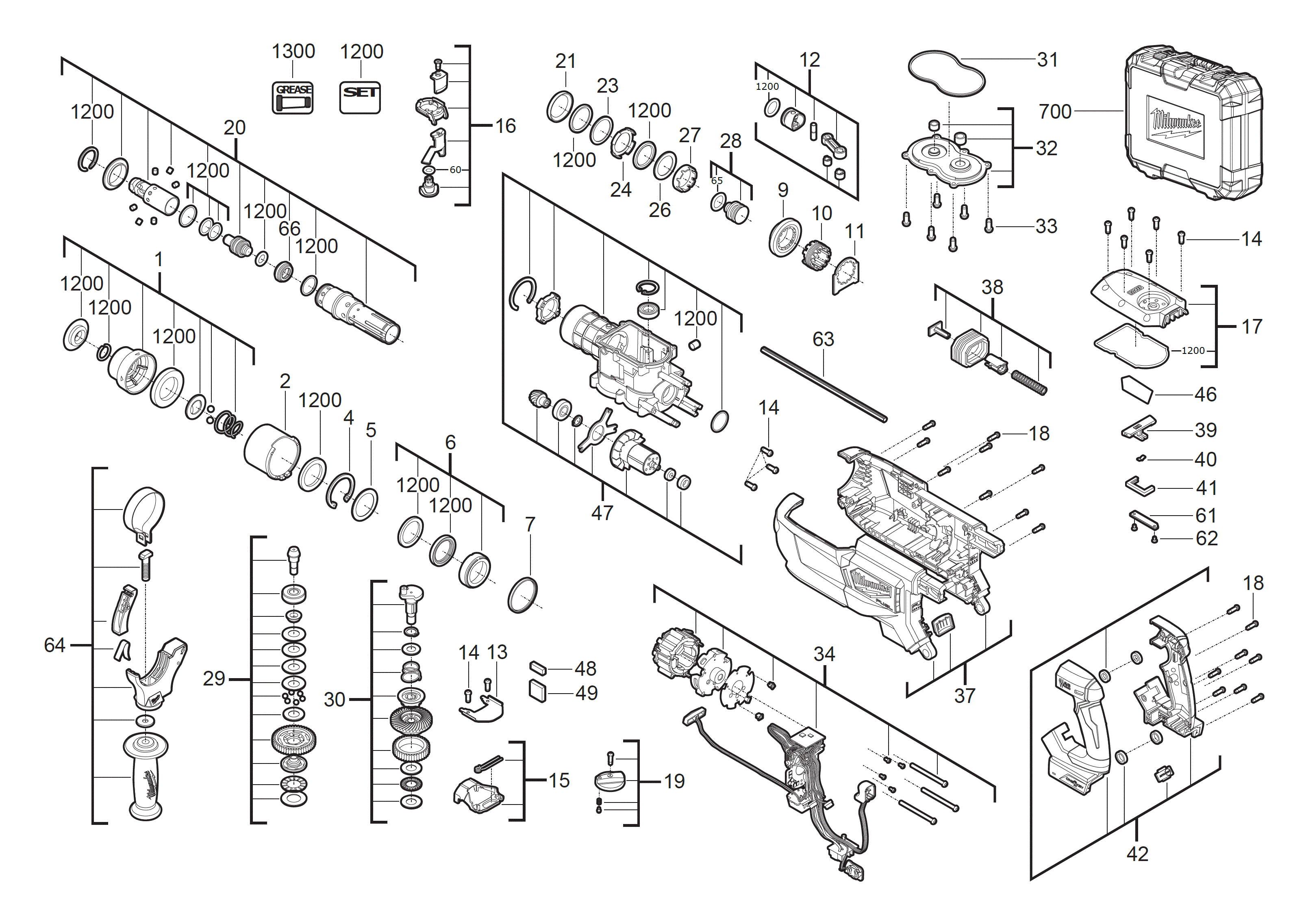

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0001 |
COLLAR (1)
|
4931494780 |
29.50
|
|
|
0002 |
SLEEVE (1)
|
4931479800 |
3.00
|
|
|
0004 |
SNAP RING (1)
|
4931479801 |
3.00
|
|
|
0005 |
WASHER (1)
|
4931479802 |
2.50
|
|
|
0006 |
BUSHING (1)
|
4931479803 |
15.00
|
|
|
0007 |
RING (1)
|
4931494781 |
3.50
|
|
|
0009 |
BEVEL GEAR (1)
|
4931479812 |
8.50
|
|
|
0010 |
SLEEVE (1)
|
4931479813 |
6.50
|
|
|
0011 |
LOCKING PLATE (1)
|
4931479814 |
3.00
|
|
|
0012 |
PISTON (1)
|
4931479815 |
25.50
|
|
|
0013 |
CLAMPING PIECE (1)
|
4931479816 |
2.50
|
|
|
0014 |
SCREW (11)
|
4931435150 |
2.50
|
|
|
0015 |
COVER (1)
|
4931479817 |
9.50
|
|
|
0016 |
CLAMPING SET (1)
|
4931494782 |
13.00
|
|
|
0017 |
GEAR COVER (1)
|
4931494783 |
25.50
|
|
|
0018 |
SCREW (18)
|
660031017 |
2.50
|
|
|
0019 |
PUSH BUTTON (1)
|
4931479829 |
9.50
|
|
|
0020 |
SPINDLE KIT (1)
|
4931494784 |
126.00
|
|
|
0021 |
WASHER (1)
|
4931479805 |
2.50
|
|
|
0023 |
WASHER (1)
|
4931479807 |
2.50
|
|
|
0024 |
BUFFER (1)
|
4931436375 |
2.50
|
|
|
0026 |
WASHER (1)
|
4931436371 |
2.50
|
|
|
0027 |
SPINDLE (1)
|
4931479809 |
3.00
|
|
|
0028 |
STRIKER (1)
|
4931479810 |
23.50
|
|
|
0029 |
CLUTCH (1)
|
4931494785 |
79.00
|
|
|
0030 |
CRANK ASSEMBLY (1)
|
4931494786 |
66.50
|
|
|
0031 |
SEAL (1)
|
4931494787 |
5.00
|
|
|
0032 |
GEAR CASE (1)
|
4931494788 |
33.50
|
|
|
0033 |
SCREW (6)
|
4931436390 |
1.00
|
|
|
0034 |
MOTOR ASSEMBLY (1)
|
4931494789 |
243.00
|
|
|
0037 |
HOUSING (1)
|
4931494790 |
57.00
|
|
|
0038 |
ASSEMBLY SET (1)
|
4931494791 |
10.50
|
|
|
0039 |
CROSS BRACKET (1)
|
4931494792 |
2.50
|
|
|
0040 |
SPRING PLATE (1)
|
4931479612 |
2.50
|
|
|
0041 |
ELECTRONIC (1)
|
4931479825 |
2.50
|
|
|
0042 |
HANDLE SET (1)
|
4931494793 |
45.50
|
|
|
0046 |
RATING PLATE (1)
|
4931494794 |
2.50
|
|
|
0047 |
ROTOR (1)
|
4931494795 |
121.50
|
|
|
0048 |
CROSS BRACKET (1)
|
4931494796 |
2.50
|
|
|
0049 |
CROSS BRACKET (1)
|
4931494797 |
2.50
|
|
|
0060 |
O-RING (1)
|
4931436413 |
2.50
|
|
|
0061 |
COVER (1)
|
4931479660 |
2.50
|
|
|
0062 |
SCREW (2)
|
4931465385 |
2.50
|
|
|
0063 |
DEPTH GAUGE (1)
|
4931479598 |
4.00
|
|
|
0064 |
HANDLE (1)
|
4931494798 |
42.00
|
|
|
0065 |
O-RING (1)
|
4931494799 |
2.50
|
|
|
0066 |
ANVIL (1)
|
4931479839 |
13.00
|
|
|
0700 |
CARRYING CASE (1)
|
4931494800 |
106.50
|
|
|
1200 |
MAINTENANCE SET (1)
|
4931494801 |
63.00
|
|
|
1300 |
GEAR GREASE (1)
|
4931443288 |
33.00
|
|
