Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

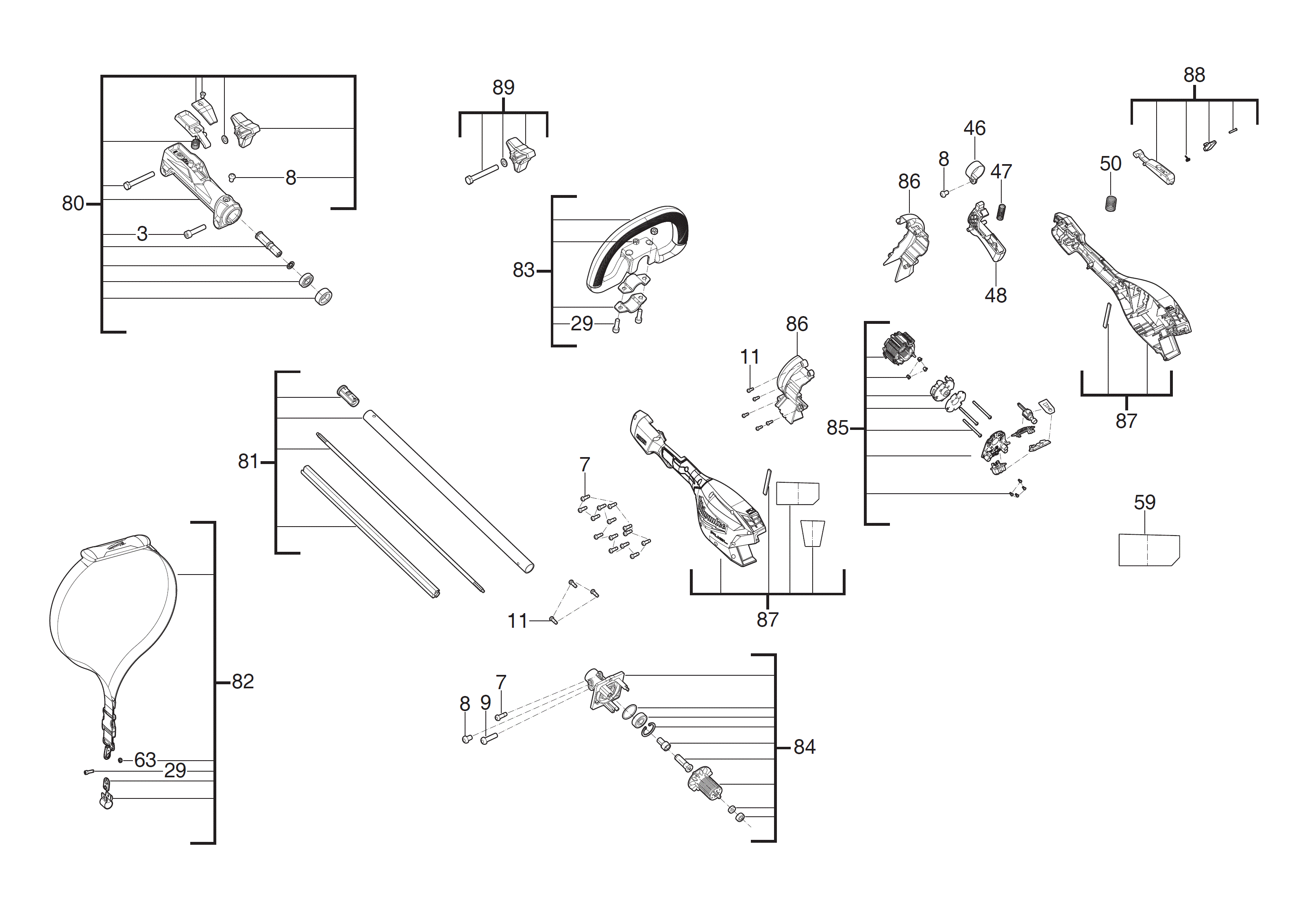

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0003 |
SCREW (1)
|
4931479165 |
1.50
|
|
|
0007 |
SCREW (15)
|
4931454800 |
3.00
|
|
|
0008 |
SCREW (3)
|
4931466677 |
1.50
|
|
|
0009 |
SCREW (1)
|
4931466683 |
1.50
|
|
|
0011 |
SCREW (8)
|
4931454269 |
2.50
|
|
|
0029 |
SCREW (3)
|
4931465533 |
2.50
|
|
|
0046 |
CLAMP (1)
|
4931494983 |
1.00
|
|
|
0047 |
SPRING (1)
|
4931454808 |
2.50
|
|
|
0048 |
TRIGGER (1)
|
4931506464 |
3.00
|
|
|
0050 |
SPRING (1)
|
4931506465 |
1.00
|
|
|
0059 |
RATING PLATE (1)
|
4931506466 |
1.00
|
|
|
0063 |
NUT (1)
|
4931506467 |
1.00
|
|
|
0080 |
COUPLING (1)
|
4931506468 |
39.00
|
|
|
0081 |
SHAFT (1)
|
4931506469 |
48.00
|
|
|
0082 |
Single Shoulder Strap for Grass Trimmers (1)
|
4932492671 |
29.00
|
|
|
0083 |
HANDLE (1)
|
4931506470 |
37.00
|
|
|
0084 |
MOTOR ASSEMBLY (1)
|
4931506471 |
97.00
|
|
|
0085 |
ELECTRONIC (1)
|
4931506472 |
201.00
|
|
|
0086 |
MOTOR HOUSING (1)
|
4931506473 |
15.50
|
|
|
0087 |
HOUSING (1)
|
4931506474 |
33.00
|
|
|
0088 |
TRIGGER (1)
|
4931506475 |
14.00
|
|
|
0089 |
KNOB (1)
|
4931506476 |
13.50
|
|
