Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

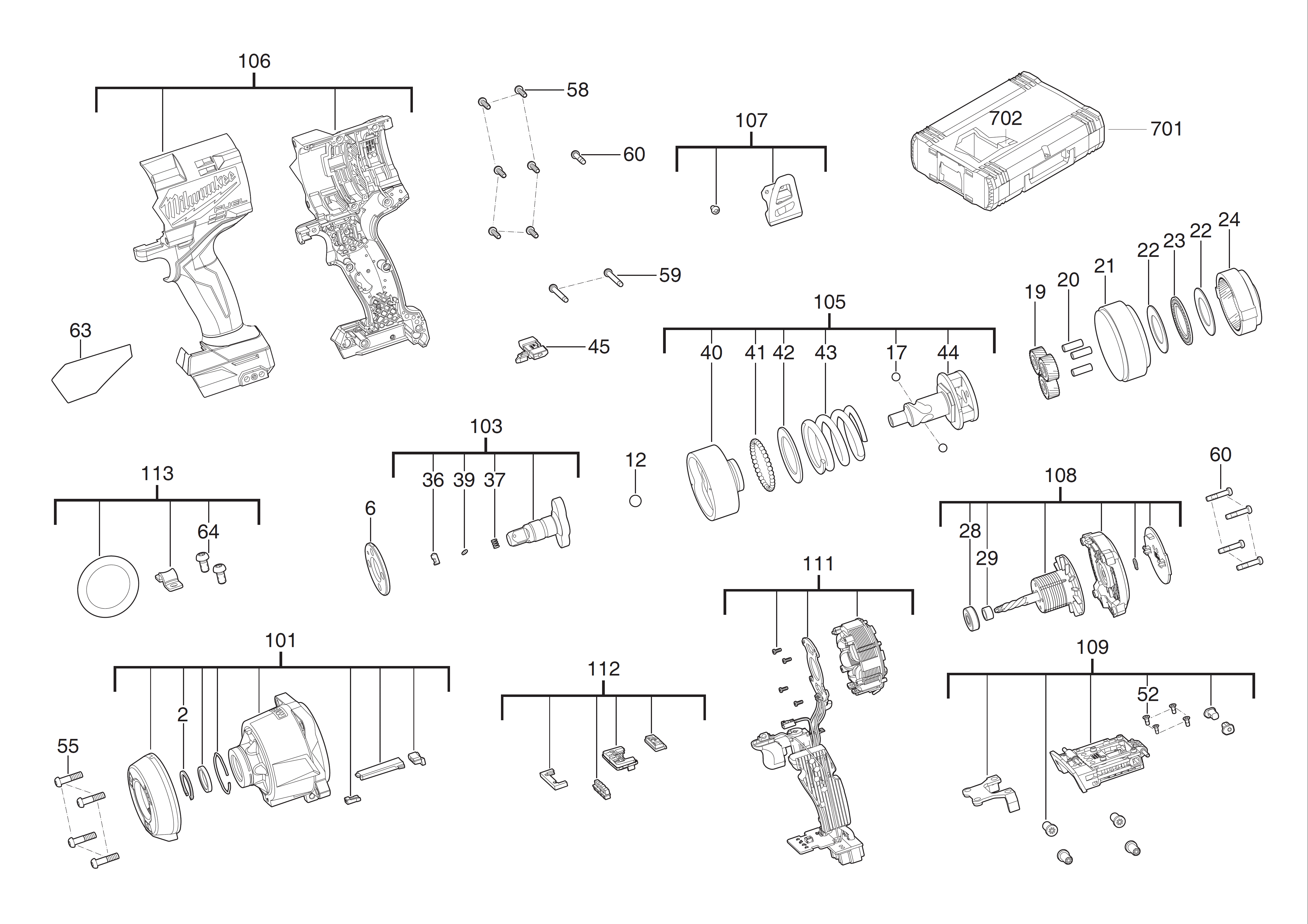

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0002 |
PROTECTION WASHER (1)
|
Item discontinued
(4931453319) |
|
|
|
0006 |
WASHER (1)
|
4931496133 |
2.50
|
|
|
0012 |
BALL (1)
|
4931496134 |
1.00
|
|
|
0017 |
BALL (2)
|
4931496135 |
1.00
|
|
|
0019 |
PLANET GEAR (3)
|
4931496136 |
6.00
|
|
|
0020 |
PIN (3)
|
4931496137 |
2.50
|
|
|
0021 |
SEAL (1)
|
4931496138 |
2.50
|
|
|
0022 |
WASHER (2)
|
4931496139 |
2.50
|
|
|
0023 |
NEEDLE BEARING (1)
|
4931496140 |
2.50
|
|
|
0024 |
GEAR (1)
|
4931496141 |
27.00
|
|
|
0028 |
BEARING (1)
|
4931496142 |
2.50
|
|
|
0029 |
BUSHING (1)
|
4931496143 |
2.50
|
|
|
0036 |
PIN (1)
|
4931496144 |
2.50
|
|
|
0037 |
SPRING (1)
|
4931496145 |
1.00
|
|
|
0039 |
BOLT (1)
|
4931453279 |
4.00
|
|
|
0040 |
HAMMER (1)
|
4931496146 |
52.00
|
|
|
0041 |
BALL (34)
|
4931494806 |
2.50
|
|
|
0042 |
WASHER (1)
|
4931496147 |
3.00
|
|
|
0043 |
SPRING (1)
|
4931496148 |
7.00
|
|
|
0044 |
CAM SHAFT (1)
|
4931496149 |
64.00
|
|
|
0045 |
BUTTON (1)
|
4931496150 |
2.50
|
|
|
0052 |
SCREW (4)
|
4931472925 |
1.00
|
|
|
0055 |
SCREW (4)
|
4931496151 |
1.00
|
|
|
0058 |
SCREW (6)
|
4931496152 |
1.00
|
|
|
0059 |
SCREW (2)
|
4931465325 |
2.50
|
|
|
0060 |
SCREW (5)
|
4931465324 |
2.50
|
|
|
0063 |
RATING PLATE (1)
|
4931496153 |
1.00
|
|
|
0064 |
SCREW (2)
|
4931496154 |
1.00
|
|
|
0101 |
GEAR CASE (1)
|
4931496155 |
67.00
|
|
|
0103 |
ANVIL (1)
|
4931496156 |
72.00
|
|
|
0105 |
GEAR UNIT (1)
|
4931496157 |
123.00
|
|
|
0106 |
HOUSING (1)
|
4931496158 |
44.00
|
|
|
0107 |
BELT CLIP (1)
|
4931465831 |
6.00
|
|
|
0108 |
ROTOR (1)
|
4931496159 |
62.00
|
|
|
0109 |
KIT (1)
|
4931496160 |
23.50
|
|
|
0111 |
ELECTRONIC (1)
|
4931496161 |
150.00
|
|
|
0112 |
SWITCH (1)
|
4931496162 |
6.00
|
|
|
0113 |
RING (1)
|
4931496163 |
7.00
|
|
|
0701 |
HD Box 1 - 1pc (1)
|
4932453385 |
47.30
|
|
|
0702 |
INSERT (1)
|
4931496164 |
13.50
|
|
