Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

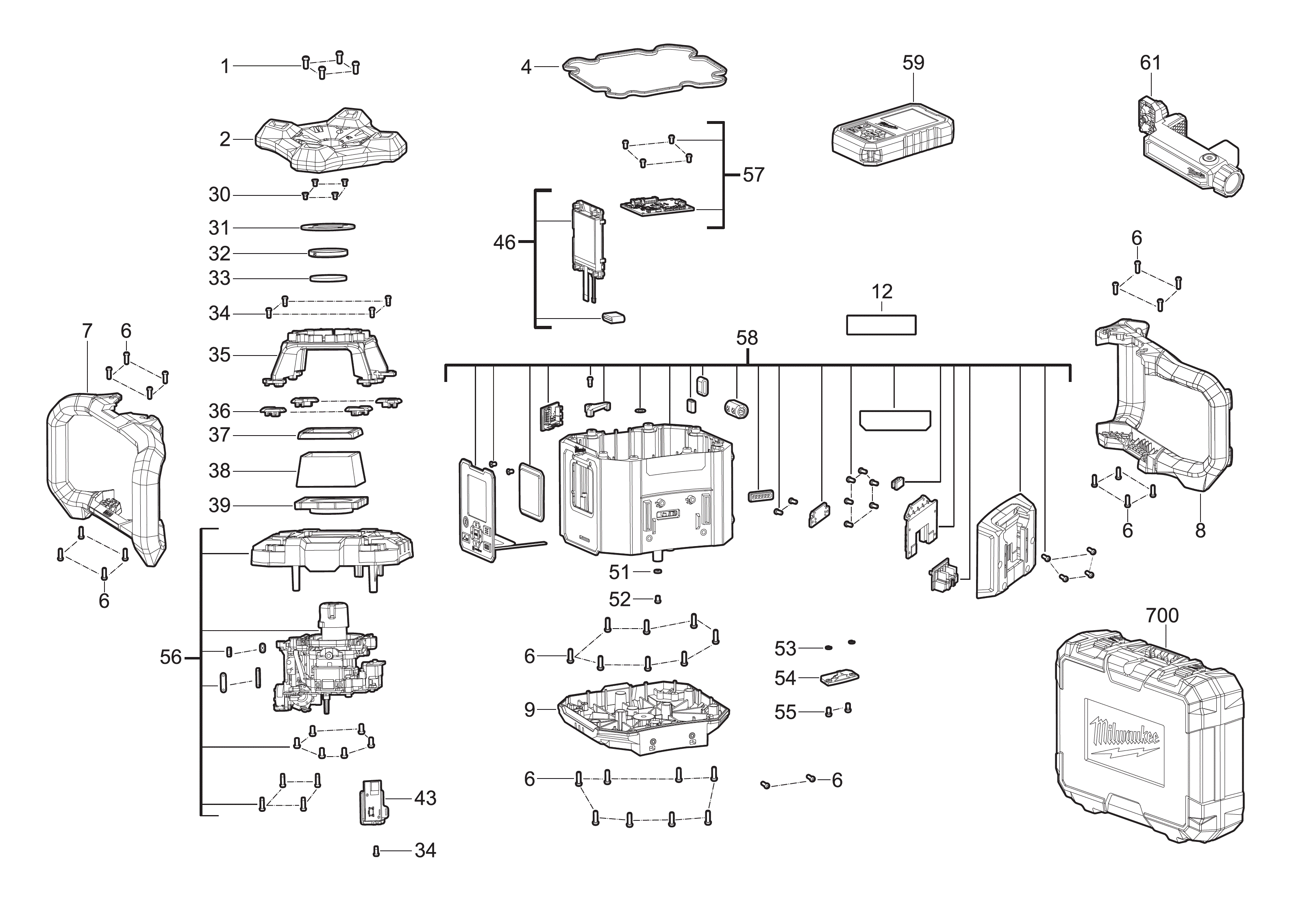

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0001 |
SCREW (4)
|
4931496569 |
1.00
|
|
|
0002 |
COVER (1)
|
4931496599 |
78.00
|
|
|
0004 |
GASKET (1)
|
4931496571 |
13.50
|
|
|
0006 |
SCREW (38)
|
4931496572 |
1.00
|
|
|
0007 |
HANDLE (1)
|
4931496573 |
62.50
|
|
|
0008 |
HANDLE (1)
|
4931496600 |
62.50
|
|
|
0009 |
HOUSING (1)
|
4931496575 |
56.00
|
|
|
0012 |
RATING PLATE (1)
|
4931496725 |
11.00
|
|
|
0030 |
SCREW (4)
|
4931496602 |
1.00
|
|
|
0031 |
PLATE (1)
|
4931496603 |
6.00
|
|
|
0032 |
GASKET (1)
|
4931496726 |
12.00
|
|
|
0033 |
GLASS (1)
|
4931496605 |
45.50
|
|
|
0034 |
SCREW (5)
|
4931496577 |
1.00
|
|
|
0035 |
COVER (1)
|
4931496606 |
26.50
|
|
|
0036 |
BRACKET (4)
|
4931496607 |
2.50
|
|
|
0037 |
GASKET (1)
|
4931496727 |
12.50
|
|
|
0038 |
GLASS (1)
|
4931496609 |
102.50
|
|
|
0039 |
GASKET (1)
|
4931496728 |
13.50
|
|
|
0043 |
BLUETOOTH PCBA (1)
|
4931496729 |
85.50
|
|
|
0046 |
Display (1)
|
4931496730 |
86.00
|
|
|
0051 |
GASKET (1)
|
4931496590 |
3.00
|
|
|
0052 |
SCREW (1)
|
4931496591 |
1.00
|
|
|
0053 |
CLIP (2)
|
Item discontinued
(4931496595) |
|
|
|
0054 |
COVER (1)
|
4931496614 |
2.50
|
|
|
0055 |
SCREW (2)
|
4931496593 |
2.50
|
|
|
0056 |
ASSEMBLY KIT (1)
|
4931496735 |
1223.00
|
|
|
0057 |
ELECTRONIC (1)
|
4931496618 |
78.00
|
|
|
0058 |
HOUSING (1)
|
4931496736 |
246.00
|
|
|
0059 |
M18ROLOHV1200-REMOTE CONTROL WITH LABEL (1)
|
4931497580 |
390.00
|
|
|
0061 |
CLAMP (1)
|
4931496361 |
39.00
|
|
|
0700 |
CARRYING CASE (1)
|
4931496598 |
94.50
|
|
To select the correct EU-Declaration of Conformity, please check the first 8 digits on your rating plate and match them with the corresponding EU-Declaration of Conformity document that has the same numbers in its title.
