Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

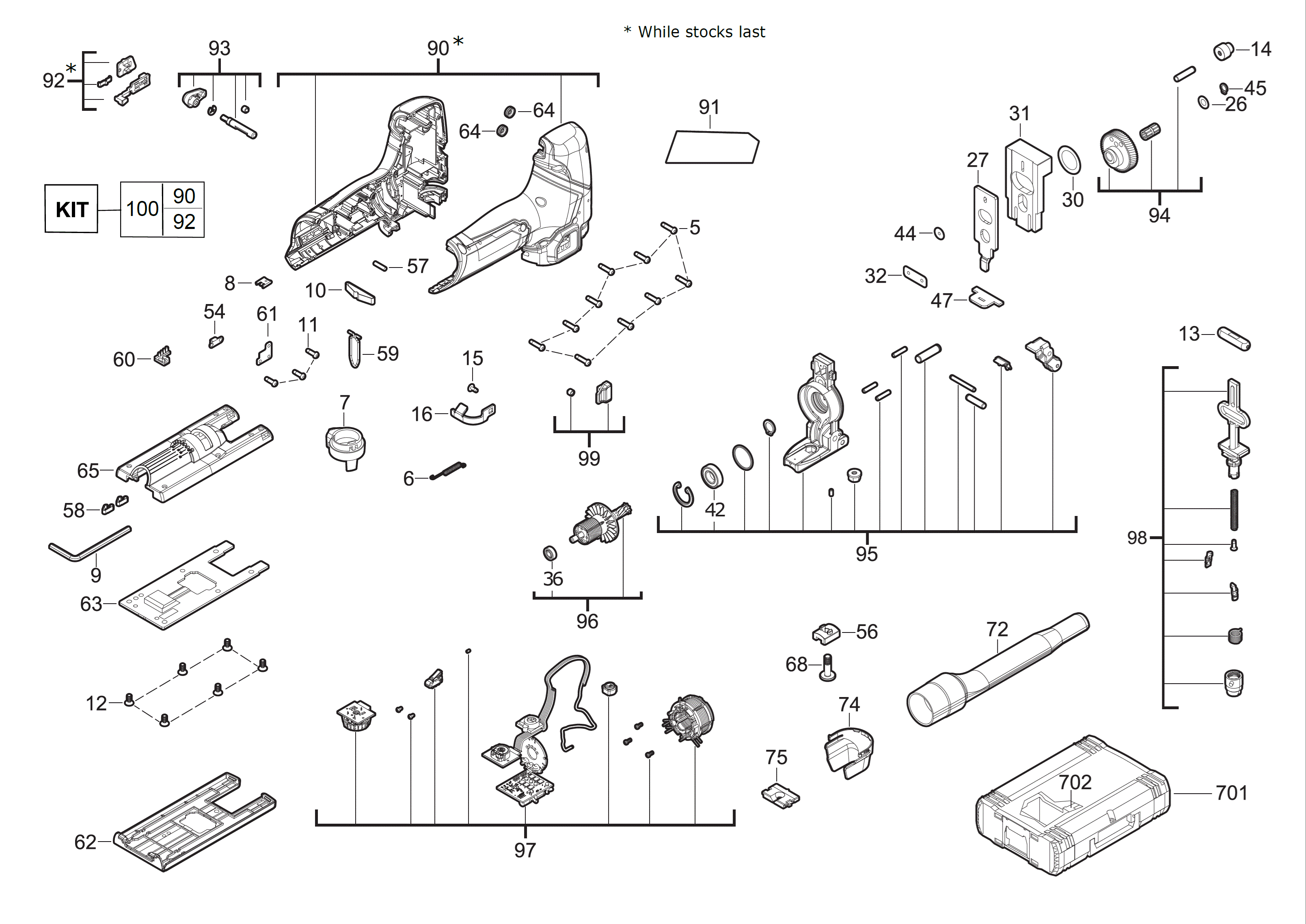

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0005 |
SCREW (10)
|
4931465499 |
2.50
|
|
|
0006 |
SPRING (1)
|
4931454321 |
4.00
|
|
|
0007 |
SHOE REL.LEVER KIT (1)
|
4931466421 |
3.50
|
|
|
0008 |
CONNECTOR (1)
|
4931436292 |
2.50
|
|
|
0009 |
HEX WRENCH (1)
|
4931495829 |
2.50
|
|
|
0010 |
SPRING (1)
|
4931495830 |
1.00
|
|
|
0011 |
SCREW (3)
|
4931436686 |
2.50
|
|
|
0012 |
SCREW (6)
|
4931454315 |
2.50
|
|
|
0013 |
BUSHING (1)
|
4931495831 |
8.00
|
|
|
0014 |
CAM (1)
|
4931495832 |
5.00
|
|
|
0015 |
SCREW (1)
|
4931465139 |
2.50
|
|
|
0016 |
BRACKET (1)
|
4931495833 |
2.50
|
|
|
0026 |
WASHER (1)
|
4931495834 |
1.00
|
|
|
0027 |
RETAINING PLATE (1)
|
4931495835 |
6.50
|
|
|
0030 |
WASHER (1)
|
4931495836 |
1.00
|
|
|
0031 |
SUPPORTING PLATE (1)
|
4931495837 |
13.00
|
|
|
0032 |
LATCH PLATE (1)
|
4931495838 |
1.00
|
|
|
0036 |
BALL BEARING (1)
|
4931495839 |
3.50
|
|
|
0042 |
BALL BEARING (1)
|
4931495840 |
6.00
|
|
|
0044 |
WASHER (1)
|
4931495841 |
1.00
|
|
|
0045 |
HOLDING RING (1)
|
4931465917 |
2.50
|
|
|
0047 |
SEAL (1)
|
4931495842 |
2.50
|
|
|
0054 |
GASKET (1)
|
4931495843 |
1.00
|
|
|
0056 |
CLAMPING PIECE (1)
|
4931495844 |
3.00
|
|
|
0057 |
RUBBER (1)
|
4931495845 |
1.00
|
|
|
0058 |
SPRING (2)
|
4931466431 |
1.00
|
|
|
0059 |
CONNECTION WIRE (1)
|
4931495846 |
2.50
|
|
|
0060 |
BRACKET (1)
|
4931495847 |
1.00
|
|
|
0061 |
COVER (1)
|
4931495848 |
1.00
|
|
|
0062 |
PROTECTING SHOE (1)
|
4931495849 |
2.50
|
|
|
0063 |
GUIDE SHOE (1)
|
4931495850 |
3.00
|
|
|
0064 |
RUBBER RING (2)
|
4931495851 |
2.50
|
|
|
0065 |
PROTECTING SHOE (1)
|
4931495852 |
19.00
|
|
|
0068 |
SCREW (1)
|
4931466424 |
2.50
|
|
|
0072 |
TUBE (1)
|
4931495853 |
2.50
|
|
|
0074 |
COVER (1)
|
4931466420 |
2.50
|
|
|
0075 |
ANT-CHIPPING DEVICE (1)
|
4931431787 |
3.50
|
|
|
0090 |
HANDLE SET (1)
|
4931495854 |
32.00
|
|
|
0091 |
RATING PLATE (1)
|
4931495855 |
1.00
|
|
|
0092 |
SWITCH BUTTON (1)
|
4931495856 |
5.00
|
|
|
0093 |
ADJUSTER (1)
|
4931495857 |
12.00
|
|
|
0094 |
BEARING NEEDLE (1)
|
4931496280 |
27.00
|
|
|
0095 |
FRAME (1)
|
4931495858 |
51.00
|
|
|
0096 |
ARMATURE (1)
|
4931495859 |
38.00
|
|
|
0097 |
ELECTRONIC (1)
|
4931495860 |
132.50
|
|
|
0098 |
SPINDLE KIT (1)
|
4931495861 |
44.00
|
|
|
0099 |
BUTTON (1)
|
4931495862 |
9.00
|
|
|
0701 |
HD Box 1 - 1pc (1)
|
4932453385 |
47.30
|
|
|
0702 |
INSERT (1)
|
4931495863 |
9.00
|
|
