Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

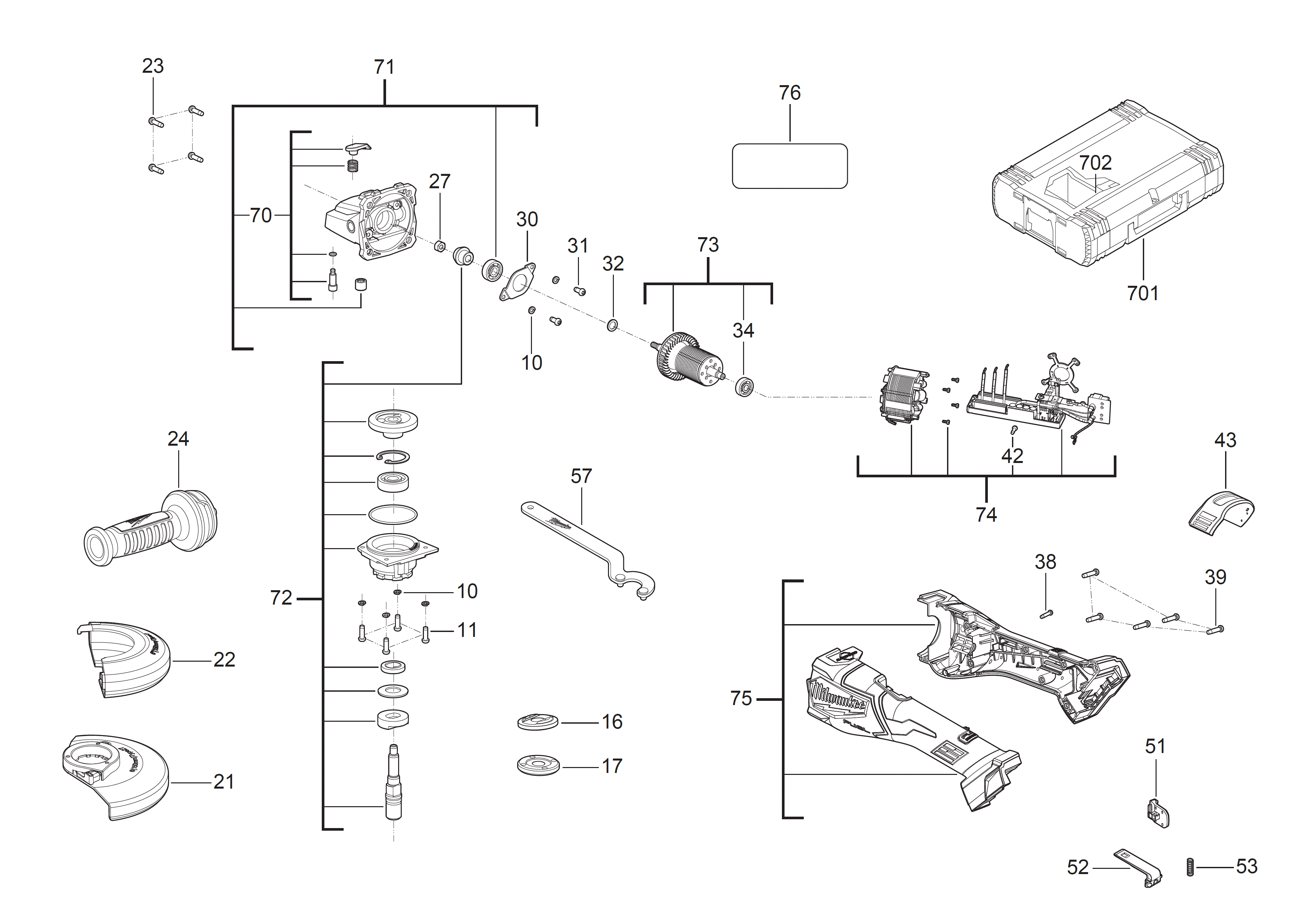

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0010 |
PROTECTION WASHER (6)
|
680866003 |
3.00
|
|
|
0011 |
SCREW (4)
|
4931435150 |
3.00
|
|
|
0016 |
FLANGE (1)
|
4931479268 |
5.50
|
|
|
0017 |
FLANGE NUT (1)
|
4931506775 |
7.00
|
|
|
0021 |
CUTTING GUARD (1)
|
4931506798 |
22.50
|
|
|
0022 |
GUARD (1)
|
4931507650 |
5.00
|
|
|
0023 |
SCREW (4)
|
4931496932 |
1.50
|
|
|
0024 |
AUXILIARY HANDLE (1)
|
4931435002 |
15.00
|
|
|
0027 |
NUT (1)
|
671686001 |
4.00
|
|
|
0030 |
BEARING CAGE (1)
|
672569001 |
3.00
|
|
|
0031 |
SCREW (2)
|
4931473732 |
1.50
|
|
|
0032 |
WASHER (1)
|
4931479270 |
3.00
|
|
|
0034 |
BALL BEARING (1)
|
4931466924 |
4.00
|
|
|
0038 |
SCREW (1)
|
661047001 |
2.50
|
|
|
0039 |
SCREW (7)
|
660031017 |
3.00
|
|
|
0042 |
SCREW (1)
|
4931436686 |
3.00
|
|
|
0043 |
DUST CAP (1)
|
4931506778 |
4.50
|
|
|
0051 |
SLIDER (1)
|
4931479272 |
3.00
|
|
|
0052 |
SLIDER (1)
|
4931506800 |
1.50
|
|
|
0053 |
SPRING (1)
|
4931479273 |
3.00
|
|
|
0057 |
SPANNER M14 (1)
|
632145002 |
5.00
|
|
|
0070 |
SPINDLE LOCK (1)
|
4931506781 |
6.00
|
|
|
0071 |
GEAR BOX ASSY (1)
|
4931506782 |
35.00
|
|
|
0072 |
SPINDLE KIT (1)
|
4931506783 |
51.50
|
|
|
0073 |
ROTOR (1)
|
4931506784 |
67.00
|
|
|
0074 |
ELECTRONIC (1)
|
4931506790 |
157.50
|
|
|
0075 |
HOUSING (1)
|
4931506791 |
24.00
|
|
|
0076 |
RATING PLATE (1)
|
4931506802 |
2.50
|
|
|
0701 |
HDBOX2FUEL HD BOX 2 FUEL XXX (1)
|
4932498753 |
49.90
|
|
|
0702 |
INSERT (1)
|
4931506788 |
22.00
|
|
