Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

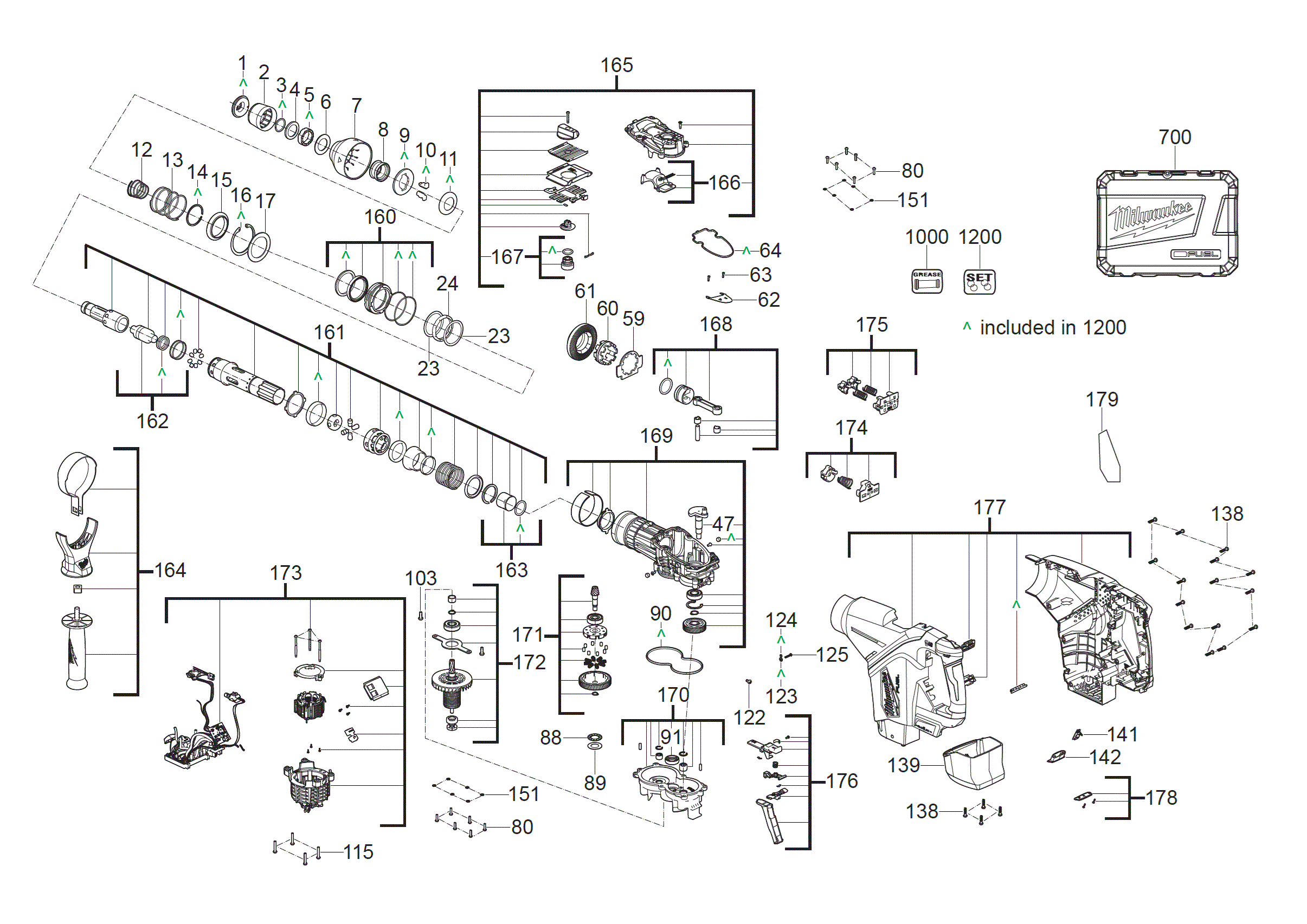

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0001 |
COVER (1)
|
4931511027 |
13.00
|
|
|
0002 |
CAP (1)
|
4931435133 |
2.50
|
|
|
0003 |
SNAP RING (1)
|
4931511028 |
3.00
|
|
|
0004 |
WASHER (1)
|
4931511029 |
6.00
|
|
|
0005 |
RING (1)
|
4931511030 |
8.00
|
|
|
0006 |
WASHER (1)
|
4931435137 |
2.50
|
|
|
0007 |
SLIDING CHUCK COLLAR (1)
|
4931511031 |
5.00
|
|
|
0008 |
SLEEVE (1)
|
4931506091 |
8.00
|
|
|
0009 |
RETAINING PLATE (1)
|
4931511032 |
3.00
|
|
|
0010 |
LATCH (2)
|
4931511033 |
7.00
|
|
|
0011 |
RETAINING PLATE (1)
|
4931511034 |
3.00
|
|
|
0012 |
SPRING (1)
|
4931506095 |
1.00
|
|
|
0013 |
SPRING (1)
|
4931511035 |
4.00
|
|
|
0014 |
SNAP RING (1)
|
4931511036 |
3.00
|
|
|
0015 |
CAP (1)
|
4931511037 |
23.00
|
|
|
0016 |
SNAP RING (1)
|
4931511038 |
4.00
|
|
|
0017 |
SEAL (1)
|
4931511039 |
3.00
|
|
|
0023 |
WASHER (2)
|
4931511040 |
3.00
|
|
|
0024 |
RING (1)
|
4931511041 |
5.00
|
|
|
0047 |
CRANK ASSEMBLY (1)
|
4931511042 |
25.00
|
|
|
0059 |
LOCKING PLATE (1)
|
4931511043 |
5.00
|
|
|
0060 |
SET COLLAR (1)
|
4931511044 |
12.00
|
|
|
0061 |
BEVEL GEAR (1)
|
4931511045 |
27.00
|
|
|
0062 |
PLATE (1)
|
4931511046 |
3.00
|
|
|
0063 |
SCREW (2)
|
4931435150 |
3.00
|
|
|
0064 |
GASKET (1)
|
4931511047 |
9.00
|
|
|
0080 |
SCREW (12)
|
4931496229 |
1.00
|
|
|
0088 |
NEEDLE BEARING (1)
|
4931436408 |
3.50
|
|
|
0089 |
WASHER (1)
|
4931506112 |
1.00
|
|
|
0090 |
GASKET (1)
|
4931511048 |
8.00
|
|
|
0091 |
SEAL (1)
|
4931511049 |
5.00
|
|
|
0103 |
SCREW (2)
|
4931466678 |
1.50
|
|
|
0115 |
SCREW (4)
|
4931480330 |
3.00
|
|
|
0122 |
SCREW (1)
|
4931435162 |
1.00
|
|
|
0123 |
WASHER (1)
|
4931511050 |
2.50
|
|
|
0124 |
O-RING (1)
|
4931480707 |
3.00
|
|
|
0125 |
SCREW (1)
|
4931453797 |
2.50
|
|
|
0138 |
SCREW (19)
|
4931466659 |
1.50
|
|
|
0139 |
CAP (1)
|
4931511051 |
7.00
|
|
|
0141 |
ELECTRONIC (1)
|
4931511052 |
16.00
|
|
|
0142 |
BRACKET (1)
|
4931511053 |
3.00
|
|
|
0151 |
WASHER (12)
|
4931511054 |
2.50
|
|
|
0160 |
BUSHING (1)
|
4931511055 |
35.00
|
|
|
0161 |
SPINDLE (1)
|
4931511056 |
273.00
|
|
|
0162 |
SNAP DIE (1)
|
4931511057 |
46.00
|
|
|
0163 |
STRIKER (1)
|
4931511058 |
32.00
|
|
|
0164 |
HANDLE (1)
|
4931511059 |
30.00
|
|
|
0165 |
GEAR BOX COVER (1)
|
4931511060 |
35.00
|
|
|
0166 |
CROSS BRACKET (1)
|
4931511061 |
10.00
|
|
|
0167 |
KNOB (1)
|
4931511062 |
10.00
|
|
|
0168 |
PISTON (1)
|
4931511063 |
35.00
|
|
|
0169 |
GEAR CASE (1)
|
4931511064 |
102.00
|
|
|
0170 |
GEAR CASE (1)
|
4931511065 |
71.00
|
|
|
0171 |
CLUTCH (1)
|
4931511066 |
82.00
|
|
|
0172 |
ROTOR (1)
|
4931511067 |
62.00
|
|
|
0173 |
ELECTRONIC (1)
|
4931511068 |
276.00
|
|
|
0174 |
HOLDING BRACKET (1)
|
4931511069 |
9.00
|
|
|
0175 |
BRACKET (1)
|
4931511070 |
10.00
|
|
|
0176 |
LOCK (1)
|
4931511071 |
16.00
|
|
|
0177 |
HOUSING (1)
|
4931511072 |
60.00
|
|
|
0178 |
COVER (1)
|
4931511073 |
7.00
|
|
|
0179 |
RATING PLATE (1)
|
4931509522 |
1.00
|
|
|
0700 |
CARRYING CASE (1)
|
4931511074 |
63.00
|
|
|
1000 |
GREASE (2)
|
4931455865 |
17.50
|
|
|
1200 |
MAINTENANCE SET (1)
|
4931511075 |
75.00
|
|
