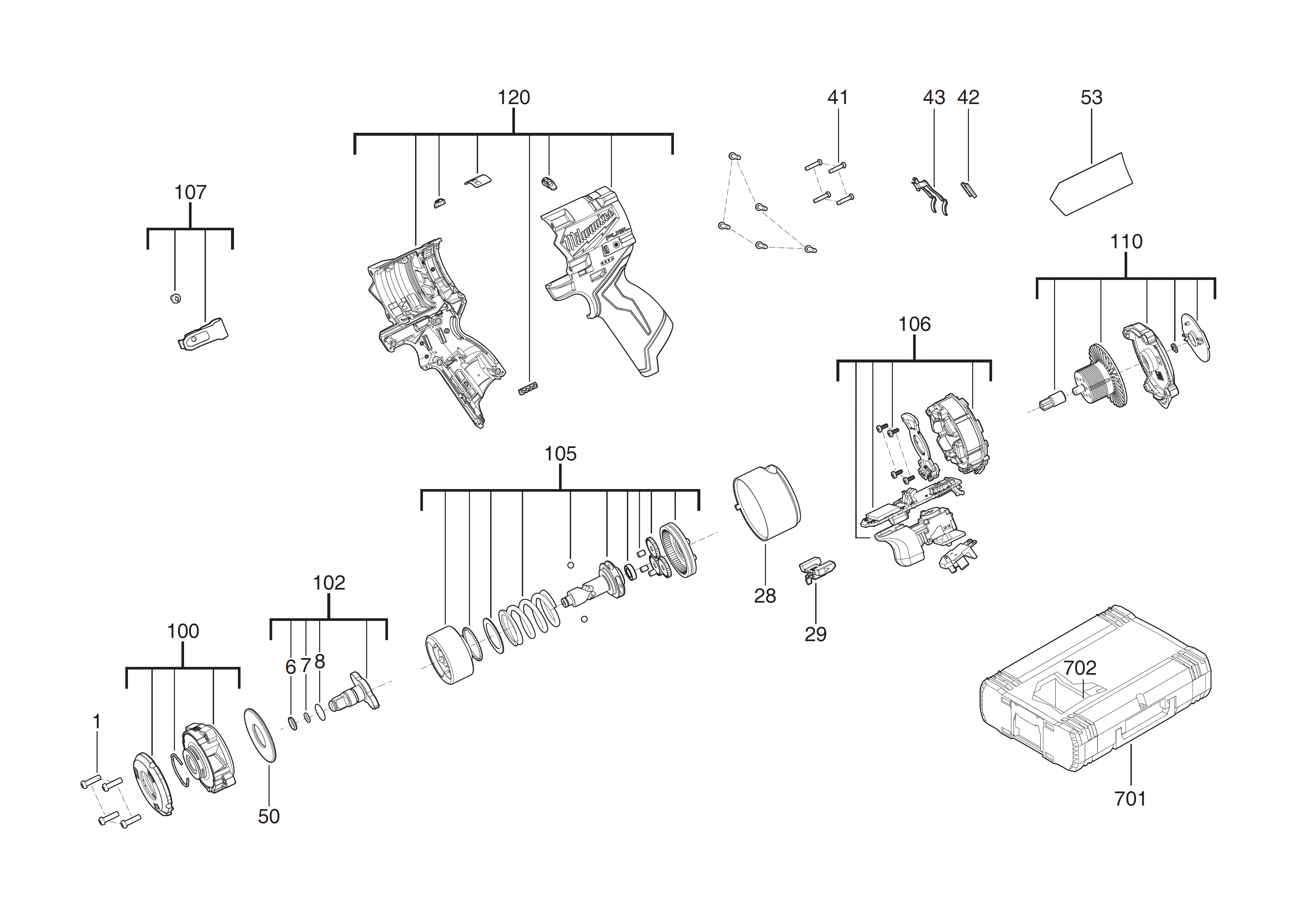

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0001 |
SCREW (4)
|
4931506043 |
1.00
|
|
|
0006 |
RING (1)
|
4931435756 |
5.50
|
|
|
0007 |
O-RING (1)
|
4931435755 |
3.00
|
|
|
0008 |
O-RING (1)
|
4931506549 |
1.50
|
|
|
0028 |
SLEEVE (1)
|
4931506538 |
3.50
|
|
|
0029 |
TRIGGER (1)
|
4931506539 |
2.50
|
|
|
0041 |
SCREW (9)
|
4931465499 |
3.00
|
|
|
0042 |
CONNECTOR (1)
|
4931436292 |
3.00
|
|
|
0043 |
SPRING (1)
|
4931506540 |
3.00
|
|
|
0050 |
WASHER (1)
|
4931465780 |
2.50
|
|
|
0053 |
RATING PLATE (1)
|
4931506550 |
1.00
|
|
|
0100 |
GEAR BOX (1)
|
4931506551 |
45.00
|
|
|
0102 |
ANVIL (1)
|
4931506552 |
35.00
|
|
|
0105 |
GEAR UNIT (1)
|
4931506544 |
77.00
|
|
|
0107 |
BELT CLIP (1)
|
4931494056 |
7.50
|
|
|
0110 |
ARMATURE (1)
|
4931508342 |
21.00
|
|
|
0120 |
HOUSING (1)
|
4931506547 |
27.00
|
|
|
0701 |
HD Box 1 - 1pc (1)
|
4932453385 |
47.30
|
|
|
0702 |
INSERT (1)
|
4931506548 |
17.50
|
|
To select the correct EU-Declaration of Conformity, please check the first 8 digits on your rating plate and match them with the corresponding EU-Declaration of Conformity document that has the same numbers in its title.
