Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

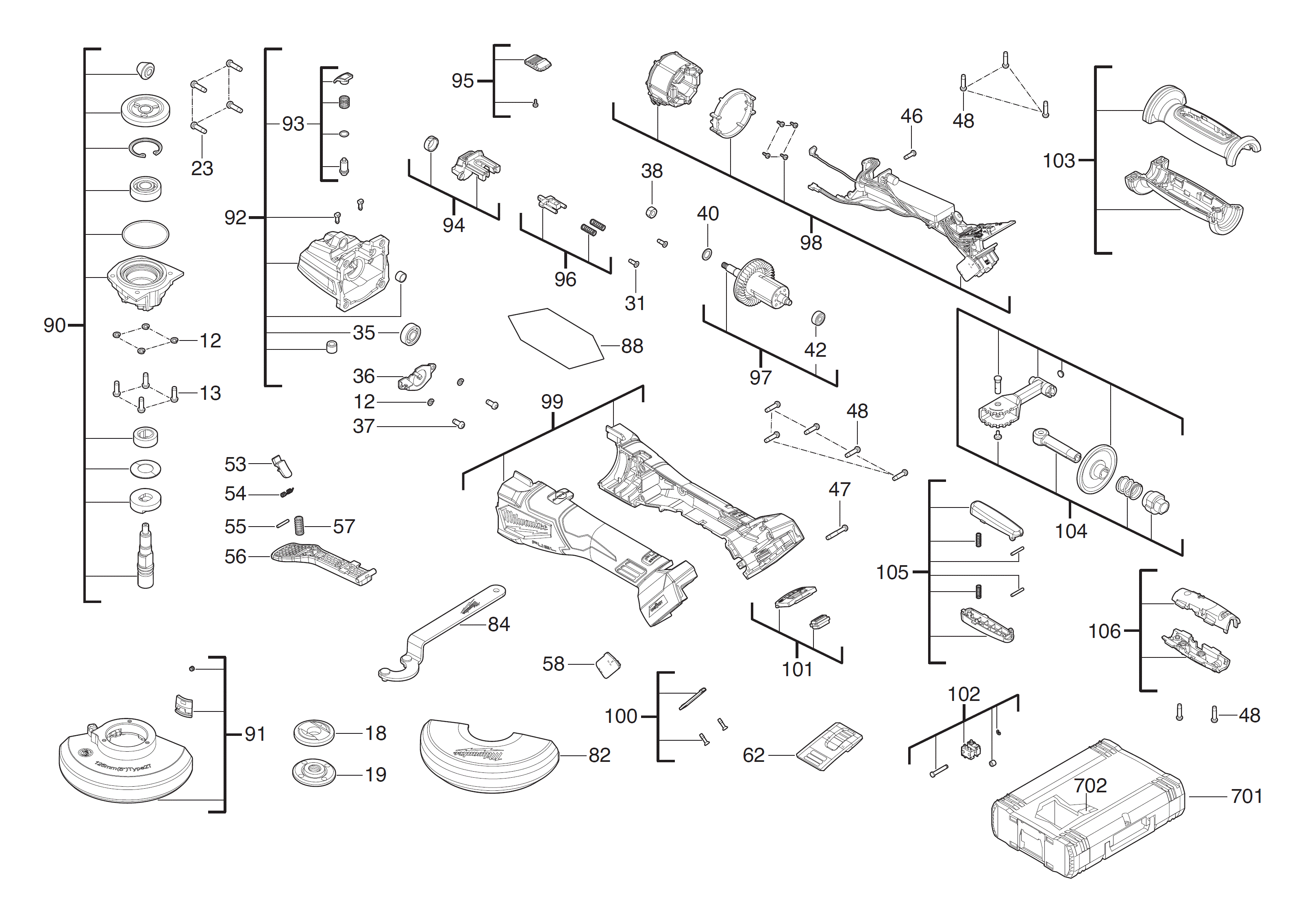

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0012 |
PROTECTION WASHER (6)
|
680866003 |
2.50
|
|
|
0013 |
SCREW (4)
|
4931435150 |
2.50
|
|
|
0018 |
FLANGE (1)
|
4931479268 |
5.00
|
|
|
0019 |
FLANGE NUT (1)
|
4931441309 |
5.00
|
|
|
0023 |
SCREW (4)
|
660024030 |
2.50
|
|
|
0031 |
SCREW (2)
|
4931496281 |
1.00
|
|
|
0035 |
BALL BEARING (1)
|
4931448373 |
2.50
|
|
|
0036 |
RETAINER (1)
|
4931496282 |
2.50
|
|
|
0037 |
SCREW (2)
|
4931473732 |
1.00
|
|
|
0038 |
NUT (1)
|
671686001 |
3.50
|
|
|
0040 |
WASHER (1)
|
4931479270 |
2.50
|
|
|
0042 |
BALL BEARING (1)
|
4931479271 |
3.50
|
|
|
0046 |
SCREW (1)
|
4931436686 |
2.50
|
|
|
0047 |
SCREW (1)
|
4931496283 |
1.00
|
|
|
0048 |
SCREW (10)
|
660031017 |
2.50
|
|
|
0053 |
TRIGGER (1)
|
4931479404 |
2.50
|
|
|
0054 |
SPRING (1)
|
4931496284 |
1.00
|
|
|
0055 |
BOLT (1)
|
4931454155 |
2.50
|
|
|
0056 |
TRIGGER (1)
|
4931496285 |
4.00
|
|
|
0057 |
SPRING (1)
|
4931479407 |
2.50
|
|
|
0058 |
ELECTRONIC (1)
|
4931473905 |
4.50
|
|
|
0062 |
COVER (1)
|
4931496286 |
4.50
|
|
|
0082 |
CUTTING GUARD (1)
|
4931479288 |
4.00
|
|
|
0084 |
SPANNER M14 (1)
|
632145002 |
5.00
|
|
|
0088 |
RATING PLATE (1)
|
4931496287 |
1.00
|
|
|
0090 |
SPINDLE (1)
|
4931496288 |
43.00
|
|
|
0091 |
GUARD (1)
|
4931496289 |
26.00
|
|
|
0092 |
GEAR CASE (1)
|
4931496290 |
33.50
|
|
|
0093 |
LOCK BOTTON (1)
|
4931496291 |
4.00
|
|
|
0094 |
CONE (1)
|
4931496292 |
13.00
|
|
|
0095 |
SWITCH (1)
|
4931496293 |
3.00
|
|
|
0096 |
SWITCH (1)
|
4931496294 |
18.00
|
|
|
0097 |
ARMATURE (1)
|
4931496295 |
47.00
|
|
|
0098 |
ELECTRONIC (1)
|
4931496296 |
150.00
|
|
|
0099 |
HOUSING (1)
|
4931496297 |
20.00
|
|
|
0100 |
HOUSING CAP (1)
|
4931496298 |
2.50
|
|
|
0101 |
SWITCH (1)
|
4931496299 |
12.00
|
|
|
0102 |
SWITCH ASSEMBLY (1)
|
4931496300 |
24.00
|
|
|
0103 |
HOUSING (1)
|
4931496301 |
7.00
|
|
|
0104 |
HANDLE (1)
|
4931496302 |
75.00
|
|
|
0105 |
SWITCH (1)
|
4931496303 |
4.00
|
|
|
0106 |
INSERT (1)
|
4931496304 |
4.00
|
|
|
0701 |
HD Box 1 - 1pc (1)
|
4932453385 |
47.30
|
|
|
0702 |
INSERT (1)
|
4931496305 |
14.50
|
|
