Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

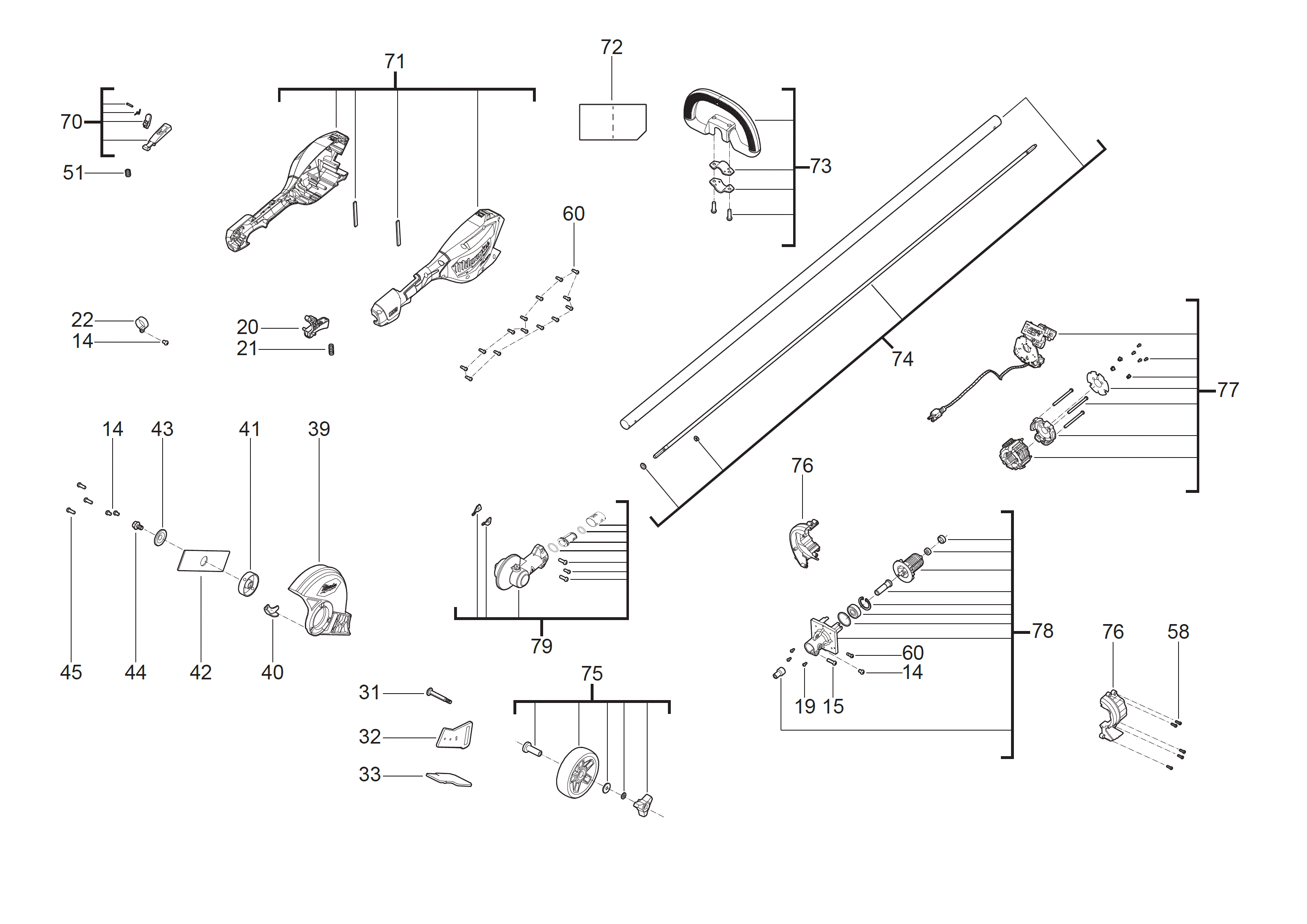

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0014 |
SCREW (4)
|
4931466677 |
1.50
|
|
|
0015 |
SCREW (1)
|
4931466683 |
1.50
|
|
|
0019 |
SCREW (3)
|
4931431788 |
2.50
|
|
|
0020 |
TRIGGER (1)
|
4931506464 |
3.00
|
|
|
0021 |
SPRING (1)
|
4931454808 |
2.50
|
|
|
0022 |
CLAMP (1)
|
4931494983 |
1.00
|
|
|
0031 |
SCREW (1)
|
4931507630 |
3.00
|
|
|
0032 |
BRACKET (1)
|
4931507631 |
10.00
|
|
|
0033 |
BRACKET (1)
|
4931507632 |
5.00
|
|
|
0039 |
GUARD CAP (1)
|
4931507633 |
35.00
|
|
|
0040 |
BRACKET (1)
|
4931507634 |
4.00
|
|
|
0041 |
CLAMPING NUT (1)
|
4931507635 |
15.00
|
|
|
0042 |
BLADE (1)
|
4931507636 |
10.00
|
|
|
0043 |
WASHER (1)
|
4931466675 |
3.50
|
|
|
0044 |
SCREW (1)
|
4931466674 |
1.00
|
|
|
0045 |
SCREW (3)
|
4931496229 |
1.00
|
|
|
0051 |
SPRING (1)
|
4931506465 |
1.00
|
|
|
0058 |
SCREW (5)
|
4931507637 |
1.00
|
|
|
0060 |
SCREW (15)
|
4931454800 |
3.00
|
|
|
0070 |
TRIGGER (1)
|
4931506475 |
14.00
|
|
|
0071 |
HOUSING (1)
|
4931507638 |
46.00
|
|
|
0072 |
RATING PLATE (1)
|
4931507639 |
1.00
|
|
|
0073 |
HANDLE SET (1)
|
4931507640 |
34.00
|
|
|
0074 |
SHAFT (1)
|
4931507641 |
81.00
|
|
|
0075 |
WHEEL (1)
|
4931507642 |
19.00
|
|
|
0076 |
HOUSING SET ASSY (1)
|
4931507643 |
14.00
|
|
|
0077 |
ELECTRONIC (1)
|
4931507644 |
183.00
|
|
|
0078 |
MOTOR (1)
|
4931507645 |
87.00
|
|
|
0079 |
GEAR BOX ASSY (1)
|
4931507646 |
108.00
|
|
To select the correct EU-Declaration of Conformity, please check the first 8 digits on your rating plate and match them with the corresponding EU-Declaration of Conformity document that has the same numbers in its title.
