Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

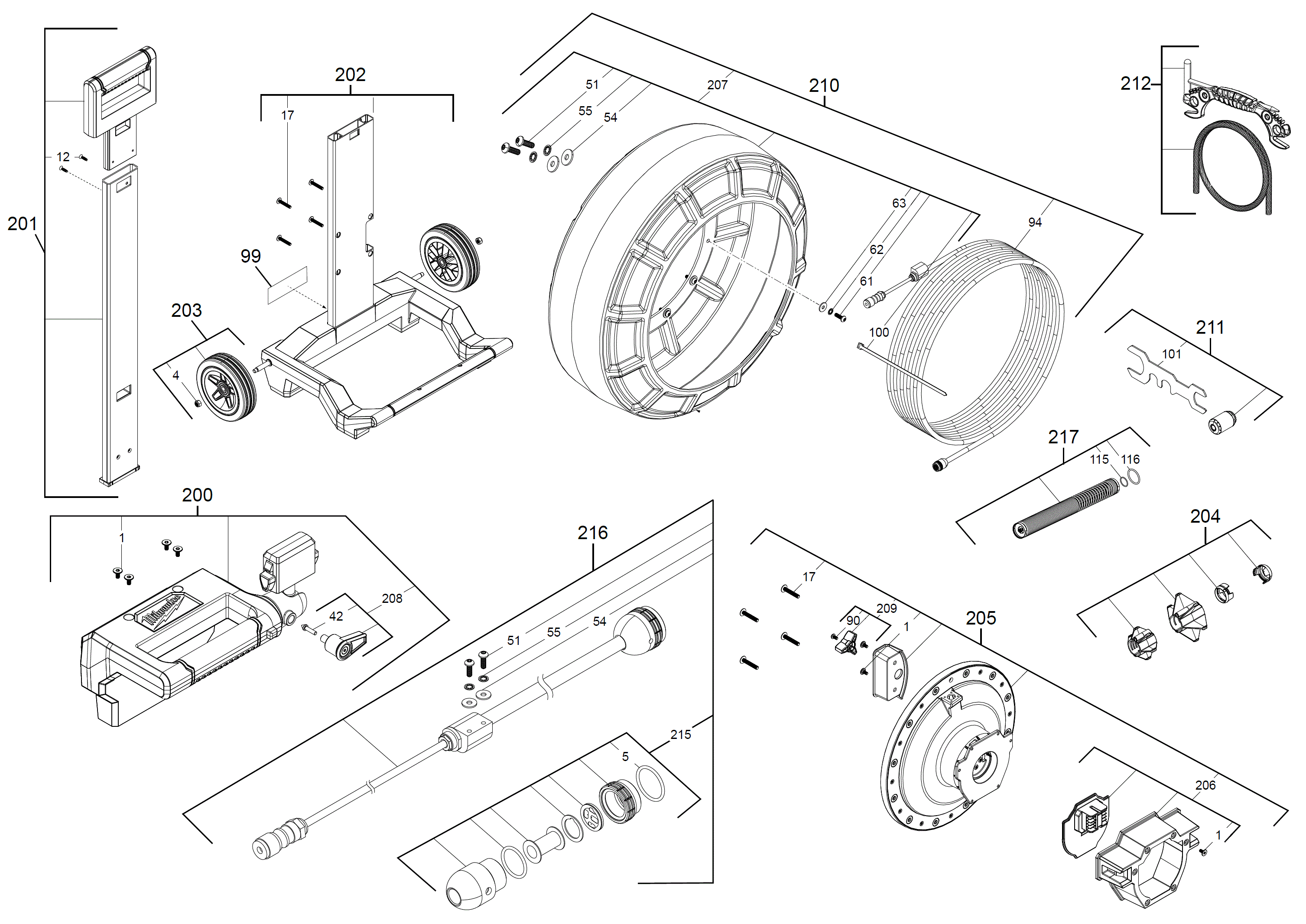

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0001 |
SCREW (12)
|
4931473597 |
2.50
|
|
|
0004 |
LOCKING NUT (2)
|
4931473628 |
2.50
|
|
|
0005 |
O-RING (1)
|
4931473629 |
3.00
|
|
|
0012 |
SCREW (3)
|
4931473630 |
2.50
|
|
|
0017 |
SCREW (8)
|
4931473600 |
2.50
|
|
|
0042 |
SCREW (1)
|
4931473601 |
13.50
|
|
|
0051 |
SCREW (4)
|
4931473602 |
1.50
|
|
|
0054 |
SEALING WASHER (4)
|
4931473603 |
2.50
|
|
|
0055 |
LOOKED WASHER (4)
|
4931473604 |
2.50
|
|
|
0061 |
SCREW (12)
|
4931473605 |
2.50
|
|
|
0062 |
LOOKED WASHER (12)
|
4931473606 |
2.50
|
|
|
0063 |
SEALING WASHER (12)
|
4931473607 |
2.50
|
|
|
0090 |
SCREW (1)
|
4931473608 |
2.50
|
|
|
0094 |
CABLE (1)
|
4931473631 |
1700.00
|
|
|
0099 |
RATING PLATE (1)
|
4931496326 |
3.50
|
|
|
0100 |
CABLE JOINT (3)
|
4931473610 |
3.00
|
|
|
0101 |
WRENCH (1)
|
4931473611 |
14.50
|
|
|
0115 |
O-RING (1)
|
4931473613 |
1.00
|
|
|
0116 |
O-RING (1)
|
4931473633 |
3.00
|
|
|
0200 |
HANDLE SET (1)
|
4931473634 |
363.00
|
|
|
0201 |
HANDLE SET (1)
|
4931473635 |
133.00
|
|
|
0202 |
HOLDING DEVICE (1)
|
4931473636 |
377.00
|
|
|
0203 |
WHEEL (2)
|
4931473637 |
68.00
|
|
|
0204 |
GUIDE SLEEVE (1)
|
4931473638 |
47.00
|
|
|
0205 |
CLAMPING SET (1)
|
4931473639 |
870.00
|
|
|
0206 |
HOUSING (1)
|
4931473640 |
78.00
|
|
|
0207 |
MOULDED PART (1)
|
4931473641 |
246.00
|
|
|
0208 |
TURNING KNOB (1)
|
4931473620 |
60.50
|
|
|
0209 |
TURNING KNOB (1)
|
4931473621 |
17.00
|
|
|
0210 |
HUB (1)
|
4931473642 |
1660.00
|
|
|
0211 |
INSPECTION CAMERA (1)
|
Item discontinued
(4931481927) |
|
|
|
0212 |
CABLE SET (1)
|
4931473526 |
138.50
|
|
|
0215 |
GUIDE (1)
|
4931473644 |
148.50
|
|
|
0216 |
INSPECTION CAMERA (1)
|
4931473645 |
270.00
|
|
|
0217 |
SPRING (1)
|
4931473646 |
546.00
|
|
To select the correct EU-Declaration of Conformity, please check the first 8 digits on your rating plate and match them with the corresponding EU-Declaration of Conformity document that has the same numbers in its title.
