Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

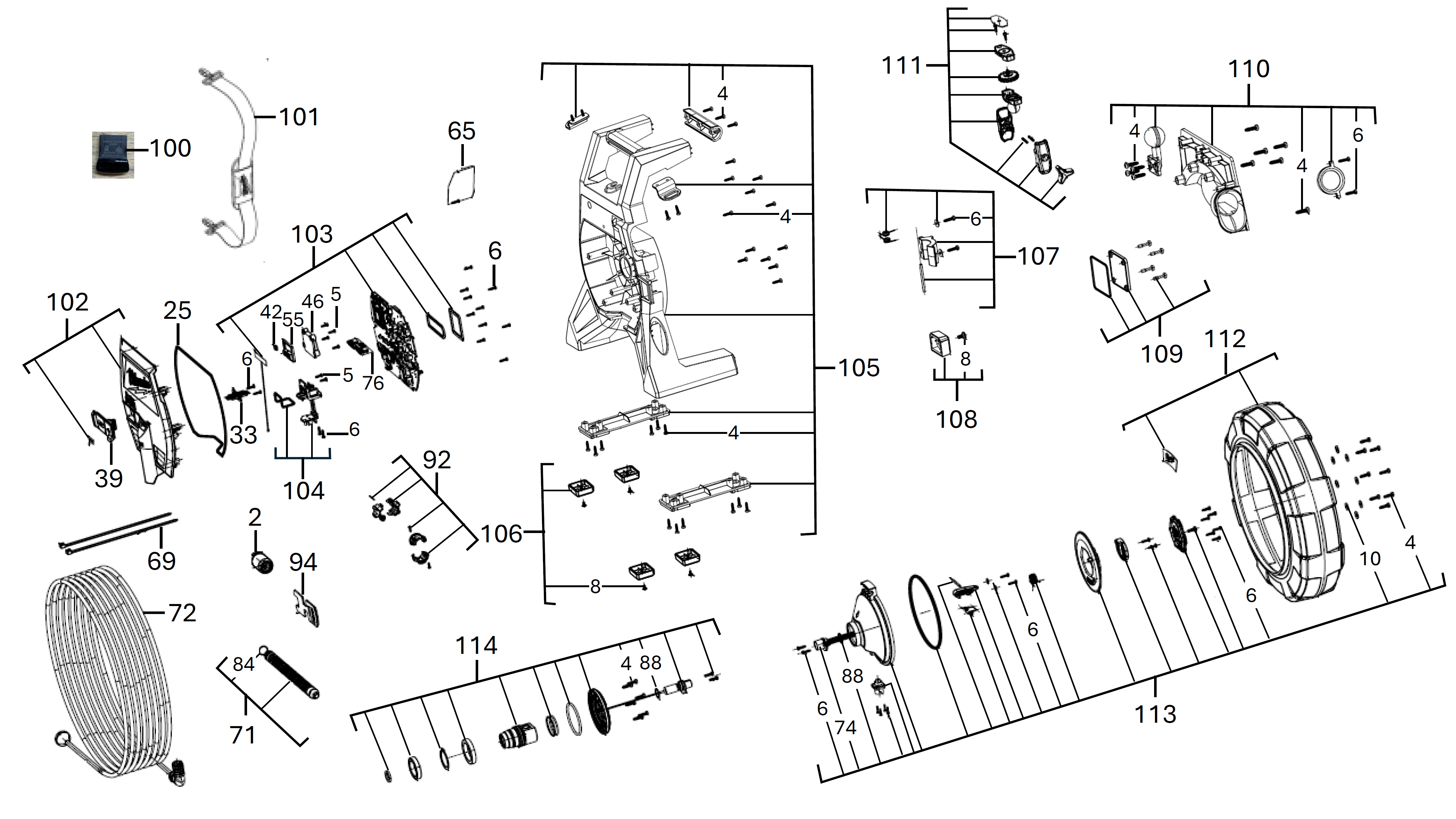

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0002 |
INSPECTION CAMERA (1)
|
4931508612 |
441.50
|
|
|
0004 |
SCREW (47)
|
4931473648 |
1.50
|
|
|
0005 |
SCREW (6)
|
4931508614 |
1.00
|
|
|
0006 |
SCREW (28)
|
4931473647 |
2.50
|
|
|
0008 |
SCREW (8)
|
4931473597 |
2.50
|
|
|
0010 |
SEALING WASHER (8)
|
4931473603 |
2.50
|
|
|
0025 |
SEAL (1)
|
4931508615 |
10.00
|
|
|
0033 |
GAUGE (1)
|
4931508616 |
5.00
|
|
|
0039 |
COVER (1)
|
4931508617 |
11.00
|
|
|
0042 |
LENS (1)
|
4931508618 |
7.00
|
|
|
0046 |
COVER (1)
|
4931508619 |
5.00
|
|
|
0055 |
BUTTON (1)
|
4931508620 |
61.00
|
|
|
0065 |
RATING PLATE (1)
|
4931508621 |
3.00
|
|
|
0069 |
CABLE JOINT (2)
|
4931473610 |
3.00
|
|
|
0071 |
SPRING (1)
|
4931508622 |
284.50
|
|
|
0072 |
CABLE (1)
|
4931508623 |
491.00
|
|
|
0074 |
CONNECTOR (1)
|
4931508624 |
100.00
|
|
|
0076 |
ELECTRONIC (1)
|
4931508625 |
97.00
|
|
|
0084 |
SPRING (1)
|
4931508626 |
1.00
|
|
|
0088 |
O-RING (2)
|
4931473613 |
1.00
|
|
|
0092 |
SLEEVE (1)
|
4931508627 |
20.50
|
|
|
0094 |
WRENCH (1)
|
4931508628 |
12.00
|
|
|
0100 |
SWITCH KIT (1)
|
4931508629 |
88.50
|
|
|
0101 |
STRAP (1)
|
4931479039 |
20.00
|
|
|
0102 |
HOUSING (1)
|
4931508630 |
46.00
|
|
|
0103 |
ELECTRONIC (1)
|
4931508631 |
876.00
|
|
|
0104 |
COVER (1)
|
4931508632 |
17.00
|
|
|
0105 |
HOUSING (1)
|
4931508633 |
118.50
|
|
|
0106 |
FOOT (1)
|
4931508634 |
65.00
|
|
|
0107 |
CLIP (1)
|
4931508635 |
13.00
|
|
|
0108 |
FOOT (1)
|
4931508636 |
30.00
|
|
|
0109 |
DOOR (1)
|
4931508637 |
17.00
|
|
|
0110 |
COVER (1)
|
4931508638 |
90.00
|
|
|
0111 |
MOUNTING BRACKET (1)
|
4931508639 |
77.00
|
|
|
0112 |
MOULDED PART (1)
|
4931508640 |
89.00
|
|
|
0113 |
HUB (1)
|
4931508641 |
157.00
|
|
|
0114 |
FRAME (1)
|
4931508642 |
192.00
|
|
To select the correct EU-Declaration of Conformity, please check the first 8 digits on your rating plate and match them with the corresponding EU-Declaration of Conformity document that has the same numbers in its title.
