Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

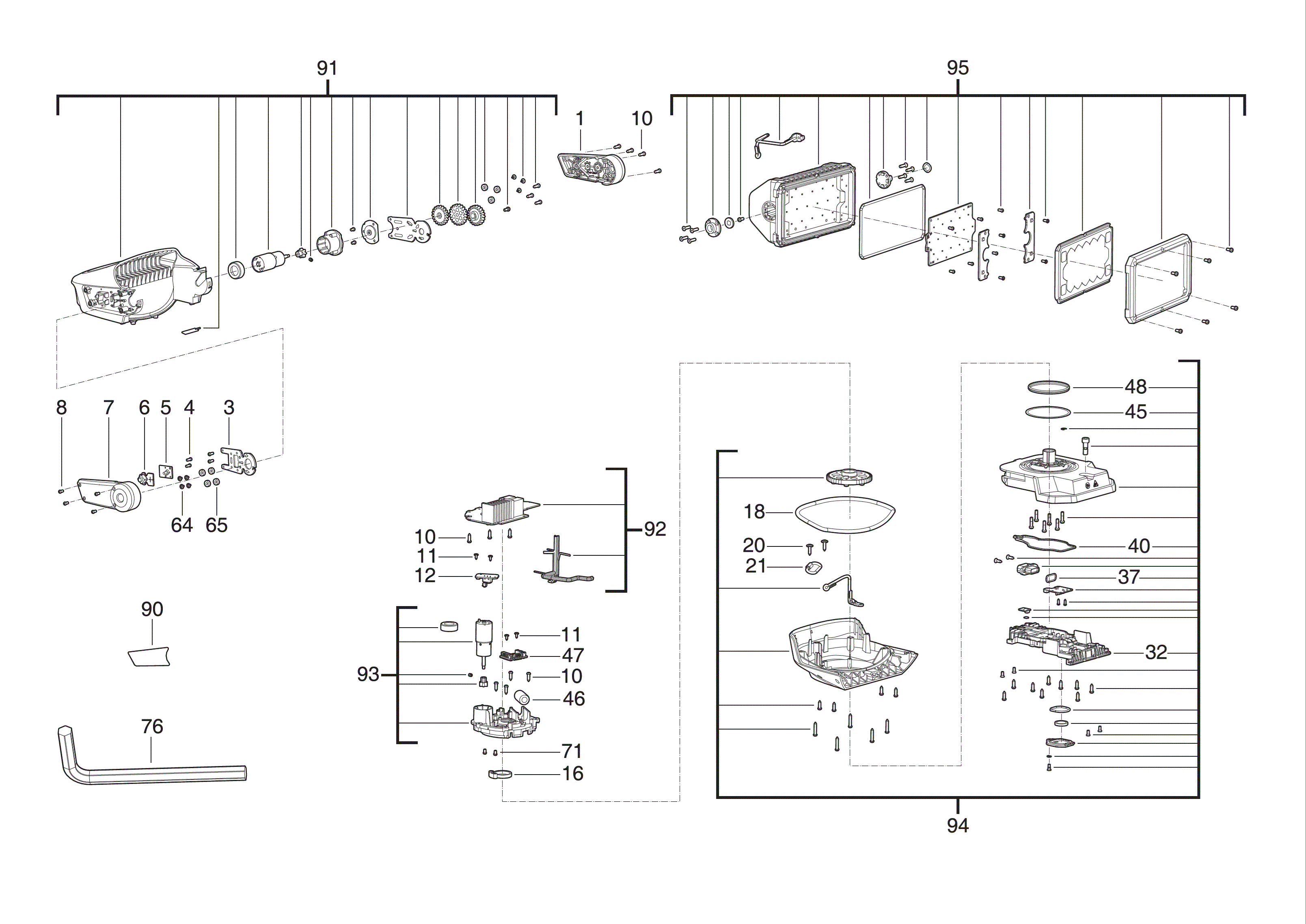

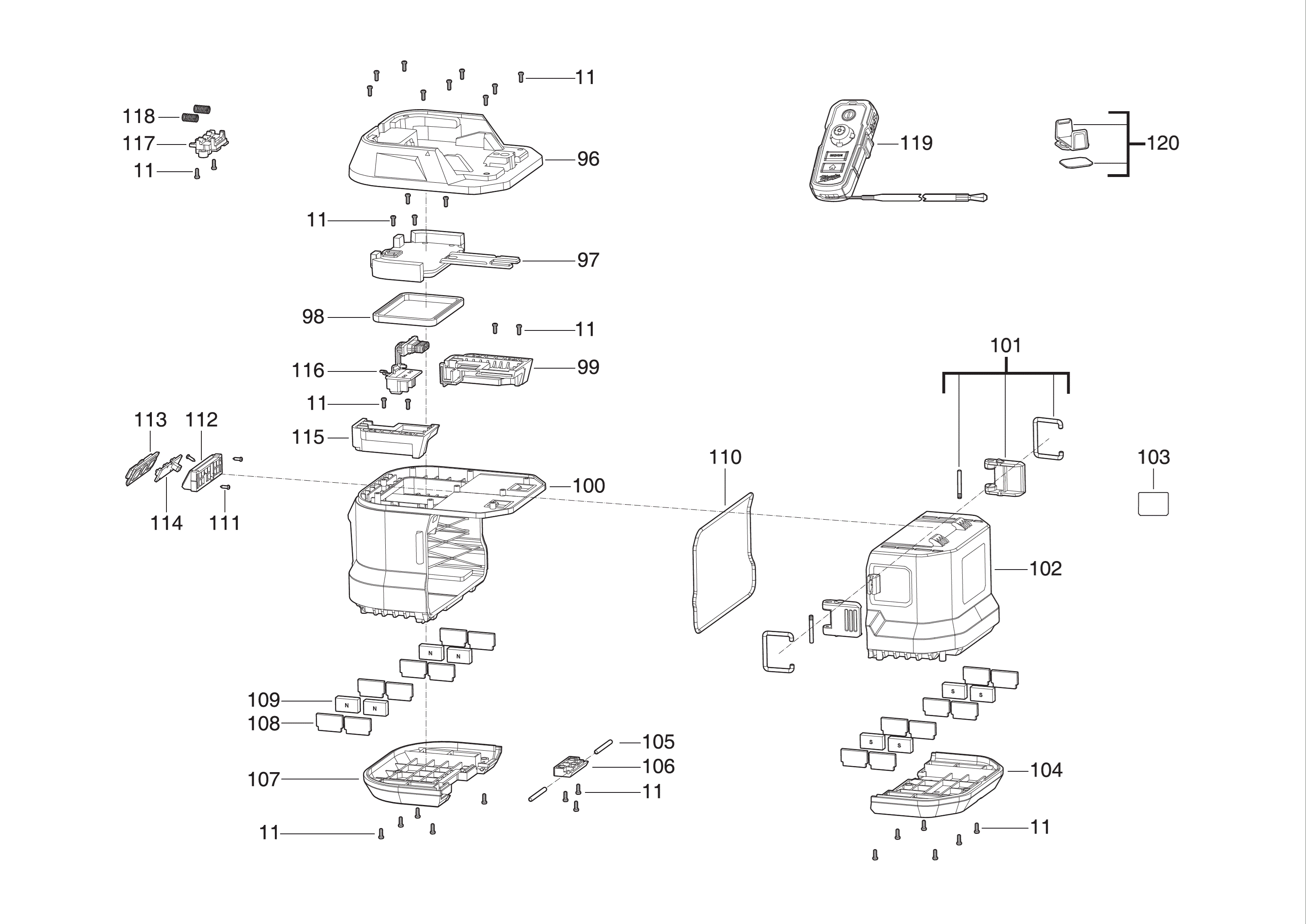

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0001 |
COVER (1)
|
4931508134 |
21.00
|
|
|
0003 |
SUPPORT (1)
|
4931508135 |
24.00
|
|
|
0004 |
SCREW (4)
|
4931508136 |
4.00
|
|
|
0005 |
SWITCH BUTTON (1)
|
4931508137 |
8.00
|
|
|
0006 |
PAD (1)
|
4931508138 |
5.00
|
|
|
0007 |
COVER (1)
|
4931508139 |
27.00
|
|
|
0008 |
SCREW (4)
|
4931508140 |
4.00
|
|
|
0010 |
SCREW (11)
|
4931508141 |
2.50
|
|
|
0011 |
SCREW (37)
|
4931508142 |
4.00
|
|
|
0012 |
ELECTRONIC (1)
|
4931508143 |
32.00
|
|
|
0016 |
BLOCK (1)
|
4931508144 |
5.00
|
|
|
0018 |
HOUSING (1)
|
4931508145 |
8.00
|
|
|
0020 |
SCREW (2)
|
4931508146 |
4.00
|
|
|
0021 |
CLIP (1)
|
4931508147 |
14.00
|
|
|
0032 |
COVER (1)
|
4931508148 |
42.00
|
|
|
0037 |
RUBBER (1)
|
4931508149 |
5.00
|
|
|
0040 |
BASE PLATE (1)
|
4931508150 |
11.00
|
|
|
0045 |
SEAL RING (1)
|
4931508151 |
4.00
|
|
|
0046 |
RING (1)
|
4931508152 |
6.00
|
|
|
0047 |
BRACKET (1)
|
4931508153 |
77.00
|
|
|
0048 |
SEAL RING (1)
|
4931508154 |
9.00
|
|
|
0064 |
SCREW (4)
|
4931508155 |
4.00
|
|
|
0065 |
SUPPORT (4)
|
4931508156 |
5.00
|
|
|
0076 |
HEX WRENCH (1)
|
4931508157 |
8.00
|
|
|
0090 |
RATING PLATE (1)
|
4931508158 |
6.00
|
|
|
0091 |
COVER (1)
|
4931508159 |
150.00
|
|
|
0092 |
ELECTRONIC (1)
|
4931508160 |
165.00
|
|
|
0093 |
MOTOR (1)
|
4931508161 |
75.00
|
|
|
0094 |
BASE PLATE (1)
|
4931508162 |
172.00
|
|
|
0095 |
LAMP (1)
|
4931508163 |
312.00
|
|
|
0096 |
COVER (1)
|
4931508164 |
37.00
|
|
|
0097 |
COVER (1)
|
4931508165 |
12.00
|
|
|
0098 |
RUBBER (1)
|
4931508166 |
7.00
|
|
|
0099 |
BASE PLATE (1)
|
4931508167 |
10.00
|
|
|
0100 |
BODY (1)
|
4931508168 |
64.00
|
|
|
0101 |
QUICK-FASTENER (2)
|
4931508169 |
17.00
|
|
|
0102 |
COVER (1)
|
4931508170 |
40.00
|
|
|
0103 |
RATING PLATE (1)
|
4931508171 |
6.00
|
|
|
0104 |
COVER (1)
|
4931508172 |
23.00
|
|
|
0105 |
AXLE (1)
|
4931508173 |
9.00
|
|
|
0106 |
AXLE (1)
|
4931508174 |
4.00
|
|
|
0107 |
COVER (1)
|
4931508175 |
22.00
|
|
|
0108 |
HOLDER (16)
|
4931508176 |
28.00
|
|
|
0109 |
MAGNET (8)
|
Item discontinued
(4931508177) |
|
|
|
0110 |
DOOR (1)
|
4931508178 |
4.00
|
|
|
0111 |
SCREW (3)
|
4931508179 |
4.00
|
|
|
0112 |
COVER (1)
|
4931508180 |
6.00
|
|
|
0113 |
BUTTON (1)
|
4931508181 |
6.00
|
|
|
0114 |
ELECTRONIC (1)
|
4931508182 |
18.00
|
|
|
0115 |
COVER (1)
|
4931508183 |
10.00
|
|
|
0116 |
CONNECTION SLEEVE (1)
|
4931508184 |
60.00
|
|
|
0117 |
HOLDER (1)
|
4931508185 |
5.00
|
|
|
0118 |
SPRING (2)
|
4931508186 |
4.00
|
|
|
0119 |
REMOTE TSC CONTROL (1)
|
4931510198 |
105.00
|
|
|
0120 |
BRACKET (1)
|
4931508187 |
11.00
|
|
To select the correct EU-Declaration of Conformity, please check the first 8 digits on your rating plate and match them with the corresponding EU-Declaration of Conformity document that has the same numbers in its title.
