Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

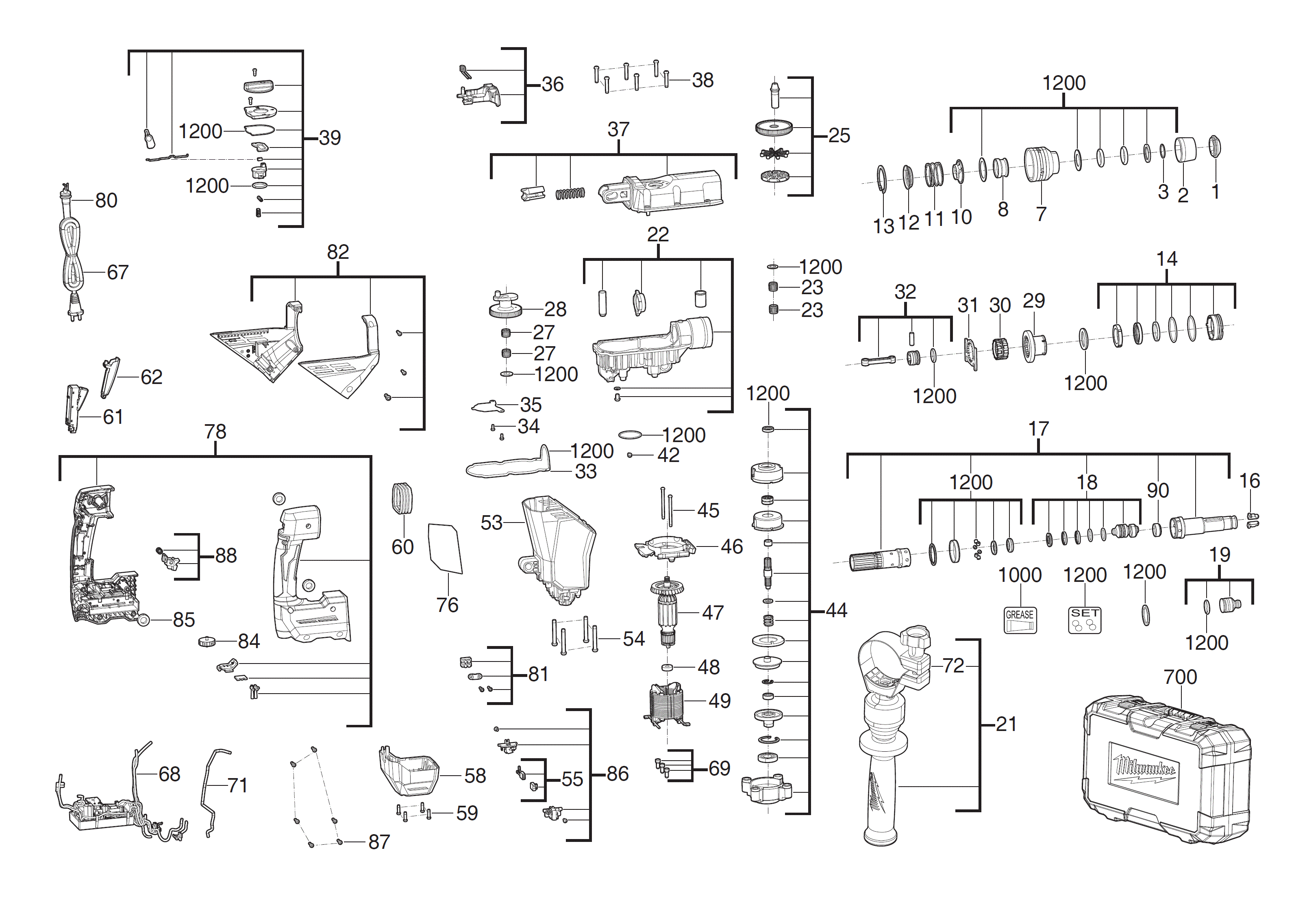

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0001 |
RUBBER CAP (1)
|
4931435353 |
4.00
|
|
|
0002 |
CAP (1)
|
4931435133 |
2.50
|
|
|
0003 |
HOLDING RING (1)
|
4931435134 |
2.50
|
|
|
0007 |
COLLAR (1)
|
4931435138 |
3.50
|
|
|
0008 |
INTERLOCK SLEAVE (1)
|
4931435139 |
13.50
|
|
|
0010 |
INTERLOCK ELEMENT (1)
|
4931466761 |
4.00
|
|
|
0011 |
SPRING (1)
|
4931435140 |
2.50
|
|
|
0012 |
PLATE (1)
|
633152001 |
3.50
|
|
|
0013 |
PROTECTION WASHER (1)
|
4931435141 |
2.50
|
|
|
0014 |
BEARING END PLATE (1)
|
4931466634 |
25.50
|
|
|
0016 |
CAM (2)
|
4931435144 |
8.00
|
|
|
0017 |
SPINDLE KIT (1)
|
4931466635 |
194.50
|
|
|
0018 |
SNAP DIE (1)
|
4931466636 |
63.00
|
|
|
0019 |
PERCUSSION BODY (1)
|
4931466637 |
28.50
|
|
|
0021 |
AUXILIARY HANDLE (1)
|
4931466638 |
51.50
|
|
|
0022 |
GEAR BOX (1)
|
4931466832 |
105.50
|
|
|
0023 |
NEEDLE BEARING (2)
|
4931466640 |
4.00
|
|
|
0025 |
SLIP CLUTCH (1)
|
4931466641 |
87.50
|
|
|
0027 |
NEEDLE BEARING (2)
|
4931435168 |
6.00
|
|
|
0028 |
CRANK WHEEL (1)
|
4931466642 |
58.00
|
|
|
0029 |
BEVEL GEAR (1)
|
4931466643 |
59.00
|
|
|
0030 |
SET COLLAR (1)
|
4931466644 |
12.00
|
|
|
0031 |
LOCKING PLATE (1)
|
4931466645 |
4.50
|
|
|
0032 |
PISTON AND CONROD ASSY (1)
|
4931506346 |
33.50
|
|
|
0033 |
GASKET (1)
|
4931495609 |
10.00
|
|
|
0034 |
SCREW (2)
|
4931506119 |
1.00
|
|
|
0035 |
LATCH PLATE (1)
|
4931466647 |
4.00
|
|
|
0036 |
ADJUSTING PIECE (1)
|
4931466648 |
7.00
|
|
|
0037 |
GEAR BOX ASSY (1)
|
4931506748 |
23.00
|
|
|
0038 |
SCREW (6)
|
4931435158 |
2.50
|
|
|
0039 |
SWITCH (1)
|
4931466835 |
16.50
|
|
|
0042 |
SCREW (1)
|
4931435162 |
1.00
|
|
|
0044 |
COUPLING SET (1)
|
4931466836 |
223.50
|
|
|
0045 |
SCREW (2)
|
4931466837 |
2.50
|
|
|
0046 |
FAN HOUSING (1)
|
4931506749 |
2.50
|
|
|
0047 |
ROTOR (1)
|
4931506750 |
103.00
|
|
|
0048 |
BALL BEARING (1)
|
4931435170 |
6.00
|
|
|
0049 |
ELECTRIC FIELD (1)
|
4931472072 |
78.00
|
|
|
0053 |
MOTOR HOUSING (1)
|
4931506751 |
32.00
|
|
|
0054 |
SCREW (4)
|
4931466654 |
2.50
|
|
|
0055 |
CARBON BRUSH (1)
|
4931472073 |
25.50
|
|
|
0058 |
END COVER CAP (1)
|
4931466843 |
8.00
|
|
|
0059 |
SCREW (4)
|
4931473265 |
1.00
|
|
|
0060 |
RUBBER BUFFER (1)
|
4931506752 |
4.00
|
|
|
0061 |
TRIGGER (1)
|
4931507223 |
27.50
|
|
|
0062 |
SWITCH COVER (1)
|
4931466846 |
4.00
|
|
|
0067 |
POWER CORD (1)
|
4931466859 |
56.00
|
|
|
0068 |
ELECTRONIC (1)
|
4931506753 |
140.00
|
|
|
0069 |
CONNECTOR (1)
|
4931506130 |
1.00
|
|
|
0071 |
WIRE (1)
|
4931472075 |
2.50
|
|
|
0072 |
BAND (1)
|
4931466657 |
22.50
|
|
|
0076 |
RATING PLATE (1)
|
4931506754 |
1.00
|
|
|
0078 |
HOUSING (1)
|
4931506755 |
38.00
|
|
|
0080 |
CABLE ENTRY SLEEVE (1)
|
44760210 |
2.50
|
|
|
0081 |
GEAR COVER (1)
|
4931466852 |
4.00
|
|
|
0082 |
HOUSING (1)
|
4931506756 |
9.00
|
|
|
0084 |
SPEED GOVERNOR (1)
|
4931466854 |
4.00
|
|
|
0085 |
BUFFER (1)
|
4931466855 |
2.50
|
|
|
0086 |
BRUSH HOLDER (1)
|
4931466856 |
10.00
|
|
|
0087 |
SCREW (6)
|
4931466659 |
1.50
|
|
|
0088 |
LOCKING PIECE (1)
|
4931466850 |
5.00
|
|
|
0090 |
STOP WASHER (1)
|
4931479423 |
12.00
|
|
|
0700 |
CARRYING CASE (1)
|
4931506757 |
101.00
|
|
|
1000 |
GREASE (1)
|
4931455865 |
17.50
|
|
|
1200 |
MAINTENANCE SET (1)
|
4931466858 |
86.00
|
|
To select the correct EU-Declaration of Conformity, please check the first 8 digits on your rating plate and match them with the corresponding EU-Declaration of Conformity document that has the same numbers in its title.
