Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

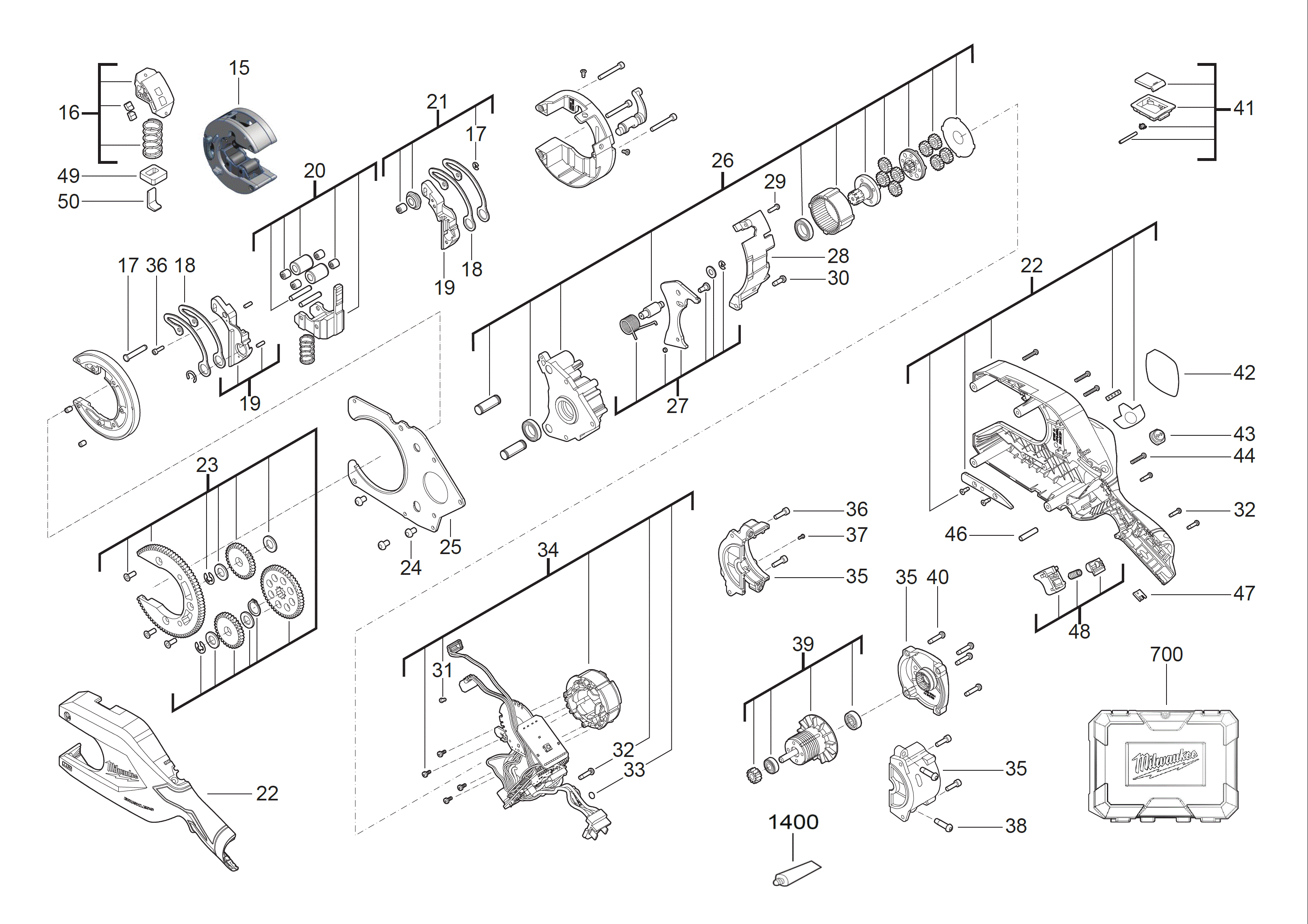

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0015 |
CUTTING HEAD (1)
|
4931507786 |
181.00
|
|
|
0016 |
PRESSURE SPRING (1)
|
4931507787 |
8.00
|
|
|
0017 |
CLAMP CLIP (1)
|
4931507788 |
8.50
|
|
|
0018 |
SPRING (4)
|
4931507789 |
12.00
|
|
|
0019 |
CARRIAGE (1)
|
4931507790 |
99.00
|
|
|
0020 |
ROLLER (1)
|
4931507791 |
80.00
|
|
|
0021 |
PCSSW54 Wheels for 54 mm Pipe Cutter XXX (1)
|
4932498665 |
39.00
|
|
|
0022 |
HANDLE SET (1)
|
4931507792 |
41.00
|
|
|
0023 |
GEAR (1)
|
4931507793 |
96.00
|
|
|
0024 |
SCREW (3)
|
4931466677 |
1.50
|
|
|
0025 |
GEAR CASE (1)
|
4931507794 |
37.00
|
|
|
0026 |
GEAR BOX (1)
|
4931507795 |
76.00
|
|
|
0027 |
LEVER (1)
|
4931507796 |
12.00
|
|
|
0028 |
COVER (1)
|
4931507797 |
4.00
|
|
|
0029 |
SCREW (1)
|
4931495588 |
1.50
|
|
|
0030 |
SCREW (1)
|
4931507811 |
2.50
|
|
|
0031 |
SCREW (1)
|
4931465128 |
3.00
|
|
|
0032 |
SCREW (4)
|
660570005 |
3.00
|
|
|
0033 |
O-RING (1)
|
4931480707 |
3.00
|
|
|
0034 |
ELECTRONIC (1)
|
4931507798 |
115.00
|
|
|
0035 |
MOTOR HOUSING (1)
|
4931507799 |
11.00
|
|
|
0036 |
SCREW (5)
|
4931479060 |
3.00
|
|
|
0037 |
SCREW (1)
|
4931507800 |
2.50
|
|
|
0038 |
SCREW (2)
|
4931495662 |
1.50
|
|
|
0039 |
ROTOR (1)
|
4931507801 |
36.00
|
|
|
0040 |
SCREW (4)
|
4931465499 |
3.00
|
|
|
0041 |
LID (1)
|
4931507802 |
8.00
|
|
|
0042 |
RATING PLATE (1)
|
4931507803 |
3.00
|
|
|
0043 |
BUTTON (1)
|
4931507804 |
3.00
|
|
|
0044 |
SCREW (4)
|
4931507805 |
2.50
|
|
|
0046 |
PIN (1)
|
4931507806 |
3.00
|
|
|
0047 |
CONNECTOR (1)
|
4931436292 |
3.00
|
|
|
0048 |
TRIGGER (1)
|
4931507807 |
5.00
|
|
|
0049 |
INTERLOCK PLATE (1)
|
4931507808 |
9.00
|
|
|
0050 |
LIFTER ASSEMBLY (1)
|
4931507809 |
7.00
|
|
|
0700 |
CARRYING CASE (1)
|
4931507810 |
55.00
|
|
|
1400 |
OIL (1)
|
4931491278 |
13.00
|
|
