Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

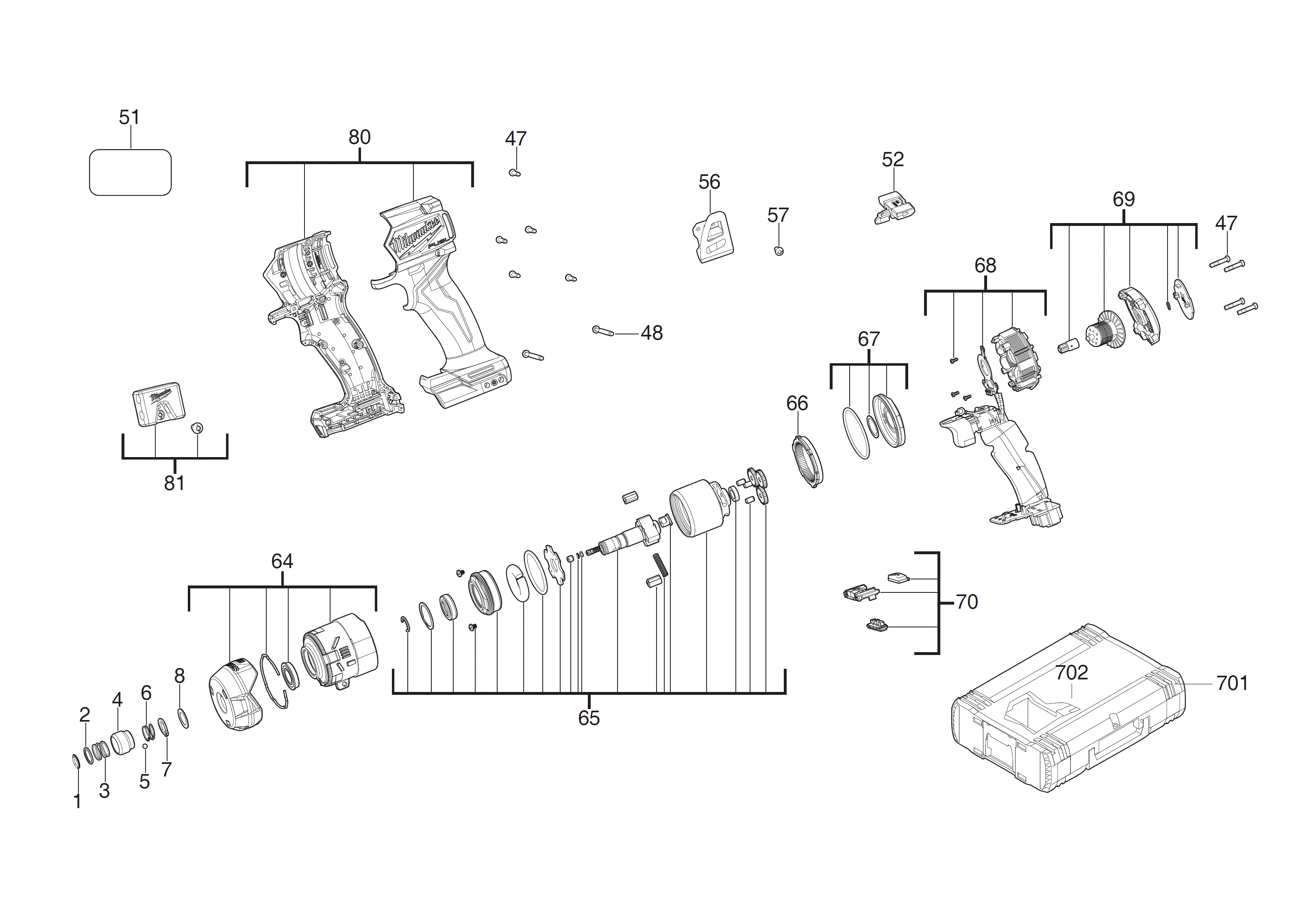

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0001 |
SNAP RING (1)
|
4931494044 |
3.00
|
|
|
0002 |
WASHER (1)
|
4931466862 |
3.00
|
|
|
0003 |
SPRING (1)
|
4931440467 |
3.00
|
|
|
0004 |
SLEEVE (1)
|
4931454722 |
5.50
|
|
|
0005 |
BALL (1)
|
4931440304 |
3.00
|
|
|
0006 |
SPRING (1)
|
4931466863 |
1.50
|
|
|
0007 |
HOLDING RING (1)
|
4931454723 |
3.00
|
|
|
0008 |
WASHER (1)
|
4931508976 |
2.50
|
|
|
0047 |
SCREW (9)
|
4931465499 |
3.00
|
|
|
0048 |
SCREW (2)
|
4931454852 |
3.00
|
|
|
0051 |
RATING PLATE (1)
|
4931505536 |
2.50
|
|
|
0052 |
BUTTON (1)
|
4931508977 |
2.50
|
|
|
0056 |
HOOK (1)
|
4931436134 |
4.50
|
|
|
0057 |
SCREW (1)
|
4931465986 |
1.50
|
|
|
0064 |
GEAR CASE (1)
|
4931508978 |
46.00
|
|
|
0065 |
GEAR BOX ASSY (1)
|
4931508979 |
120.00
|
|
|
0066 |
GEAR SLEEVE (1)
|
4931508980 |
13.00
|
|
|
0067 |
PROTECTIVE CAP (1)
|
4931508981 |
16.00
|
|
|
0068 |
ELECTRONIC (1)
|
4931508982 |
96.00
|
|
|
0069 |
ROTOR (1)
|
4931508983 |
39.00
|
|
|
0070 |
ADJUSTING BUTTON (1)
|
4931508984 |
12.00
|
|
|
0080 |
HANDLE COMPL. (1)
|
4931508985 |
19.00
|
|
|
0081 |
BIT HOLDER (1)
|
4931508986 |
15.00
|
|
|
0701 |
HD Box 1 - 1pc (1)
|
4932453385 |
47.30
|
|
|
0702 |
INSERT (1)
|
4931508987 |
15.00
|
|
