Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

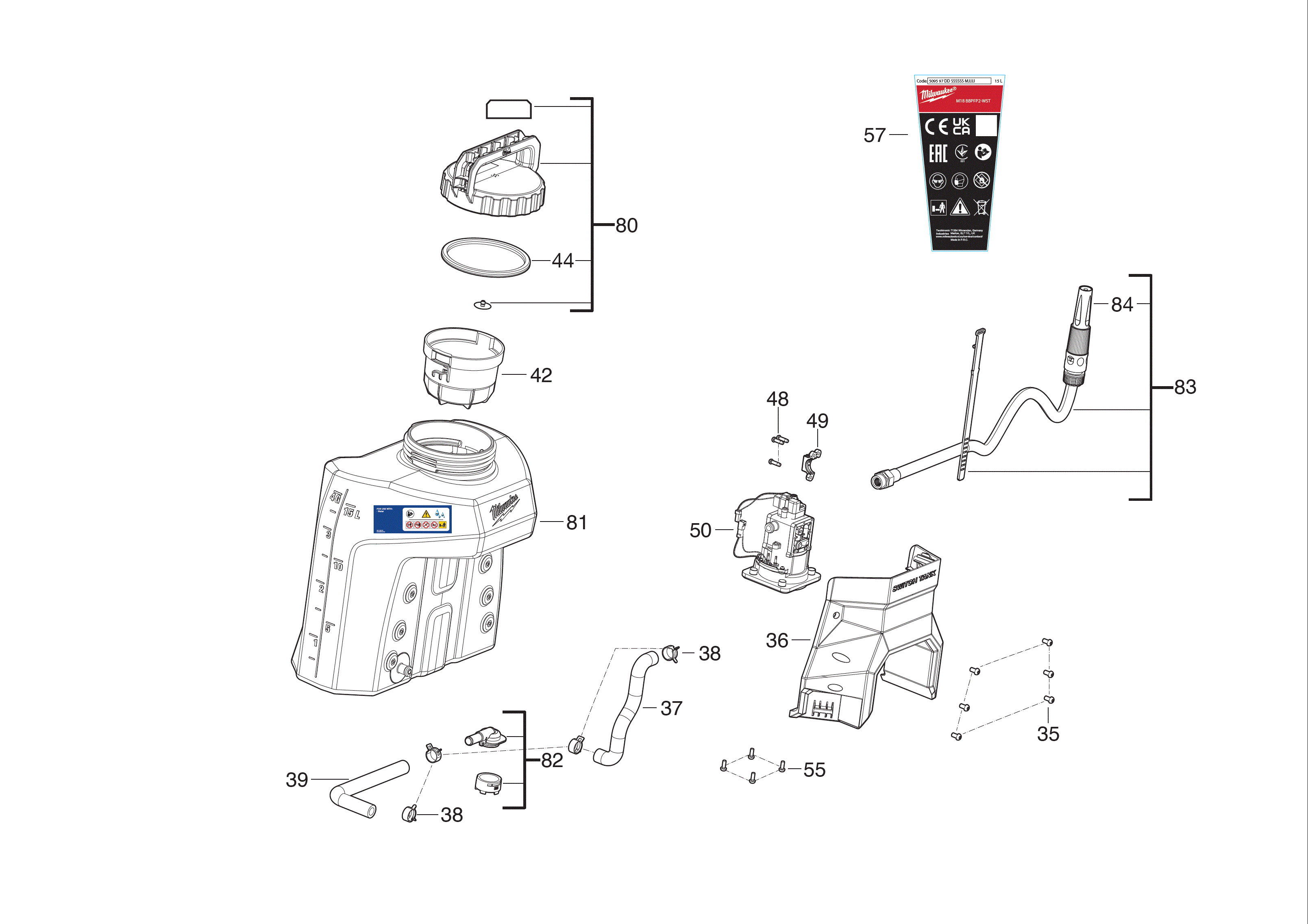

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0035 |
SCREW (6)
|
4931466691 |
1.00
|
|
|
0036 |
HOUSING (1)
|
4931507836 |
12.00
|
|
|
0037 |
HOSE (1)
|
4931507837 |
7.00
|
|
|
0038 |
CLAMP (4)
|
4931507838 |
3.00
|
|
|
0039 |
TUBE (1)
|
4931507839 |
7.00
|
|
|
0042 |
STRAINER (1)
|
4931507840 |
6.00
|
|
|
0044 |
GASKET (1)
|
4931507842 |
21.00
|
|
|
0048 |
SCREW (3)
|
4931495662 |
1.50
|
|
|
0049 |
CLAMP (1)
|
4931507843 |
2.50
|
|
|
0050 |
PUMP (1)
|
4931507853 |
121.00
|
|
|
0055 |
SCREW (4)
|
4931454301 |
2.50
|
|
|
0057 |
RATING PLATE (1)
|
4931507854 |
1.00
|
|
|
0080 |
COVER ASSY (1)
|
4931507855 |
21.00
|
|
|
0081 |
TANK (1)
|
4931507856 |
57.00
|
|
|
0082 |
CONNECTOR (1)
|
4931507849 |
28.00
|
|
|
0083 |
HOSE (1)
|
4931507857 |
70.00
|
|
|
0084 |
SPRAYER (1)
|
4931507858 |
24.00
|
|
To select the correct EU-Declaration of Conformity, please check the first 8 digits on your rating plate and match them with the corresponding EU-Declaration of Conformity document that has the same numbers in its title.
